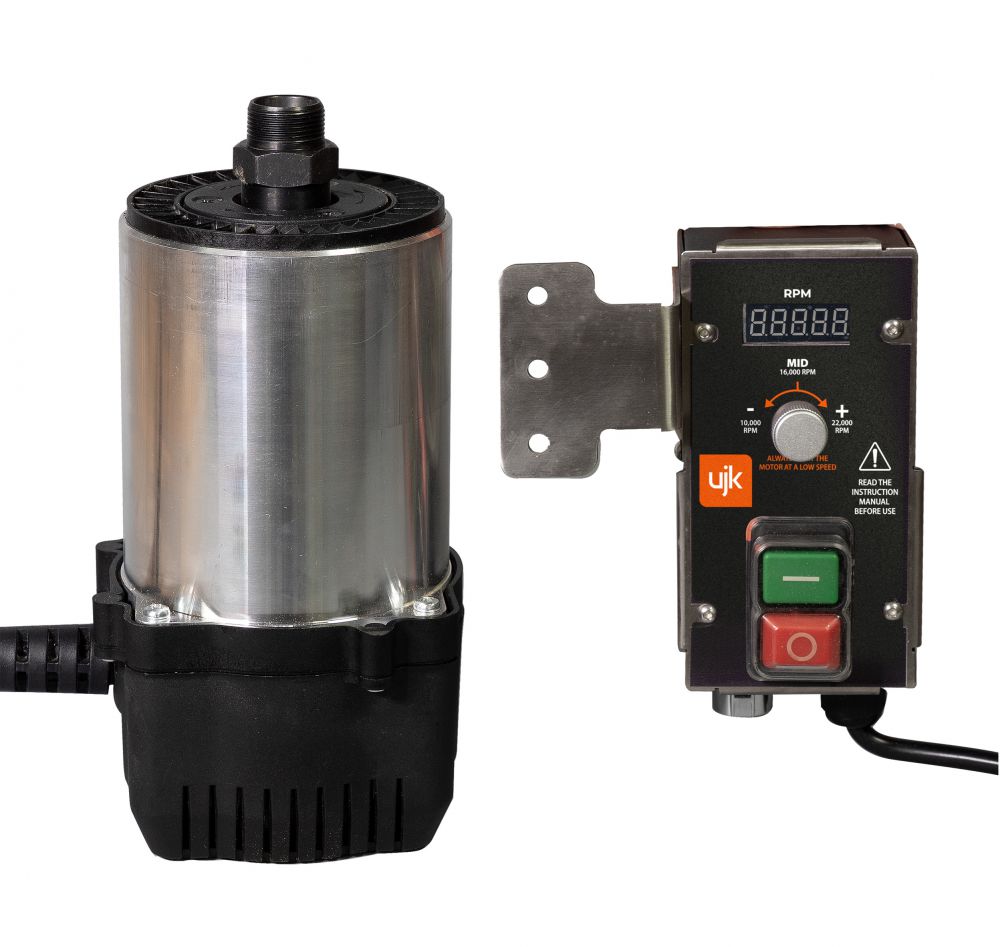

UJK Variable Speed Digital Readout Motor 230V (50Hz) for Router Lift - 10034

UJK Variable Speed Digital Readout Motor 230V (50Hz) for Router Lift

ref: 10034

NEW Digital Readout Motor available to Pre Order


• The 1800W motor with variable speed control, from 10,000 to 22,000 RPM, delivers the precision and power needed for demanding routing tasks. Ideal for upgrading or replacing an existing UJK Router Motor, it requires a UJK Mount (113004) to be used with the UJK Router Lift (502701) sold separately.
• The updated design places the variable speed control directly on the switch box for improved accessibility, allowing quicker, easier adjustments without interference.
• Position the control box wherever best suits your setup for added convenience and efficiency.
• The soft-start feature and constant-speed electronics provide smooth operation under load, while premium sealed shaft bearings minimise bit run-out for greater accuracy.

• Collets Supplied: ER20, 1/4", 1/2", 8mm and 12mm
• Nett Weight: 4.5kg (10lbs)
• No Load Speed: 10,000 - 22,000 rpm
• Voltage: 230 V
• Cable Length: 2.5 m
• Max Power Rating: 18000W (2.4HP)
• Plug Fitted: UK 3 pin plugEuro 2 pin plug
• Overall Diameter: 106.6 mm

UJK Router Lift Motor Instructions
