UJK Motor and Mount for Router Lift - 10038

UJK Motor & Mount for Router Lift

ref: 10038

NEW Digital Readout Motor now available

Updated: motor with digital readout.

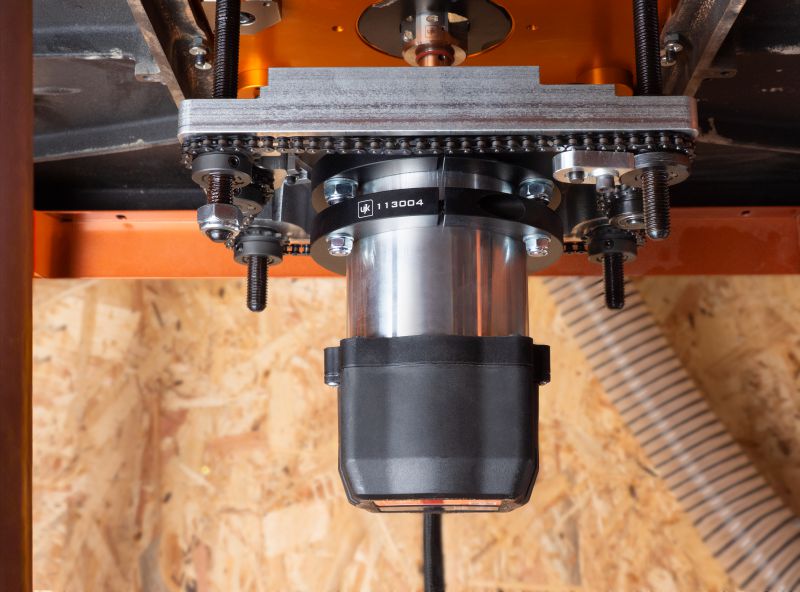

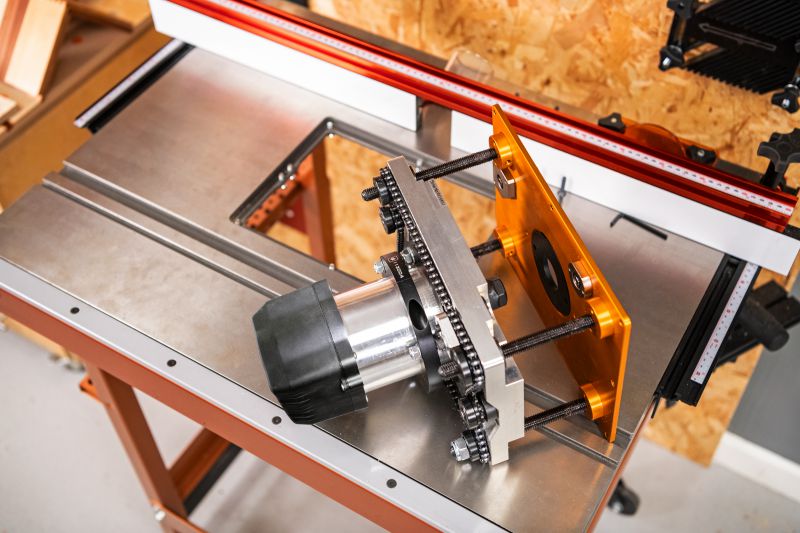

• For a permanent router table setup, the UJK Motor and Mount Mk II is designed to work seamlessly with the UJK Router Lift. The dedicated 1800W variable speed motor delivers smooth, reliable performance, with variable soft-start safety, and speed control, from 10,000 to 22,000 RPM, to reduce start-up torque and maintain a consistent speed under load.

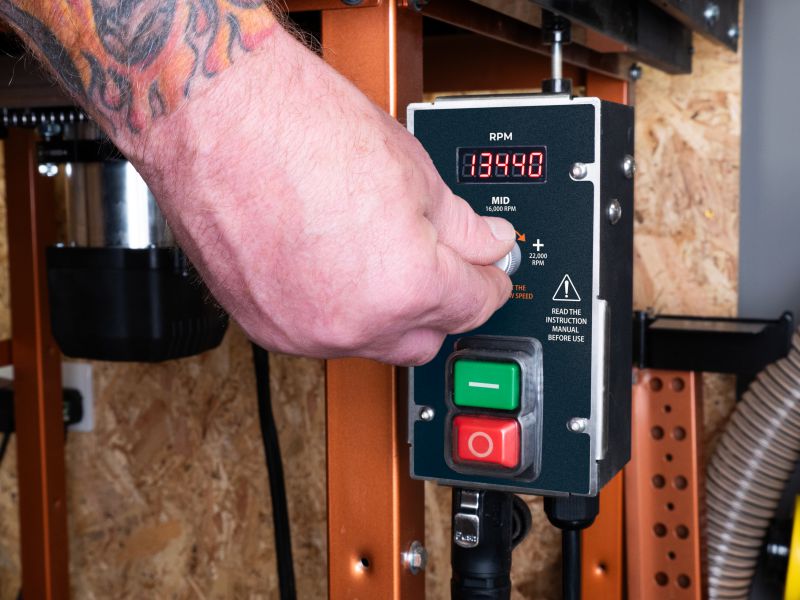

• The updated design places the variable speed control directly on the switch box for accessibility, making quicker, easier adjustments without interference.

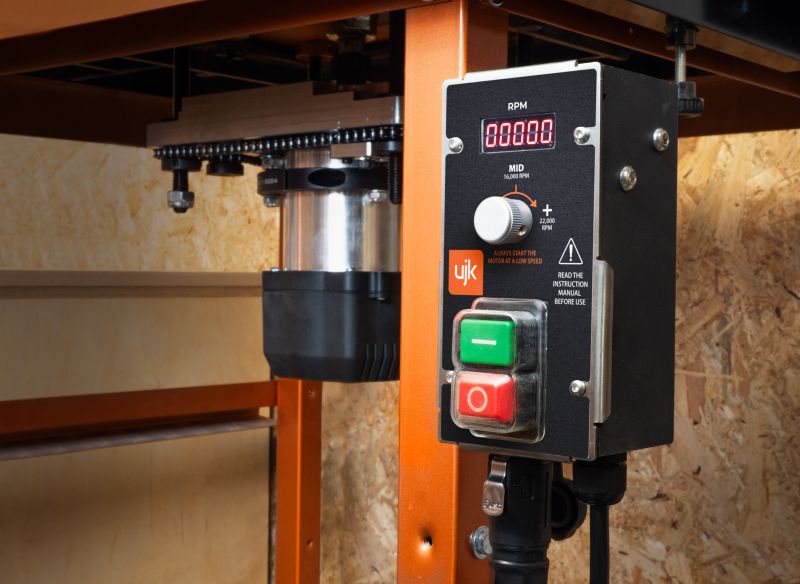

• Position the control box wherever suits your setup for efficiency and convenience.To be used with the UJK Router Lift (sold separately)
• Powerful 1800w Motor
• Variable speed control from 10,000 RPM to 22,000 RPM
• Easy access and control motor switch mount, with variable speed control

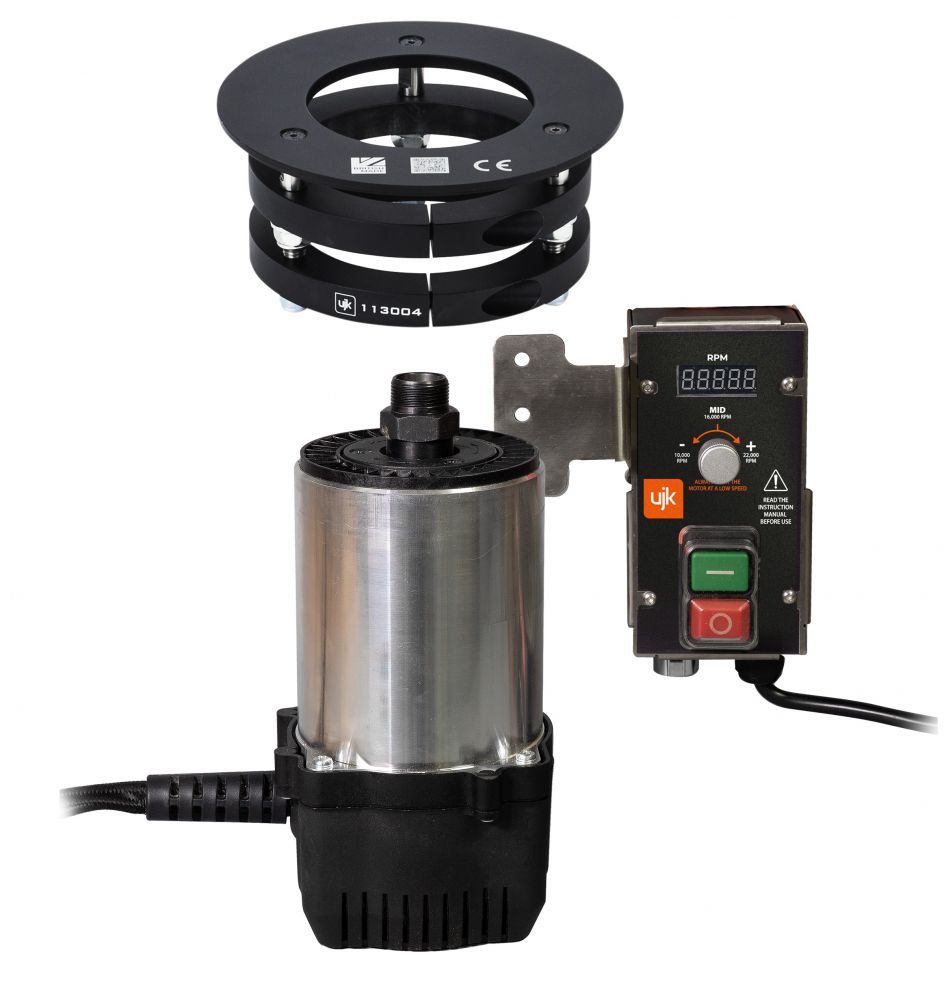

• Includes UJK Motor, Mount for Router Lift, four ER collets (1/4inch, 1/2inch, 8mm, 12mm) and both UK and EU plugs
• Compatible with UJK Router tables and most router table setups (305 x 229 x 6mm)

• Collets Supplied: ER20, 1/4", 1/2", 8mm and 12mm
• Nett Weight: 4.5kg (10lbs)
• No Load Speed: 10,000 - 22,000 rpm
• Voltage: 230 V
• Cable Length: 2.5 m
• Max Power Rating: 18000W (2.4HP)
• Plug Fitted: UK 3 pin plugEuro 2 pin plug
• Overall Diameter: 106.6 mm

UJK Router Lift Motor Instructions
