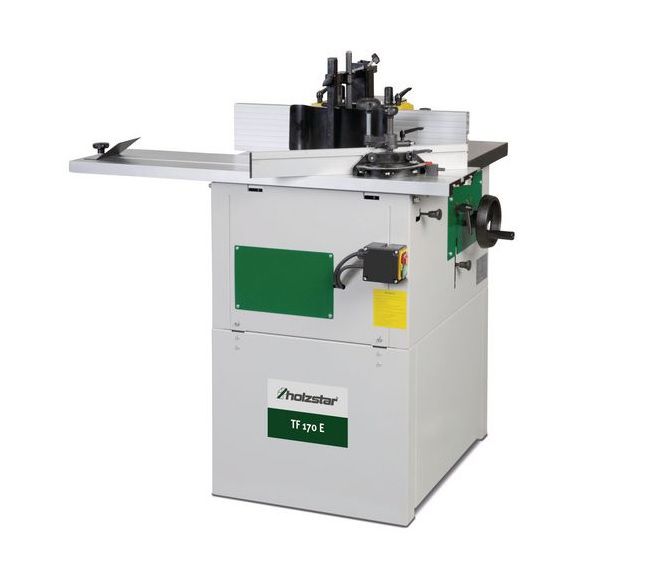

Sturmer Holzstar TF 170 E Spindle Moulder 4-Speed 1500W 230v

X
Product Code: STU/5901917
Brand: Stuermer
In Stock
Was £1,439.99 Inc. VAT
Now £1,379.84!
£1,149.87 Exc. VAT
✓ COLLECTION
✓ DELIVERY
Qty
Stuermer

Sturmer Holzstar

TF 170 E Spindle Moulder 4-Speed 1500W 230v

ref: 5901917



Key Features

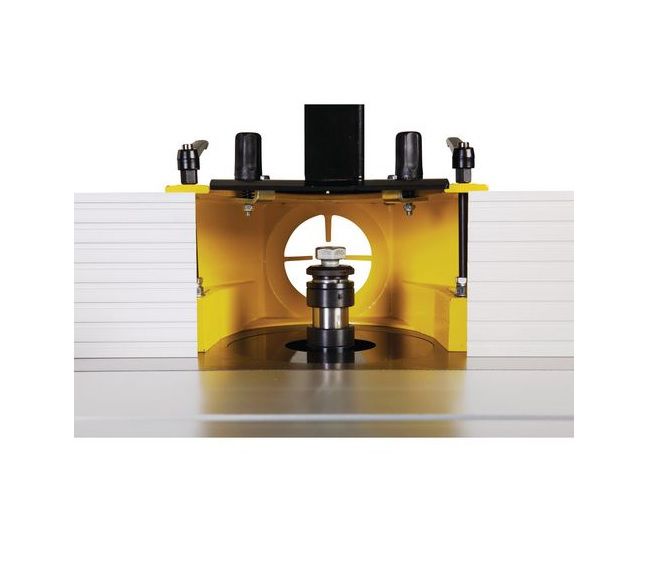

  • TF 170 E 4 Speed spindle moulder (1400-9000 rpm) + alu sliding table beam w mitre att + cast iron table + Shaw type safety guard + 1500W motor 230v
  • Smooth-action sliding carriage for precise workpiece guidance

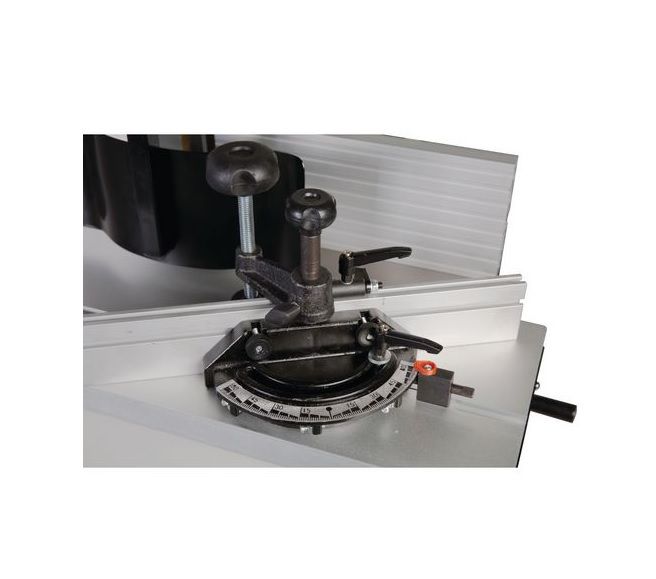

  • Milling stop with finely adjustable aluminium stops
  • Quick and easy change of the speed by means of splined belts
  • Large work surface with torsion-free cast-iron table
  • Milling unit made of grey cast iron
  • Downholder for precise workpiece guidance



Technical details

Dimensions and weights

  • Max. length: 1000 mm
  • Max. width/depth: 950 mm
  • Max. height: 1170 mm
  • Length approx.: 1000 mm
  • Width/depth approx.: 900 mm
  • Height approx.: 1140 mm
  • Weight approx.: 96 kg

Electrical Data

  • Drive motor output: 1,1 kW
  • Absorbed power drive motor: 1,5 kW
  • Total rated value: 1,5 kVA
  • Mains frequency: 50 Hz

Milling cutter diameter max.

  • Max. tool diamter: 160 mm

Milling spindle

  • Stroke: 105 mm
  • Max. protrusion over the table: 105 mm
  • Speed(s): 1400/4000/6000/9000 min¯¹
  • Arbor diameter: 30 mm

Work table

  • Length: 600 mm
  • Width: 400 mm
  • Table height: 850 mm
  • Sliding carriage length: 1000 mm
  • Sliding carriage width: 218 mm
  • Sliding carriage height: 850 mm
