Sturmer Holzstar TF 170 E Spindle Moulder 4-Speed 1500W 230v Package

X
Product Code: STU/5901917-PK
Brand: Stuermer
Stock Available
Delivery typically 3-4 days
Was £1,871.86 Inc. VAT
Now £1,829.86!
£1,524.88 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Qty
Stuermer

Sturmer Holzstar

TF 170 E Spindle Moulder 4-Speed 1500W 230v Package

ref: 5901917

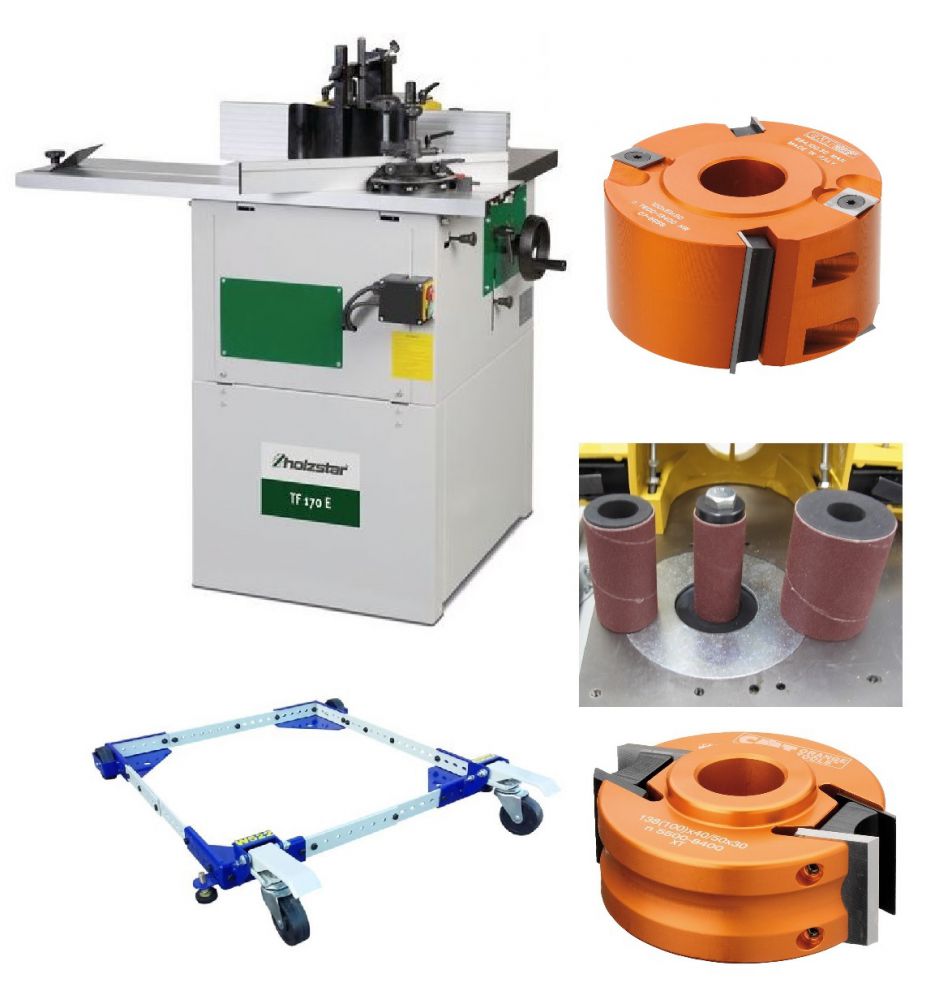

Spindle Moulder Package Deal

Package Includes:
  • Sturmer Holzstar TF 170 E Spindle Moulder 4-Speed 1500W 230v
  • Charnwood CB9830 Cutterblock with Straight Knives & 6 Profiles
  • Charnwood W030SD Sanding Drum Kit with 3 Sizes of Drum
  • Charnwood W522: Universal Wheel Base
  • CMT Aluminium Cutter Head with Limiters


Sturmer Holzstar - TF 170 E Spindle Moulder



Key Features

  • TF 170 E 4 Speed spindle moulder (1400-9000 rpm) + alu sliding table beam w mitre att + cast iron table + Shaw type safety guard + 1500W motor 230v
  • Smooth-action sliding carriage for precise workpiece guidance
  • Milling stop with finely adjustable aluminium stops
  • Quick and easy change of the speed by means of splined belts
  • Large work surface with torsion-free cast-iron table
  • Milling unit made of grey cast iron
  • Downholder for precise workpiece guidance



Technical details

Dimensions and weights

  • Max. length: 1000 mm
  • Max. width/depth: 950 mm
  • Max. height: 1170 mm
  • Length approx.: 1000 mm
  • Width/depth approx.: 900 mm
  • Height approx.: 1140 mm
  • Weight approx.: 96 kg

Electrical Data

  • Drive motor output: 1,1 kW
  • Absorbed power drive motor: 1,5 kW
  • Total rated value: 1,5 kVA
  • Mains frequency: 50 Hz

Milling cutter diameter max.

  • Max. tool diamter: 160 mm

Milling spindle

  • Stroke: 105 mm
  • Max. protrusion over the table: 105 mm
  • Speed(s): 1400/4000/6000/9000 min¯¹
  • Arbor diameter: 30 mm

Work table

  • Length: 600 mm
  • Width: 400 mm
  • Table height: 850 mm
  • Sliding carriage length: 1000 mm
  • Sliding carriage width: 218 mm
  • Sliding carriage height: 850 mm

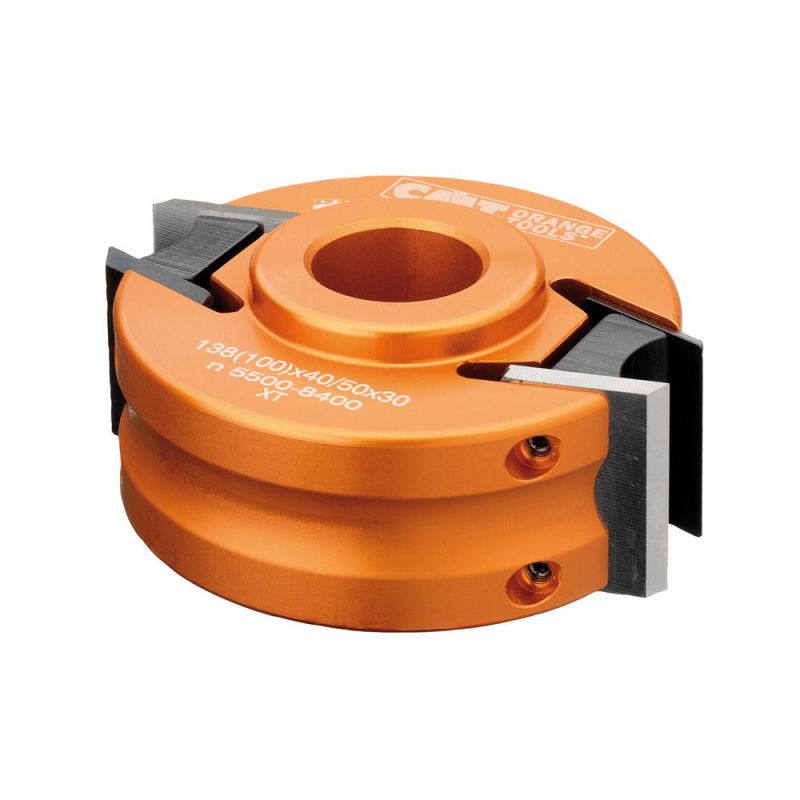

CMT Aluminium Cutter Head with Limiters 100m dia, 30mm bore

ref: 693.100.30



Key Features

  • CMT cutter heads guarantee perfect executions of all your projects.
  • DESIGNED TO COMPLY WITH THE EUROPEAN NORMATIVE EN 847-1.
  • Supplied in a solid plastic box to contain up to 12 couples of knives
  • Tool for manual feed
  • Two cutting edges
  • Anti-kickback



Suitable for use with

  • All types of moulder and spindle moulder machines.



Technical details

  • Made from aluminium. Cutter head with limiters, highly resistant to tensile and yield stress.
  • Pair of universal straight knives and limiters included.
  • Tools for manual feed (MAN).
  • Pins for the automatic positioning of the knives.
  • Possibility to use knives with a height of 40mm (1-37/64") or 50mm (1-31/32") (order no. 690) and limiters (order no. 691).



Specification

  • Aluminium body
  • (D) Diameter: 100mm
  • (I) Cutting length: 40 - 50mm
  • (B) Bore: 30mm
  • RPM: 5500 - 8400
  • (Z) Number of cutting edges: 2



Cutter Head Safety Sheet

Cutter Head Usage Guide


Charnwood Spindle Moulder - Cutterblock Set - CB9830



Key Features

  • Spindle Moulder cutterblock with limiters. This steel block is compatible with all 40mm Euro pattern cutters. The set includes straight knives plus 6 popular profiles and is supplied in a foam lined aluminium storage case.
  • Cutters for spindle moulders tend to be known by numbers rather than descriptions. The profiled cutters included in this set are numbers 001, 002, 003, 004, 005 & 006



Specification

  • Diameter: 98mm
  • Height: 40mm
  • Bore: 30mm
  • Maximum speed: 8,000rpm
  • Pin Diameter: 6mm
  • Pin Centres: 24mm
  • Weight: 3kg
  • Rating: Trade
The cutters used in this block are compatible with those from Trend, Freud & CMT.

Charnwood Spindle Moulder Sanding Drum Kit - (Ref: W030D)



Key Features

  • Set of 3 rubber sanding drums.
  • Each drum is 100mm (4") in height, the outisde diameters are 40mm, 52mm, & 78mm.
  • This is suitable for a 30mm diamter shaft.
  • Supplied with one 80 grit sleeve for each size.
  • Please note these can only be used with the Charnwood W030 and W040 spindle moulders, 4 speed versions, running at the lowest speed 1400rpm.
  • May be compatible with other spindle moulders, providing a low enough speed can be set.

Charnwood W522 - Universal Wheel Base



Strengths and benefits

  • Constantly having to push one machine to the back of the workshop to make space to bring another one forward ?
  • Convert your machines into portable units by adding this highly adaptable wheel base. There are two fixed wheels and two steering wheels allowing excellent manoeuvring across a relatively flat floor surface. Step on the two foot plates to lower the wheels for moving the machine, then raise the two foot plates to lower the base back onto the adjustable rubber feet.
  • The base can be assembled either as a square shape or a rectangle shape to suit the footprint of the machine being mounted.
  • It can be used with a huge variety of machines including Planer Thicknessers, Table Saws, Bandsaws, Spindle Moulders and Lathes.



Specification

  • Minimum square size 340mm x 340mm
  • Maximum square size 930mm x 930mm
  • Maximum rectangle size 520mm x 1340mm
  • Maximum weight load 295kg
  • Rating Light trade
  • Warranty 1 Year



Charnwood W522 Owners Manual

Product Videos
Items Included
Click For Bigger Image
1 X Sturmer Holzstar TF 170 E Spindle Moulder 4-Speed 1500W 230v
Click For Bigger Image
1 X CMT Aluminium Cutter Head with Limiters 100m dia, 30mm bore - 693.100.30
Click For Bigger Image
1 X CMT Rebating Cutter Head 100mm dia, 30mm bore, 51mm length - 694.100.30
Click For Bigger Image
1 X Charnwood W030SD Sanding Drum Kit
Click For Bigger Image
1 X Charnwood W522 Universal Wheel Base
