Mafell Portable Circular Saw K 105 240v - 91D221

X
Product Code: MAF/91D221
Brand: Mafell
Stock Expected
Delivery typically within 2-3 weeks
£1,438.97 Inc. VAT
£1,199.14 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Qty
Mafell

Mafell Portable Circular Saw K 105 240v - 91D221



Key Features

  • The MAFELL portable circular saw combines power and precision with ease of use and ergonomic design. These properties transform the machine into a unique system.
  • With the MAFELL ErgoBalanceConcept, our portable circular saws are optimized for all types of work. This not only enables precise work, but also optimum ergonomic guidance. This effectively reduces fatigue.
  • Sheer power and high torque take on a whole new meaning with the high-output CUprex motor. It offers performance-optimized digital electronics and newly developed control technology. Its speed is continuously variable according to the nature of the material and application.
  • It is no longer necessary to unscrew the riving knife – the FLIPPKEIL offers you optimum user-friendliness and safety when plunge cutting.
  • Optimum chip ejection, especially when sawing insulating materials.

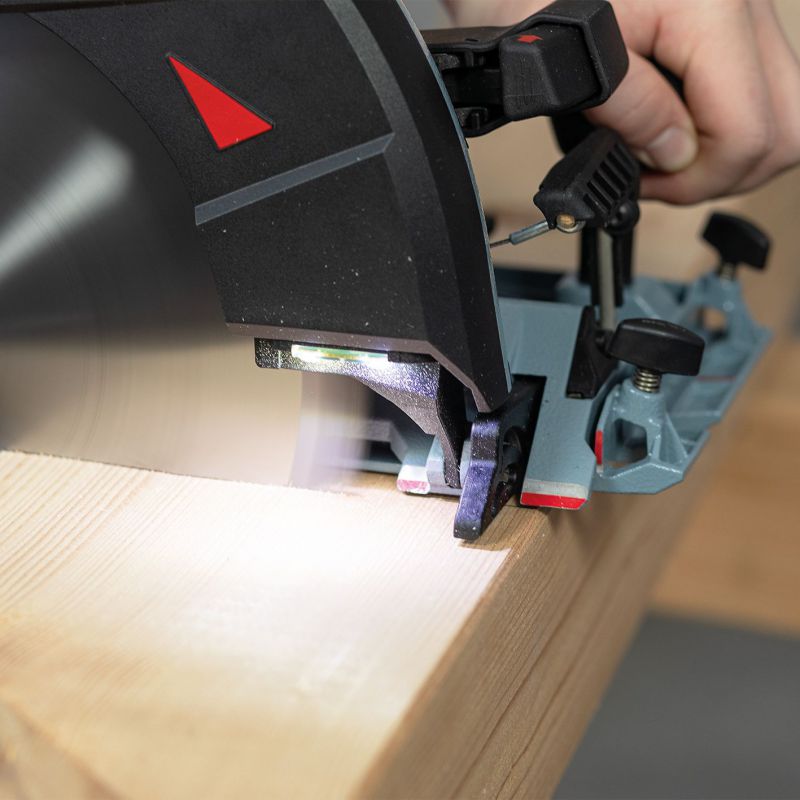

  • Bright LEDs illuminate a large working area.
  • Sawing to mark. The pointer adjusts automatically to the set tilt angle.
  • For an enhanced cutting depth of up to 110 mm (4 5/16 in.). Even when used in conjunction with the guide rail, it achieves an exceptional depth of 104 mm (4 1/8 in.).
  • The cutting depth is set and locked in a single, quick action.
  • Thanks to the new tilting arrangement, reading the scale is easier than ever before.
  • With the groove in the base plate, the portable circular saw can be used as a cross-cutting system. The guide device is required for this.



Applications

  • Cross-cutting and rip cuts
  • Bevel / compound miter cuts up to 60°
  • Birdsmouth cuts
  • Plunge cuts
  • Chamfers and grooves
  • Compatible materials include solid wood, board materials, insulating materials, doors, worktops and internal finishing and renovation materials



Items included

  • 1 Saw blade KSB-WL 280 GT HW, 280 x 2,8 x 30mm (11 in.), T15-5, AT/FT, Wood Rip Cut; Ref. 092598
  • 1 Parallel guide fence K 105-PA; Ref. 212867
  • 1 Allen key 5 mm
  • 1 Mains cable 11 m
  • boxed



Technical details

  • Cutting depth: 0 - 110 mm
  • Cutting depth: 0 – 4 5/16 in
  • Cutting depth (a): 0 mm
  • Cutting depth (b): 110 mm
  • Cutting depth at 45°: 0 – 77 mm
  • Cutting depth at 45°: 0 – 3 1/16 in
  • Cutting depth at 60°: 2 – 55 mm
  • Cutting depth at 60°: 1/16 – 2 3/16 in
  • Cutting depth on rail: 0 – 104 mm
  • Cutting depth on rail: 0 – 4 1/8 in
  • Tilt range: 0 – 60 °
  • Nominal No. of strokes – no load: 2250 – 4400 1/min
  • Extraction connection diameter: 35 mm
  • Extraction connection diameter: 1 3/8 in
  • Nominal power input: 2300 W
  • Nominal power input: 3.1 hp
  • Weight: 8,1 kg
  • Weight: 17.9 lbs
  • Universal motor: 230 V / 50 Hz



Mafell Portable Circular Saw K 105 Owners Manual
