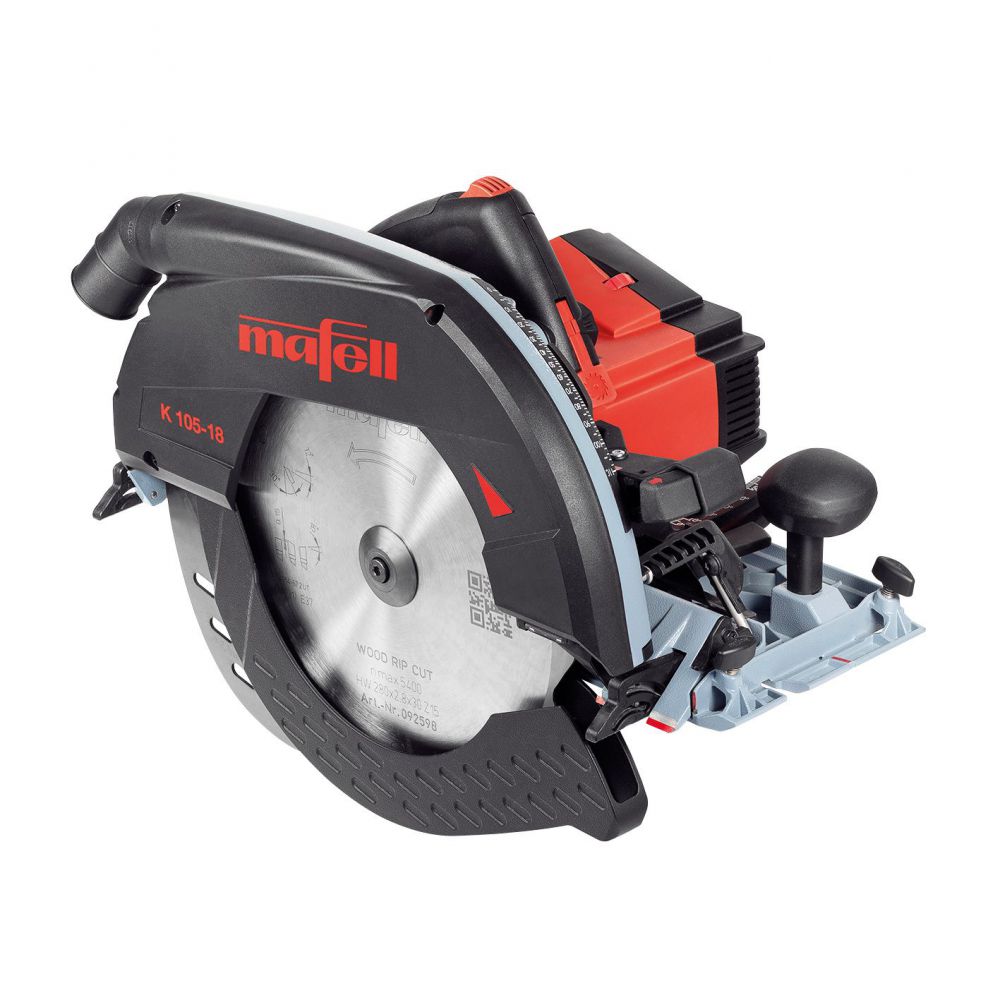

Mafell Cordless Portable Circular Saw K 105-18 PURE 18v - 91D303

Mafell Cordless Portable Circular Saw K 105-18 PURE 18v - 91D303

• The K 105-18 saw are perfectly equipped to meet the future challenges of the woodworking trades. Not only in view of their exemplary material and build qualities, but also thanks to their well-conceived userfriendliness and compatible dual-battery technology.

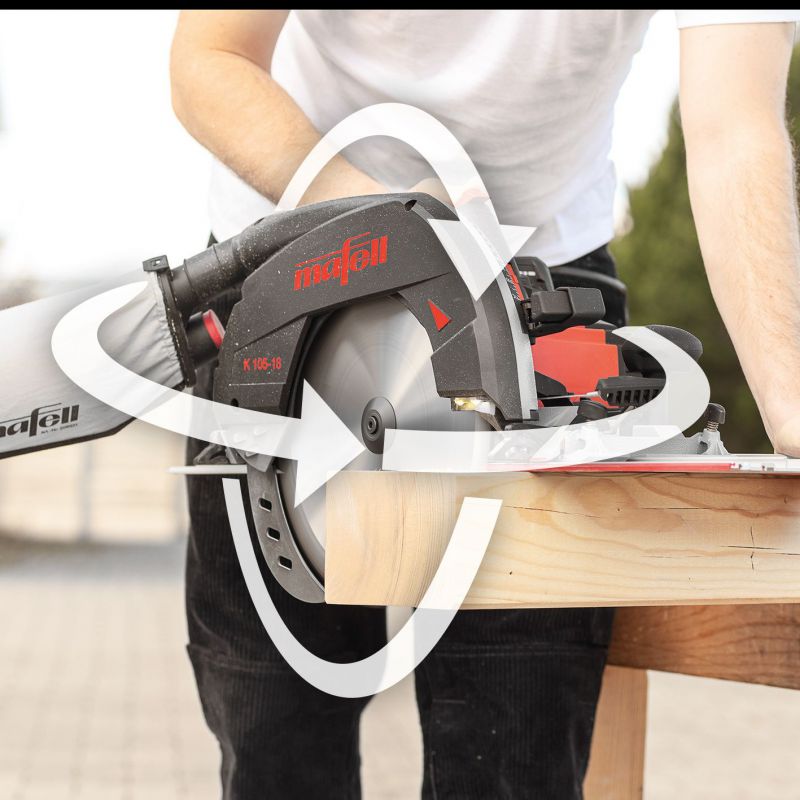

• With the MAFELL ErgoBalanceConcept, our portable circular saws are optimized for all types of work. This not only enables precise work, but also optimum ergonomic guidance. This effectively reduces fatigue.
• It is no longer necessary to unscrew the riving knife – the FLIPPKEIL offers you optimum user-friendliness and safety when plunge cutting.
• Optimum chip ejection, especially when sawing insulating materials.
• Bright LEDs illuminate a large working area.
• Sawing to mark. The pointer adjusts automatically to the set tilt angle.

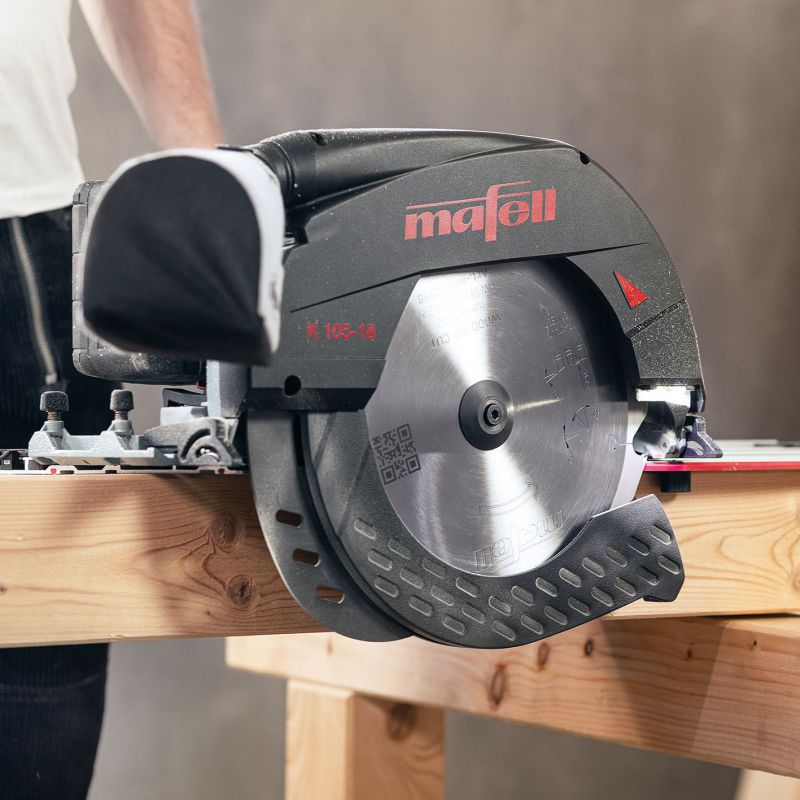

• For an enhanced cutting depth of up to 110 mm (4 5/16 in.). Even when used in conjunction with the guide rail, it achieves an exceptional depth of 104 mm (4 1/8 in.).
• The cutting depth is set and locked in a single, quick action.
• Thanks to the new tilting arrangement, reading the scale is easier than ever before.
• With the groove in the base plate, the portable circular saw can be used as a cross-cutting system. The guide device is required for this.

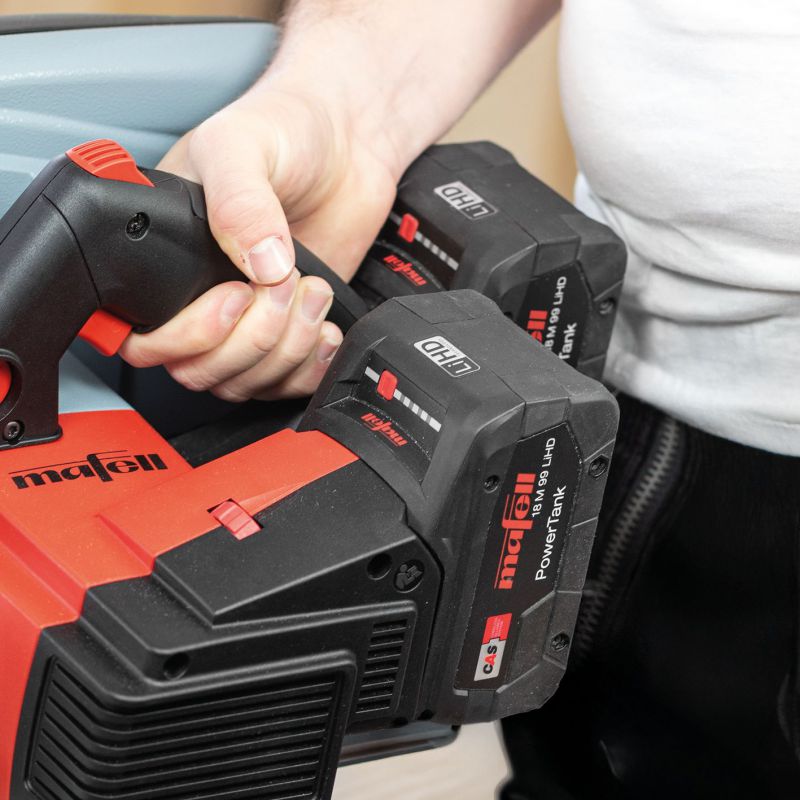

• This product is part of the Cordless Alliance System. CAS means: One battery, many solutions. 100% compatibility of machines, battery packs and chargers!

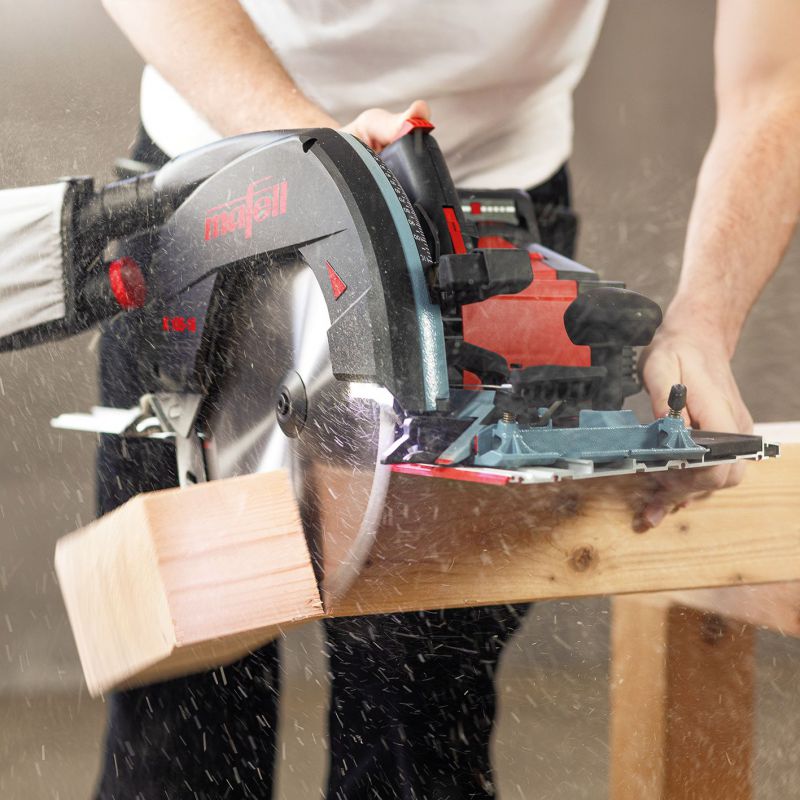

• Cross-cutting and rip cuts
• Bevel / compound miter cuts up to 60°
• Birdsmouth cuts
• Plunge cuts
• Chamfers and grooves
• Compatible materials include solid wood, board materials, insulating materials, doors, worktops and internal finishing and renovation materials

• Cutting depth: 0 - 110 mm
• Cutting depth: 0 – 4 5/16 in
• Cutting depth (a): 0 mm
• Cutting depth (b): 110 mm
• Cutting depth at 45°: 0 – 77 mm
• Cutting depth at 45°: 0 – 3 1/16 in
• Cutting depth at 60°: 2 – 55 mm
• Cutting depth at 60°: 1/16 – 2 3/16 in
• Cutting depth on rail: 0 – 104 mm
• Cutting depth on rail: 0 – 4 1/8 in
• Tilt range: 0 – 60 °
• Nominal No. of strokes – no load: 2800 – 5200 1/min
• Extraction connection diameter: 35 mm
• Extraction connection diameter: 1 3/8 in
• Nominal voltage: 2 x 18 V
• Weight (including battery): 9,3 kg
• Weight (including battery): 20.5 lbs
