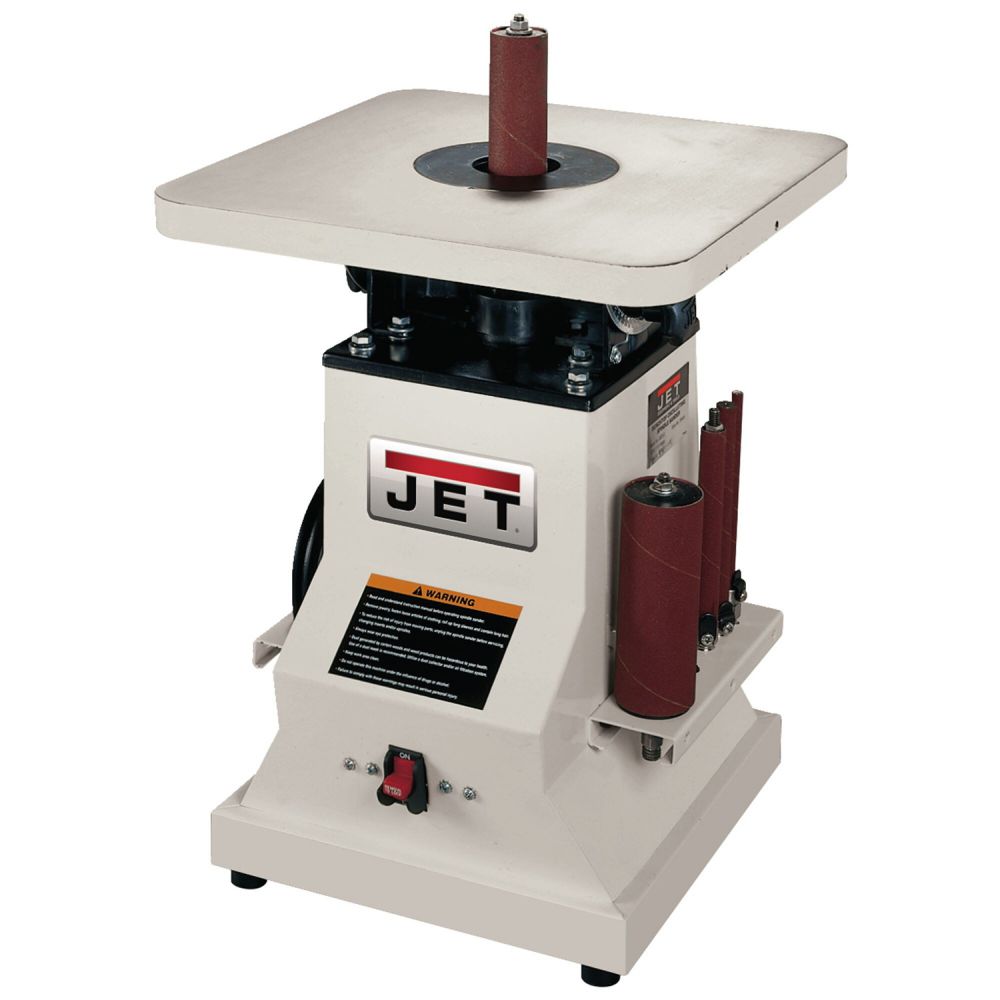

Jet JBOS-5-M OSCILLATING SPINDLE SANDER 240v

JET OSCILLATING SPINDLE SANDER
Ref: JBOS-5-M

• 25mm oscillating action reduces friction heat to protect wood and prolong sleeve life
• Main spindle support runs on precision ball bearings
• Oscillated by a heavy-duty worm and gear mechanism for consistent performance
• Oscillating gears run in a closed lubrication box for a long service life
• Powerful 0.7kW induction motor easily handles the toughest sanding projects

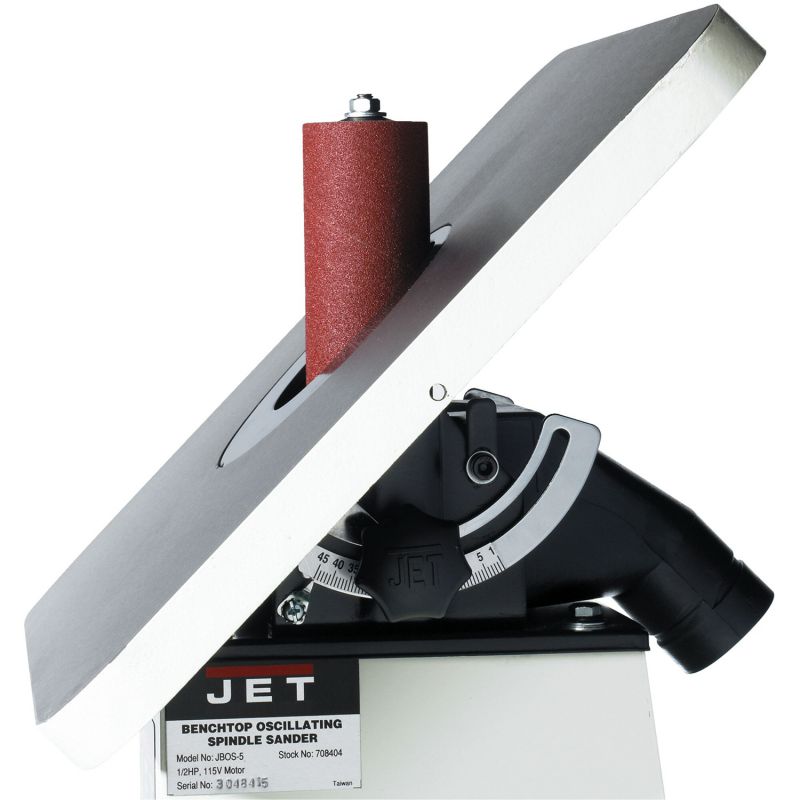

• Large gray cast iron worktable for precise grinding of large workpieces, tiltable 45 °

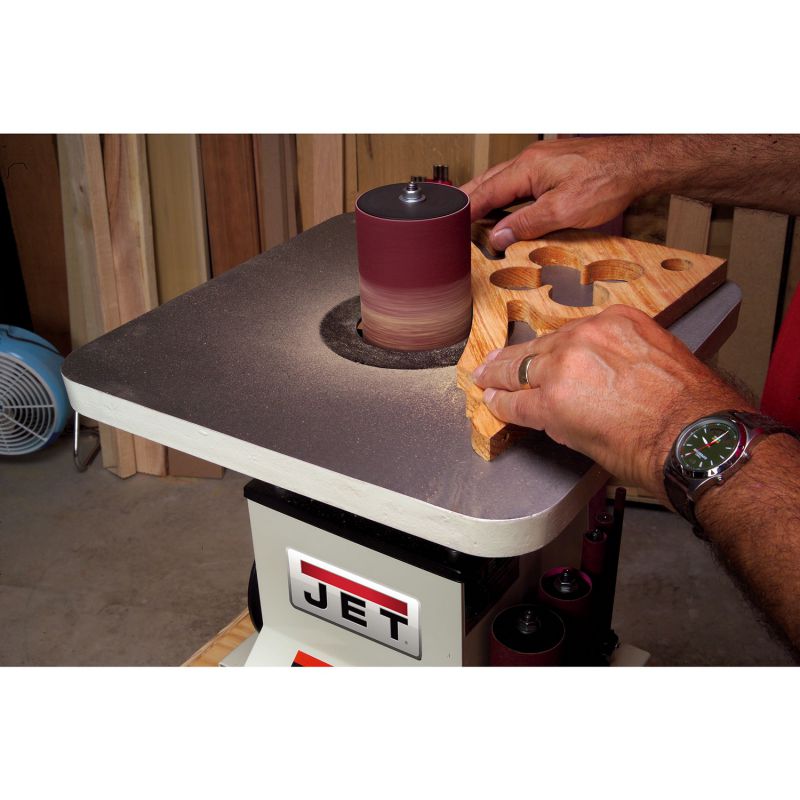

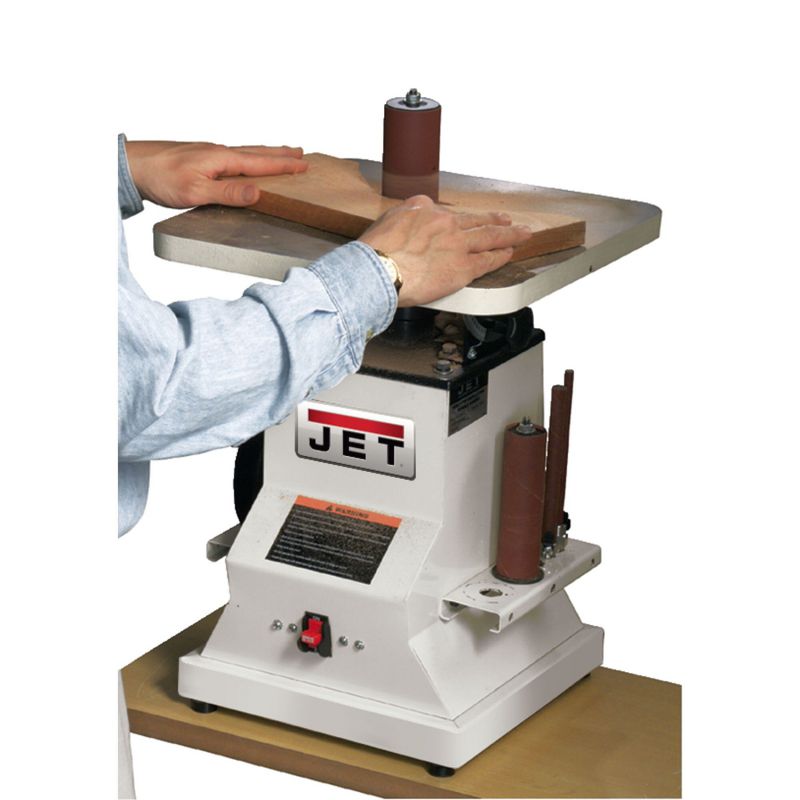

• For all manner of finishing tasks in the workshop
• 50mm dust outlet

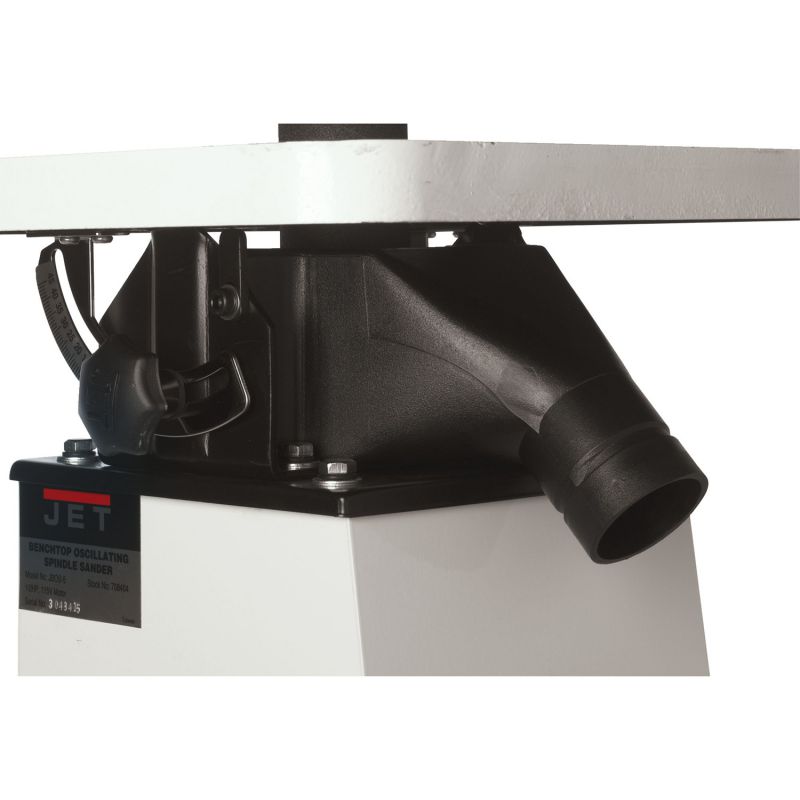

• Exceptionally efficient extraction hood

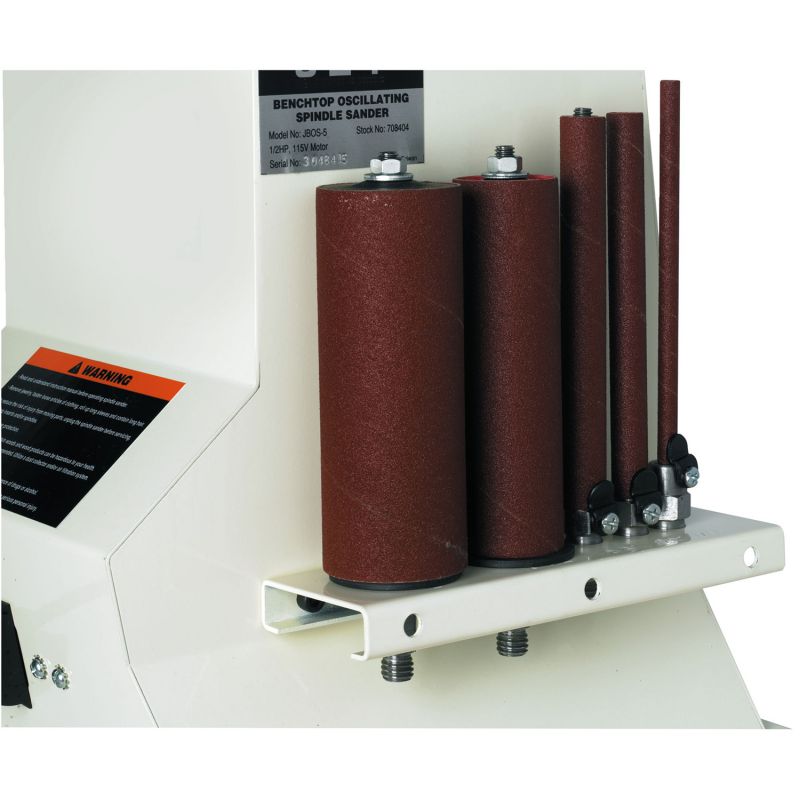

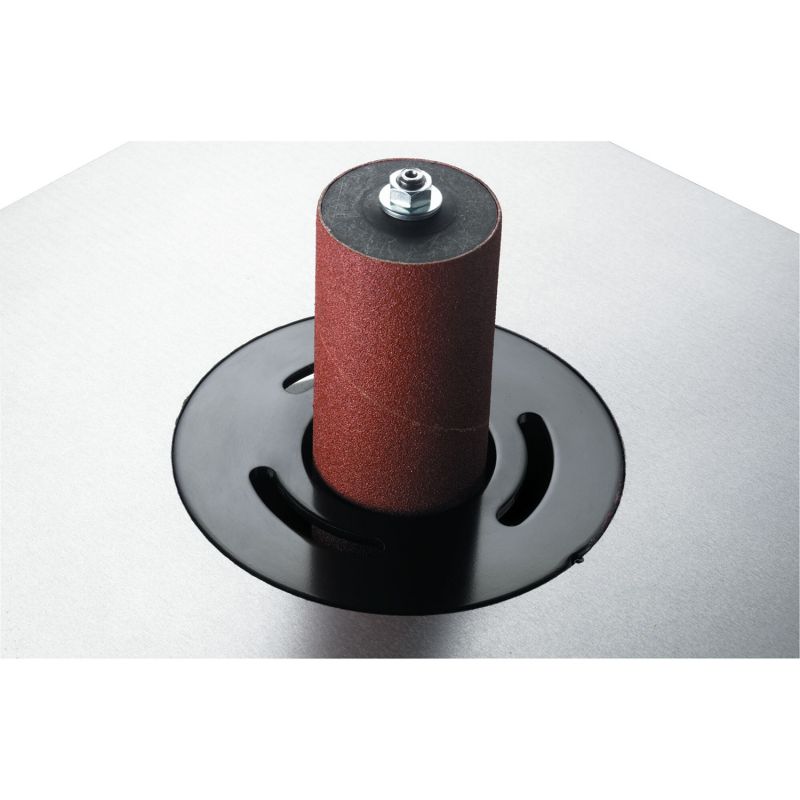

• Supplied with 50mm, 38mm, 16mm, 12mm and 6mm bobbins and loadings

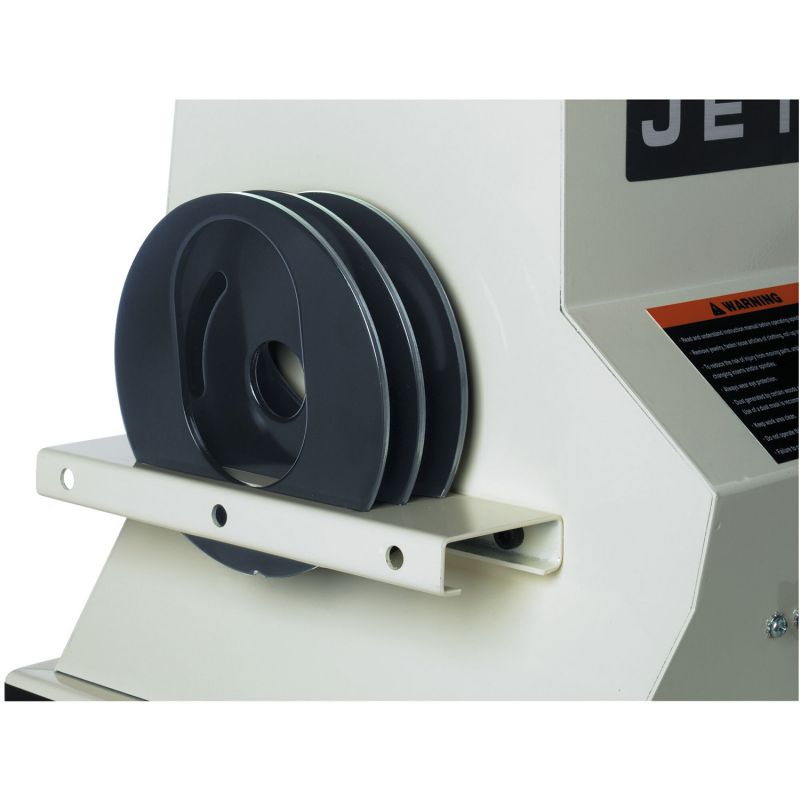

• Optional 76mm diameter bobbin which requires an accompanying table insert

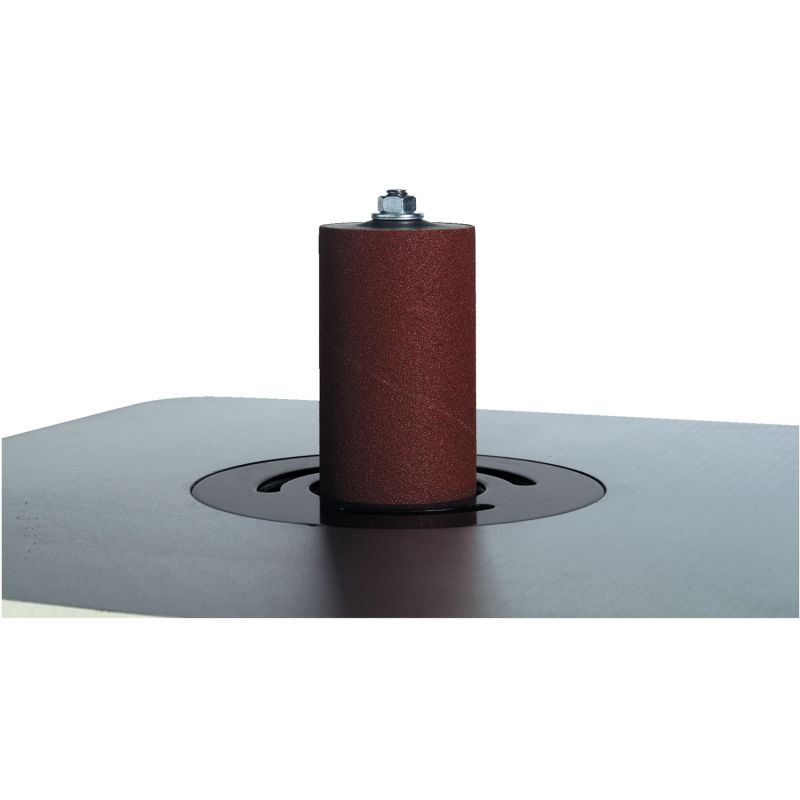

• A very versatile sander with oscillating bobbin and fully tilting table ideal for all manner of finishing tasks in the workshop. The oscillating motion of the bobbin prevents burning of the work as well as spreading the wear along the length of the abrasive. The cast iron table can be tilted up to 45° to allow for sanding of angled surfaces. There is a 50mm dust outlet provided at the rear of the machine and the use of a fine dust extractor is strongly recommended. The JBOS-5 sander is best suited to workshop use and has fitted as standard an exceptionally efficient extraction hood for dust free sanding when used with a suitable extractor. Also available as an additional accessory is a 76mm diameter bobbin, which will require an accompanying table insert.
• Supplied with 50mm, 38mm, 16mm, 12mm and 6mm bobbins and 100 grit loadings.

• Motor (V/kW): 230/0.2
• Air volume flow rate (m³/h): 720/900/1'200
• Filter efficiency for particle size (inner/outer, micron): 5/1 Micron
• Remote control/timer (h): Yes/2,4,8
• Noise level (LpA, dB): 62/55/68
• Dimensions (mm): 768×610×305
• Weight (kg): 25

• Motor KW: 230/0.2
• Noise: 62/55/68 LpA, dB
• Base Dimensions L x W: 768×610×305

Jet JBOS-5 Oscillating Spindle Sander / Bobbin Sander Manual .pdf

Jet JBOS-5 Spindle Sander Parts List
