Bessey > . NEW Products from Bessey > Bessey One-Handed Clamp EZ

Festool 577959 Cordless Sliding Compound Mitre Saw KAPEX KSC 60 EB 5,0 I-UG-Set - Replaces 577668

Product Code: FES/577959-PK

Brand: Festool

Several options are available for this product.

Please Choose Below

Check out our Fair Deal on Delivery Promise

Festool 577959 Cordless Sliding Compound Mitre Saw KAPEX KSC 60 EB 5,0 I-UG Set

Includes Energy Set and Underframe

New Model - Replaces 577668

High-precision cross cuts, with battery power for the entire day.

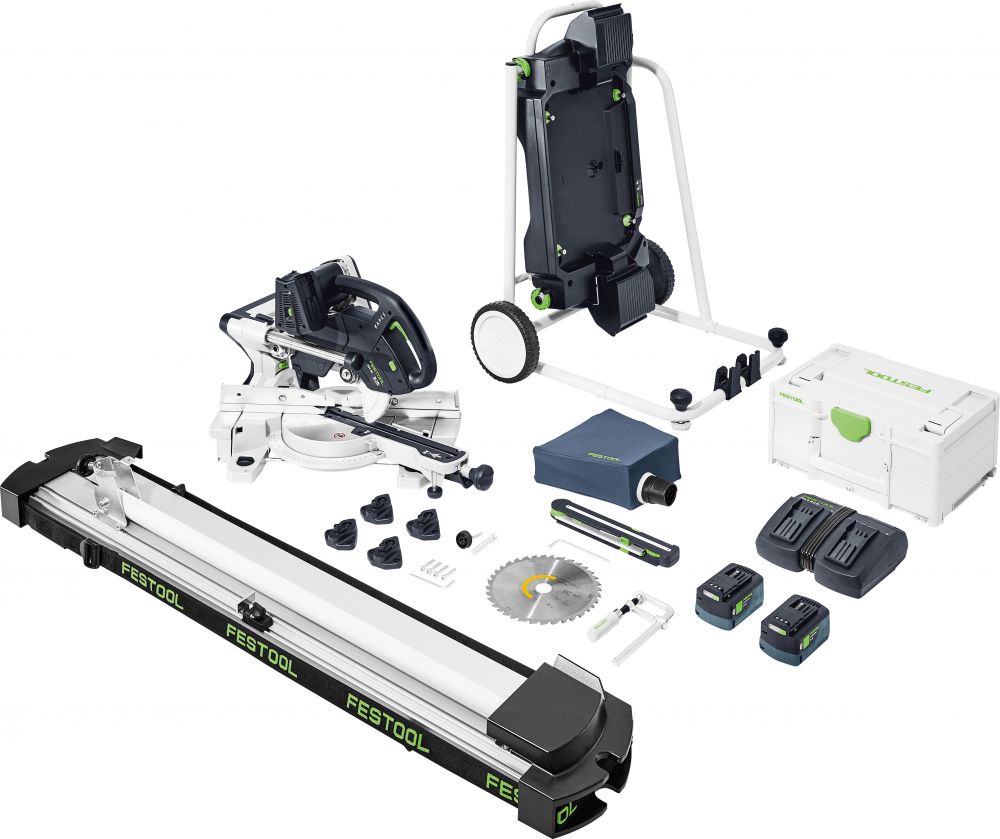

Items included

Festool cordless sliding compound mitre saw KAPEX KSC 60
Bevel
Chip collection bag
Circular saw blade: wood universal HW 216x2,3x30 W36
Elevation
Fastening clamp FSZ 120
Hex key, WAF 6
LED spotlight
KA-UG-KS 60 R/L trimming stop
Underframe
Energy set: SYS 18V, 2 x 5.0 battery packs, TCL 6 duo charger

Festool Cordless Sliding Compound Mitre Saw KAPEX KSC 60 EB

High-precision cross cuts, with battery power for the entire day.

Key Features

The Festool KAPEX KSC 60 cordless sliding compound mitre saws produce unbeatably precise cross cuts – in an enormous range of applications with mitre angles of up to 60° on each side and bevel angles of up to 47° on each side. The twin-column guide with two bearings ensures that the saw blade is guided smoothly and with precision whichever setting is chosen: This makes every cut perfect, without wobbles or juddering. In conjunction with the dual battery system, the brushless EC-TEC motor provides virtually unlimited endurance and is enough for all typical applications for an entire day's work. Clever details such as the speed preselection, saw blades for every application, bevel, ergonomic underframe and chip collection bag create the conditions for ergonomic, healthy and highly professional work.

Precise: Twin-column guide with two bearings ensures that the saw blade is guided smoothly and with precision
Versatile: Mitre angles of up to 60° on each side and bevel angles of up to 47° on each side
Long-lasting: The combination of the brushless EC-TEC motor and dual battery system delivers maximum power
Mobile: Low weight, compact design, convenient handles
Work appropriately for the material: With saw blades for every material and speed preselection for speed adapted to the material
Low-dust work: Chip collection bag for dust-free work, even without a mobile dust extractor
Easy: Bevel for producing interior and exterior angles
Precise: LED spotlight for highlighting the cutting line and optimal visibility of the scribe mark
Flexible: Extension table for the stable support of longer workpieces
Clever: The additional feet increase the height of the work table on the KSC 60 to precisely match the height of the SYS 3 M 112 or SYS 1 Systainer
Accurate cuts: Precise, clearly visible scale. Either use the locking positions for the pre-set angles or individually adjust an angle using the easy-to-use clamp
Quite simple: The spindle stop enables the saw blade to be changed in next to no time
New Feature: Conversion of the operating concept: The operating concept of the compound head of the KSC 60 is adapted to the new concept of the SYMC 70 in the course of the introduction of the cordless compound mitre saw.

Strengths and benefits

Maximum precision: Dual ball bearings: The Festool twin-column guide ensures smooth, reliable guidance of the saw blade and maximum precision – without wobbles or juddering.

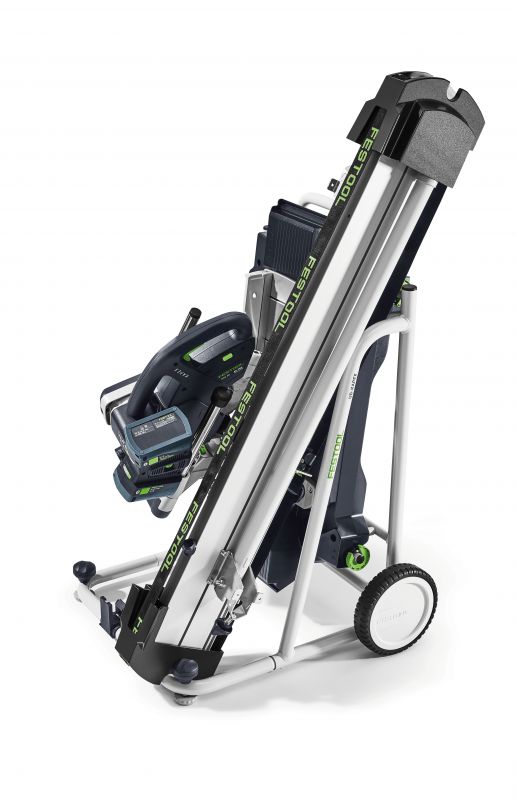

Unlimited mobility: With ergonomically positioned carrying handles and practical transport safety device. In addition to an extremely compact, lightweight design thanks to flush-mounted guide rods.
Maximum power, virtually unlimited endurance: There is no noticeable difference because the combination of the brushless EC-TEC motor and the dual battery system (2 x 18 V) makes our KSC 60 as impressively powerful as a mains-powered tool – whilst providing full mobility.
Wide range of applications. Thanks to the mitre angles of up to 60 degrees on both sides. The angle can be adjusted using the snaps on the table in order to rapidly select the preset mitre angle via locking positions. All other angles are freely selectable and adjustable.
Extremely versatile: Thanks to a bevel angle on both sides of up to 47 or 46 degrees. The angle is adjusted via the highly accessible and easy-to-use clamp in combination with the extremely precise scale.

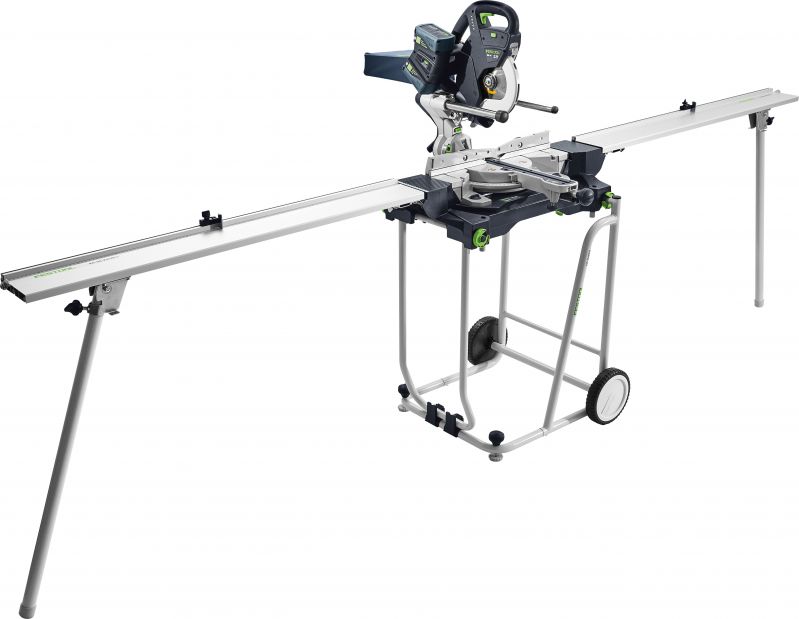

Also for long workpieces: The extension table, which can be pulled out separately, provides reliable and accurate support for long workpieces as well.
Optimum visibility of the scribe: The LED projects the saw blade shadow onto the material, indicating the exact cutting line.
More versatility: Rapid and precise grooving is also possible with the cutting depth limiter.
Saves time and errors: The SM-KS bevel makes the rapid measurement of interior and exterior angles and subsequent transfer to the saw simple and precise.
Healthier: To ensure a working environment with reduced dust even without a mobile dust extractor, the chip collection bag collects dust precisely where it is produced.
Additional work surface: The additional feet increase the height of the work bench on the KSC 60 to precisely match the height of an SYS 3 M 112 or SYS 1 Systainer. It can then be used as a workbench to support long workpieces safely and securely.
For left and right handed users: Switch and handle are in a central position so they are just as easy for right-handed and left-handed users to operate.
Fast changes: The spindle stop enables the saw blade to be changed quickly and safely. The Allen key needed for this is stowed neatly in the key storage box and is always close to hand.
Always adapted to the working material: Variable speed preselection for adapting to the working material.
For work in limited space: Thanks to its compact design with no protruding guide rods to the rear, the KSC 60 requires very little space.

Applications

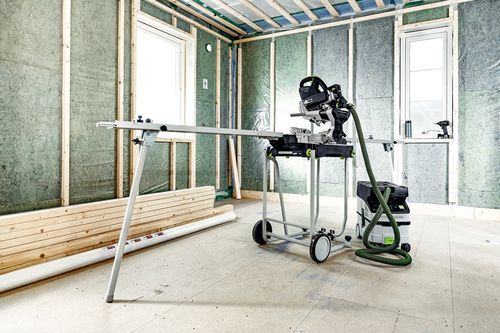

Ideal for mobile use in assembly applications
Cutting boards and panels up to 305 x 60 mm
Trimming strips, profiles and square timber up to 60 mm thick
Precisely angled adjustment of skirting boards and cornices without calculations – in conjunction with the bevel

Technical details

Battery voltage: 18/36 V
Idle engine speed: 1300 - 1800/3500 min⁻¹
Saw blade diameter: 216.00 mm
Cutting depth 90°/90°: 305 x 60 mm
Cutting depth at 45°/90°: 215 x 60 mm
Cutting depth 45°/45° (left): 215 x 40 mm
Cutting depth 45°/45° (right): 215 x 20 mm
Inclination angle: 47/46 °
Mitre angle: 60/60 °
Cutting depth 60°/90°: 150 x 60 mm
Dimensions (W x D x H): 639 x 459 x 442 mm
Dust extraction connection dia.: 27/36 mm
Battery capacity: 5.20 Ah
Drive type: Battery
Product weight: 18.00 kg

Festool KAPEX KSC 60 Instruction Manual

Festool Energy Set SYS 18V 2 x 5.0 AH Battery Pack / TCL 6 DUO Charger - Bluetooth

Well stowed away and charged in a flash: Two 5.0 Ah battery packs. One DUO rapid charger. In the Systainer³.

Suitable for use with

All applications and 18 V devices – with a focus on power and endurance (not compatible with the ETSC 125, RTSC 400, DTSC 400 cordless sanders or the CTC SYS cordless extractor)

Key Features

The Festool Energy set is the ideal addition to the Festool Basic variants and also offers additional battery packs for the workshop and construction site. Available with different equipment according to the individual main applications and energy requirements. Always with sufficient space for a total of four battery packs – of which two can be charged at the same time using the TCL 6 DUO rapid charger. Particularly practical: You no longer need to look for another socket for a second charger – making work easy and saving time on construction sites, in bodyshops and in vehicles. Of course everything cleanly packaged in the Systainer³ and fully covered by Festool Service.

The perfect addition: The 5.0 Ah battery packs are powerful all-rounders for all applications and compatible with almost all Festool battery products. Especially suitable for all applications and 18 V devices – with a focus on power and endurance. (For example, endurance work with the Festool CTC MINI/MIDI, KSC 60, AGC 18, HKC 55, TSC 55 cordless extractors, as well as for especially heavy drilling and screwdriving applications with TPC 18/TDC 18)
Dust extraction starts automatically: The Bluetooth® battery packs automatically start the connected mobile dust extractor when the tool is switched on
With smart extensions: The Festool WorkApp enables clever additional functions in combination with the Bluetooth® function of the battery pack, such as the detailed display of the charging status and further operating data such as temperature or charging cycles. To quickly and easily identify the battery with the lowest charge status, you can flash the LED indicator directly on the battery pack. Software updates are also possible: Install the newest version to work with the latest tool functions at all times
Charges two at the same time: The DUO rapid charger charges two battery packs at exactly the same time. This makes it suitable for all battery packs from the 10.8 V, 14.4 V and 18 V classes (with the exception of: BP-XS for CXS/TXS 10.8 V)
Safely stored: Stowed in Systainer³ products with sufficient space for a total of four battery packs and the DUO rapid charger
Mobile: Packed in a Systainer³, the Energy-Systainer can be integrated perfectly into the bott vehicle fixture for easy transport from the body shop to the building site
Better with a system: The Systainer³ is compatible with and can be attached to all previous Systainer generations, mobile dust extractors and many more system accessories
Completely covered. Of course, the DUO rapid charger and all battery packs are also fully covered by Festool SERVICE
As an ideal addition to the Festool Basic variants or as additional battery packs for the workshop or construction site.

Technical details

Capacity: 5.00 Ah
Tensioner: 18 V
Charging current: 2 x 6,0 A
Input voltage: 220 - 240 V
Product weight: 5.60 kg

Festool Underframe UG-KS 60

Key Features

Convenient transport on building and installation sites
simple folding in for transport

Main areas of use

for KS 60
Facilitates and support KAPEX applications
Convenient transport on building and inst. sites thanks to KAPEX underframe

Technical details

Work height 900.00 mm
Weight 13.00 kg

Festool Trimming attachment KA-UG-KS 60-R/L

Main areas of use

Facilitates and support KAPEX applications
Supporting beams and squared timber
Precise sawing of rail and profiles to size

Key Features

Adapted for KS 60
for use in conjunction with the Festool UG-KAPEX KS 60 base frame
consisting of KA-UG-L and KA-UG-R

Technical details

Length of extension arm (without telescope) 1480 mm
Max. meas. length 2400 mm
