Festool 577013 Plunge-cut Saw TS 55 FEQ-Plus-FS 110V with Guide Rail

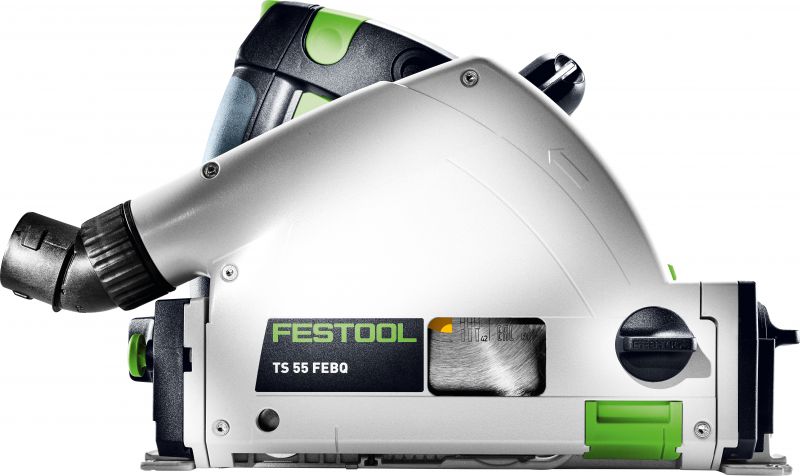

Festool Plunge-cut Saw TS 55 FEQ-Plus-FS 110V - (Ref: 577013)

Our masterpiece. Decisively improved. Now twice as fast.

Millions of saws do not lie: The Festool TS has always stood out with its absolute precision cuts, maximum power and extreme durability. The usual reliability remains – but the working speed is unprecedented: The Festool TS 55 now saws at up to twice the speed. In addition, the new generation of cutting blades guarantees perfect cutting quality with maximum cutting performance. With accessories, such as guide rails and the angle stop, or sophisticated and tried-and-test details, such as the splinter guard and extraction system perfectly matched to the machine, the Festool TS 55 provides excellent work results and a top-class sawing system – for every challenge.

• Concentrated torque and up to twice as fast work progress with an increased saw blade service life
• Virtually splinter-free on both sides thanks to attachable splinter guard
• The cutting edge from 90° to 47° remains unchanged even when the saw swivels
• Top-class sawing system thanks to a variety of accessories
• Guide wedge for safer work and simple positioning in existing joint
• Angle adjustment with undercut function from -1° to 47°

• Precise circular in materials up to 55 mm thick

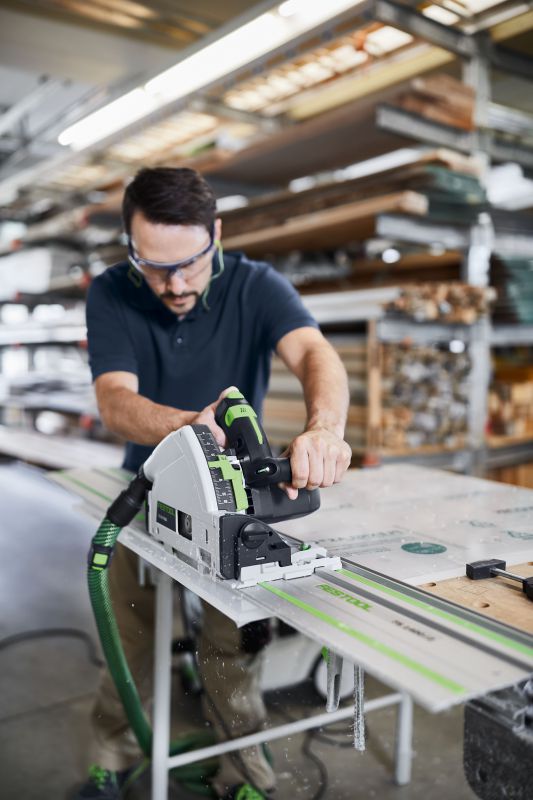

• Cutting interior doors to length using guide rail and circular saw
• Cutting recesses in doors and kitchen worktops
• Manufacturing expansion joints in parquet flooring and false joints
• Cutting chipboard to size

• Flag window; vision panel

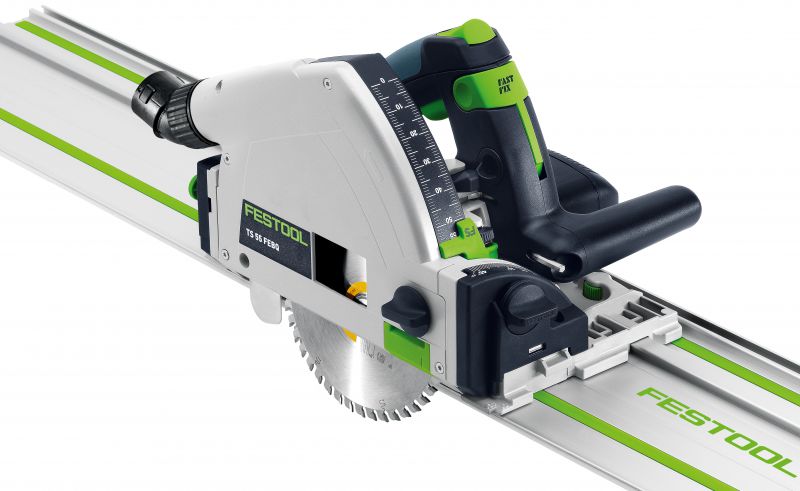

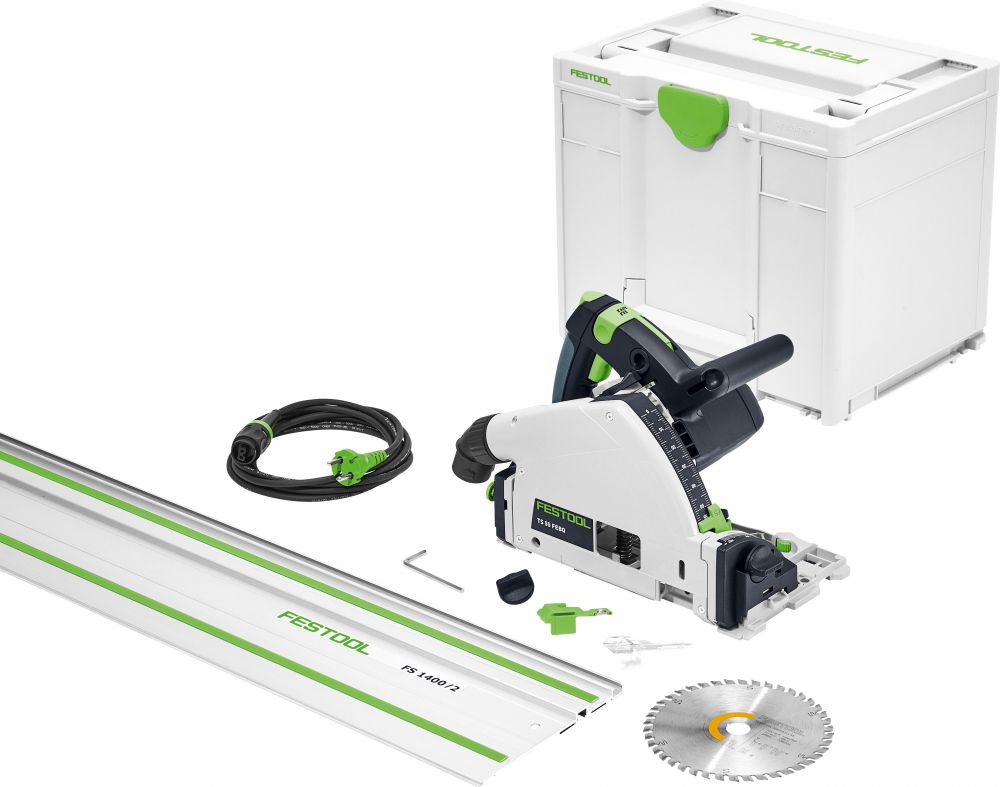

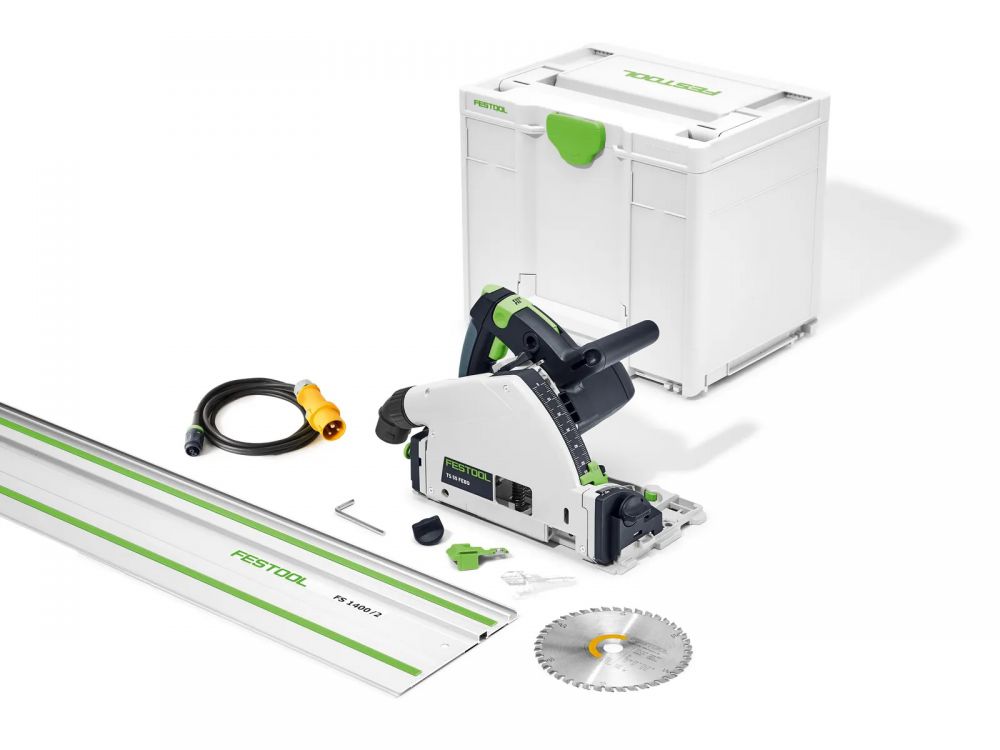

• guide rail FS 1400/2
• hex-key, WAF 5

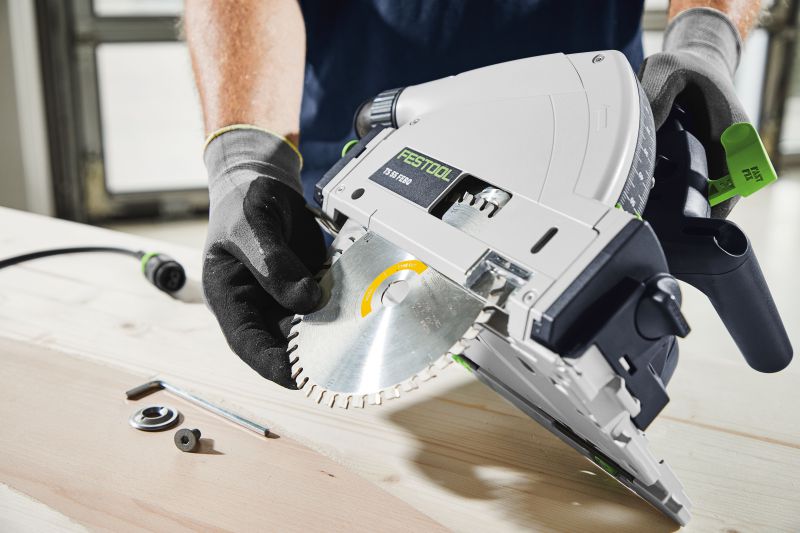

• Circular saw blade WOOD FINE CUT HW 160x1.8x20 WD42
• splinterguard
• Systainer SYS3 M 337

• Power consumption: 1 200 W
• Idle engine speed: 2 000 - 5 800 min⁻¹
• Saw blade diameter: 160.00 mm
• Angular range: -1 - 47 °
• Cutting depth: 0 - 55 mm
• Cutting depth 45°: 43 mm
• Dust extraction connection dia: 27/36 mm
• Weight: 4.50 kg
