Festool 576775 Cordless Percussion Drill QUADRIVE TPC 18/4 5,2/4,0 I-Set SCA
Product Code: FES/576775
Brand: Festool
Several options are available for this product.
Please Choose Below
Festool 576775 Cordless Percussion Drill QUADRIVE TPC 18/4 5,2/4,0 I-Set SCA - Set with 2 x Battery Packs and Charger
Pure power, controlled in four gears.
Key Features
Powerful - with four gears for every application. With the best switching concept you have ever operated. Whether you are working on wood, metal or masonry – thanks to the axial impact feature that can be switched on - The Festool TPC cordless percussion drill is extremely durable and, thanks to its brushless EC-TEC motor, has extreme resilience and endurance. The large number of attachments, combined with perfectly matched accessories, make the QUADRIVE an unrivalled percussion drill for a wide range of possible uses. What about your hand twisting dangerously if the tool suddenly jams? Our intelligent kickback stop minimises the risk of this happening. Give it a go: The best drill that Festool has ever built!
- Powerful for work with screws and drills with larger diameters, rapid for clean work progress when working with small diameters
- Maximum performance: Thanks to the extremely powerful, brushless, and therefore long-lasting, EC-TEC motor
- Robust: Resilient four-speed metal gearbox, also fully covered by the comprehensive support provided by Festool Service
- For an even wider range of applications - Axial impact function that can be activated for drilling into masonry
- The QUADRIVE with four gears for every working situation: From screwdriving with 50 Nm torque in first gear to precise drilling at 3600 rpm in fourth gear
- Versatile: Thanks to the FastFix interface, quick conversion without the need for tools for drilling, screwdriving, angular drilling and angular screwdriving
- The depth stop and eccentric adapter also enable depth-limited screwdriving close to edges
- Flexible cordless system: For applications with high power needs, the 4.0 Ah Li-HighPower Compact battery pack provides the ideal powerful, compact and lightweight solution The 5.2 Ah battery pack is the right choice for even more power for particularly difficult drilling and screwdriving applications Fully covered: Needless to say, the comprehensive support provided by Festool Service also applies to battery packs
- Convenient: The work area is optimally lit by LED lighting that can be switched on – can also be controlled via the Work App
- Mobile: The QUADRIVE comes in a Systainer³ and so can be seamlessly integrated into bott vehicle equipment for easy transportation from the workshop to the construction site

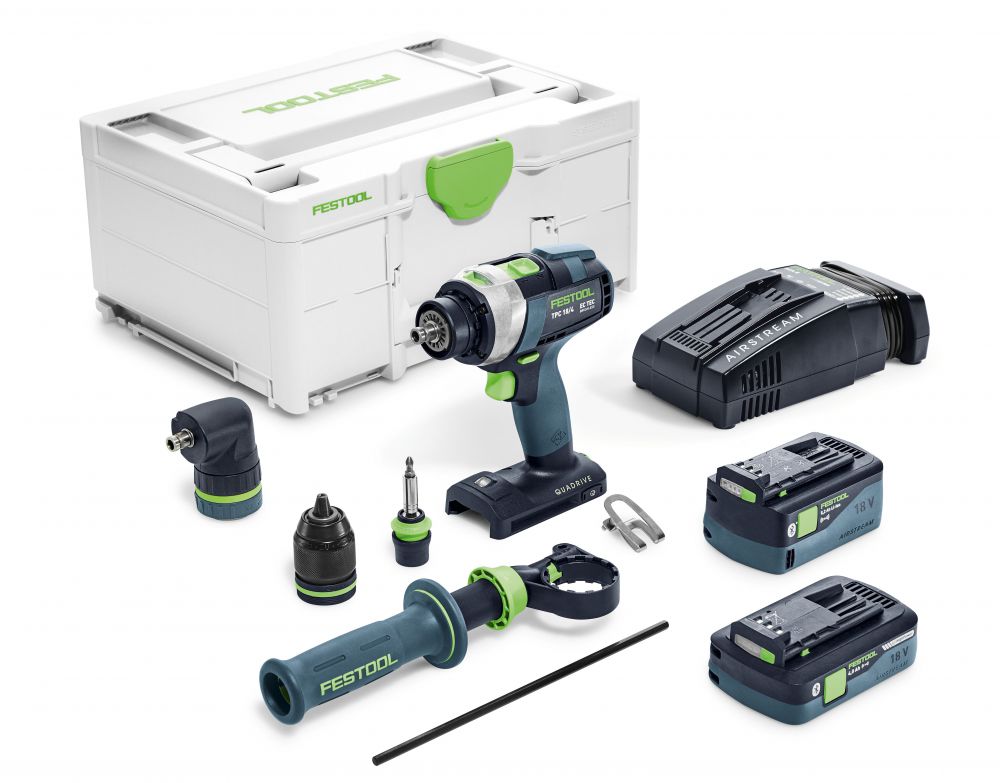

Items included
- Cordless percussion drill TPC 18/4
- BP 18 Li 4.0 HPC-ASI battery pack
- BP 18 Li 5.2 or 5.0 battery pack
- Rapid charger SCA 8
- Additional side-mounted hand grip
- Belt clip
- Bit PZ 2
- CENTROTEC BH 60 CE Imp magnetic bit holder
- CENTROTEC tool chuck
- FastFix angle attachment
- FastFix keyless chuck 13 mm KC 13-1/2-MMFP
- Systainer SYS3 M 187
Strengths and benefits
- For greater safety when working: The electronic KickbackStop prevents your wrist from twisting dangerously if the drill suddenly becomes caught or jammed, therefore ensuring improved safety when working.
- The QUADRIVE - four gears, with the right one for every applications. 1st gear: Demanding tightening of screws up to 10 mm. 2nd gear: Quick screwdriving up to 8 x 300 mm in size. 3rd gear: Powerful drilling with auger bits of up to 20 mm. 4th gear: Quick drilling with medium and small drill bits up to 35 mm, for example Forstner drill bits.
- Optimised gear switching: Fast, safe, direct! Switching in any direction – from any gear straight to any other, without intermediate stages. Fixed stops ensure clear engaging. Fast downshifting possible as required.
- Increased power in 2nd gear: 40% more torque compared to the previous model for full traction with 8 mm screws.
- QUADRIVE: Unique system width and perfect system compatibility: Thanks to the smart FastFix interface, you can use all of the 18 V attachments from the Festool range and therefore benefit from the system advantages. No other drill has such varied possible uses!
- CENTROTEC tool chuck – for even more speed at construction sites: For instantly changing between drilling, countersinking and screwdriving: The CENTROTEC tool chuck, which has proven itself since 2001, is a chuck and bit holder in one. Even though it is half the size and weighs 80% less than a standard chuck: A real Festool invention with the usual Festool quality.
- Latest generation of brushless EC-TEC motors: The brushless EC-TEC motor is wear-free and converts the energy from the battery into optimum power with virtually no losses. The electronic motor management also guarantees maximum service life: Microprocessors monitor and control the temperature, voltage and current consumption of the motor, electronics and battery. The latest generation of EC-TEC motors provides more torque and speed under load.
- Practical attachments with quick angle adjustment: Very quick angle adjustment simply by rotating the green ring. The attachment no longer needs to be released from the machine. Even the eccentric adapter for screwdriving close to edges is equipped with quick angle adjustment.
- Convenient for day-to-day use: Optimised torque adjustment to prevent accidental adjustment. A robust belt clip that can be attached on both sides and a bit holder for secure and magnetic bit storage at the side of the drill.
- Perfect ergonomics – both compact and powerful: Thanks to its smaller circumference, the optimised handle ensures improved ergonomics and easier handling.
- Extra mobile with vehicle integration: The screwdriver for Systainer³ products can also be seamlessly integrated into bott vehicle equipment for easy transportation from the workshop to the construction site. Systainer³ products are compatible with one another and can be connected to all previous Systainer generations, mobile dust extractors and many other system accessories, such as roll boards or the mobile workshop.
- Optimal lighting With LED light that can be switched on for precise work even in the darkest of corners.
Applications
- Production of wooden substructures, frame structures
- Installation of doors and windows
- Drilling and screwdriving in wood, metal and plastic
- Drive screws into wood up to 10x300 mm
- Drilling in wood up to 70 mm with Forstner drill bits
- Drilling with impact in brickwork or masonry
Technical details
- Battery voltage: 18 V
- Gears: 4
- Idling speed, 1st gear/2nd gear: 0 - 500/0 - 800 min⁻¹
- Idling speed, 3rd/4th gear: 0 - 2350/0 - 3600 min⁻¹
- Max. number of strokes: 57600.00 min⁻¹
- Drilling diameter, wood/steel: 70/13 mm
- Drilling diameter in brickwork: 10.00 mm
- Torque adjustment 1st/2nd gear: 2 - 20/2- 20 Nm
- Max. torque, wood/steel: 50/70 Nm
- Chuck range: 1.5 - 13 mm
- Li-Ion battery capacity: 4,0/5,2 Ah
- Weight with Li-Ion battery: 1,9/2,0 k
