Automatic Dust Extraction Contactor Controller Unit c/w 5 Sensor Input
Product Code: AE/AE075
Brand: Auto Extract
Low Stock - Please Call For Availability
£178.92 Inc. VAT
£149.10 Exc. VAT

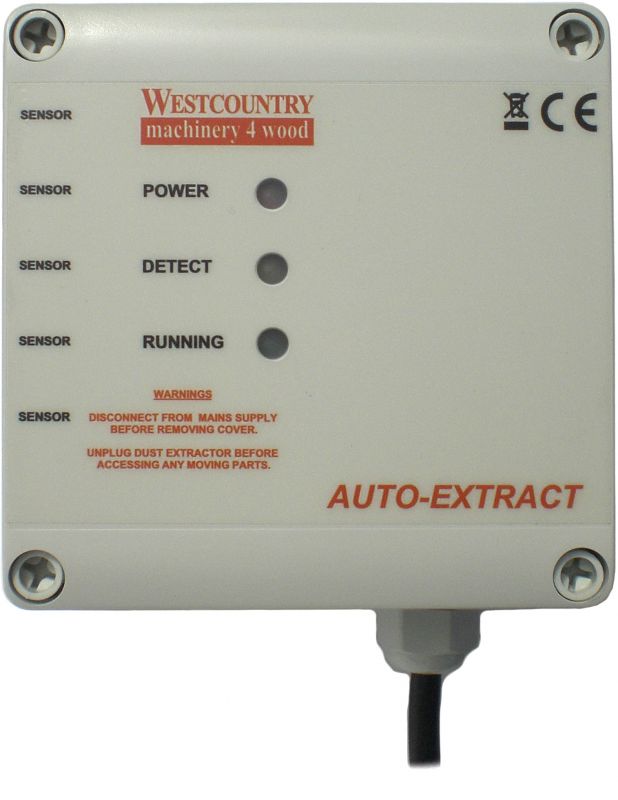

Auto Extract Contactor Controller Unit (with 5 Senor Input) - (Ref: AE075)
Strengths and benefits
- Auto-Extract senses the magnetic field generated when a machine tool is switched on. When a machine is started (saw bench, planner etc.) Auto-Extract automatically switches on the dust extractor.
- The Auto-Extract contactor control unit provides a control signal to operate the contactor powering a dust extractor.
- Patented sensors plugged into the Auto-Extract controller attach to the motors of each machine. No electrical connections are made to the machines; each sensor simply attaches to the machine's motor and will function with both single and three phase machines. Five machines can be monitored by AutoExtract, or more by adding Auto-Expand units.
Key Features
- Power Light: Red LED illuminates when there is power connected to Auto-Extract.
- Detect Light: Yellow LED illuminates when the sensor(s) detect a sufficiently strong alternating magnetic field from a machine's motor.
- Running Light: Green LED illuminates when the dust extractor output is on. Auto-extract will continue to operate the extractor for 15 seconds after the machine(s) are turned off to allow ducting to clear.
- Over-Run: Auto-extract will continue to operate the extractor for 15 seconds after the machine(s) are turned off to allow ducting to clear.
- Power on Reset: If the mains power is interrupted the control output is automatically disabled. After approximately 20 seconds the extractor control will then operate as normal when triggered by a machine sensor.
- Improved Health & Safety, better workshop environment.
- Saves electricity. Reduces heating bills (when venting air externally).
- Controls extraction for all fixed machines.
- Automatic over run period to clear ducting
Specification
- Mains Connections: The Auto-Extract 13A control unit is supplied with a 4-core cable with connections as follows: Earth _Green/Yellow); Neutral (Blue); Live, single phase 230VAC between live & Neutral (Brown); Output, relay connects brown to black when extractor needs to operate (Black)
- Sockets: 5 x Sensor inputs 2.5mm jack. 1 x Expansion input/output 3.5mm jack.
- Dimensions: 125(h) x 125(w) x 75(d) mm (excluding cable and gland).
