USED Sedgwick 2 Head Tenoner 240 volts

X
Product Code: UWM/5126
Brand: WWM
Stock Due Soon
Please Call For Update
£4,950.00 Inc. VAT
£4,125.00 Exc. VAT
WWM

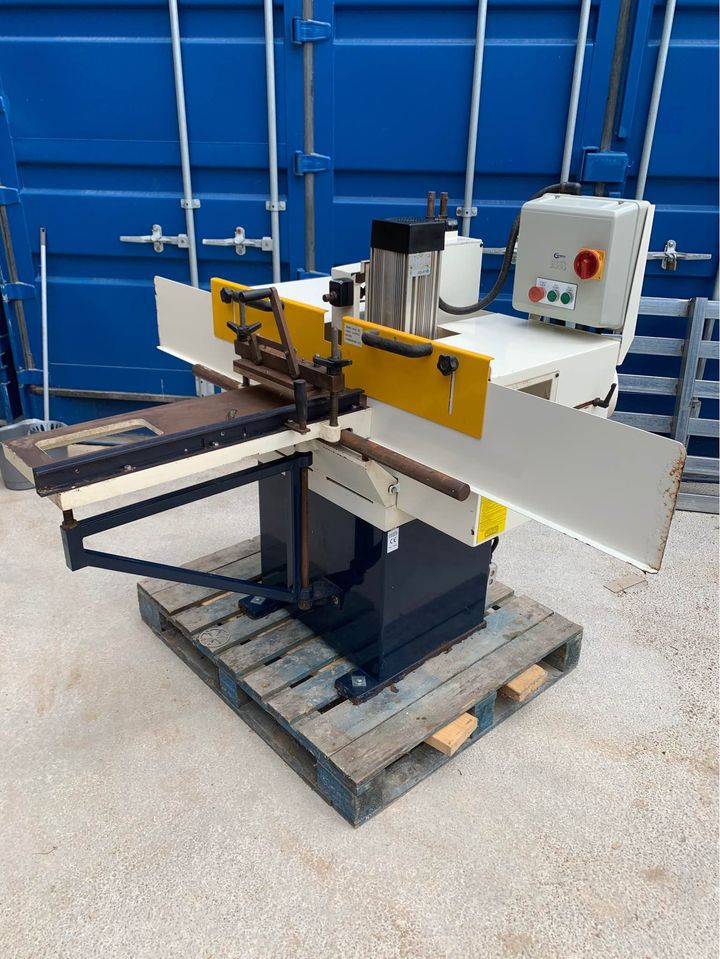

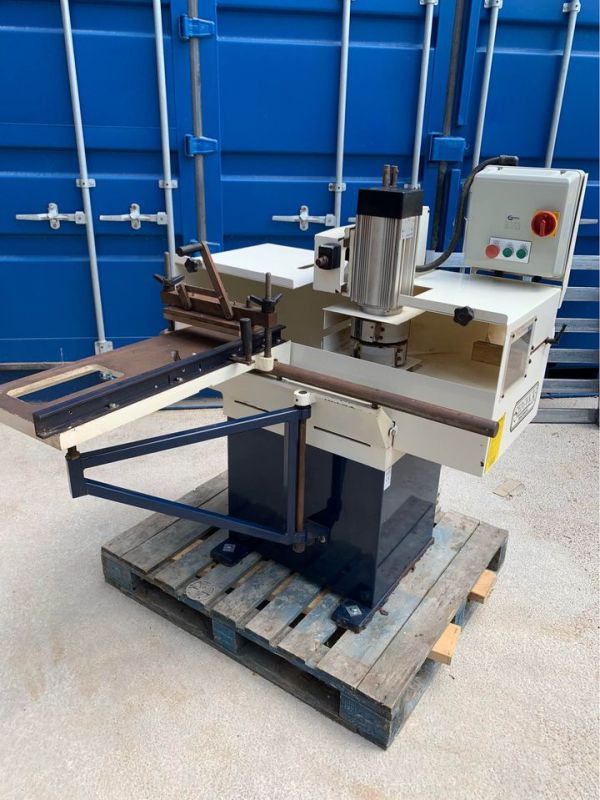

USED Sedgwick 2 Head Tenoner 240 volts



Excellent condition used Sedgwick 2 head Tenoner ( limiter tooling alloy blocks )
240 volt 2.2kw motors
Digital (mechanical) readout to heads
British Manufactured

Please call to view machine

Delivery Available



Ease of operation

Taking only minutes to set up, the Sedgwick TE/TESH is easy to use and accurate in operation. Work is positioned on the rolling table against an end stop and a fence, and is secured by a cam action clamp. Its end is then passed between two vertically mounted cutterheads which machine the top and bottom cheeks of the tenon. The tenon width is set by raising or lowering the top motor, and its position on the timber by raising/lowering the two motors in tandem. Variations in shoulder length are set using the rule on the end stop, and staggered tenons are achieved by simple handwheel adjustment of the top motor, again reading from a rule.

Versatility

Each cutting head has provision for profile knives to enable the operator to match the cross section of the components being jointed. Alternatively the optional scribing head provides improved accuracy, ease of setting, and finish. Stepped tenons, splayed tenons, scribed tenons, double tenons, and multiple bridles are all possible on this versatile machine. Combinations of 90 degree and bevelled cutting discs with appropriate spacers can also be fitted to produce interleaved joints as used in sash window construction.

Construction

The Sedgwick TE/TESH is designed and built to withstand continuous production use. Its cast iron base, column and slideways provide a rigid and durable mainframe assembly, and the 2.2Kw motors supply ample power. The generously proportioned cast iron sliding table is mounted on bearing equipped hardened steel rollers for minimum wear, and cutterhead slide movements are easily adjusted on dovetail slides for ease of maintenance.

Safety Features

The TE/TESH offers all of these safety features as standard:

  • Automatic braking
  • Starters with thermal overload, no volt release protection and lock off emergency stop switch.
  • High performance lightweight cutter blocks with chip limiting devices
  • Large diameter dust extraction outlets
  • One piece front cutter guard
  • Front & rear table guards




Specification

TIMBER CAPACITY

130 x 310mm

TIMBER CAPACITY WITH FENCE   @ 45

130 x 250mm

MAXIMUM LENGTH OF TENON

155mm

MAX. LENGTH OF TENON 2   PASSES

205mm

VERTICAL ADJUSTMENT OF   BOTTOM CUTTERBLOCK

0 - 60mm

VERTICAL ADJUSTMENT OF TOP   CUTTERBLOCK

0 - 120mm

HORIZONTAL ADJUSTMENT OF   TOP CUTTERBLOCK

+/- 32mm

TABLE SIZE  mm

800 x 310

TABLE WORKING HEIGHT

860mm

MAIN CUTTERHEADS

2 x 175 x 60 mm Each with 4 shear cut replaceable knives, 2 spur cutters, and provision for 2 scribing cutters and chip limiters.

DUST EXTRACTION OUTLETS

2 x 150mm

VOLTAGE / FREQUENCY

230 V – 50/60 Hz

MOTOR RATING

1  PHASE 2.2 Kw (S6 40%)
