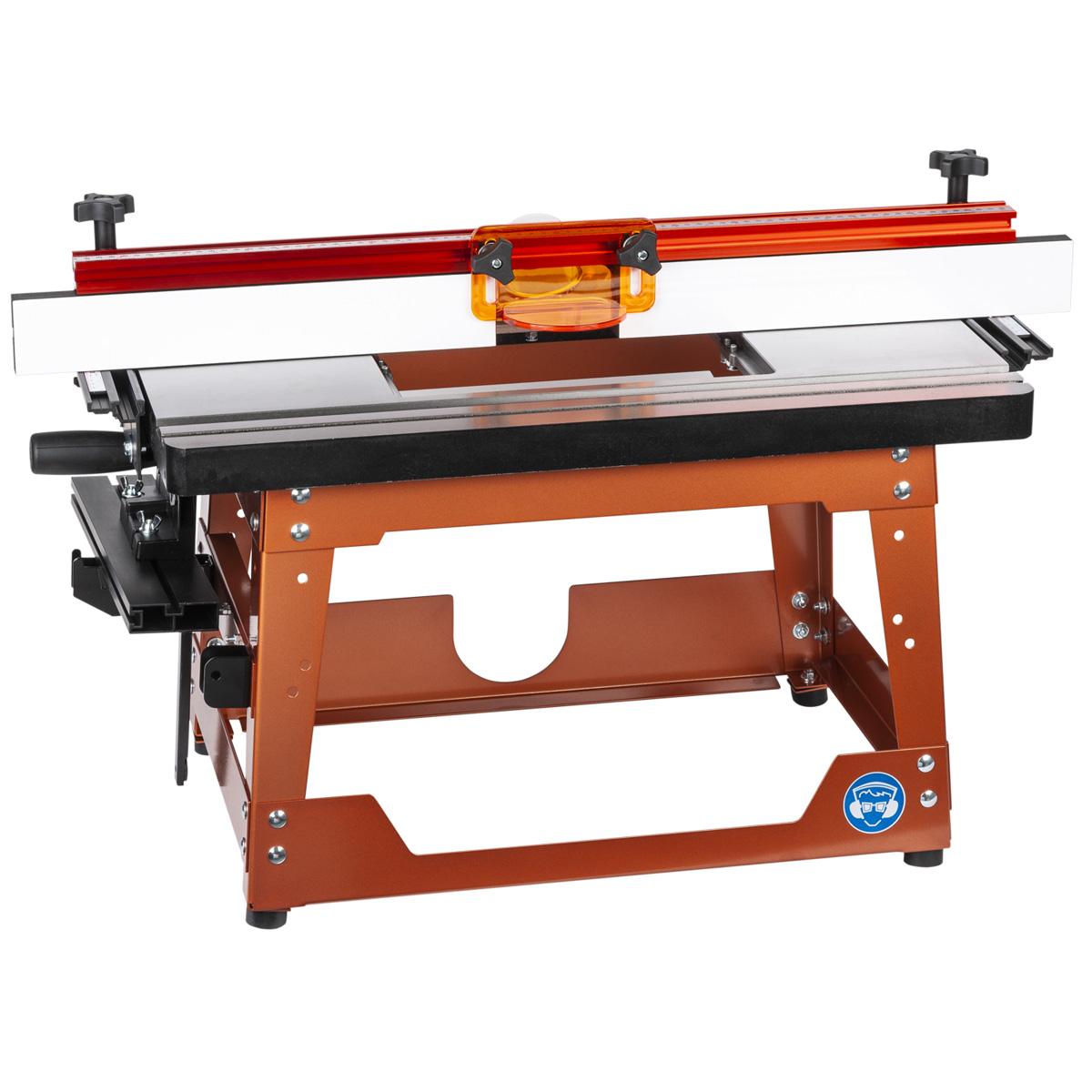

UJK Compact Router Table with Cast Iron Top - 717126

UJK Compact Router Table with Cast Iron Top

ref: 717126

• The UJK compact router table is a solid, dependable unit that should give many years of useful service. Complete with a cast iron table top. The benefits of using cast iron for the manufacture of machine tables are well known especially where vibration damping and stability are paramount.
• This cast iron 686 x 406 x 40mm top is finely ground offering minimum resistance to the workpiece as it is passed over the surface. If you don't have room in your workshop for a full sized router table then the 'compact' would be a great choice. There are many complex routing operations that can only be carried out using a table set-up and, although smaller than its bigger brothers, these little gems still offer some excellent features.
• The aperture in the table top is designed to accept the UJK router elevator and a range of other dedicated insert options.

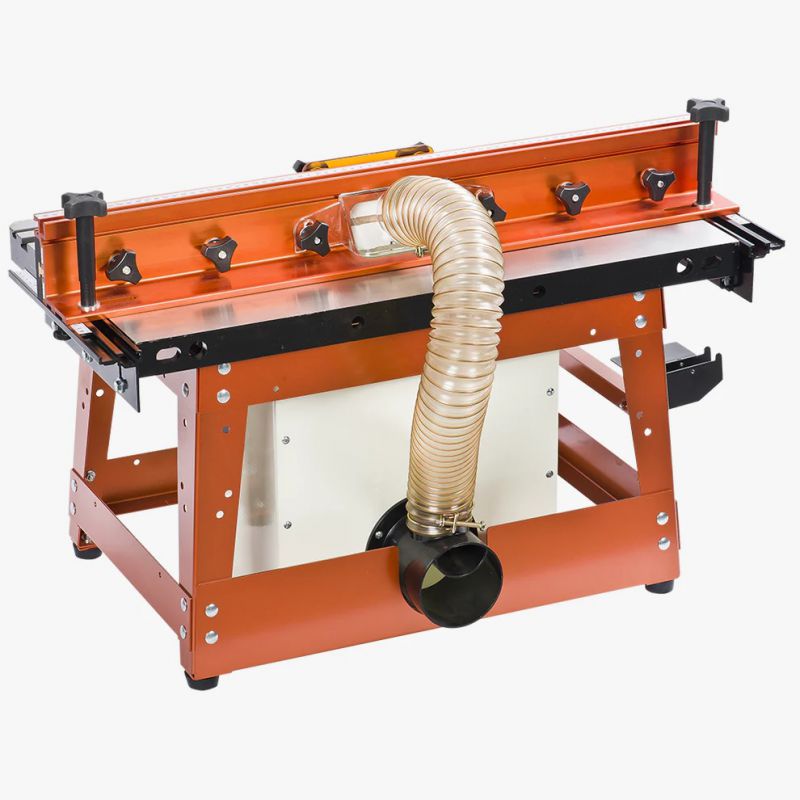

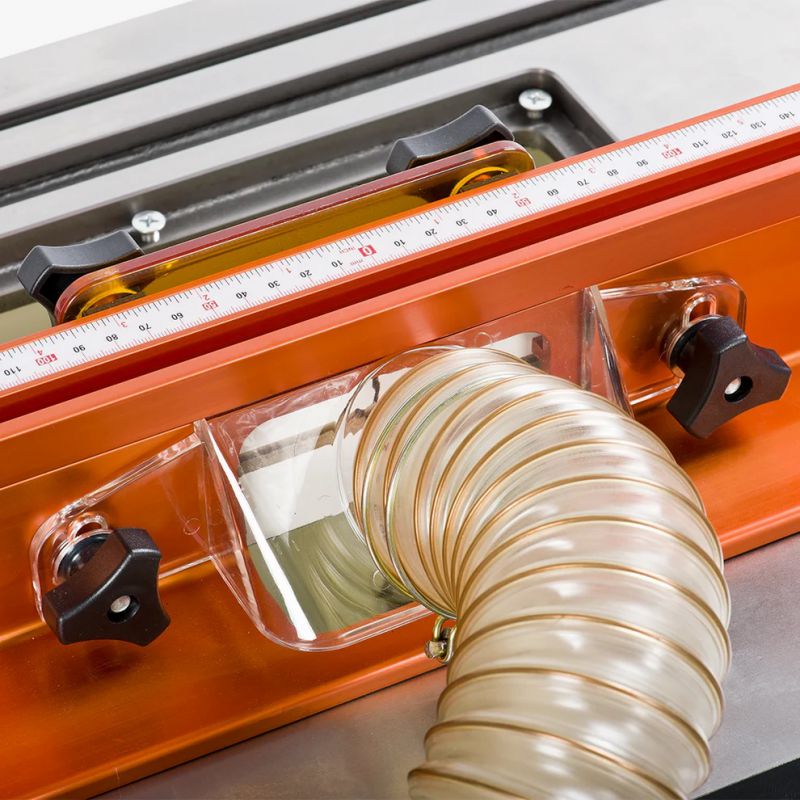

• The fence is a beautifully made, single piece aluminium section supplied with a transparent dust port for efficient extraction from above the table.
• Provision is made for the fitting of guards and accessories with a T-slot at both the top and front of the fence.
• An adjustable transparent guard is included for your safety.
• Adjustable scales are provided for attachment at either side of the table and the fence is attached to these and locks into place in the required position.
• A scale is also provided for the top of the fence with the zero position at the centre.
• Adjustable in-feed and out-feed fences attach to either side of the aluminium section and the central aperture can be opened and closed according to the diameter of the cutter in use.
• Measures 789 x 90mm.
• The compact leg stand is of sturdy construction. Measuring 370mm high, with a footprint of 580 x 390mm, this leg stand is such a useful size and could also be used for mounting many other machines.
• Dust Extraction Outlet 62 mm
• Fence Size 789 mm x 90 mm
• Rating Trade/Professional

UJK Compact Router Table Manual
