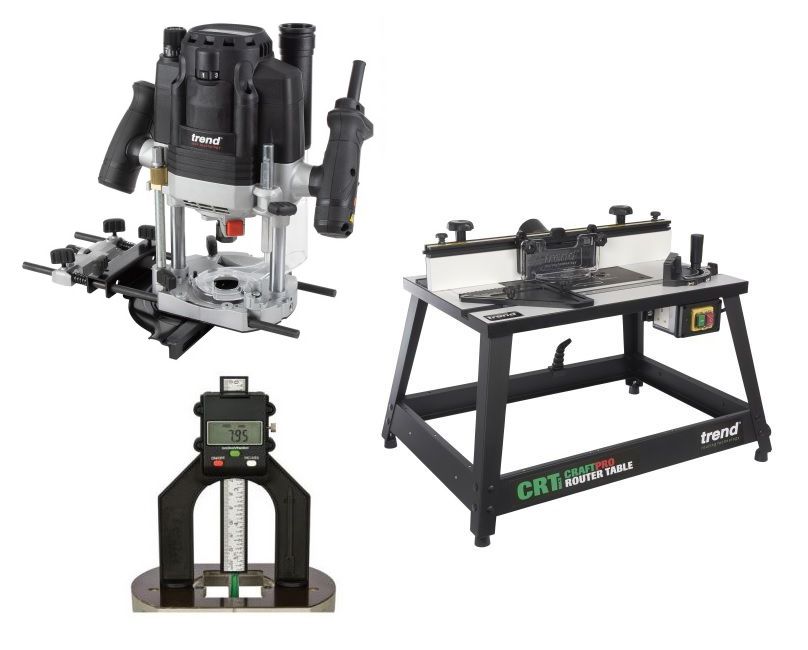

Trend T8EK Dual-Mode Plunge Router Set PLUS CRT/MK3 Router Table and Depth Gauge Package
Product Code: TRE/T8EK-PK3
Brand: Trend
Was £700.42 Inc. VAT
Now £614.99!
£512.49 Exc. VAT
Trend T8EK Dual-Mode Plunge Router Set PLUS CRT/MK3 Router Table and Depth Gauge Package
Package Includes:
1 X Trend T8EK - 2200W 1/2" Dual-Mode Plunge Router 240V
1 X TREND CRT/MK3 CRAFTSMAN R/TABLE MK3 240V
1 X TREND GAUGE/D60 - Digital Router Depth Gauge 60mm Jaw
Trend T8EK - 2200W 1/2" Dual-Mode Plunge Router 240V
Trade-focused and engineered for both hand-held and router table use. Ideal for lock morticing, kitchen fitting, worktop jointing and timber profiling.
Key Features
- 80mm Plunge Depth is ideal for deep cutting applications. Perfect for lock jigs, worktop joints and timber profiling.
- Precision Centring System to ensure perfect concentricity between cutter and guide bush for pinpoint accuracy with routing jigs.
- Router Table Compatible with height adjuster to easily and safely change cutting height from above the table.
- Constant Speed Control monitors the spindle RPM and adjusts automatically to maintain cutter speed for smooth and consistent cuts.
- 11-Level Variable Speed Control offers precise control across a wide range of cutters, materials and applications.
- Vertical Extraction Spout prevents extraction hoses from ‘snagging’ on jigs and materials.
- Twin LED Worklights illuminate the cutting area to improve safety and accuracy in low-light situations.
- Extra-Wide 75mm Base Aperture to accommodate over-size cutters, such as panel raisers.
- 7-Position Rotating Turret with pre-set plunge depth limits for fast, repeatable batch and stepped cutting.
- Micro-Adjustable Fence with Extraction Port featuring adjustable facings and 0.1mm increments for accurate edge rebating, grooving and moulding
- Fine Height Adjuster with an easy-to-read display for precision depth adjustments. 1 rotation equals 2mm height adjustment.
- Trend Base Configuration is a standardised fixing pattern of holes that allow routers to be attached to a range of compatible router tables, jigs and accessories.
- Ergonomic Inclined Handles feature an integrated power trigger and a soft grip moulding for comfortable operation
- Double Locking Collet prevents accidental cutter ejection while a multi-spline profile ensures concentric clamping of the cutter shank.
- Moulded Carry Case provides safe storage for router and accessories.
- Cam-Lock System Compatible for quick changes between hand-held and table routing.
Items included
- 1/2" collet
- Collet sleeve
- Centering pin
- 30mm guide bush
- Guide bush adapter
- Trammel pin
- 22mm spanner
- Router table safety clip
- Under fence dust adapter
- Vertical dust adapter
- Cyclone dust adapter
- Router table height adjuster
- Side fence
- Carry case
Technical details
- Duty Rating: Medium/Trade
- Motor Power: 2200W
- AC Voltage: 240V
- Plug Type: UK 3 pin
- Supplied Collet Size: 1/2“
- Plunge Stroke (Max): 80mm
- No Load Speed: 10,000-26,000rpm
- Supplied Guide Bush: 30mm
- Fence Rod Length: 360mm
- Fence Rod Centres: 84mm
- Fence Rod Diameter: 8mm
- Base Aperture Diameter: 75mm
- Cutter Diameter (Max): 50mm
- Dust Spout Internal Diameter: 35mm
- Sound Pressure (Lpa): 94.1 dB(A)
- Acoustic Pressure (Lwa): 105.1 dB(A)
- Hand/Arm Vibration: <3.8m/s2
- Weight (Net): 5.8kg
- Power Cable Length: 3m
- 3 year warranty with online registration (UK and Eire only)
Trend Craft Pro Router Table for Joinery, Furniture, Shaping and Moulding Applications - (Ref: CRT/MK3)
Key Features
The CraftPro Router Table will suit the craftsman & woodworking enthusiast. It is packed with the necessary features to maximise the versatility of all popular portable routers.
- Large laminated MDF table.
- Quick release aluminium extrusion back fence with sliding MDF cheeks.
- Removable 6.35mm thick aluminium insert plate with 98mm diameter aperture, pre drilled for Trend TBC routers and T11 routers.
- T11 router Quick Raiser and Quick Release facility.
- High back fence with fully adjustable guard assembly.
- Fully adjustable side finger pressure.
- Full perimeter leg stand with adjustable feet.
- Two insert rings 31.8mm and 67.5mm diameter to reduce table aperture.
- Lead on pin for bearing guided curved work.
- Edge planing facility on back fence of 1.4mm and 2.4mm.
- Cable management clips.
- No volt release switch.
- Mitre fence with zeroing and spelch block facility.
- Bench fixing brackets.
- Router not included.
Items included
- 6 x Insert rings
- 1 x No-volt release switch
- 1 x Side pressure
- 1 x Top pressure
- 1 x Mitre fence
- 1 x Lead-on pin
- 1 x Safety guard
- 1 x Pushstick
Specification
- Rating: Craftsman
- Table top size: 610x405x26mm
- Bench height: 410mm
- Router cutter aperture: 98mm
- Max cutter dia: 86mm
- Insert ring sizes: 31.8mm, 67.5mm
- Backfence height: 68mm
- Dust spout aperture: 57mm
- Edge planing up to: 1.4 & 2.4mm
- Weight: 13.6kg
- Voltage: 240v
- Not intended for continuous production or production line use.
Trend CRT/MK3 Router Table Owners Manual
Trend Digital Depth Gauge - for setting and checking depths for routing and sawing applications - (Ref: GAUGE/D60)
- Digital depth gauge for router tables and saw benches. Horizontal and vertical measuring.
- For hand routers, router tables and saw benches.
- LCD readout for mm, imperial and fractions with auto shut off 5 mins.
- Removable pin to allow hole depths to be measured. Pin can be parked on arm. Hole depth 50.8mm (2 inch).
- Self standing with magnetic feet and flat back.
- Injection plastic moulding with plastic rule.
- 60mm wide aperture.
- Read-out has relative co-ordinate and absolute function.
- Includes small rebate clip that fits to the base of the rule to allow the rule to be set flush to a router table back fence.
- Spare battery available ref. BAT/CR2032/3V.
- For UK sale only.
Items included
- 1 x 3V CR2032 lithium battery
- 1 x Small rebate clip
Specification
- Measuring range: 80 mm (3-1/8")
- Opening width: 60 mm (2-3/8")
- Resolution: 0.05 mm (0.002")
- Accuracy: +/- 0.1 mm (0.004")
- Repeatability: +/- 0.1 mm (0.004")
- Max. measuring speed: 1.5 m/s (60 in/s)
- Weight: 92g
- Voltage: 3 volt
- ABS mode (Absolute): Measuring single amounts from Zero
- INC mode (Relative): Measuring from last point
Take a look at our Knowledge Centre for beginners guides and helpful advice on everything you need to know about routing.
Items Included
1 X Trend T8EK - 2200W 1/2" Dual-Mode Plunge Router 240V
1 X TREND CRT/MK3 CRAFTSMAN R/TABLE MK3 240V
1 X Trend GAUGE/D60 - Digital Router Depth Gauge 60mm Jaw
