Trend T8EK 2200W 1/2" Dual-Mode Plunge Router Set PLUS 35 Piece Cutter Set

X
Product Code: TRE/T8EK-PK6
Brand: Trend
In Stock
Was £510.20 Inc. VAT
Now £436.99!
£364.16 Exc. VAT
✓ COLLECTION
✓ DELIVERY
Qty
Trend

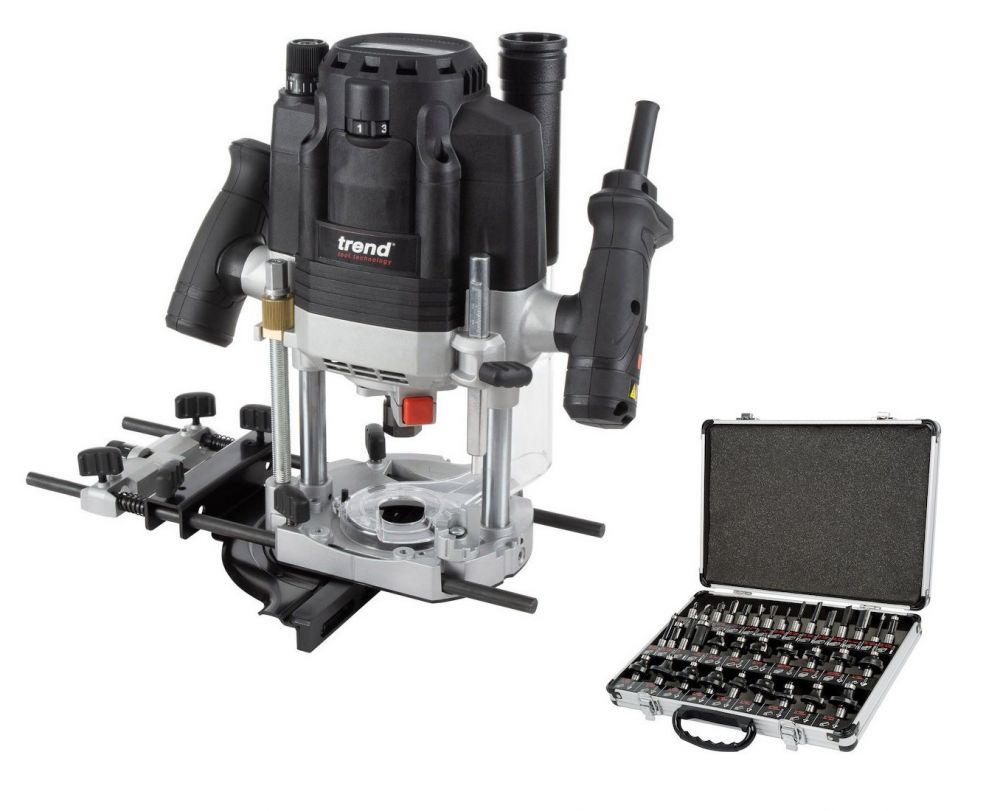

Trend T8EK 2200W 1/2" Dual-Mode Plunge Router Set PLUS 35 Piece Cutter Set



Package Includes:

1 X Trend T8EK - 2200W 1/2" Dual-Mode Plunge Router 240V

1 X TREND SET/SS35X1/2TC 35pc Router Cutter / Bit Starter Set

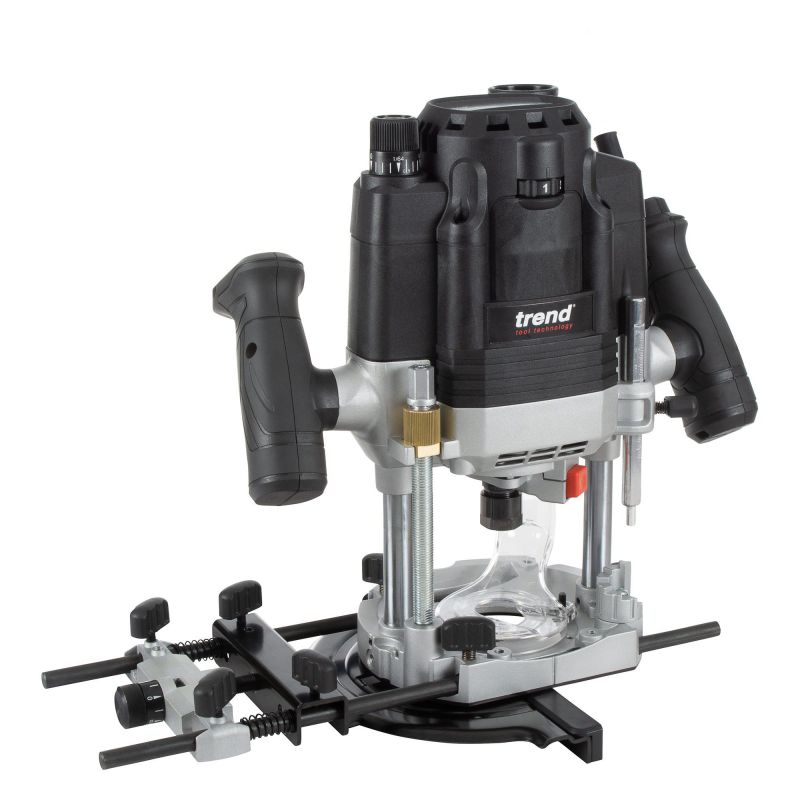

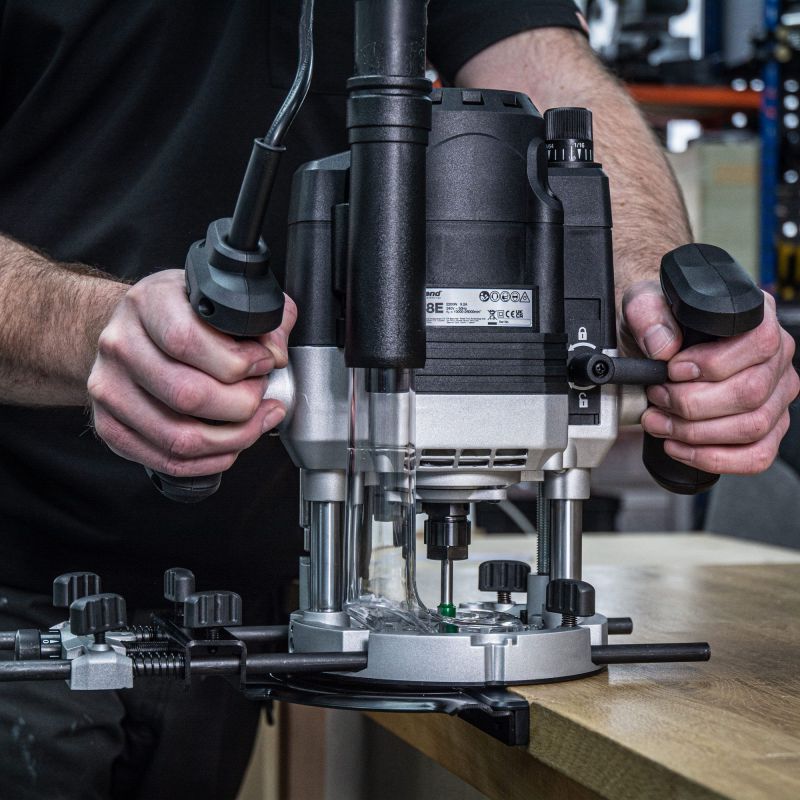

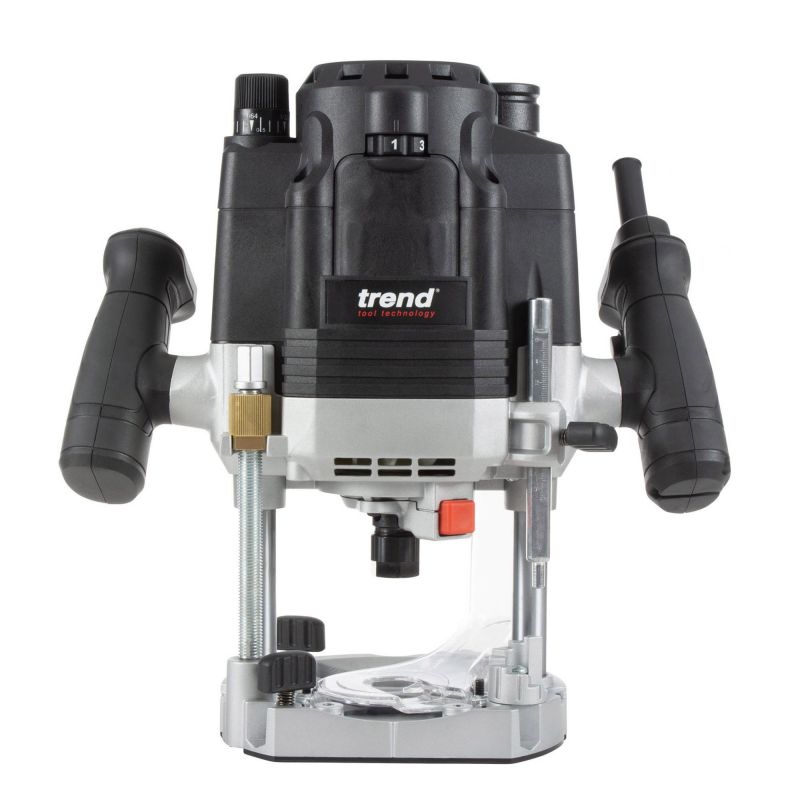

Trend T8EK - 2200W 1/2" Dual-Mode Plunge Router 240V



Trade-focused and engineered for both hand-held and router table use. Ideal for lock morticing, kitchen fitting, worktop jointing and timber profiling.



Key Features

  • 80mm Plunge Depth is ideal for deep cutting applications. Perfect for lock jigs, worktop joints and timber profiling.
  • Precision Centring System to ensure perfect concentricity between cutter and guide bush for pinpoint accuracy with routing jigs.

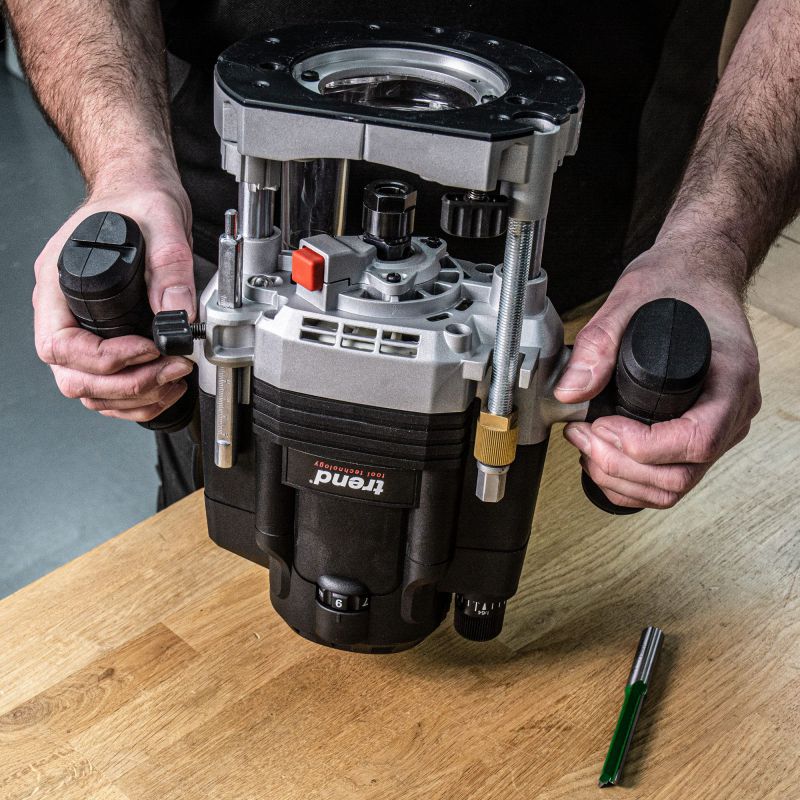

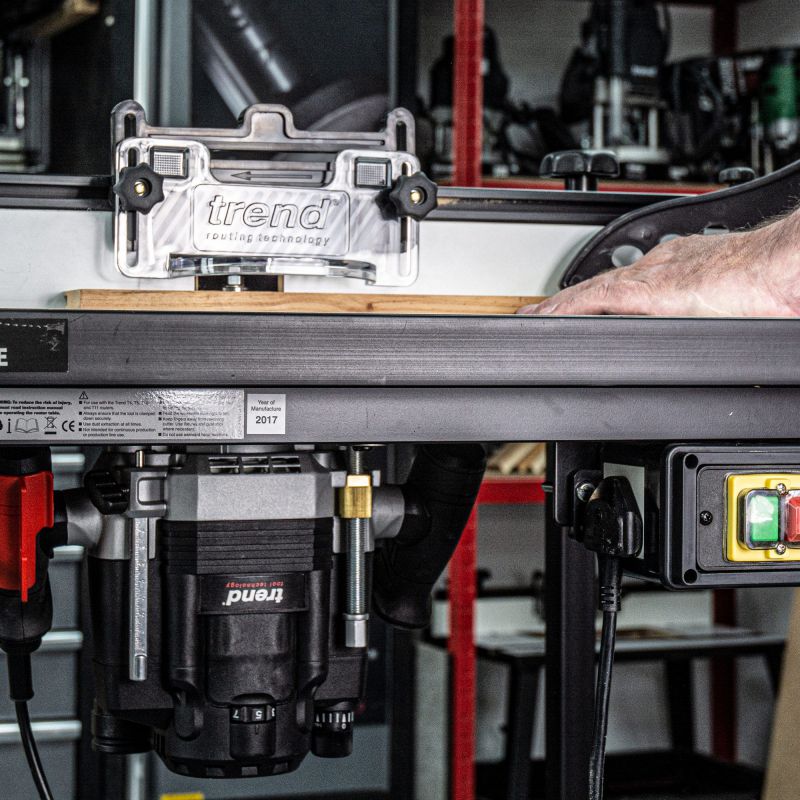

  • Router Table Compatible with height adjuster to easily and safely change cutting height from above the table.
  • Constant Speed Control monitors the spindle RPM and adjusts automatically to maintain cutter speed for smooth and consistent cuts.

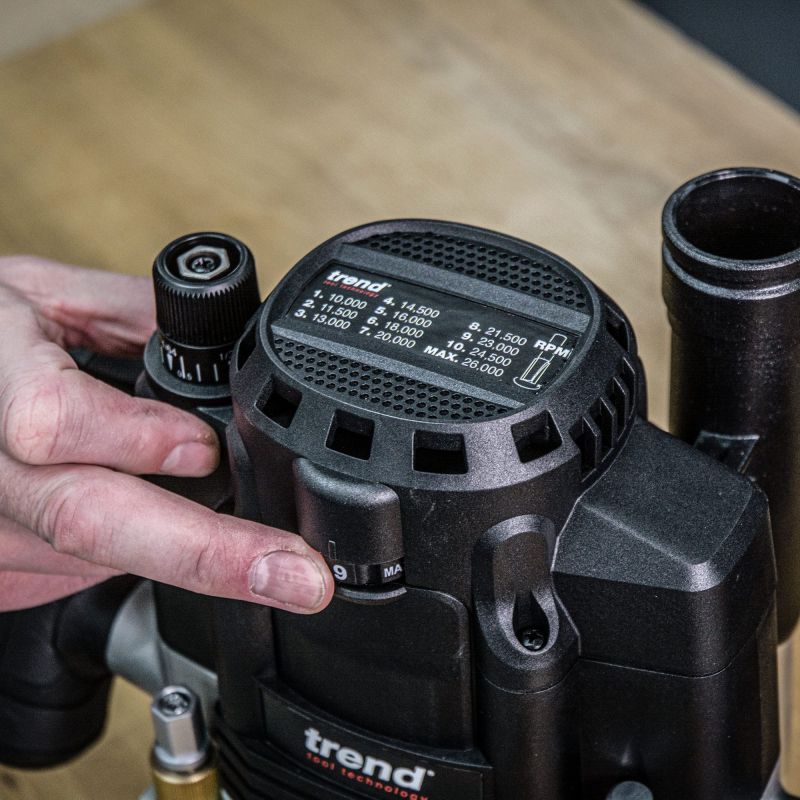

  • 11-Level Variable Speed Control offers precise control across a wide range of cutters, materials and applications.
  • Vertical Extraction Spout prevents extraction hoses from ‘snagging’ on jigs and materials.
  • Twin LED Worklights illuminate the cutting area to improve safety and accuracy in low-light situations.
  • Extra-Wide 75mm Base Aperture to accommodate over-size cutters, such as panel raisers.
  • 7-Position Rotating Turret with pre-set plunge depth limits for fast, repeatable batch and stepped cutting.
  • Micro-Adjustable Fence with Extraction Port featuring adjustable facings and 0.1mm increments for accurate edge rebating, grooving and moulding
  • Fine Height Adjuster with an easy-to-read display for precision depth adjustments. 1 rotation equals 2mm height adjustment.
  • Trend Base Configuration is a standardised fixing pattern of holes that allow routers to be attached to a range of compatible router tables, jigs and accessories.
  • Ergonomic Inclined Handles feature an integrated power trigger and a soft grip moulding for comfortable operation
  • Double Locking Collet prevents accidental cutter ejection while a multi-spline profile ensures concentric clamping of the cutter shank.
  • Moulded Carry Case provides safe storage for router and accessories.
  • Cam-Lock System Compatible for quick changes between hand-held and table routing.

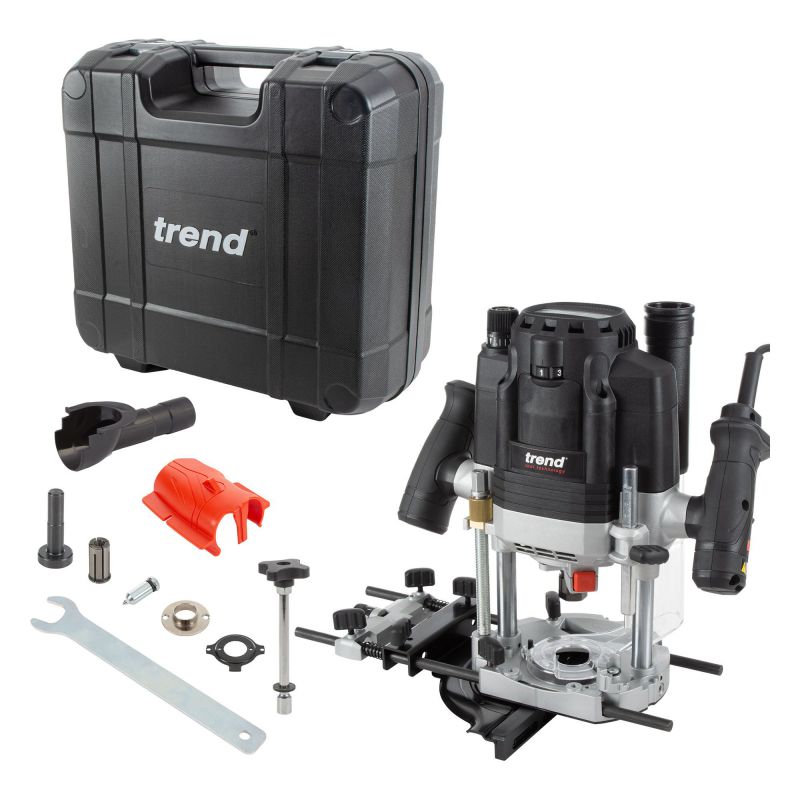

Items included

  • 1/2" collet
  • Collet sleeve
  • Centering pin
  • 30mm guide bush
  • Guide bush adapter

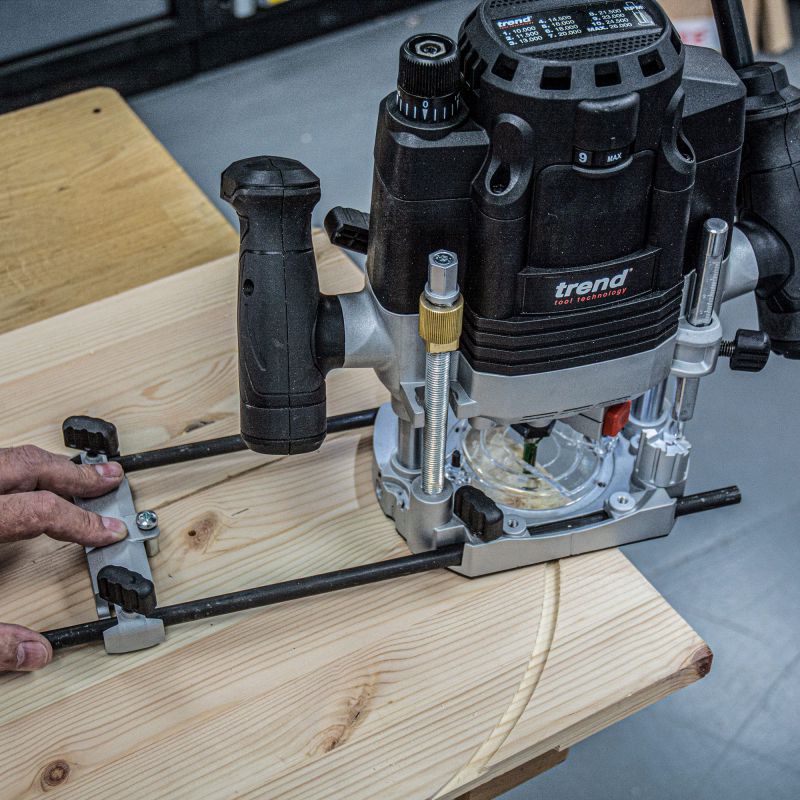

  • Trammel pin
  • 22mm spanner
  • Router table safety clip
  • Under fence dust adapter
  • Vertical dust adapter
  • Cyclone dust adapter
  • Router table height adjuster
  • Side fence
  • Carry case



Technical details

  • Duty Rating: Medium/Trade
  • Motor Power: 2200W
  • AC Voltage: 240V
  • Plug Type: UK 3 pin
  • Supplied Collet Size: 1/2“
  • Plunge Stroke (Max): 80mm
  • No Load Speed: 10,000-26,000rpm
  • Supplied Guide Bush: 30mm
  • Fence Rod Length: 360mm
  • Fence Rod Centres: 84mm
  • Fence Rod Diameter: 8mm
  • Base Aperture Diameter: 75mm
  • Cutter Diameter (Max): 50mm
  • Dust Spout Internal Diameter: 35mm
  • Sound Pressure (Lpa): 94.1 dB(A)
  • Acoustic Pressure (Lwa): 105.1 dB(A)
  • Hand/Arm Vibration: <3.8m/s2
  • Weight (Net): 5.8kg
  • Power Cable Length: 3m
  • 3 year warranty with online registration (UK and Eire only)




35 Piece Starter Set 1/2" Shank
Ref: SET/SS35X1/2TC



Key Features

  • This thirty five piece cutter set contains a range of popular Tungsten Carbide Tipped cutters for a variety of applications
  • 1/2- inch shank diameter
  • For softwood, hardwood, chipboard, plywood and MDF
  • Excellent value for money
  • Supplied in aluminium carry case



Items included

  • 1 x Single flute 3.2mm x 12.7mm cut
  • 1 x Straight 6.3mm x 19mm cut
  • 1 x Straight 9.5mm x 25mm cut
  • 1 x Straight 12.7mm x 19mm cut
  • 1 x Straight 12.7mm x 25mm cut
  • 1 x Straight 19mm x 19mm cut
  • 1 x Pierce and trim 6.3x 18mm
  • 1 x 45 Degree v groove x 12.7mm dia
  • 2 x Dovetail 12.7mm and 14.3mm dia
  • 2 x Cove R3.2mm & R6.35mm
  • 1 x Long series cove R6.35mm x 18mm cut
  • 5 x Guided trimmer 9.5x12.7mm, 9.5x25mm, 12.7x12.7mm, 12.7x25mm & 19x25mm
  • 1 x Guided 45 degree chamfer 30mm dia
  • 3 x Guided round over R6.3mm, R9.5mm & R12.7mm
  • 1 x Guided ovolo R12.7mm
  • 1 x Guided cavetto R7.9mm
  • 2 x Guided cove R6.3mm & R9.5mm
  • 3 x Guided groover 6.35mm x 9.5mm deep, 7.9mm x 9.5mm deep & 9.5mm x 9.5mm deep
  • 1 x Hinge recess straight 12.7mm dia x 12.7mm cut
  • 2 x Guided roman ogee R4.7mm & R6.35mm
  • 2 x Guided R4mm & R6.3mm classic decor
  • 1 x Guided wavy edge R4.7mm



Specification
​​

  • Shank Diameter: 1/2 inch



Take a look at our Knowledge Centre for beginners guides and helpful advice on everything you need to know about routing.

Product Videos
Items Included
Click For Bigger Image
1 X Trend T8EK - 2200W 1/2" Dual-Mode Plunge Router 240V
Click For Bigger Image
1 X TREND SET/SS35X1/2TC 35pc Router Cutter / Bit Starter Set
