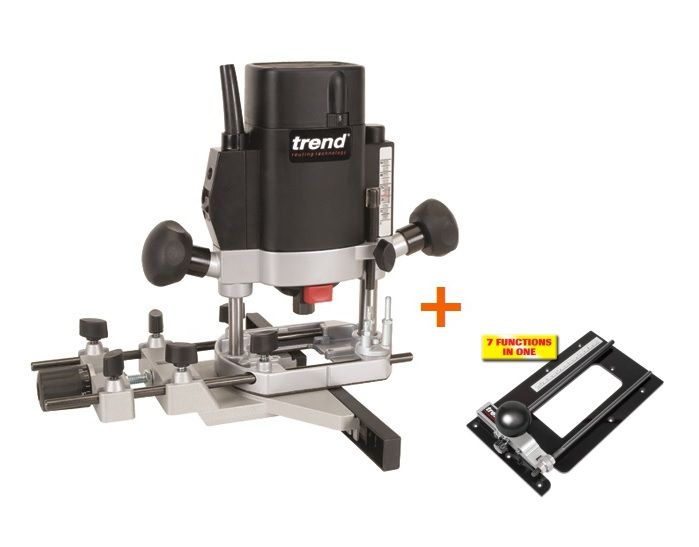

Trend T5EB 240v Plunge Router and Combination Router Base CRB Package

X
Product Code: TRET5EB-PK1
Brand: Trend
In Stock
£262.37 Inc. VAT
£218.64 Exc. VAT
✓ COLLECTION
✓ DELIVERY
Qty
Trend

Trend T5 Router & Combination Router Base Package





Trend Variable Speed 1/4" Plunge Router (T5EB)

T5 Mark 1

Electronic full wave variable control of spindle speed under load for a fine finish on all types of material - 110 volt



Key Features

  • Soft-start feature eliminates sudden movement of machine on start up.
  • Spindle lock & hex collet nut allows easy cutter changes.
  • Precision machined one piece multi-slit collet with combined nut.
  • Compact design & low weight make it easy to use especially for intricate work.
  • Adjustable twin rod side-fence for guiding along a straight edge.
  • New features include: increased power, soft grip handles, low profile dust spout
    and ergonomic spindle lock.
  • Three year extended warranty with online registration (UK and Eire only)



Specification

  • Rating: Professional / Trade
  • Plunge stroke: 0-50 mm
  • Power input: 1000 watt
  • Power ampage: 4.6 amp
  • Standard collet dia: 1/4"
  • No load speeds: 9-27000 rpm
  • Dust spout size ID: 35 mm
  • Guide bush dia: supplied 20 mm
  • Rod diameter: 80 mm
  • Rod length: 300mm
  • Rod centres: 84 mm
  • Cutter dia. max: 40 mm
  • Other collet dia: none only 1/4"
  • Weight; 3.3kg
  • Voltage: 240 volt
  • Sound pressure Lpa: 81.0 dB(A)1
  • Acoustic pressure Lwa: 94.01 dB(A)2
  • Hand arm vibration: <2.5 m/s2



Items included

  • 1 x 1/4" Collet
  • 1 X 20mm Guide Bush
  • 1 X 35mm Clip-in Dust Spout
  • 1 X Side-fence with Micro Adjuster
  • 1 X Beam Trammel Attachment



Trend T5 Mk1 / Mk2 Owners Manual

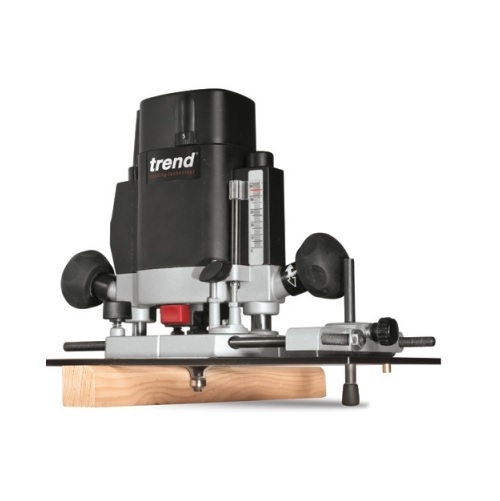

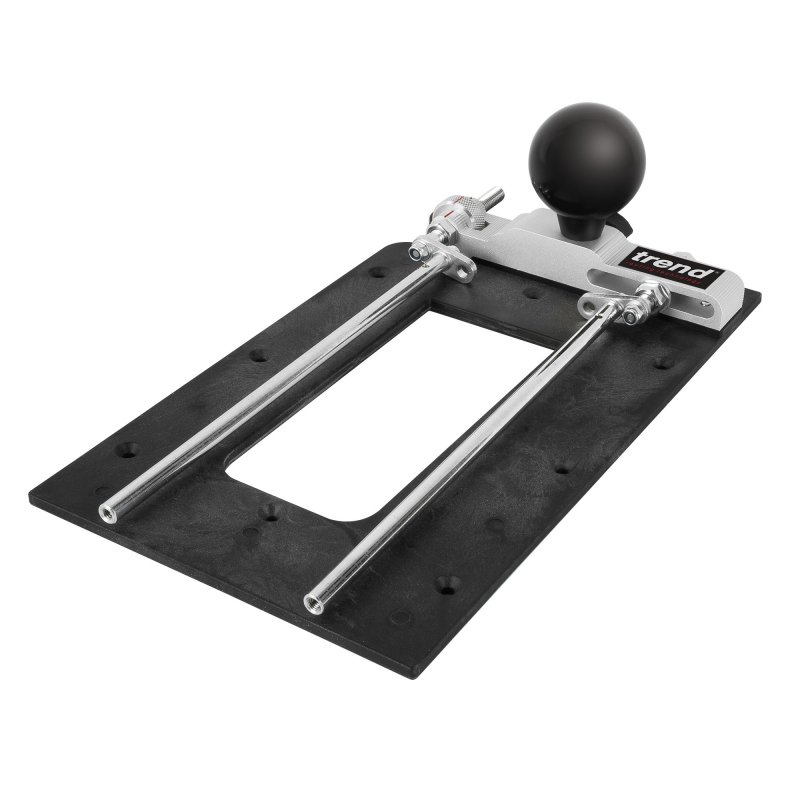

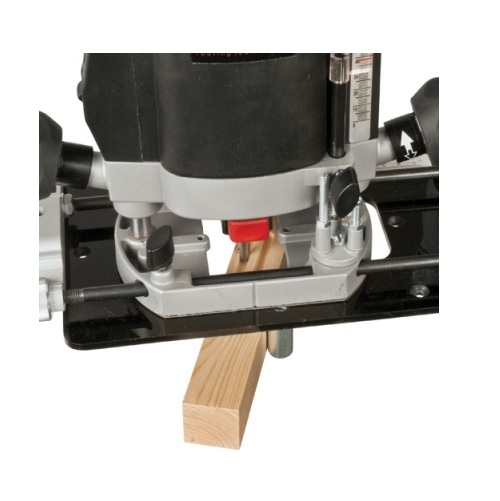

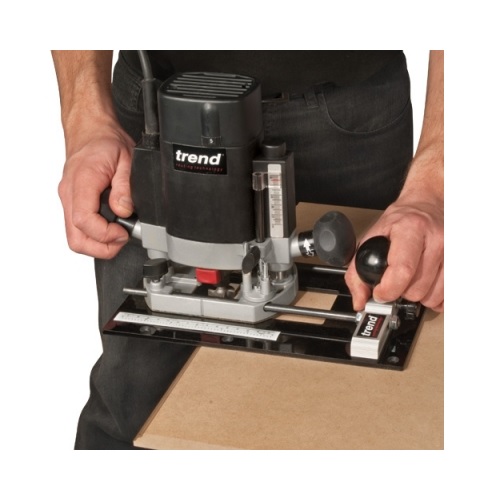

Trend CRB Combination Router Base

The Combination Router Base is a retro fit, quick change, multi-functional router base designed to:

Key Features

  • Increase the overall versatility of the router.
  • Improve the quality of finish of every routing pass.
  • Reduce the possibility of error.
  • Increase stability during routing.
  • Increase the level of precision achieved.
  • Save set up time between tasks.
  • Save space on storing hand made jigs.

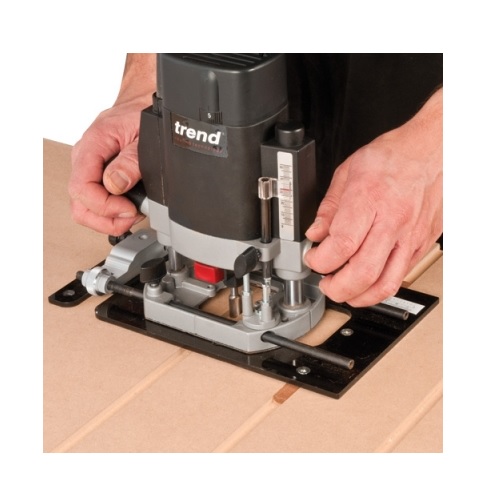

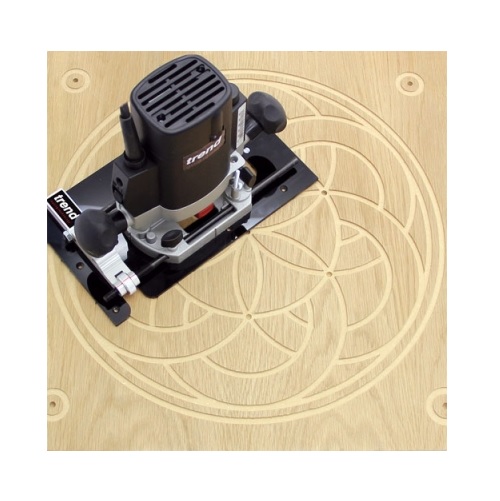

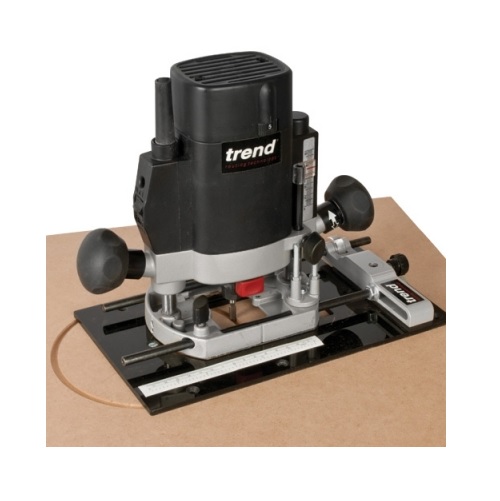

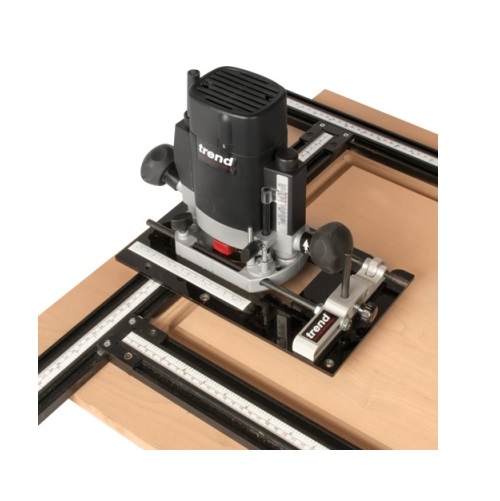

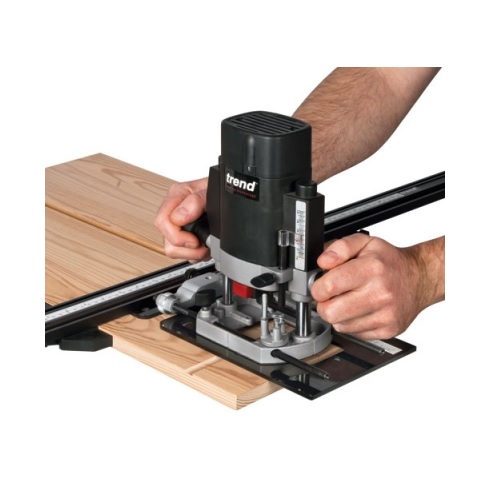

  • The CRB has seven functions - an offset baseplate, router compass from 19mm to 224mm radius, adjustable trenching with a clamp guide with 40mm micro adjustment, adjustable anti-tilt support, adjustable mortising of timber from 50mm to 200mm width, adjustable false panel groove copier and also enhances the Varijig frame system as an anti-tilt device when used with routers that can accept Euro style guide bushes (a special guide bush ref GB40/B is required).
  • The CRB will fit most routers with two 8mm, 10mm and 12mm fence rod holes at centres of 78mm to 130mm.
  • An accessory quick fit edge trimming base is available for trimming lipping up to 16mm wide and 6mm projection, ref. CRB/TB.
  • Larger circles can be accommodated by using accessory extension rods ref. N/COMPASS/AEX to increase radius by 560mm.
  • Design Reg. No. 3003693



Specification

  • Rod size: 8 mm
  • Rod centres: 78 mm to 130 mm
  • Mortising width min: 50 mm
  • Mortising width max: 200 mm
  • Anti-tilt height max: 80 mm
  • Anti-tilt height min: 8 mm
  • Lateral adjustment: 110 mm
  • Micro adjustment: 40 mm
  • One revolution: 1.25 mm
  • Circle dimensions using 6.35mm cutter and measured from outside edge of hole:
  • Circle radius min: 19 mm
  • Circle diameter min: 38 mm
  • Circle radius max: 224 mm
  • Circle diameter max: 448 mm
  • Length: 285 mm
  • Width: 175 mm
  • Thickness: 5 mm
  • Cutter diameter max. possible: 40 mm. Please refer to router manufacturers specification



Items included

  • 1 x Plastic baseplate with handle
  • 1 x Bridge
  • 2 x Rods 8mm dia x 270mm
  • 1 x Bridge shim pack (2x2mm, 1x2mm, 1x1mm, 1x0.5mm)
  • 1 x Scale
  • 1 x Pivot pin
  • 1 x Pair of mortise pillars



Take a look at our Knowledge Centre for beginners guides and helpful advice on everything you need to know about routing.

Product Videos
Items Included
Click For Bigger Image
1 X TREND T5EB - T5 MK1 - 1000W 1/4" Collet Variable Speed Plunge Router 240V
Click For Bigger Image
1 X TREND CRB COMBINATION ROUTER BASE
