Trend T5EB 1/4 Router and Door Hinge Jig Package Deal with Cutter and Chisel (H/JIG/A)

X
Product Code: HINGE/JIG/DEAL-PK7
Brand: Trend
In Stock
Was £580.39 Inc. VAT
Now £407.99!
£339.99 Exc. VAT
✓ COLLECTION
✓ DELIVERY
Qty
Trend

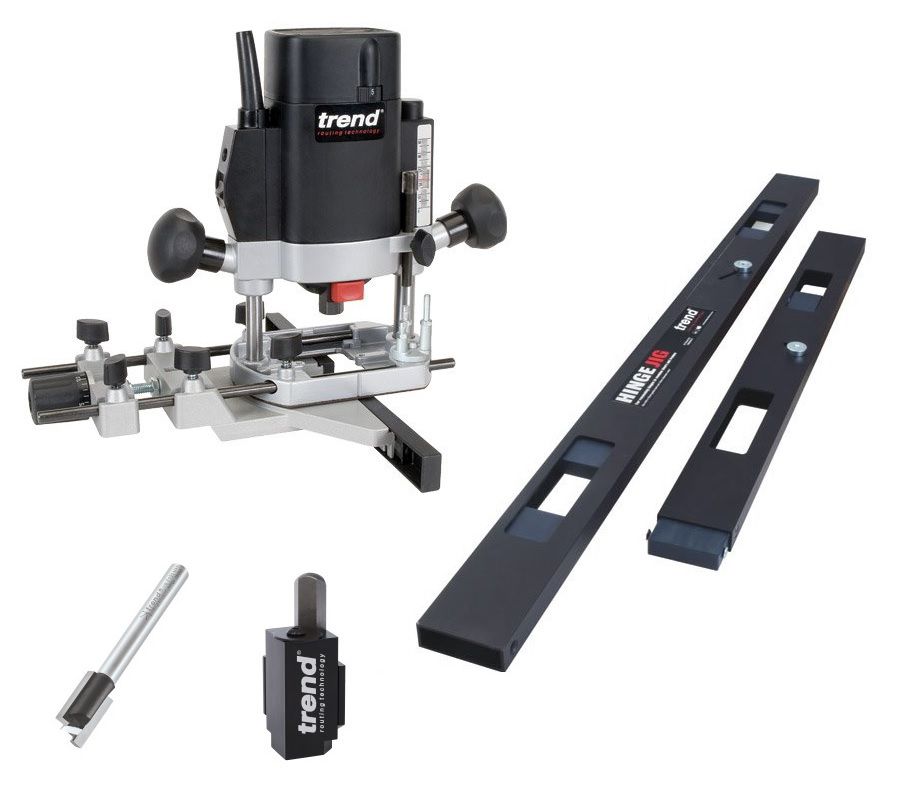

Trend T5EB 1/4 Router and Door Hinge Jig Package Deal with Cutter and Chisel (H/JIG/A)

T5 Mark 1

Package includes:

  • 1 x TREND T5 T5EB 1000W 1/4" Collet Variable Speed Plunge Router 240V
  • 1 x TREND H/JIG/A HINGE JIG TWO PART IN CASE
  • 1 x TREND TR12x1/4TC Hinge Jig Router Cutter Two Flute 12.0mm dia x 19.0mm Cut - Ex LONG 70.0MM O/L
  • 1 x TREND CORNER CHISEL C/CHISEL for Hinge Jig




Trend T5 1000W 1/4" Variable Speed Router 240V
Ref: T5EB



Key Features

  • Electronic full wave variable control of spindle speed under load for a fine finish on all types of material.
  • Soft-start feature eliminates sudden movement of machine on start up.
  • Spindle lock & hex collet nut allows easy cutter changes.
  • Precision machined one piece multi-slit collet with combined nut.
  • Compact design & low weight make it easy to use especially for intricate work.
  • Adjustable twin rod side-fence for guiding along a straight edge.
  • New features include: increased power, soft grip handles, low profile dust spout and ergonomic spindle lock.
  • Three year extended warranty with online registration (UK and Eire only).
  • For UK sale only.



Items included

  • 1 x 1/4" Collet
  • 1 x 35mm Clip-in Dust Spout
  • 1 x 20mm Guide Bush
  • 1 x Side-fence with Micro Adjuster
  • 1 x Beam Trammel Attachment



Specification

  • Rating: Professional/Trade
  • Voltage: 240 volt
  • Plunge stroke: 0-50 mm
  • Power input: 1000 watt
  • Power ampage: 4.6 amp
  • Standard model collet diameter: 1/4"
  • Cutter diameter max: 40 mm
  • No load speeds: 9-27000 rpm
  • Dust spout size ID: 35 mm
  • Guide bush diameter: 20 mm
  • Rod diameter: 8 mm
  • Rod length: 300 mm
  • Rod centres: 84 mm
  • Weight: 3.3 kg
  • Sound pressure Lpa: 81.0 dB(A)1
  • Acoustic pressure Lwa: 94.01 dB(A)2
  • Hand arm vibration: <2.5 m/s2

Trend T5 Mk1 / Mk2 Owners Manual




Trend Hinge Jig A - Hinge Jig Two Part In Case - (Ref: H/JIG/A)



The two part Contractor Hinge Jig is a portable template set designed for recessing hinges in wooden doors & frames using a plunge router



Key Features

  • It is easy to use with minimal setting-up time, completing the job both accurately & quickly
  • Used on-site & in joinery shops to increase productivity with excellent results
  • Four apertures for fire door requirements
  • No need for marking out in the conventional way
  • Quick & simple to set-up as the hinge is used as the pattern
  • Clean & accurate recesses are achieved every time. Suitable for timber based doors & square butt hinges
  • Can be used on both inside and outside doors, rebated frames and on maximum 25mm thick fixed stops
  • Use with a light duty plunge router with 1/4 inch collet
  • Long reach router cutter required, 12mm diameter with 70mm overall length
  • Angled position slots to prevent creep
  • Unibase may be needed
  • T4EK router requires a ref. UNIBASE or special guide bush ref. GB/T4/160



Items included

  • 4 x Apertures
  • 2 x Bradawls with spacer
  • 1 x 16mm guide bush
  • 1 x T-Handle hex key 4mm
  • 1 x 4mm spacing gauge
  • 1 x Carry case



Specification

  • Length min: 2 5/8" (67 mm)
  • Length max: 5" (127 mm)
  • Width min: 3/8" (9.5 mm)
  • Width max: 1 3/8" (35 mm)
  • Width max. in 35mm rebate: 20 mm
  • Width max. in 44mm rebate: 30 mm
  • Door sizes possible
  • Height min: 6' 5" (1955 mm)
  • Height max: 2100 mm*
  • Thickness min: 5/8" (16 mm)
  • Weight 3.3 kg
  • Jig overall length 1957 mm
  • Plate thickness 2 mm
  • Fixed stop max. thickness 25 mm**



* Please note for doors over 2040mm the bottom hinge will be higher than 9" up.
** Max. hinge leaf width 20mm (35mm doors)


TR12X1/4TC - Two Flute Straight Cutter
12mm Dia x 19mm Cut x 1/4" Shank



For use with the Trend Hinge Jig and Lock Jig



Key Features

  • Gives a clean finish to abrasive materials such as chipboard, MDF, plywood and certain hardwoods
  • For housing, grooving and mortising
  • Features 2mm micrograin Tungsten Carbide tips, for cutting the most abrasive materials to give extra long life
  • PTFE coated, indicated by distinctive black colouring
  • Can be used on hardwood & softwood, fibreboard, plywood and particle board
  • Etched dimensions on extra long 40mm shanks



Specification

  • D: 15/32 inch (imperial diameter)
  • D: 12 mm (metric diameter)
  • C: 3/4 inch (imperial cut length)
  • C: 19 mm (metric cut length)
  • OL: 70 mm (overall length)
  • Shank Diameter: 1/4 inch




Trend Corner Chisel - To quickly square up rounded corners when using lock and hinge jigs - (Ref: C/CHISEL)



Key Features

  • Allows a rounded recess in wood to be cut to a square recess with the use of a hammer
  • Ideal for squaring hinge recesses in door frames and door edges, as well as lock faceplates
  • Spring loaded high speed steel (HSS) anvil for a sharp cut and long life
  • Light weight aluminium body design
  • Can be used with the Trend Hinge Jig
  • Can be resharpened



Specification

  • Length: 70 mm
  • Width: 29 mm
  • Weight: 100 g



Take a look at our Knowledge Centre for beginners guides and helpful advice on everything you need to know about routing.

Product Videos
Items Included
Click For Bigger Image
1 X TREND H/JIG/A HINGE JIG TWO PART IN CASE
Click For Bigger Image
1 X TREND TR12x1/4TC Hinge Jig Router Cutter Two Flute 12.0mm dia x 19.0mm Cut - Ex LONG 70.0MM O/L
Click For Bigger Image
1 X TREND T5EB - T5 MK1 - 1000W 1/4" Collet Variable Speed Plunge Router 240V
Click For Bigger Image
1 X TREND CORNER CHISEL C/CHISEL for Hinge Jig
