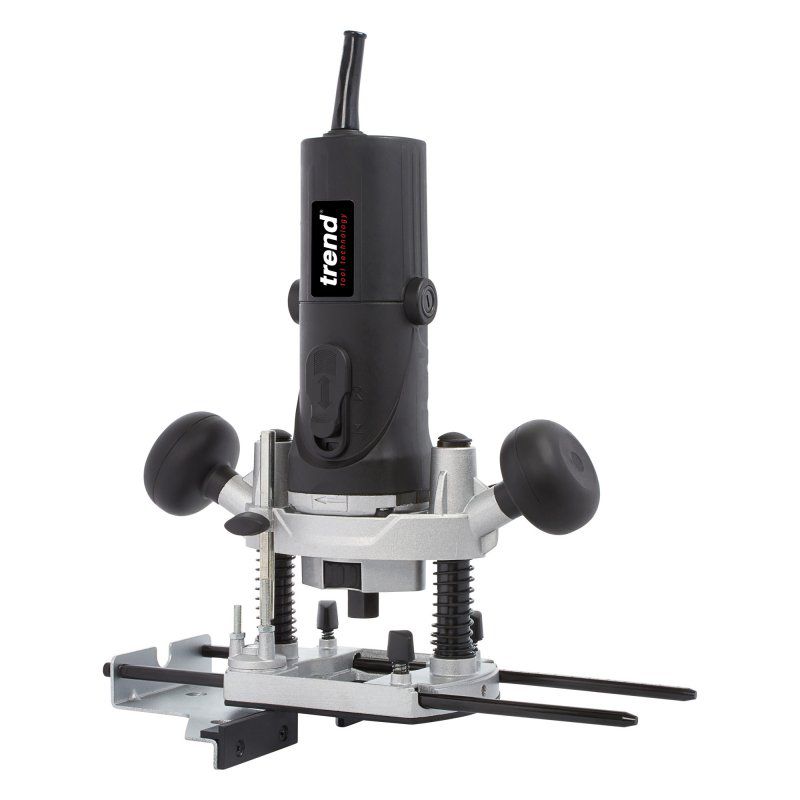

Trend T4ELK - 760W 1/4" Variable Speed Plunge Router 110V with Kitbox

Trend T4ELK - 760W 1/4" Variable Speed Plunge Router 110V with Kitbox

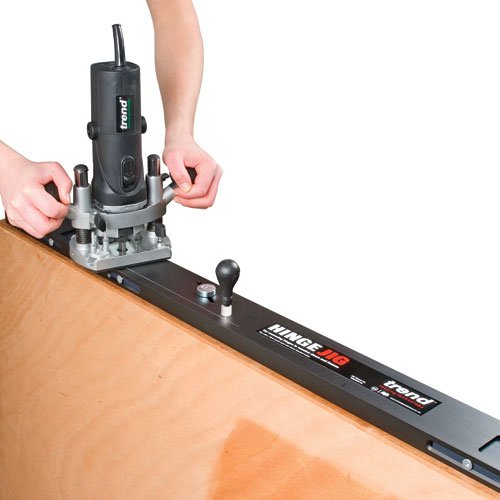

Lightweight, compact plunge router, with a removable motor body. Ideally suited to overhead working and perfect for hinge recess cutting, timber profiling and hand carving.

• Removable Motor Body can be easily detached from the base for hand carving and die grinding applications.
• Anti-Restart Protection prevents the router from accidental start-up if the power supply is interrupted or lost and restored.
• 7-Level Variable Speed Control offers precise control across a wide range of cutters, materials and applications.
• Side Fence for edge rebating, grooving and moulding applications.

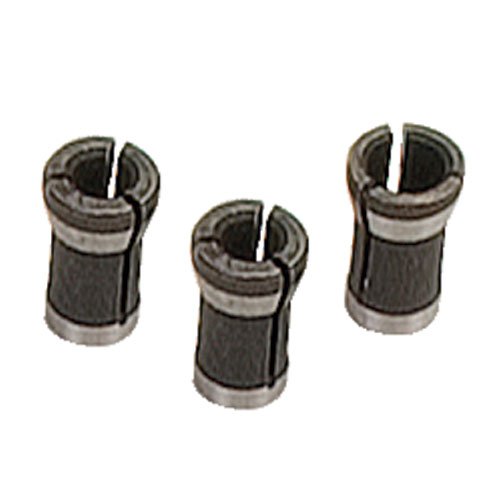

• 1/4", 6mm & 8mm Collets are supplied for maximum versatility.
• Plunge Depth Limiter is easy to set and prevents over-cutting.
• 3-Position Rotating Turret to pre-set plunge depth limits for fast, repeatable batch and stepped cutting.
• Trend Base Configuration is a standardised pattern of fixing holes that allow routers to be attached to a range of compatible tables, jigs and accessories.
• Spindle Lock for quick and easy cutter changes.
• Replaceable Carbon Brushes are easily accessible and simple to change for extended motor life.

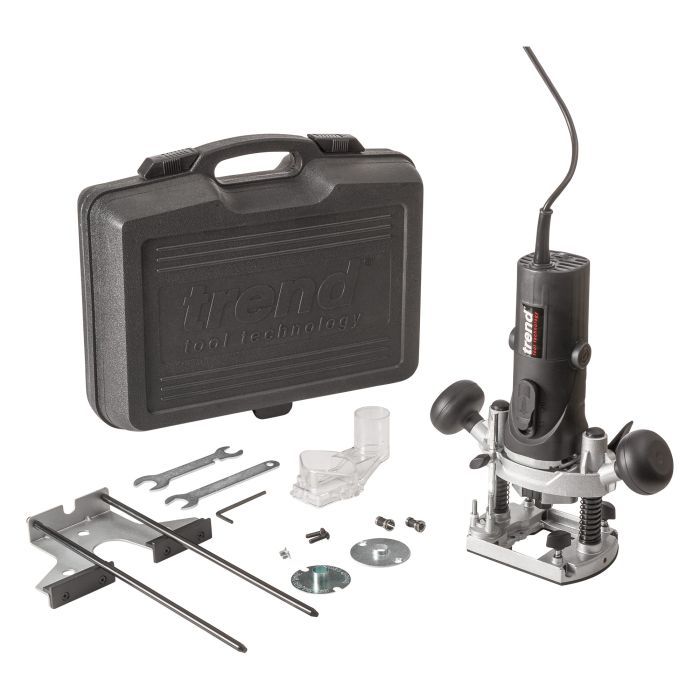

• Moulded Carry Case provides safe storage for router and accessories.
• 3 year warranty – Online registration required

• Duty Rating Light / Hobbyist
• Motor Power 760 W
• AC Voltage 110 V
• Plug Type 110V / 16A (fitted)
• Supplied Collet Size 1/4" + 8 mm + 6 mm
• Plunge Stroke (Max) 35 mm
• No-Load Speed 11,500 – 32,000 rpm
• Supplied Guide Bush 16 mm
• Fence Rod Length 300 mm
• Fence Rod Centres 84 mm
• Fence Rod Diameter 8 mm
• Base Aperture Diameter 40 mm
• Cutter Diameter (Max) 30 mm

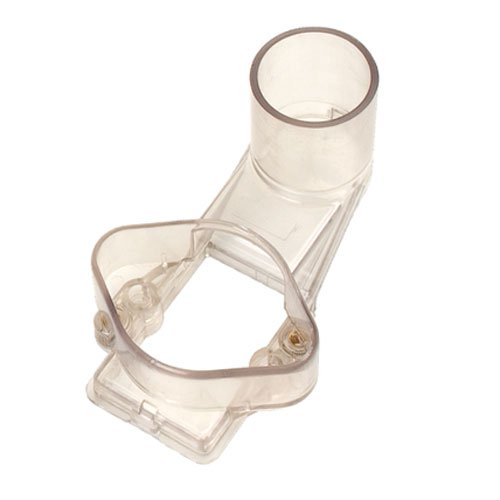

• Dust Spout Internal Diameter 35 mm
• Motor collar dia 43 mm
• Sound Pressure Lpa 85 dB(A)1
• Acoustic Pressure Lwa 96 dB(A)2
• Hand Arm Vibration <3.0 m/s2
• Weight (Net) 2.8kg
• Cable Length 2.1 m
