Trend T14EK - 2300W 1/2" Variable Speed Workshop Router 240V with Kitbox

Trend T14EK - 2300W 1/2" Variable Speed Workshop Router 240V with Kitbox

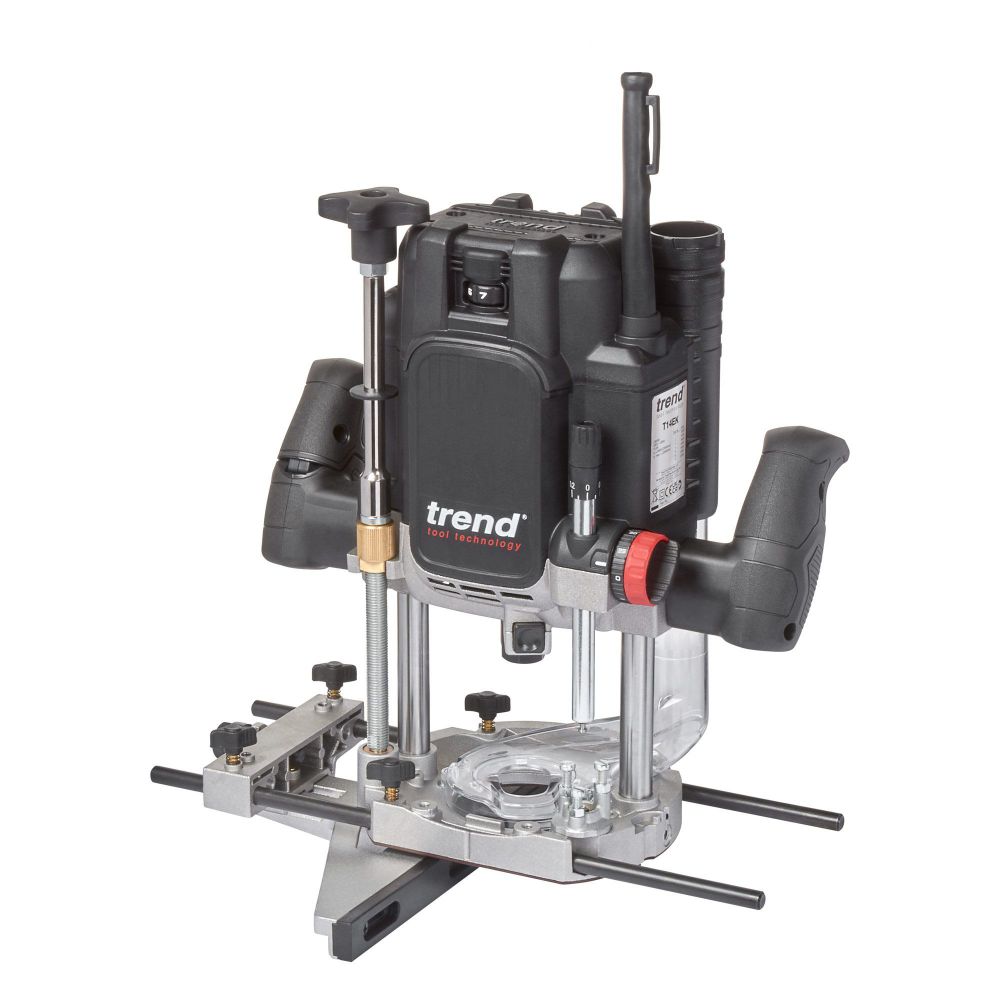

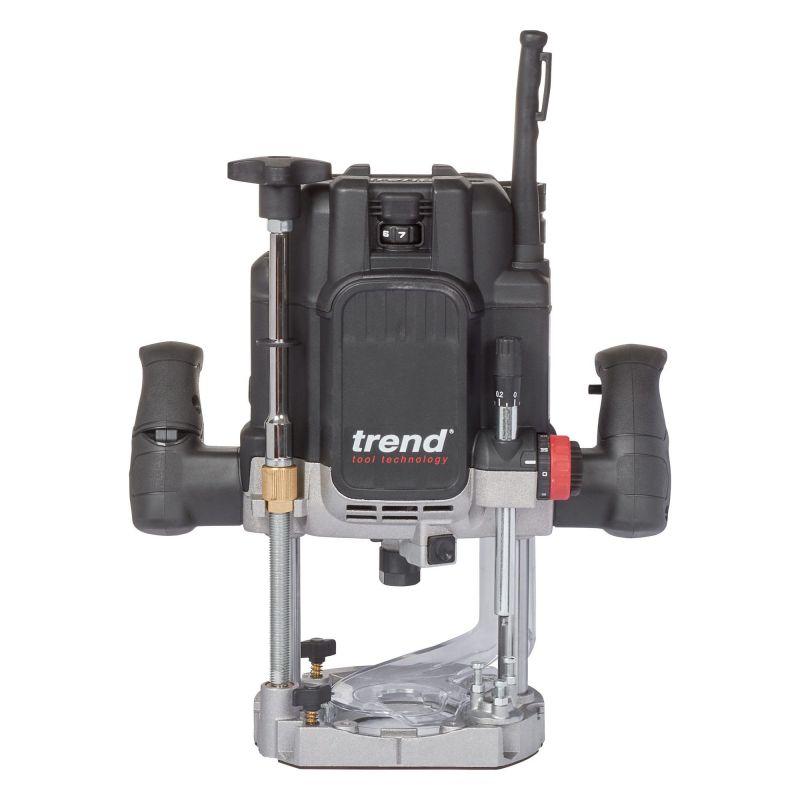

High-performance plunge router with advanced safety features, engineered to deliver reliable, fast, accurate cuts. Perfect for hand-held and Router Table use.

• Powerful 2300W Motor with Full Wave Electronics delivers consistently high power, torque and speed, and features soft-start to prevent kick-back.
• 80mm Plunge Depth is ideal for deep cutting applications. Perfect for lock fitting, worktop joints and timber profiling.
• Trend Base Configuration is a standardised fixing pattern of holes that allow routers to be attached to a range of compatible tables, jigs and accessories.
• Anti-Restart Protection prevents the router from accidental start-up if the trigger lock-on switch is engaged, and the power supply is interrupted or lost and restored.

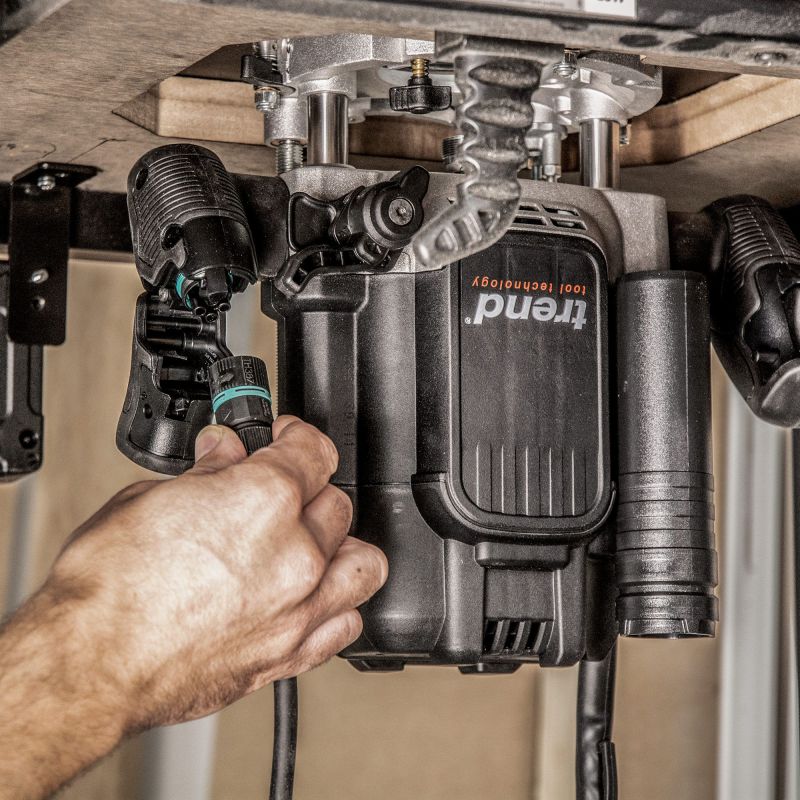

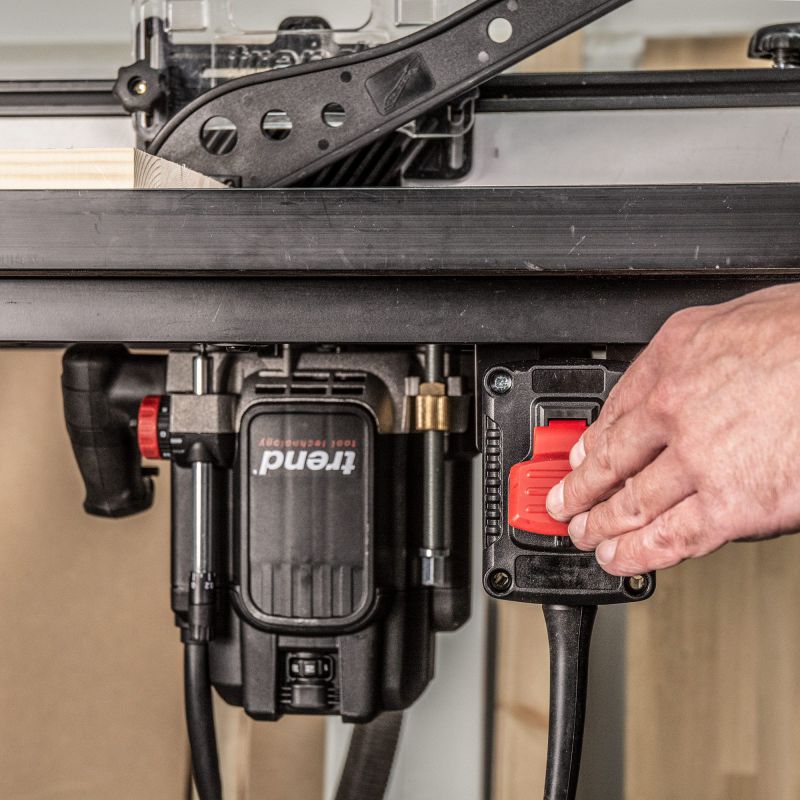

• Router Table Safety Switch bypasses the Anti-Restart Protection feature and replaces the need for a typical NVR (No Volt Release) switch.
• 2-in-1 Plunge & Router Table Height Adjuster can be used from above AND below the router, in both table and hand-held mode. Each 360° turn gives 1.5mm adjustment.
• Precision Centring System features a unique guide bush centring pin and adaptor plate that ensures perfect concentricity between cutter and guide bush for pinpoint accuracy with routing jigs.

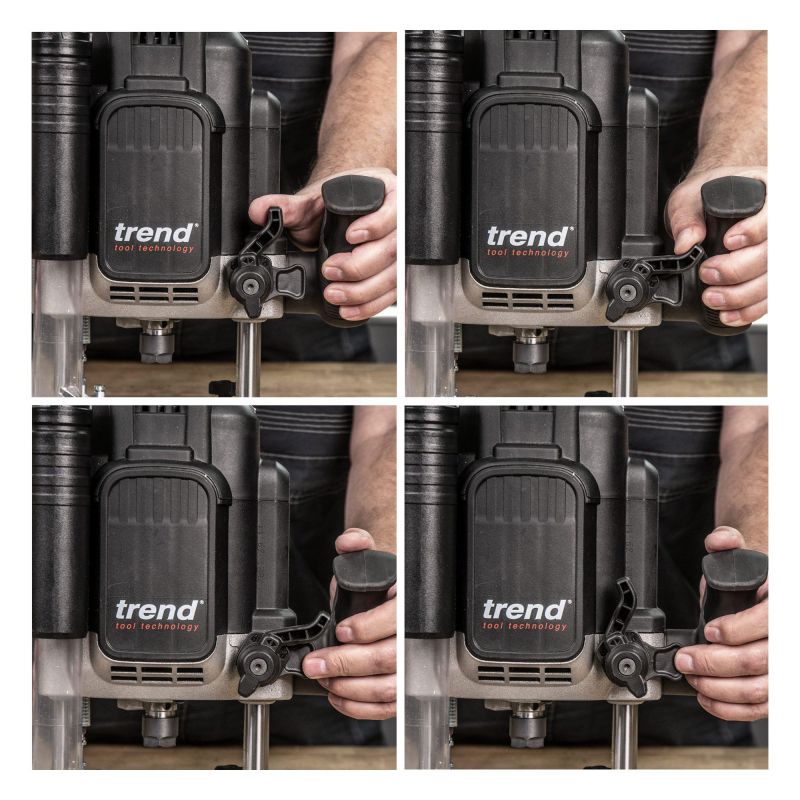

• Auto-Lock Plunge Lever allows users to quickly, accurately and safely reposition the plunge position without releasing the handles.
• Extra-Wide 75mm Base Aperture to accommodate over-size cutters, such as panel raisers, when used with a Router Table.
• 7-Level Variable Speed Control ranges from 9,000 to 22,000rpm, giving the user total control across a range of cutters, materials, and applications.

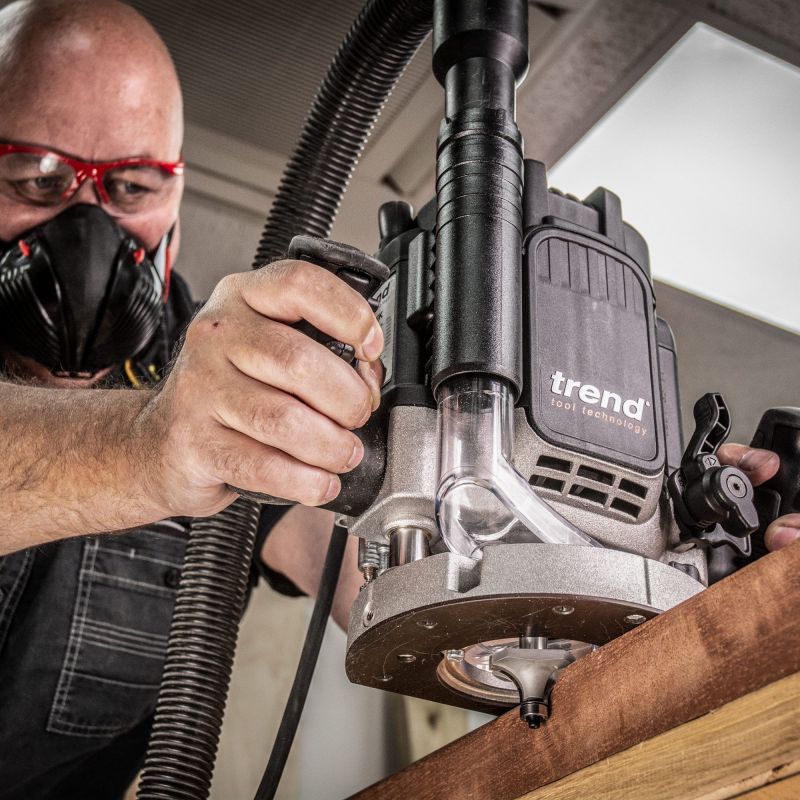

• Top-Mount Cyclone Extraction with enhanced dust adapter efficiently clears debris to give users 360° visibility and prevent extraction hoses from ‘snagging’.
• Ergonomic Inclined Handles support a natural wrist position, reduce strain, and increase control when routing with arms outstretched.
• Quick-Set Depth Post with rack & pinion 1.0mm indexed increments and zeroing function for fast, easy adjustment.
• Micrometer Fine Height Adjuster features 0.1mm increments and an easy-to-read display for precision depth adjustment.
• Integrated Power Trigger bult into the inclined handle for precise and safe control of the router’s on/off function.

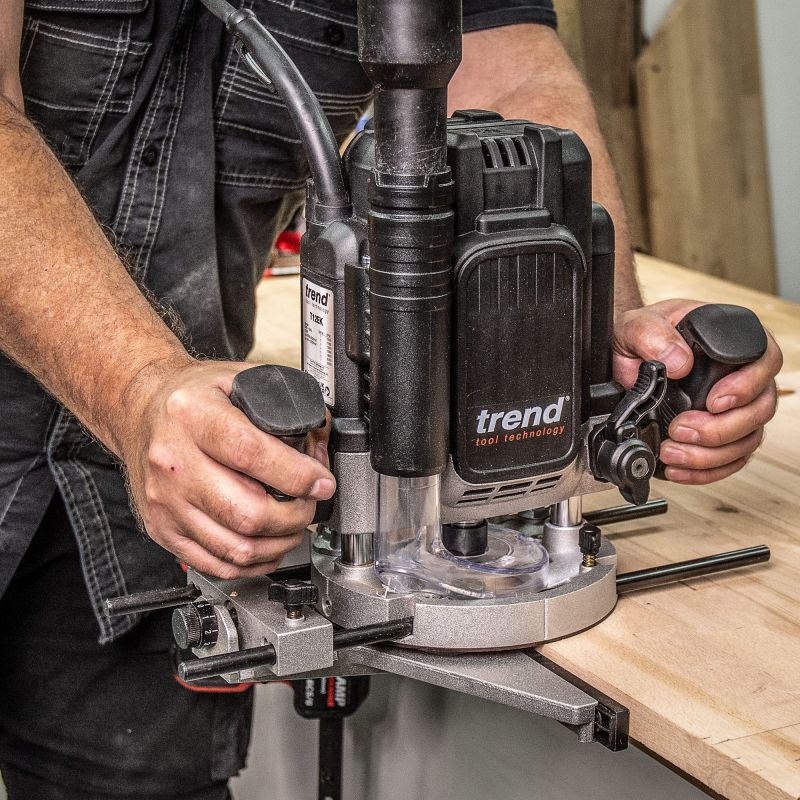

• Micro-Adjustable Side Fence with adjustable facings and 0.1mm increments for accurate edge rebating, grooving and moulding.

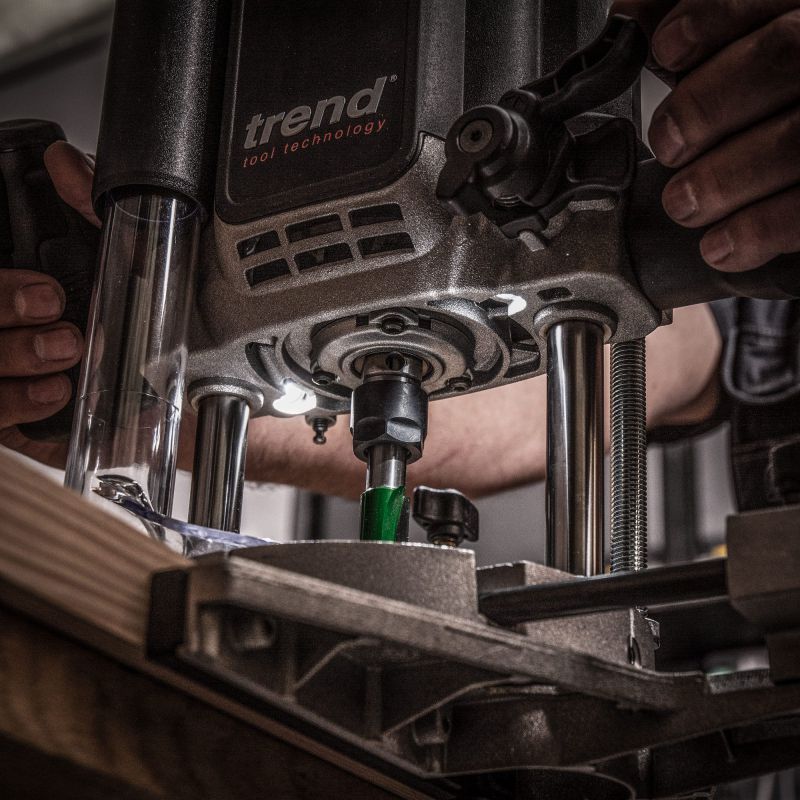

• Automatic LED Work Lights allow users to accurately position the cutter in low-light situations, prior to engaging the material and making costly errors.
• Phosphor Bronze Bushings are corrosion resistant, durable and self-lubricating to prevent racking and deliver a smooth, accurate plunge action.
• Anti-Scratch Base Plate made from replaceable, smooth Phenolic materials for a low-friction routing experience.
• Integrated Router Rest provides users with a safe way of changing cutters whilst preventing debris from entering motor vents.
• 3 year warranty – Online registration required

Router Table Use

• Routing Narrow Materials where use of a router side fence isn’t practical or there is not enough stock to safely support the router whilst cutting.
• Use of Extra-Wide Cutters such a Panel Raisers, where use in a hand-held router would be dangerous.
• Repetitive Routing where clamping/unclamping material for hand-held routing wastes time.

General Use

• Kitchen fitting applications including worktop jointing, draining grooves, hob and sink recesses and carcass alteration.

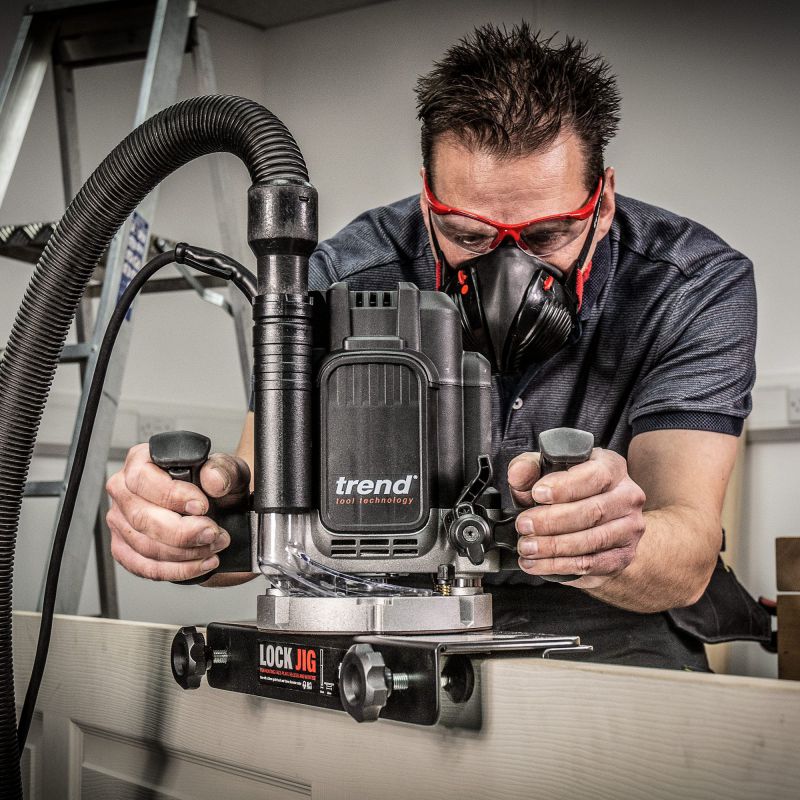

• Fast, accurate & heavy duty trenching work including lock and latch fitting, staircase production and general purpose carpentry with long & wide cutters.
• Hand-held routing and edge moulding applications including precision matched recesses for intumescent fire door strips and rebates.

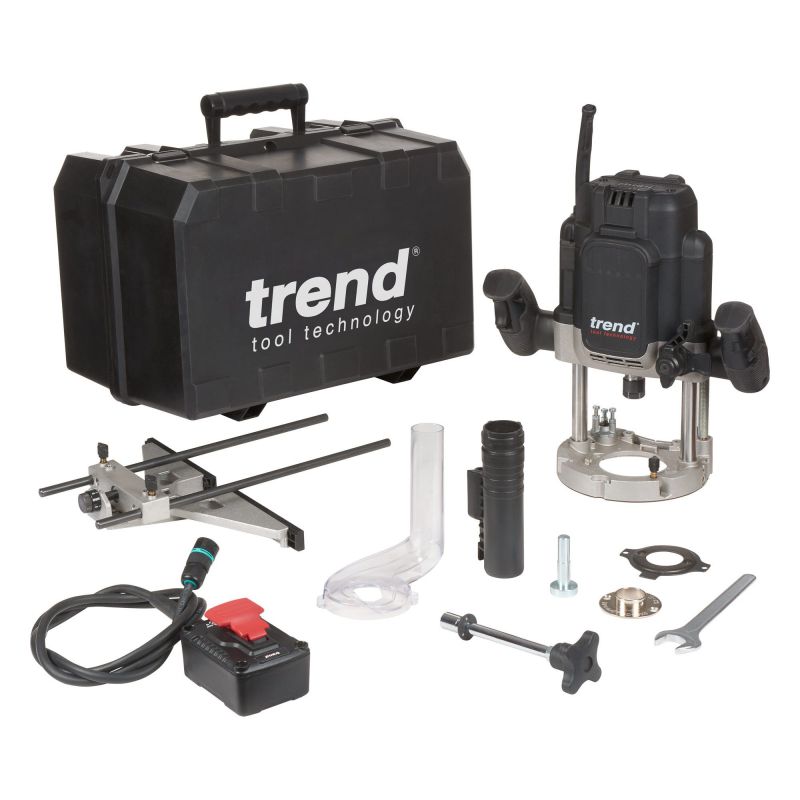

• Side fence
• Guide bush plate
• 30mm guide bush
• 22mm spanner
• Power swith
• Collet
• Guide bush pin
• Top mount extration adaptor
• Cyclone dust adaptor
• 2-in-1 height adjuster

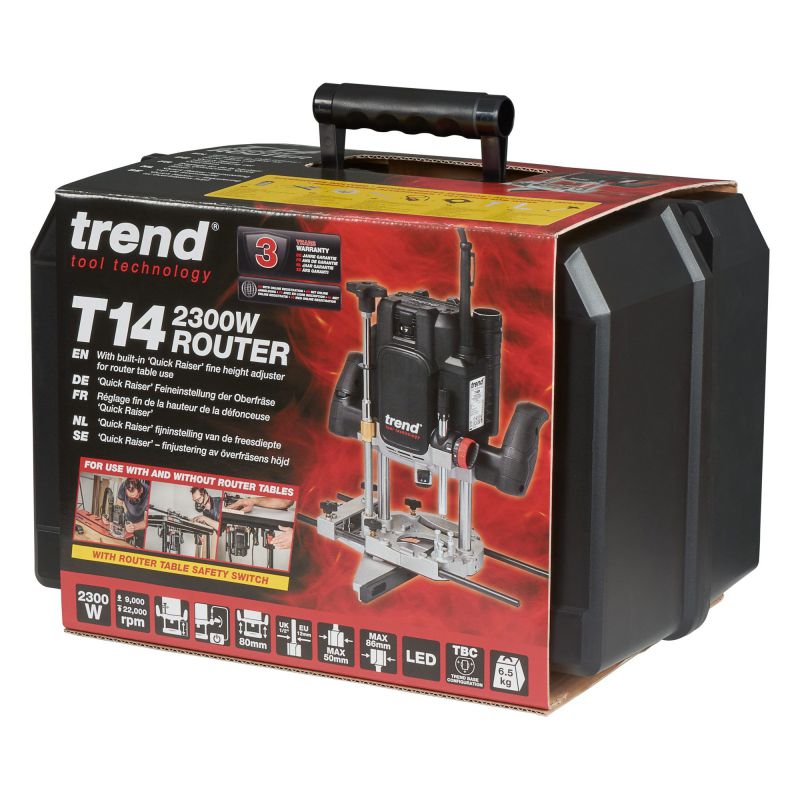

• In moulded carry case

• Rating - Professional/Trade
• Voltage - 240 volt
• Plunge stroke - 0-80 mm
• Power input - 2300 watt
• Collet diameter supplied - 1/2 inch
• No load speeds - 9-22000rpm
• Dust spout size ID - 35 mm
• Guide bush diameter supplied - 30 mm
• Cutter diameter - max. 50 mm hand-held
• Cutter diameter - max 85 mm table mounted
• Base aperture size - 75 mm
• Rod diameter - 10 mm
• Rod length - 360 mm
• Rod centres - 110 mm
• Weight - 6.5 kg
• Sound pressure Lpa - 95.1 dB(A)1
• Acoustic pressure Lwa - 106.1 dB(A)2
• Hand arm vibration - <2.1 m/s2
