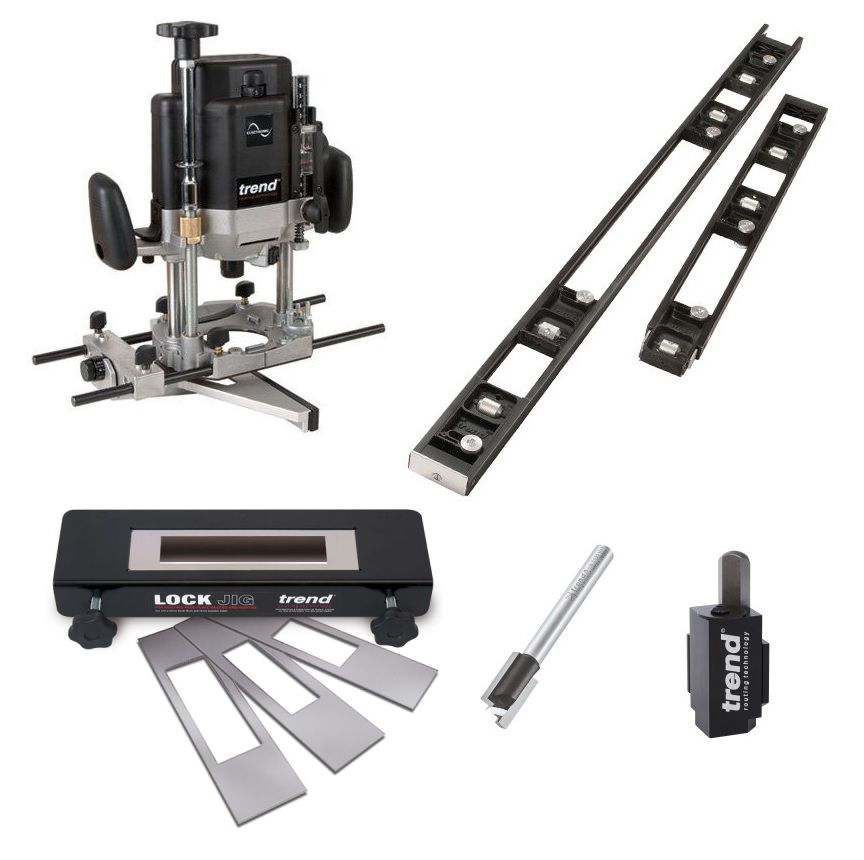

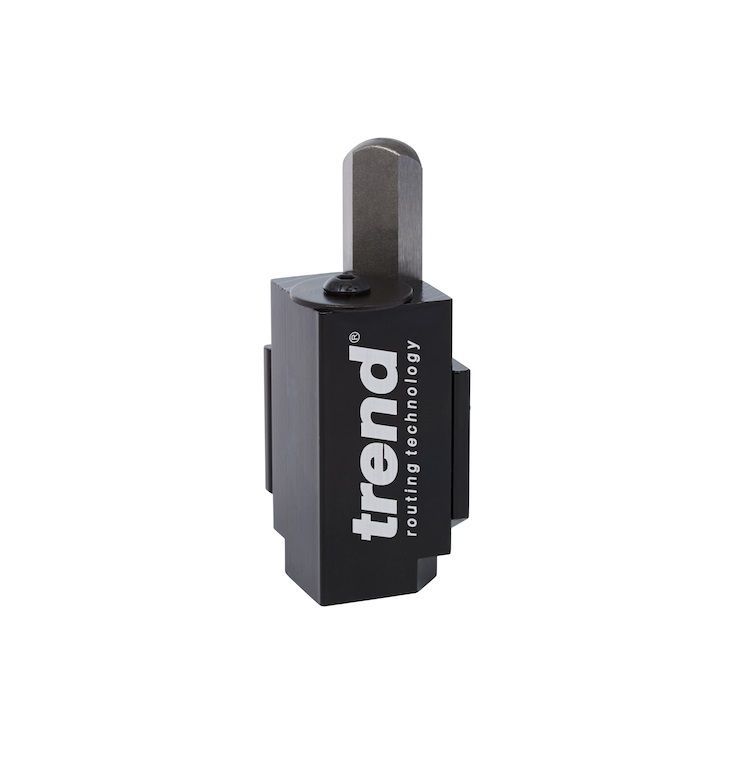

Trend T11EK Plunge Router Set with Lock Jig, Skeleton Jig, Straight Cutter and Corner Chisel

Trend T11EK Plunge Router Set with Lock Jig, Skeleton Jig, Straight Cutter and Corner Chisel

Trend T11EK Variable Speed Router - Kitchen Worktop Router - T11 EK

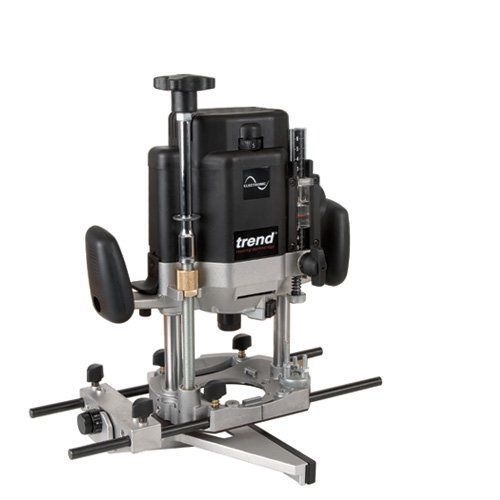

TREND T11EK ROUTER 1/2" X  2000W VARIABLE SPEED PLUNGE ROUTER 230V (INCLUDES KITBOX)

• Trend 1/2" Collet Variable Speed Workshop Plunge Router fitted with a 2000w motor 230v machine, with built in Quick Raiser fine adjuster and electronic full wave variable control of the spindle speed under load, for a fine finish on all types of material with soft start eliminating sudden movement of machine on start up.
• The two column precision base with large phosphor bronze bushes allows for plunging accuracy with the spindle lock and hex collet nut resulting in easy cutter changes with the 22mm spanner supplied.
• An adjustable twin rod parallel side-fence guide with integral micro-adjuster for straight edge work and the precision machined one-piece multi-slit collet for fail-safe grip of cutter shank the 3-position revolving depth stop gives fast adjustable settings with an adjustable inner plate for guide bush accuracy.
• Comes complete with a router fine height adjuster for above and below height adjustment, one revolution of the handle equals 1.5mm supplied with three quick release recesses in base to fit tables in conjunction with an optional Quick Release Kit with fittings for optional Clamp Guide System Kit and an extra large base aperture for large cutters.

• Electronic full wave variable control of spindle speed under load for a fine finish on all types of material.
• Soft start eliminates sudden movement of routing machine on start up.
• Two column precision base with large phosphor bronze bushes for plunging accuracy.
• Spindle lock and hex collet nut results in easy cutter changes with the 22mm spanner supplied.
• Adjustable twin rod parallel side-fence guide with integral micro-adjuster for straight edge work.
• Precision machined one-piece multi-slit collet for fail-safe grip of cutter shank.
• 3-position revolving depth stop for fast adjustable settings. Adjustable inner plate for guide bush accuracy.
• Router fine height adjuster for above and below height adjustment. One revolution of the handle equals 1.5mm.
• Three quick release recesses in base to fit tables in conjunction with optional Quick Release Kit.
• Fittings for optional Clamp Guide System Kit.
• Extra large base aperture for large cutters. Quick release dust spout.
• Three year extended warranty with online registration (UK and Eire only).
• For UK sale only

• Rating:  Professional / Trade
• Plunge stroke: 0-80 mm
• Power input: 2000 watt
• Power ampage: 9.6 amp
• Standard collet dia.: 1/2"
• No load speeds: 8-20000 rpm
• Dust spout size ID: 35 mm
• Guide bush dia. supplied: 30 mm
• Rod diameter: 10 mm
• Rod length: 360mm
• Rod centres: 110 mm
• Cutter dia. max. plunge/table: 70/86 mm
• Other collet dia.: 6mm, 1/4", 8mm, 3/8", 10mm & 12mm
• Weight: 6.2kg
• Voltage: 230 volt (for 115 volts see T11ELK)
• Sound pressure Lpa: 6' 5" (1956 mm)
• Acoustic pressure Lwa: 93.0 dB(A)1
• Thickness min.: 102.0dB(A)2
• Hand arm vibration: <2.5 m/s2
• Quick raiser socket A/F: 12mm

• 1 x 1/2" Collet - CLT/T10/127
• 1 X Fine Height Adjuster - QP - T11/128
• 1 X Inner Plate - WP-T9/075
• 1 X Line up Pin - WP-T9/090
• 1 X 35mm Clip-in Dust Spout - WP-T11/107
• 1 X Side-fence with Micro Adjuster - WP-T10/087

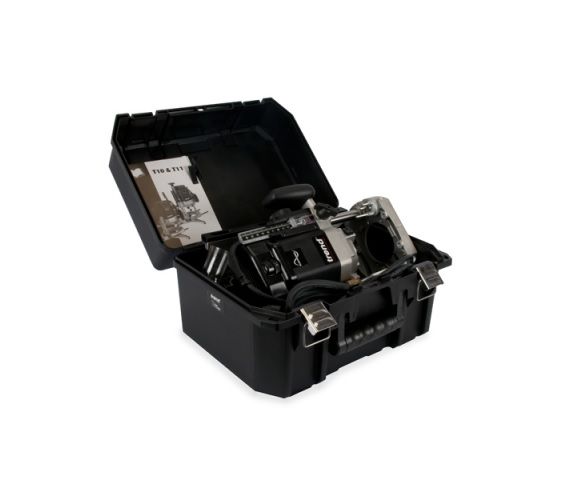

• 1 X Storage Case - CASE/T10

Optional  Accessories:

• Quick release kit
  Comprising: 3 sets of cams, bolts & fixings
  Product Ref:T11/JT/KIT

• Varijig clamp guide system kits
  Comprising: alloy bracket fixing & plastic slider. Allows
  Product Ref: T11 to join to Varijig Clamp Guides. T11/VJS/CGKIT

• Extra side-fence
  Product Ref: WP-T11/087

• Direct fit large guide bushes
  50mm - Product Ref: GB500
  60mm - Product Ref: GB600
  70mm - Product Ref: GB700

• Plug 115v 32A
  32A BS4343 115 volt plug
  Product Ref: PLUG/110V/32A

Trend T10 / T11 Router Owners Manual

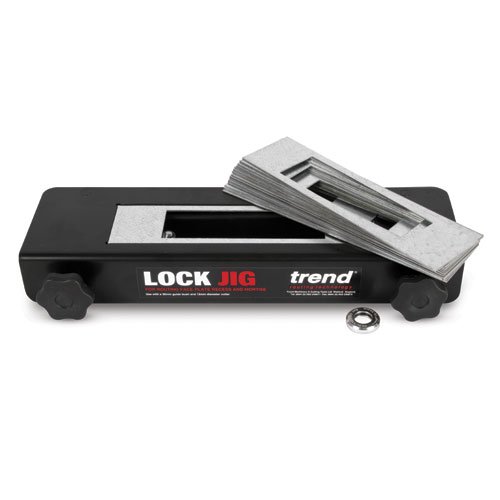

Trend Contractor Lock Jig

Ref: LOCK/JIG

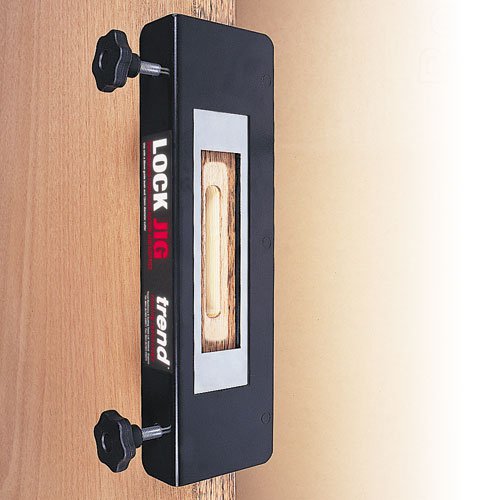

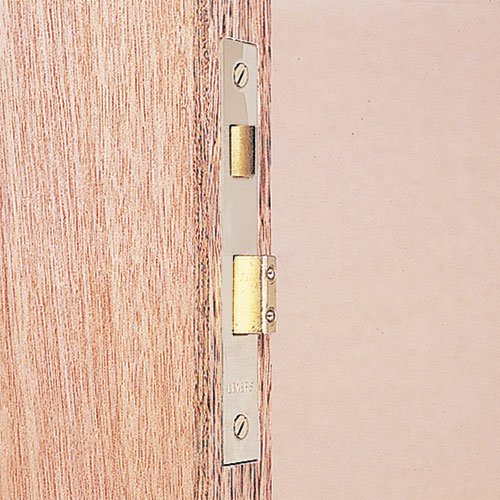

This jig uses a set of interchangeable templates and a router to cut the mortise and faceplate recess for popular door locks.

• For most common sash mortises & dead locks, with up to 3 inch deep mortises & a 7/8 inch or 1 inch face-plate
• Deeper mortises can be achieved with a suitable size of auger bit
• Fast, clean & accurate results on doors 34mm to 58mm thick, even in hardwood
• Steel plates & body
• An auger bit and drill is required to complete deep mortises

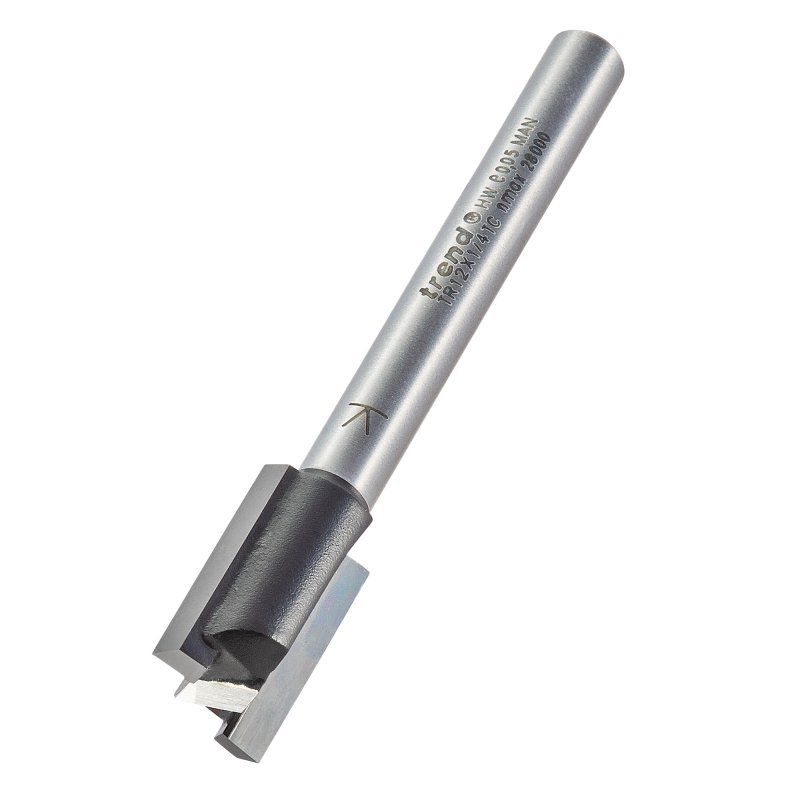

• The jig requires a 1/2- inch plunge router with a 80mm plunge, fitted with a 30mm guide bush with 6mm spigot & 12mm diameter long reach cutter. A 1/4-inch plunge router can be used for the face plate but will not achieve full depth of mortise

Trend Lock Jig is supplied with:

• 1 x Guide bush
• 12 X Faceplate templates
• 5 X Mortise template
• 6 X Spacer fingers

Further detail here

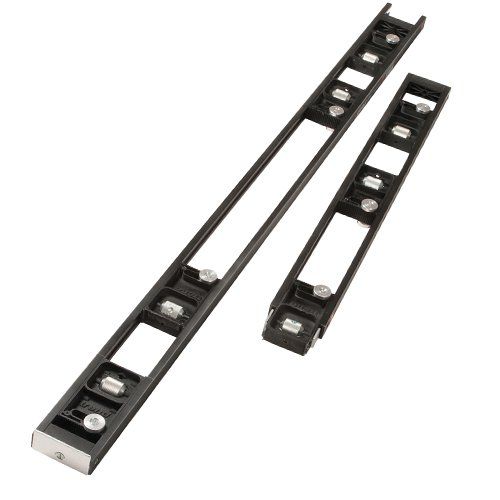

Trend Hinge Jig C - Hinge Jig Skeleton Two Part In Case - Ref: H/JIG/C

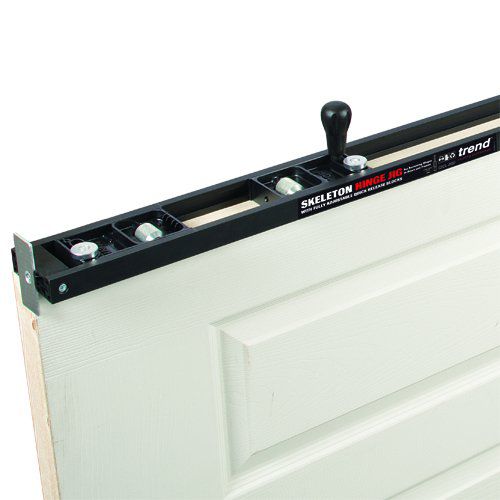

• The two part Contractor Hinge Jig is a portable fully adjustable block template set designed for recessing hinges in wooden doors & frames using a plunge router.
• It is easy to use with minimal setting-up time, completing the job both accurately & quickly.
• Used on-site & in joinery shops to increase productivity with excellent results.
• Fully adjustable apertures for fire door requirements and renovation work.
• Can be used on both inside and outside doors, rebated frames and on maximum 25mm thick fixed stops.
• Ideal for fitting a new door in an old frame.
• No need for marking out in the conventional way.
• Quick & simple to set-up as the hinge is used as the pattern.
• Clean & accurate recesses are achieved every time. Suitable for timber based doors & square butt hinges.
• Use with a light duty plunge router with 1/4 inch collet.
• Long reach router cutter required, 12mm diameter with 70mm overall length.
• Adjustable edge guides with preset for hinge of 20mm, 25mm and 30mm
• Unibase may be needed.
• Patent No. GB2490139
• T4EK router requires a ref. UNIBASE or special guide bush ref. GB/T4/160.

• 3 x Hinge sliding aperture block assemblies
• 4 x Bradawls (short blade)
• 1 x 16mm guide bush
• 1 x Carry case

• Length min: 2 5/8" (67 mm)
• Length max:  5" (127 mm)
• Width min:  1/2" (12.7 mm)
• Width max:  1 3/8" (35 mm)
• Width max. in 35mm rebate: 23 mm
• Width max. in 44mm rebate: 32 mm
• Door sizes possible
• Height min: 6' 5" (1956 mm)
• Height max: 2100 mm* (6' 10"*)
• Thickness min: 5/8" (16 mm)
• Thickness max: 2" (51 mm)
• Edge stops thickness: 6 mm
• Weight: 2.9 kg
• Jig overall length: 1956 mm
• Plate thickness: 3 mm
• Fixed stop max. thickness: 25 mm**
