Trend T11EK Plunge Router Set PLUS WRT Workshop Table and Depth Gauge Package

X
Product Code: TRET11EK-PK3
Brand: Trend
In Stock
Was £959.02 Inc. VAT
Now £799.99!
£666.66 Exc. VAT
✓ COLLECTION
✓ DELIVERY
Qty
Trend

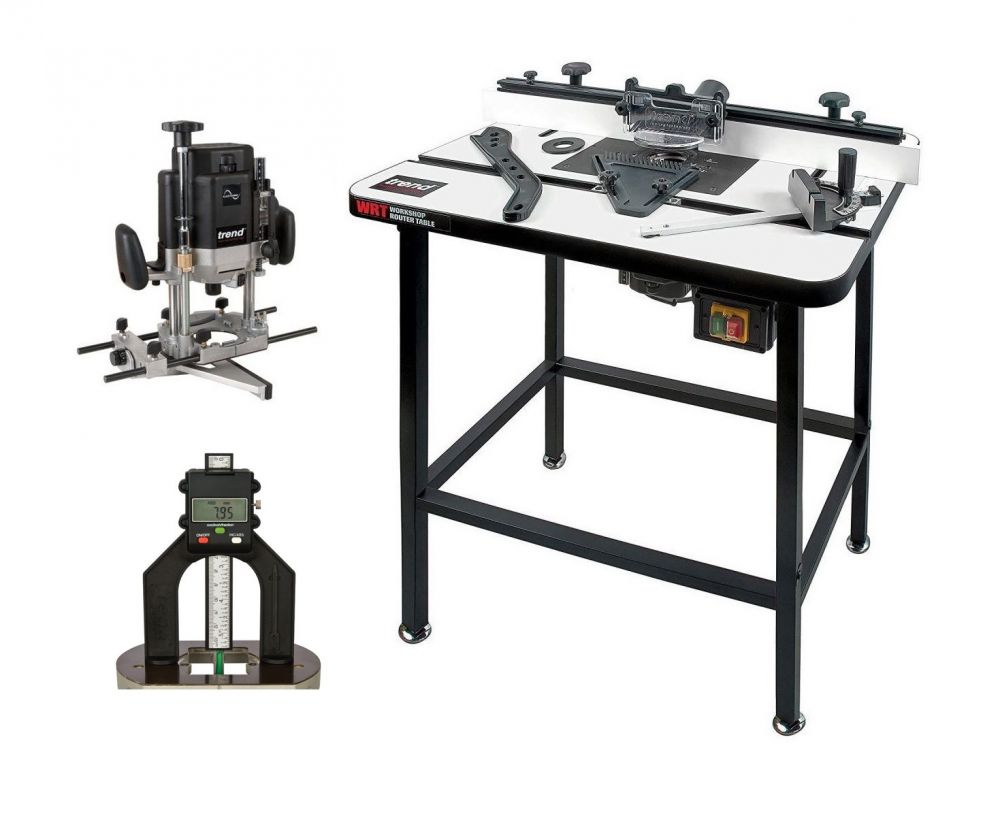

Trend T11EK 1/2" Variable Speed Plunge Router - PLUS - WRT Workshop Router Table & D60 Digital Router Depth Gauge - Package



Package Includes:

1 X TREND T11EK Plunge Router with Case 2000W 1/2" Variable Speed 230V

1 X TREND WRT WORKSHOP ROUTER TABLE 240V

1 X TREND GAUGE/D60 - Digital Router Depth Gauge 60mm Jaw




Trend T11EK Variable Speed Router - Kitchen Worktop Router - T11 EK



TREND T11EK ROUTER 1/2" X  2000W VARIABLE SPEED PLUNGE ROUTER 230V (INCLUDES KITBOX)



Strengths and benefits

  • Trend 1/2" Collet Variable Speed Workshop Plunge Router fitted with a 2000w motor 230v machine, with built in Quick Raiser fine adjuster and electronic full wave variable control of the spindle speed under load, for a fine finish on all types of material with soft start eliminating sudden movement of machine on start up.
  • The two column precision base with large phosphor bronze bushes allows for plunging accuracy with the spindle lock and hex collet nut resulting in easy cutter changes with the 22mm spanner supplied.
  • An adjustable twin rod parallel side-fence guide with integral micro-adjuster for straight edge work and the precision machined one-piece multi-slit collet for fail-safe grip of cutter shank the 3-position revolving depth stop gives fast adjustable settings with an adjustable inner plate for guide bush accuracy.
  • Comes complete with a router fine height adjuster for above and below height adjustment, one revolution of the handle equals 1.5mm supplied with three quick release recesses in base to fit tables in conjunction with an optional Quick Release Kit with fittings for optional Clamp Guide System Kit and an extra large base aperture for large cutters.



Key Features

  • Electronic full wave variable control of spindle speed under load for a fine finish on all types of material.
  • Soft start eliminates sudden movement of routing machine on start up.
  • Two column precision base with large phosphor bronze bushes for plunging accuracy.
  • Spindle lock and hex collet nut results in easy cutter changes with the 22mm spanner supplied.
  • Adjustable twin rod parallel side-fence guide with integral micro-adjuster for straight edge work.
  • Precision machined one-piece multi-slit collet for fail-safe grip of cutter shank.
  • 3-position revolving depth stop for fast adjustable settings. Adjustable inner plate for guide bush accuracy.
  • Router fine height adjuster for above and below height adjustment. One revolution of the handle equals 1.5mm.
  • Three quick release recesses in base to fit tables in conjunction with optional Quick Release Kit.
  • Fittings for optional Clamp Guide System Kit.
  • Extra large base aperture for large cutters. Quick release dust spout.
  • Three year extended warranty with online registration (UK and Eire only).
  • For UK sale only



Specification

  • Rating:  Professional / Trade
  • Plunge stroke: 0-80 mm
  • Power input: 2000 watt
  • Power ampage: 9.6 amp
  • Standard collet dia.: 1/2"
  • No load speeds: 8-20000 rpm
  • Dust spout size ID: 35 mm
  • Guide bush dia. supplied: 30 mm
  • Rod diameter: 10 mm
  • Rod length: 360mm
  • Rod centres: 110 mm
  • Cutter dia. max. plunge/table: 70/86 mm
  • Other collet dia.: 6mm, 1/4", 8mm, 3/8", 10mm & 12mm
  • Weight: 6.2kg
  • Voltage: 230 volt (for 115 volts see T11ELK)
  • Sound pressure Lpa: 6' 5" (1956 mm)
  • Acoustic pressure Lwa: 93.0 dB(A)1
  • Thickness min.: 102.0dB(A)2
  • Hand arm vibration: <2.5 m/s2
  • Quick raiser socket A/F: 12mm



Items included

  • 1 x 1/2" Collet - CLT/T10/127
  • 1 X Fine Height Adjuster - QP - T11/128
  • 1 X Inner Plate - WP-T9/075
  • 1 X Line up Pin - WP-T9/090
  • 1 X 35mm Clip-in Dust Spout - WP-T11/107
  • 1 X Side-fence with Micro Adjuster - WP-T10/087
  • 1 X Storage Case - CASE/T10



Optional  Accessories:

  • Quick release kit
    Comprising: 3 sets of cams, bolts & fixings
    Product Ref:T11/JT/KIT
  • Varijig clamp guide system kits
    Comprising: alloy bracket fixing & plastic slider. Allows
    Product Ref: T11 to join to Varijig Clamp Guides. T11/VJS/CGKIT
  • Direct fit large guide bushes
    50mm - Product Ref: GB500
    60mm - Product Ref: GB600
    70mm - Product Ref: GB700
  • Plug 115v 32A
    32A BS4343 115 volt plug
    Product Ref: PLUG/110V/32A



Trend T10 / T11 Router Owners Manual

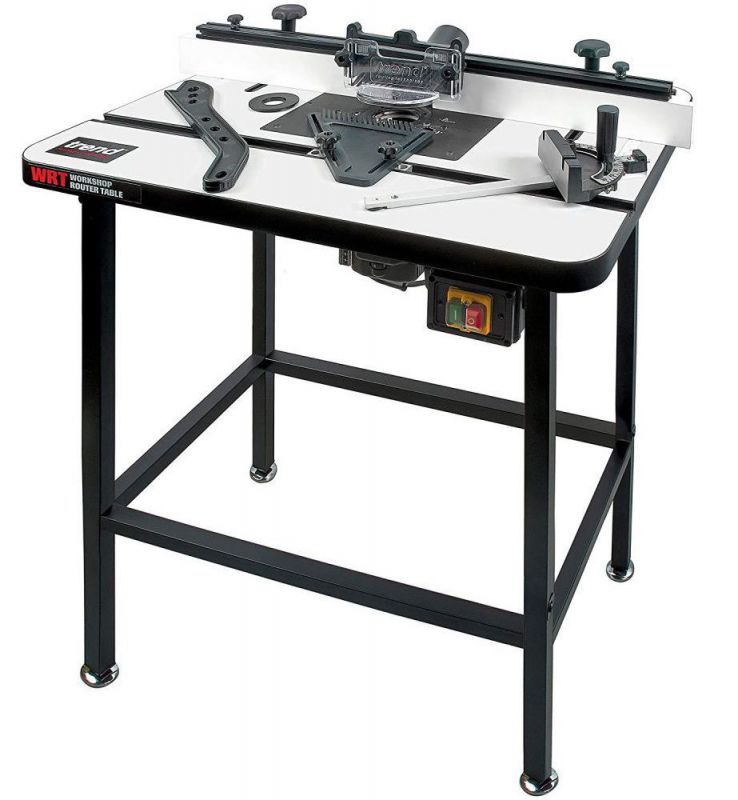

Trend Workshop Router Table 240V - For UK & Eire sale only - (Ref: WRT)



Key Features

  • Floor standing Workshop Router Table.
  • It is packed with the necessary features to maximise the versatility of all popular portable routers.
  • Large laminated MDF table.
  • Quick release aluminium extrusion back fence with sliding MDF cheeks.
  • Removable 6.35mm thick aluminium insert plate with 98mm diameter aperture, pre drilled for Trend TBC routers and T11 routers.
  • Quick Raiser and Quick Release facility for the Trend T11 router.
  • High back fence with fully adjustable guard assembly.
  • Fully adjustable side finger pressure.
  • Front and side adjustable feather pressure guards.
  • Steel leg frame assembly with adjustable feet.
  • Two insert rings 31.8mm and 67.5mm diameter to reduce table aperture.
  • Lead on pin for bearing guided curved work.
  • Edge planing facility on back fence of 1.4mm and 2.4mm.
  • Cable management clips.
  • No volt release switch.
  • Mitre fence with zeroing and spelch block facility.
  • Router not included.
  • For UK sale only.



Items included

  • 2 x Insert rings
  • 1 x Leg stand
  • 1 x No-volt release switch
  • 1 x Side pressure
  • 1 x Top pressure
  • 1 x Mitre fence
  • 1 x Lead-on pin
  • 1 x Safety guard
  • 1 x Pushstick



Specification

  • Rating: Professional/Craftsman
  • Table top size: 804x604x35mm
  • Bench height: 890mm
  • Router cutter aperture: 98mm
  • Max cutter dia: 86mm
  • Max cutter height: 55mm
  • Max component length*: 800mm
    *Workpiece supports required for longer lengths.
  • Insert ring sizes: 31.8mm, 67.5mm
  • Backfence height: 68mm
  • Dust spout aperture: 57mm
  • Edge planing up to: 1.4 & 2.4mm
  • Weight: 27.5kg
  • Voltage: 240v
  • Max. material thickness with pressures: 60 mm
  • Max. material width with pressures: 130 mm (cutter centre)
  • Not intended for continuous production or production line use.



Trend WRT Workshop Router Table Owners Manual

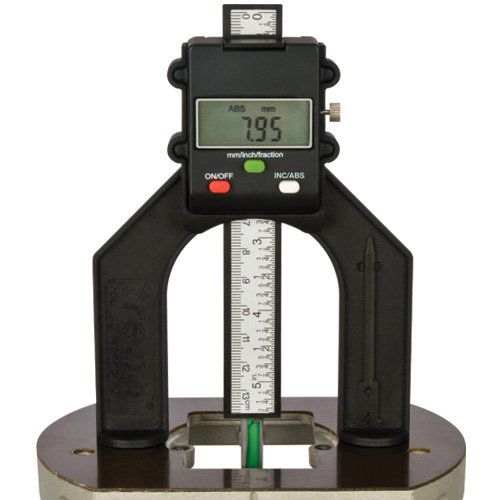

Trend Digital Depth Gauge - for setting and checking depths for routing and sawing applications - (Ref: GAUGE/D60)



Key Features
  • Digital depth gauge for router tables and saw benches. Horizontal and vertical measuring.
  • For hand routers, router tables and saw benches.
  • LCD readout for mm, imperial and fractions with auto shut off 5 mins.
  • Removable pin to allow hole depths to be measured. Pin can be parked on arm. Hole depth 50.8mm (2 inch).
  • Self standing with magnetic feet and flat back.
  • Injection plastic moulding with plastic rule.
  • 60mm wide aperture.
  • Read-out has relative co-ordinate and absolute function.
  • Includes small rebate clip that fits to the base of the rule to allow the rule to be set flush to a router table back fence.
  • Spare battery available ref. BAT/CR2032/3V.
  • For UK sale only.



Items included

  • 1 x 3V CR2032 lithium battery
  • 1 x Small rebate clip



Specification

  • Measuring range: 80 mm (3-1/8")
  • Opening width: 60 mm (2-3/8")
  • Resolution: 0.05 mm (0.002")
  • Accuracy: +/- 0.1 mm (0.004")
  • Repeatability: +/- 0.1 mm (0.004")
  • Max. measuring speed: 1.5 m/s (60 in/s)
  • Weight: 92g
  • Voltage: 3 volt
  • ABS mode (Absolute): Measuring single amounts from Zero
  • INC mode (Relative): Measuring from last point



Take a look at our Knowledge Centre for beginners guides and helpful advice on everything you need to know about routing.

Product Videos
Items Included
Click For Bigger Image
1 X Trend T11EK - 2000W 1/2" Variable Speed Workshop Plunge Router 240v with Kitbox
Click For Bigger Image
1 X TREND WRT WORKSHOP ROUTER TABLE 240V
Click For Bigger Image
1 X Trend GAUGE/D60 - Digital Router Depth Gauge 60mm Jaw
