Trend T11EK - 2000W 1/2" Variable Speed Workshop Plunge Router 240v with Kitbox

X
Product Code: TRE/T11EK
Brand: Trend
In Stock
Was £479.56 Inc. VAT
Now £442.99!
£369.16 Exc. VAT
✓ COLLECTION
✓ DELIVERY
Qty
Trend

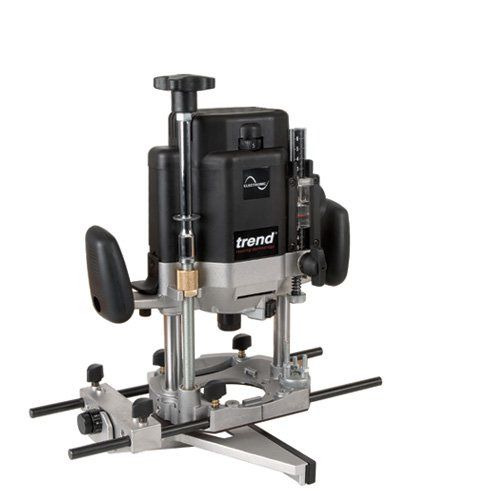

Trend T11EK - 2000W 1/2" Variable Speed Workshop Plunge Router 240v with Kitbox



Heavy Duty Trade Router Designed for use in a Router Table or for use by Tradespeople in the Workshop or On-Site. The Essential Router for Worktop Fitting, Lock and Stair Jigs and General Workshop use.



Strengths and benefits

  • Trend 1/2" Collet Variable Speed Workshop Plunge Router fitted with a 2000w motor 230v machine, with built in Quick Raiser fine adjuster and electronic full wave variable control of the spindle speed under load, for a fine finish on all types of material with soft start eliminating sudden movement of machine on start up.
  • The two column precision base with large phosphor bronze bushes allows for plunging accuracy with the spindle lock and hex collet nut resulting in easy cutter changes with the 22mm spanner supplied.
  • An adjustable twin rod parallel side-fence guide with integral micro-adjuster for straight edge work and the precision machined one-piece multi-slit collet for fail-safe grip of cutter shank the 3-position revolving depth stop gives fast adjustable settings with an adjustable inner plate for guide bush accuracy.
  • Comes complete with a router fine height adjuster for above and below height adjustment, one revolution of the handle equals 1.5mm supplied with three quick release recesses in base to fit tables in conjunction with an optional Quick Release Kit with fittings for optional Clamp Guide System Kit and an extra large base aperture for large cutters.



Key Features

  • Electronic full wave variable control of spindle speed under load for a fine finish on all types of material.
  • Soft start eliminates sudden movement of routing machine on start up.
  • Two column precision base with large phosphor bronze bushes for plunging accuracy.
  • Spindle lock and hex collet nut results in easy cutter changes with the 22mm spanner supplied.

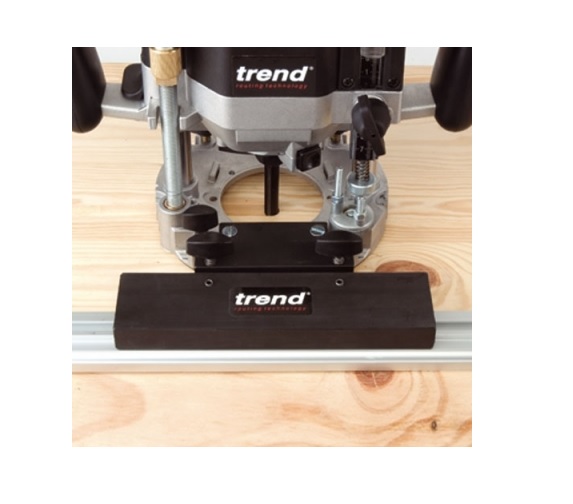

  • Adjustable twin rod parallel side-fence guide with integral micro-adjuster for straight edge work.
  • Precision machined one-piece multi-slit collet for fail-safe grip of cutter shank.

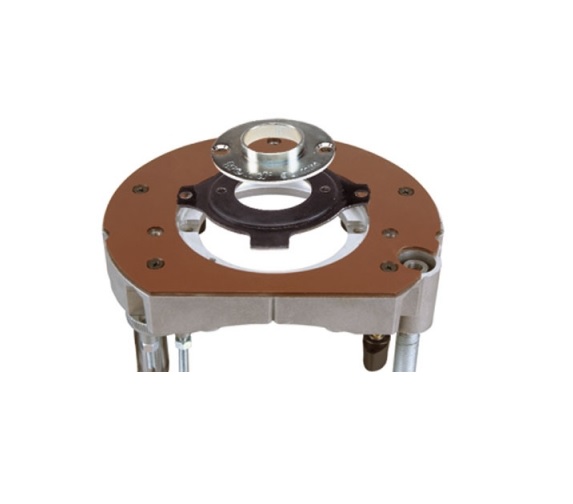

  • 3-position revolving depth stop for fast adjustable settings. Adjustable inner plate for guide bush accuracy.

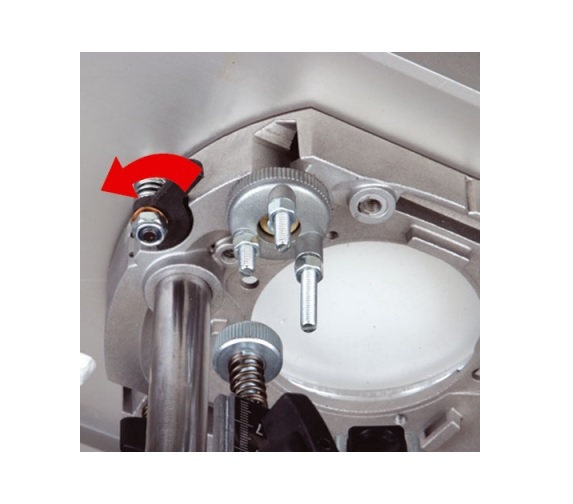

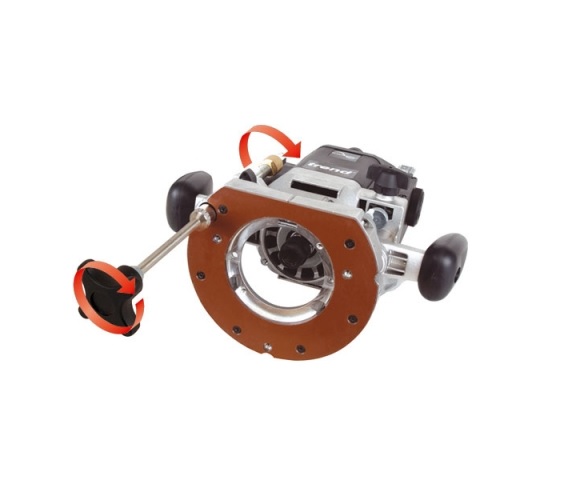

  • Router fine height adjuster for above and below height adjustment. One revolution of the handle equals 1.5mm.

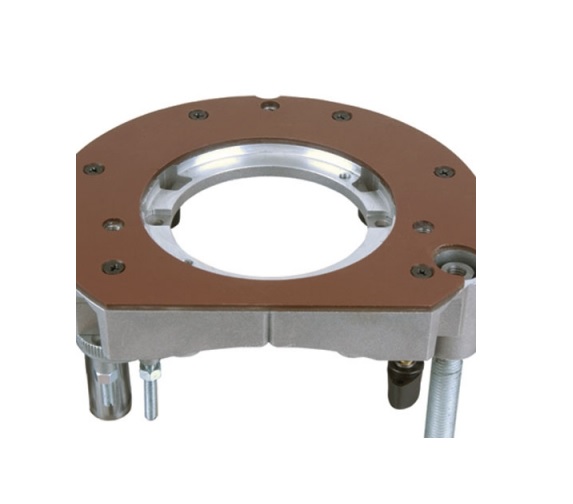

  • Three quick release recesses in base to fit tables in conjunction with optional Quick Release Kit.
  • Fittings for optional Clamp Guide System Kit.
  • Extra large base aperture for large cutters. Quick release dust spout.
  • Three year extended warranty with online registration (UK and Eire only).
  • For UK sale only



Items included

  • 1 x 1/2" Collet - CLT/T10/127
  • 1 X Fine Height Adjuster - QP - T11/128
  • 1 X Inner Plate - WP-T9/075
  • 1 X Line up Pin - WP-T9/090
  • 1 X 35mm Clip-in Dust Spout - WP-T11/107
  • 1 X Side-fence with Micro Adjuster - WP-T10/087

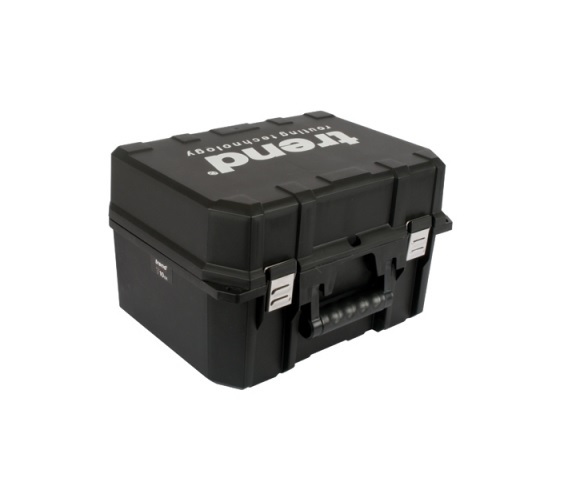

  • 1 X Storage Case - CASE/T10



Specification

  • Rating:  Professional / Trade
  • Plunge stroke: 0-80 mm
  • Power input: 2000 watt
  • Power ampage: 9.6 amp
  • Standard collet dia.: 1/2"
  • No load speeds: 8-20000 rpm
  • Dust spout size ID: 35 mm
  • Guide bush dia. supplied: 30 mm
  • Rod diameter: 10 mm
  • Rod length: 360mm
  • Rod centres: 110 mm
  • Cutter dia. max. plunge/table: 70/86 mm
  • Other collet dia.: 6mm, 1/4", 8mm, 3/8", 10mm & 12mm
  • Weight: 6.2kg
  • Voltage: 230 volt (for 115 volts see T11ELK)
  • Sound pressure Lpa: 6' 5" (1956 mm)
  • Acoustic pressure Lwa: 93.0 dB(A)1
  • Thickness min.: 102.0dB(A)2
  • Hand arm vibration: <2.5 m/s2
  • Quick raiser socket A/F: 12mm



Optional  Accessories:

  • Quick release kit
    Comprising: 3 sets of cams, bolts & fixings
    Product Ref:T11/JT/KIT
  • Varijig clamp guide system kits
    Comprising: alloy bracket fixing & plastic slider. Allows
    Product Ref: T11 to join to Varijig Clamp Guides. T11/VJS/CGKIT
  • Direct fit large guide bushes
    50mm - Product Ref: GB500
    60mm - Product Ref: GB600
    70mm - Product Ref: GB700
  • Plug 115v 32A
    32A BS4343 115 volt plug
    Product Ref: PLUG/110V/32A



Trend T10 / T11 Router Owners Manual



Take a look at our Knowledge Centre for beginners guides and helpful advice on everything you need to know about routing.
