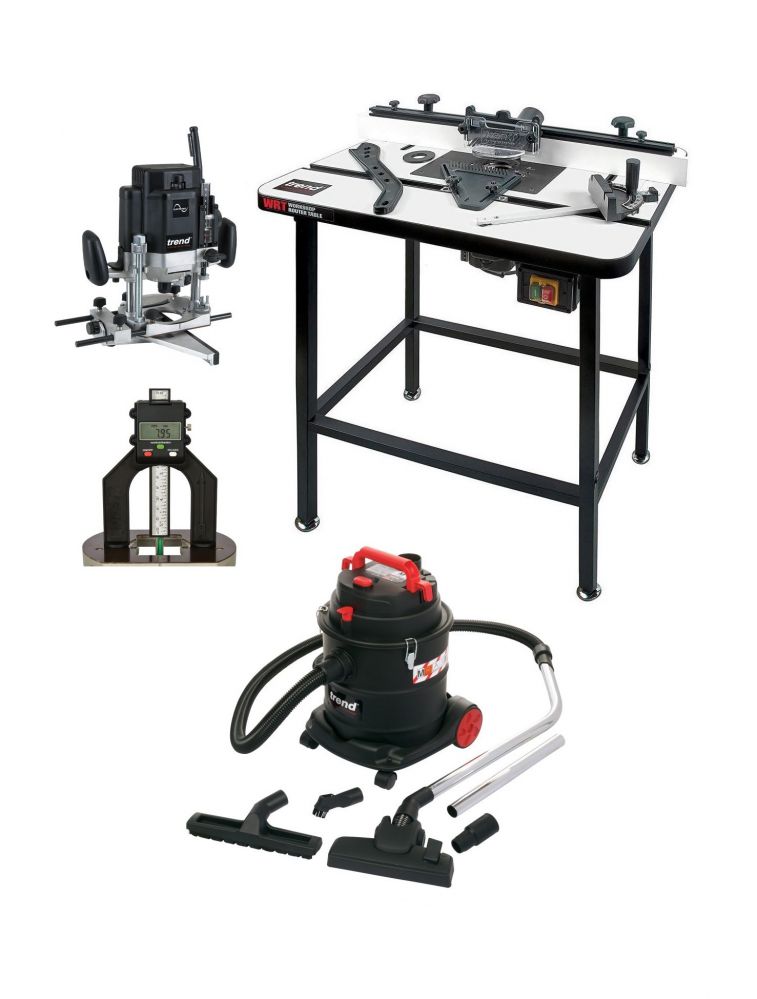

Trend T10EK - 2000W 1/2" Router with WRT Table, T32 Dust Extractor and Depth Gauge

Trend T10EK Package

2000W 1/2" Router with WRT Table, T32 Dust Extractor and Depth Gauge (UK sale only)

Package includes:

• 1 x Trend T10EK - 2000W 1/2" Variable Speed Workshop Plunge Router 240v with Kitbox
• 1 x TREND WRT WORKSHOP ROUTER TABLE 240V
• 1 x TREND T32 DUST EXTRACTOR 230V 800W - M Class Extractor
• 1 x TREND GAUGE/D60 - Digital Router Depth Gauge 60mm Jaw

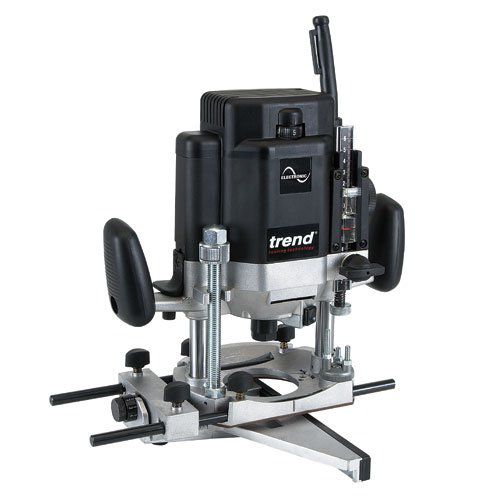

Trend T10EK - 2000W 1/2" Variable Speed Workshop Plunge Router 240v with Kitbox

Heavy Duty Trade Router Designed for Tradespeople in the Workshop or On-Site. The Essential Router for Worktop Fitting, Lock and Stair Jigs and General Workshop use.

• 1 x 1/2" Collet - CLT/T10/127
• 1 X Inner Plate - WP-T9/075
• 1 x 30mm Guide Bush
• 1 X Line up Pin - WP-T9/090
• 1 X 35mm Clip-in Dust Spout - WP-T11/107
• 1 X Side-fence with Micro Adjuster - WP-T10/087
• 1 X Storage Case - CASE/T10

• Rating: Professional/Trade
• Voltage: 230 volt
• Plunge stroke: 0-80 mm
• Power input: 2000 watt
• Power ampage: 9.6 amp
• Standard collet dia: 1/2 inch
• No load speeds: 8-20000rpm
• Dust spout size ID: 35 mm
• Guide bush dia. supplied: 30 mm
• Cutter dia. max: 50 mm

Trend T10 / T11 Router Owners Manual

Trend Workshop Router Table 240V - For UK & Eire sale only - (Ref: WRT)

• Floor standing Workshop Router Table.
• It is packed with the necessary features to maximise the versatility of all popular portable routers.
• Large laminated MDF table.
• Quick release aluminium extrusion back fence with sliding MDF cheeks.
• Removable 6.35mm thick aluminium insert plate with 98mm diameter aperture, pre drilled for Trend TBC routers and T11 routers.
• Quick Raiser and Quick Release facility for the Trend T11 router.
• High back fence with fully adjustable guard assembly.
• Fully adjustable side finger pressure.
• Front and side adjustable feather pressure guards.
• Steel leg frame assembly with adjustable feet.
• Two insert rings 31.8mm and 67.5mm diameter to reduce table aperture.
• Lead on pin for bearing guided curved work.
• Edge planing facility on back fence of 1.4mm and 2.4mm.
• Cable management clips.
• No volt release switch.
• Mitre fence with zeroing and spelch block facility.
• Router not included.
• For UK sale only.

• 2 x Insert rings
• 1 x Leg stand
• 1 x No-volt release switch
• 1 x Side pressure
• 1 x Top pressure
• 1 x Mitre fence
• 1 x Lead-on pin
• 1 x Safety guard
• 1 x Pushstick

• Rating: Professional/Craftsman
• Table top size: 804x604x35mm
• Bench height: 890mm
• Router cutter aperture: 98mm
• Max cutter dia: 86mm
• Max cutter height: 55mm
• Max component length*: 800mm
  *Workpiece supports required for longer lengths.
• Insert ring sizes: 31.8mm, 67.5mm
• Backfence height: 68mm
• Dust spout aperture: 57mm
• Edge planing up to: 1.4 & 2.4mm
• Weight: 27.5kg
• Voltage: 240v
• Max. material thickness with pressures: 60 mm
• Max. material width with pressures: 130 mm (cutter centre)
• Not intended for continuous production or production line use.

Trend WRT Workshop Router Table Owners Manual

Trend Digital Depth Gauge - for setting and checking depths for routing and sawing applications - (Ref: GAUGE/D60)

• Digital depth gauge for router tables and saw benches. Horizontal and vertical measuring.
• For hand routers, router tables and saw benches.
• LCD readout for mm, imperial and fractions with auto shut off 5 mins.
• Removable pin to allow hole depths to be measured. Pin can be parked on arm. Hole depth 50.8mm (2 inch).
• Self standing with magnetic feet and flat back.
• Injection plastic moulding with plastic rule.
• 60mm wide aperture.
• Read-out has relative co-ordinate and absolute function.
• Includes small rebate clip that fits to the base of the rule to allow the rule to be set flush to a router table back fence.
• Spare battery available ref. BAT/CR2032/3V.
• For UK sale only.

• 1 x 3V CR2032 lithium battery
• 1 x Small rebate clip

• Measuring range: 80 mm (3-1/8")
• Opening width: 60 mm (2-3/8")
• Resolution: 0.05 mm (0.002")
• Accuracy: +/- 0.1 mm (0.004")
• Repeatability: +/- 0.1 mm (0.004")
• Max. measuring speed: 1.5 m/s (60 in/s)
• Weight: 92g
• Voltage: 3 volt
• ABS mode (Absolute): Measuring single amounts from Zero
• INC mode (Relative): Measuring from last point

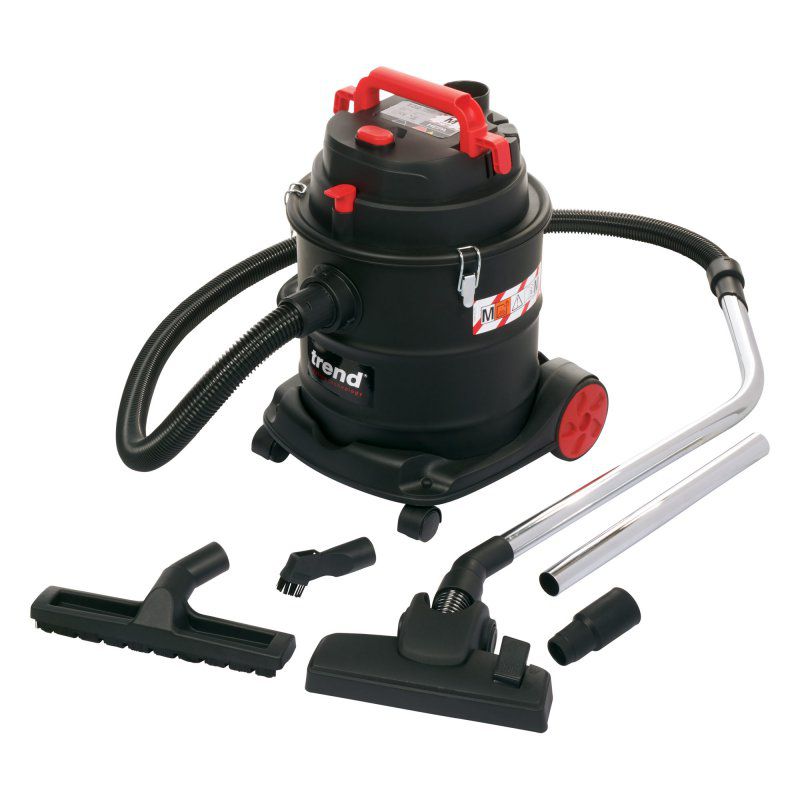

Trend T32 - Vacuum Cleaner 800W 230V - (UK sale only) - (Ref: T32)

Key Features:

• A Trade level Class M dust extractor ideal for use on site.
• Dust class category M rated to EN60335-2-69, for dust with workplace limit values > 0.1 mg/m3.
• 20 litre capacity steel tank.
• Integrated shaker button for filter cleaning system.
• HEPA H13 Fire-retardant filter system.
• Low flow indicator.
• Long 5 metre power cable.
• 3 metre hose and on board storage of adaptor and crevice tool
• Professional Certified: Meets standard 2006/42/EC.
• Container outlet dust cap.

Items inclulded:

• 1 x HEPA H13 Cartridge filter
• 1 x Micro filter bag
• 1 x 3 metre hose
• 1 x Crevice tool/brush
• 1 x Upholstery tool
• 1 x Dust spout adaptor
• 1 x High efficiency floor brush
• 1 x Hard floor brush
• 2 x Metal tube
• 1 x Curved metal tube

• Rating: Trade
• Power input: 800 watt
• Voltage: 230 volt
• Dust category*: M
• Tank capacity: 20 L
• Bag capacity: 15 L
• Flow rate: 20 L/s
• Sound pressure Lpa: 70 dB(A)
• Max suction: 146 mbar
• Airflow: 20 l/s
• Negative pressure: 14.6 Kpa
• Cable: 5M
• Hose: 3 M x 39mm OD
• * Vacuum cleaners of dust category to EN60335-2-69 for dry vacuuming of materials of exposure limit volume > 0.1 mg/m3 that are hazardous to ones health.
• End of life: See below for Environmental Policy link
• Vibration: <2.5
• Weight: 6.8 kg
• Acoustic pressure Lwa: 80 dB(A)
• Dimensions: 492 x 375 mm

Trend T32 Dust Extractor Owners Manual
