Trend T10EK - 2000W 1/2" Router with Hinge Jig, Straight Cutter and Corner Chisel

X
Product Code: T10EK-PK6
Brand: Trend
In Stock
Was £769.22 Inc. VAT
Now £559.99!
£466.66 Exc. VAT
✓ COLLECTION
✓ DELIVERY
Qty
Trend

Trend T10EK - 2000W 1/2" Router with Hinge Jig, Straight Cutter and Corner Chisel



Package includes:

  • 1 x Trend T10EK - 2000W 1/2" Variable Speed Workshop Plunge Router 240v with Kitbox
  • 1 x TREND H/JIG/A HINGE JIG TWO PART IN CASE
  • 1 x TREND TR12x1/4TC Hinge Jig Router Cutter Two Flute 12.0mm dia x 19.0mm Cut - Ex LONG 70.0MM O/L
  • 1 x TREND CORNER CHISEL C/CHISEL for Hinge Jig

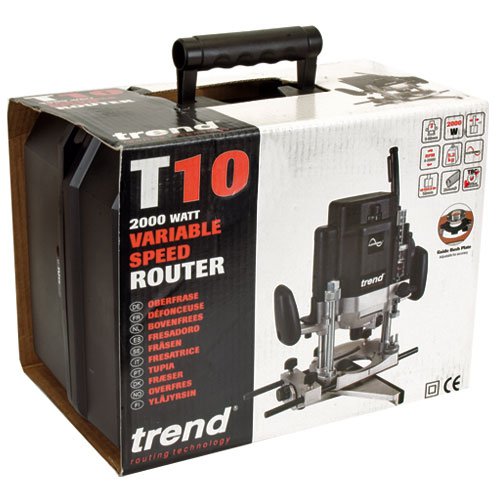

Trend T10EK - 2000W 1/2" Variable Speed Workshop Plunge Router 240v with Kitbox



Heavy Duty Trade Router Designed for Tradespeople in the Workshop or On-Site. The Essential Router for Worktop Fitting, Lock and Stair Jigs and General Workshop use.



Key Features

  • Powerful 2000 Watt Motor for heavy duty work
  • Electronic variable speed control with soft start for a better finish
  • Micro adjustable side fence: Improves accuracy with micro adjustments for straight edge work
  • 80mm plunge depth: Ideal for worktop fitting and lock body mortising
  • Electronic full wave variable control of spindle speed under load for a fine finish on all types of material.
  • Soft start eliminates sudden movement of machine on start up.
  • Two column precision base with large phosphor bronze bushes for plunging accuracy.
  • Spindle lock and hex collet nut results in easy cutter changes with the 22mm spanner supplied.
  • Adjustable twin rod parallel side-fence guide with integral micro-adjuster for straight edge work.
  • Precision machined one-piece multi-slit collet for fail-safe grip of cutter shank.
  • 3-position revolving depth stop for fast adjustable settings.
  • Adjustable inner plate for guide bush accuracy.
  • Large base aperture for large cutters with quick release dust spout.
  • Three year extended warranty with online registration (UK and Eire only).



Items included

  • 1 x 1/2" Collet - CLT/T10/127
  • 1 X Inner Plate - WP-T9/075
  • 1 x 30mm Guide Bush
  • 1 X Line up Pin - WP-T9/090
  • 1 X 35mm Clip-in Dust Spout - WP-T11/107
  • 1 X Side-fence with Micro Adjuster - WP-T10/087

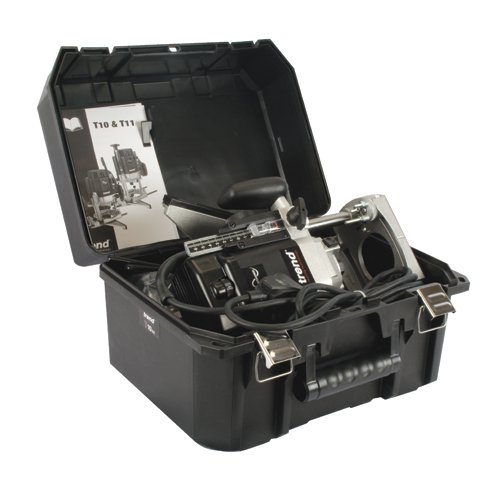

  • 1 X Storage Case - CASE/T10



Specification

  • Rating: Professional/Trade
  • Voltage: 230 volt
  • Plunge stroke: 0-80 mm
  • Power input: 2000 watt
  • Power ampage: 9.6 amp
  • Standard collet dia: 1/2 inch
  • No load speeds: 8-20000rpm
  • Dust spout size ID: 35 mm
  • Guide bush dia. supplied: 30 mm
  • Cutter dia. max: 50 mm



Trend T10 / T11 Router Owners Manual

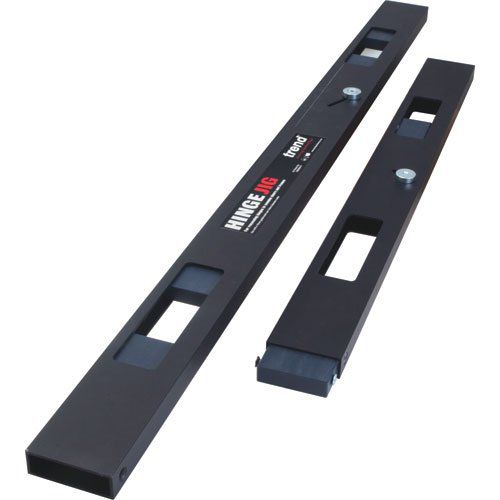

Trend Hinge Jig A - Hinge Jig Two Part In Case - (Ref: H/JIG/A)

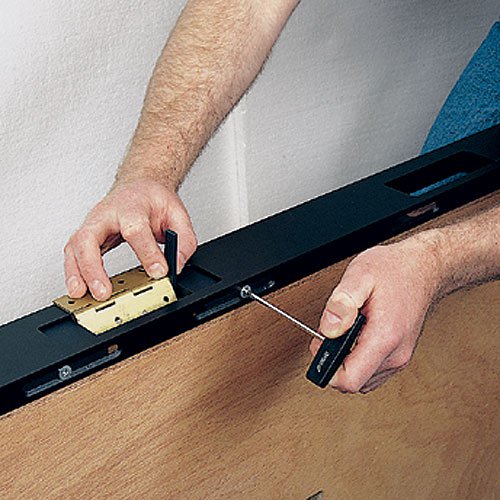

The two part Contractor Hinge Jig is a portable template set designed for recessing hinges in wooden doors & frames using a plunge router



Key Features

  • It is easy to use with minimal setting-up time, completing the job both accurately & quickly
  • Used on-site & in joinery shops to increase productivity with excellent results
  • Four apertures for fire door requirements
  • No need for marking out in the conventional way
  • Quick & simple to set-up as the hinge is used as the pattern
  • Clean & accurate recesses are achieved every time. Suitable for timber based doors & square butt hinges
  • Can be used on both inside and outside doors, rebated frames and on maximum 25mm thick fixed stops
  • Use with a light duty plunge router with 1/4 inch collet
  • Long reach router cutter required, 12mm diameter with 70mm overall length
  • Angled position slots to prevent creep
  • Unibase may be needed
  • T4EK router requires a ref. UNIBASE or special guide bush ref. GB/T4/160



Items included

  • 4 x Apertures
  • 2 x Bradawls with spacer
  • 1 x 16mm guide bush
  • 1 x T-Handle hex key 4mm
  • 1 x 4mm spacing gauge
  • 1 x Carry case

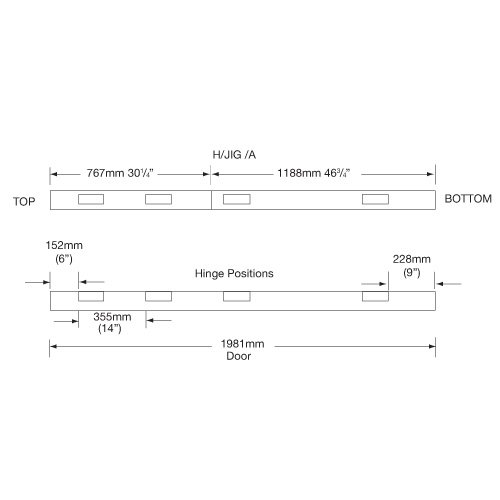

Specification

  • Length min: 2 5/8" (67 mm)
  • Length max: 5" (127 mm)
  • Width min: 3/8" (9.5 mm)
  • Width max: 1 3/8" (35 mm)
  • Width max. in 35mm rebate: 20 mm
  • Width max. in 44mm rebate: 30 mm
  • Door sizes possible
  • Height min: 6' 5" (1955 mm)
  • Height max: 2100 mm*
  • Thickness min: 5/8" (16 mm)
  • Weight 3.3 kg
  • Jig overall length 1957 mm
  • Plate thickness 2 mm
  • Fixed stop max. thickness 25 mm**



* Please note for doors over 2040mm the bottom hinge will be higher than 9" up.
** Max. hinge leaf width 20mm (35mm doors)



TR12X1/4TC - Two Flute Straight Cutter
12mm Dia x 19mm Cut x 1/4" Shank



For use with the Trend Hinge Jig and Lock Jig



Key Features

  • Gives a clean finish to abrasive materials such as chipboard, MDF, plywood and certain hardwoods
  • For housing, grooving and mortising
  • Features 2mm micrograin Tungsten Carbide tips, for cutting the most abrasive materials to give extra long life
  • PTFE coated, indicated by distinctive black colouring
  • Can be used on hardwood & softwood, fibreboard, plywood and particle board
  • Etched dimensions on extra long 40mm shanks



Specification

  • D: 15/32 inch (imperial diameter)
  • D: 12 mm (metric diameter)
  • C: 3/4 inch (imperial cut length)
  • C: 19 mm (metric cut length)
  • OL: 70 mm (overall length)
  • Shank Diameter: 1/4 inch




Trend Corner Chisel - To quickly square up rounded corners when using lock and hinge jigs - (Ref: C/CHISEL)



Key Features

  • Allows a rounded recess in wood to be cut to a square recess with the use of a hammer
  • Ideal for squaring hinge recesses in door frames and door edges, as well as lock faceplates
  • Spring loaded high speed steel (HSS) anvil for a sharp cut and long life
  • Light weight aluminium body design
  • Can be used with the Trend Hinge Jig
  • Can be resharpened



Specification

  • Length: 70 mm
  • Width: 29 mm
  • Weight: 100 g



Take a look at our Knowledge Centre for beginners guides and helpful advice on everything you need to know about routing.
Product Videos
Items Included
Click For Bigger Image
1 X TREND CORNER CHISEL C/CHISEL for Hinge Jig
Click For Bigger Image
1 X TREND TR12x1/4TC Hinge Jig Router Cutter Two Flute 12.0mm dia x 19.0mm Cut - Ex LONG 70.0MM O/L
Click For Bigger Image
1 X Trend T10EK - 2000W 1/2" Variable Speed Workshop Plunge Router 240v with Kitbox
Click For Bigger Image
1 X TREND H/JIG/A HINGE JIG TWO PART IN CASE
