Trend PH/JIG/AK Pro Pocket Hole Jig - Kit with Screws, Clamp, Drive Bits, Case etc
Product Code: TRE/PH/JIG/AK
Brand: Trend
In Offsite Stock - Delivery in 4 to 5 Days
£173.55 Inc. VAT
£144.62 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Please call to check stock availability for larger quantities
Trend Drilling Accessories
Pro Pocket Hole Jig Kit
Ref: PH/JIG/AK

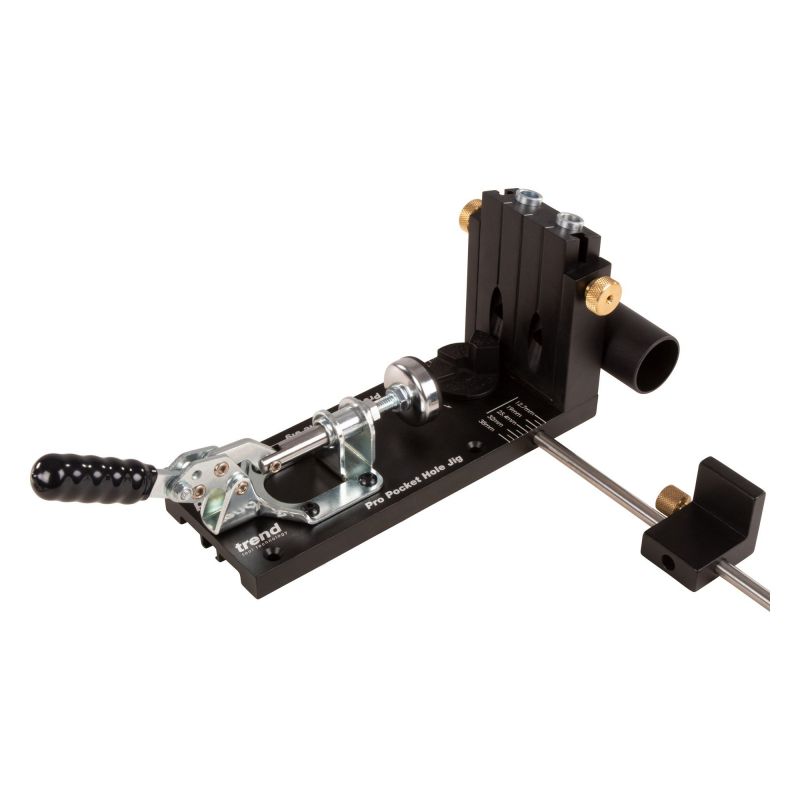

All-metal Pocket Hole Jig for drilling 9.5mm pocket holes in a range of material thicknesses. Twin 30mm centred pocket holes are ideal for large builds such as wardrobes, bookcases and cabinets. Can be bench-mounted for batch work or guides can be used independently for in-situ internal & external applications.
Key Features
- Full Length Hardened Drill Guide Bushes for long life and accurate drilling.

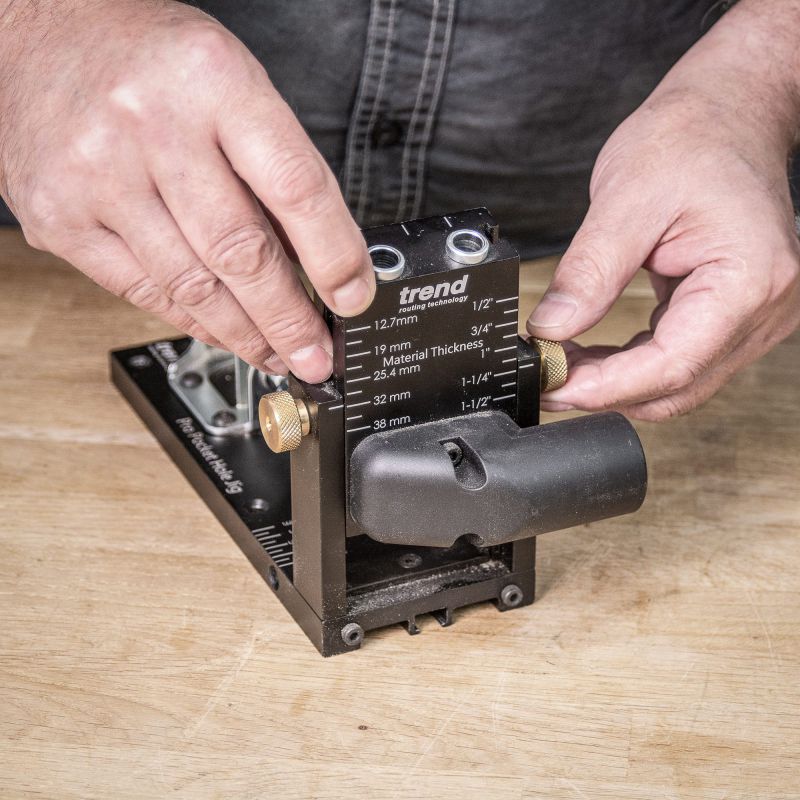

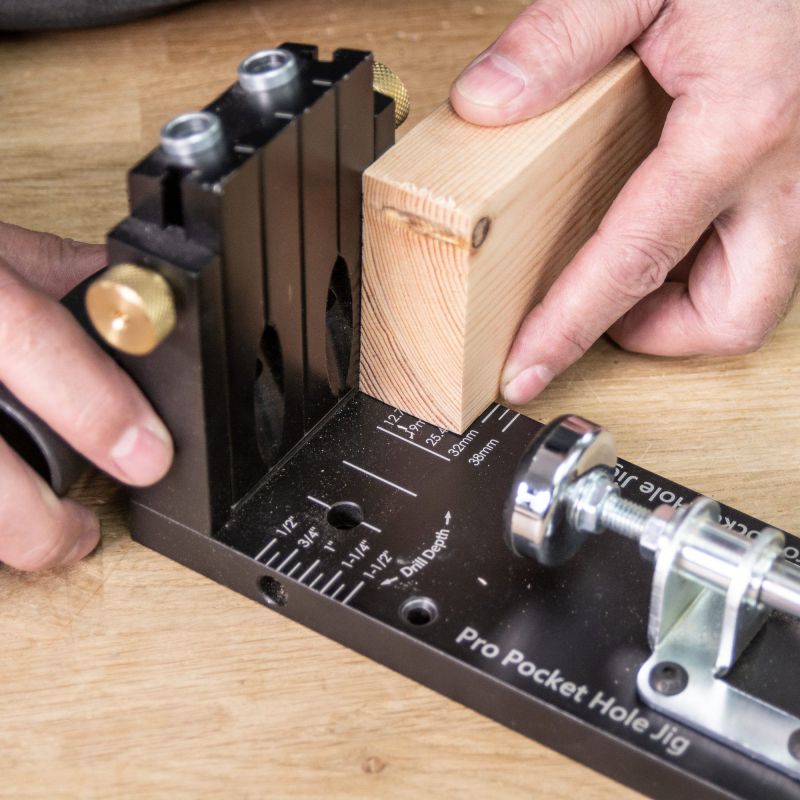

- Material Thickness Gauge allows fast checking of material thickness without the use of a tape measure.

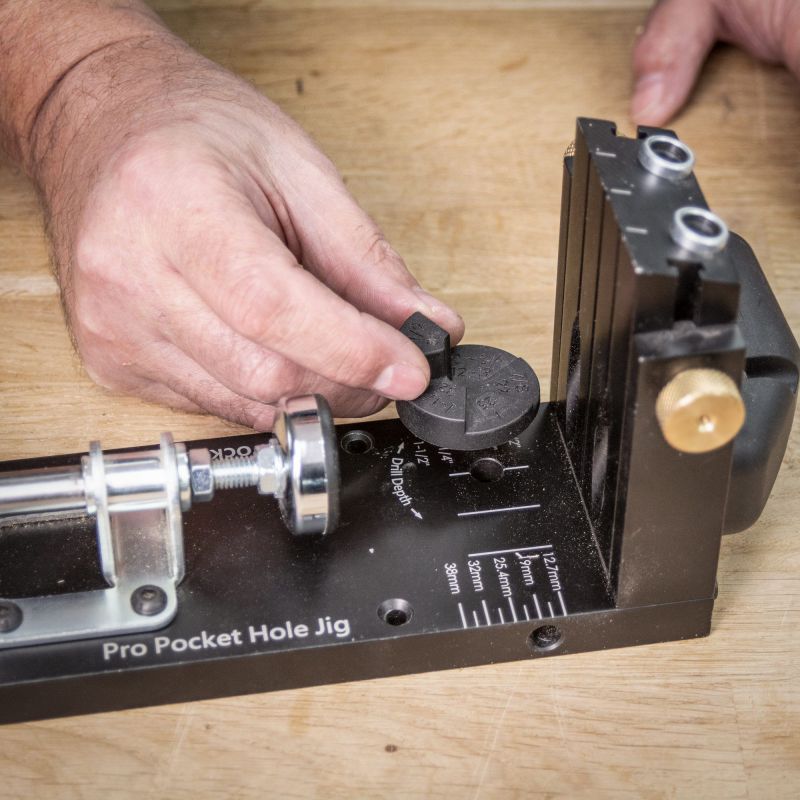

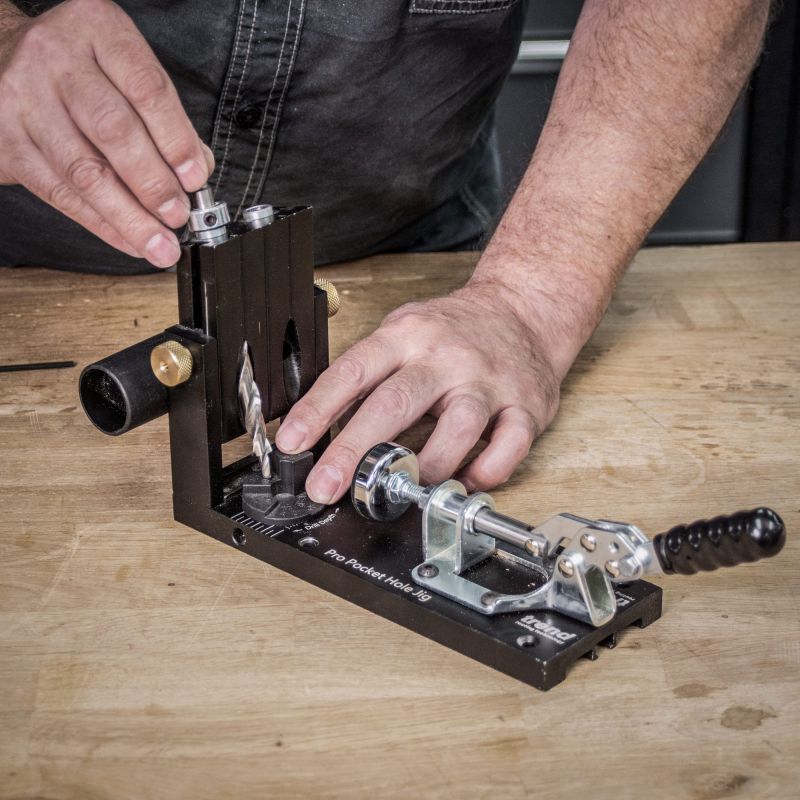

- Drill Bit Setting Turret for setting the correct drill depth to the material thickness.
- Work Support Rods prevent twisting when drilling longer material.

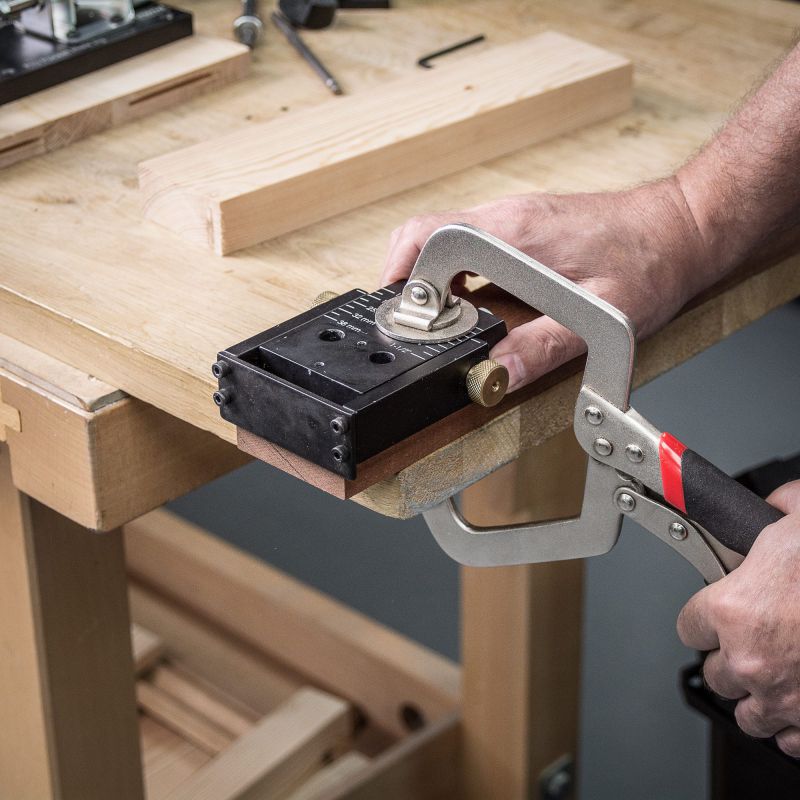

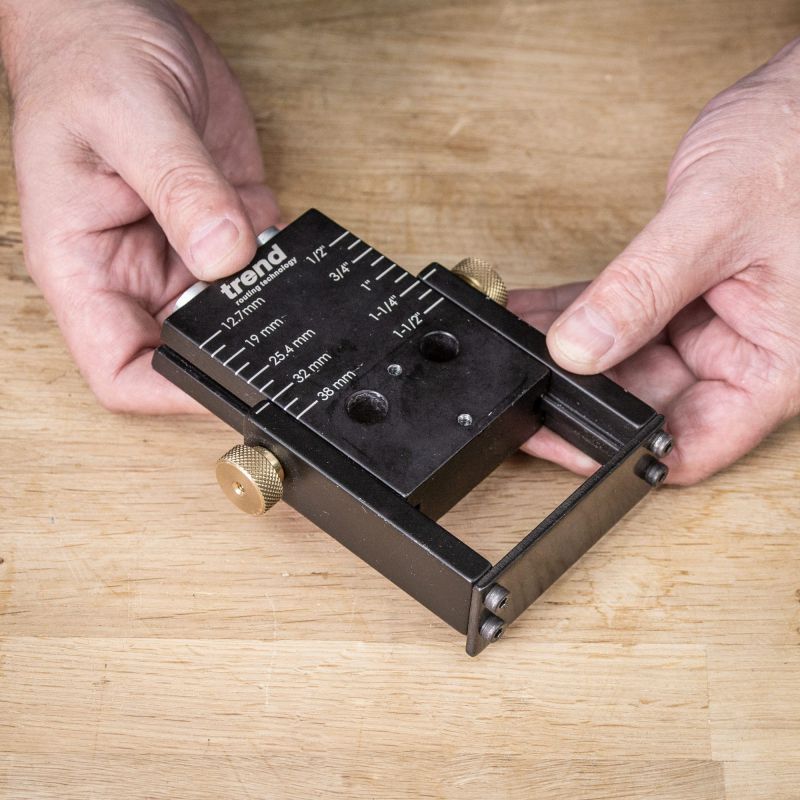

- Removable Drilling guides allows the column to be used separately for repair applications.
- Guide Locking Knobs lock the drilling guide in place once height has been adjusted.

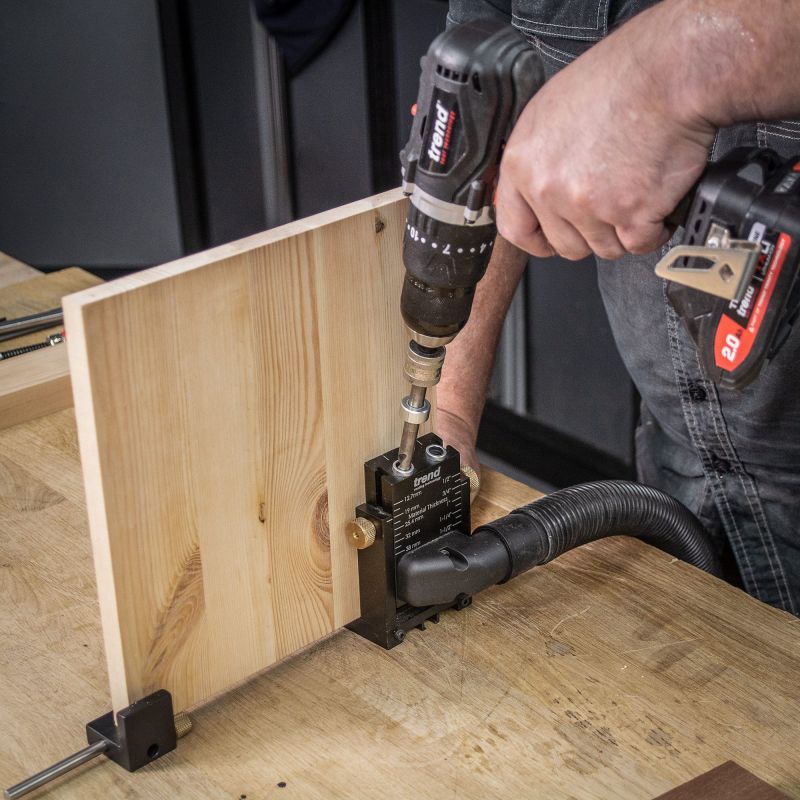

- Dust Collection Port efficiently clears dust and debris for faster, cleaner drilling.

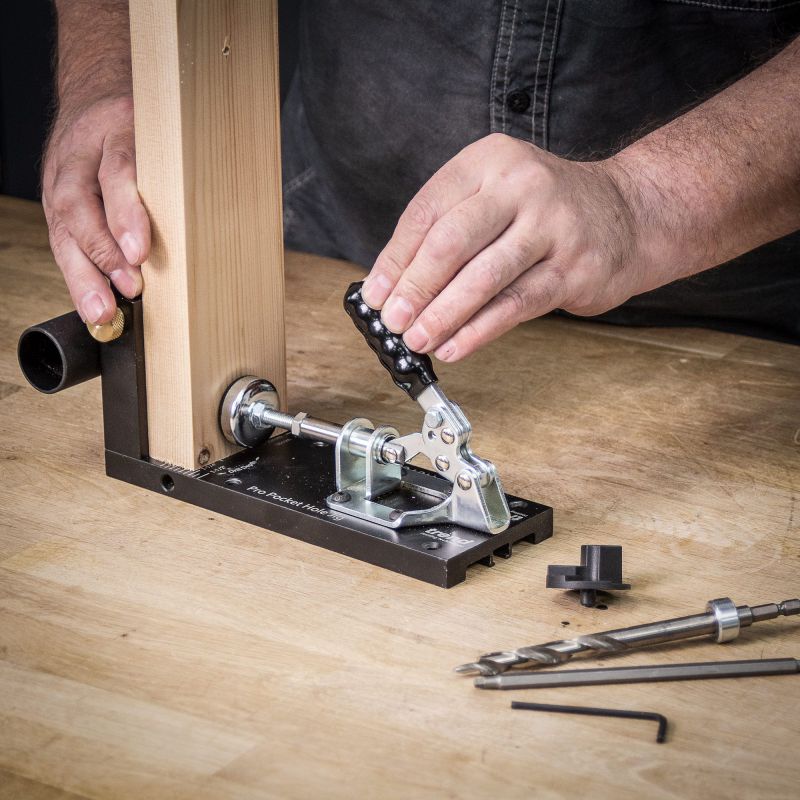

- On-Board Adjustable Clamp with quick-release mechanism.
- Non-Marring Clamp Pad to prevent pressure marks on the workpiece.
- T-Slot Clamp Guide supports the use of rail clamps to securely hold the jig to a work surface.

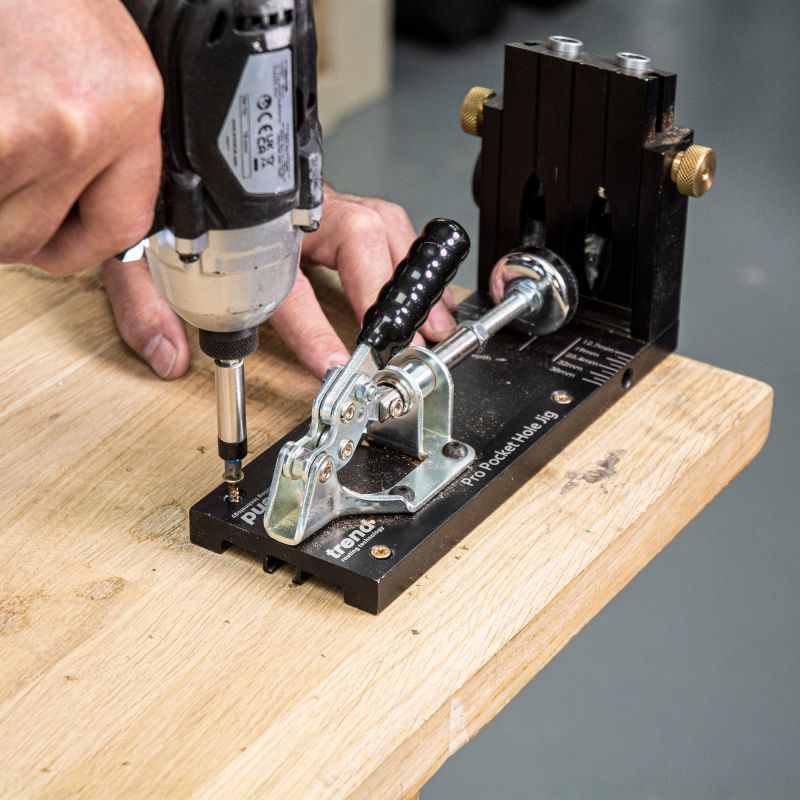

- Countersink Screw positions allows the jig to be screwed to a base board for extra support.
- Custom Carry Bag designed to optimise storage space.

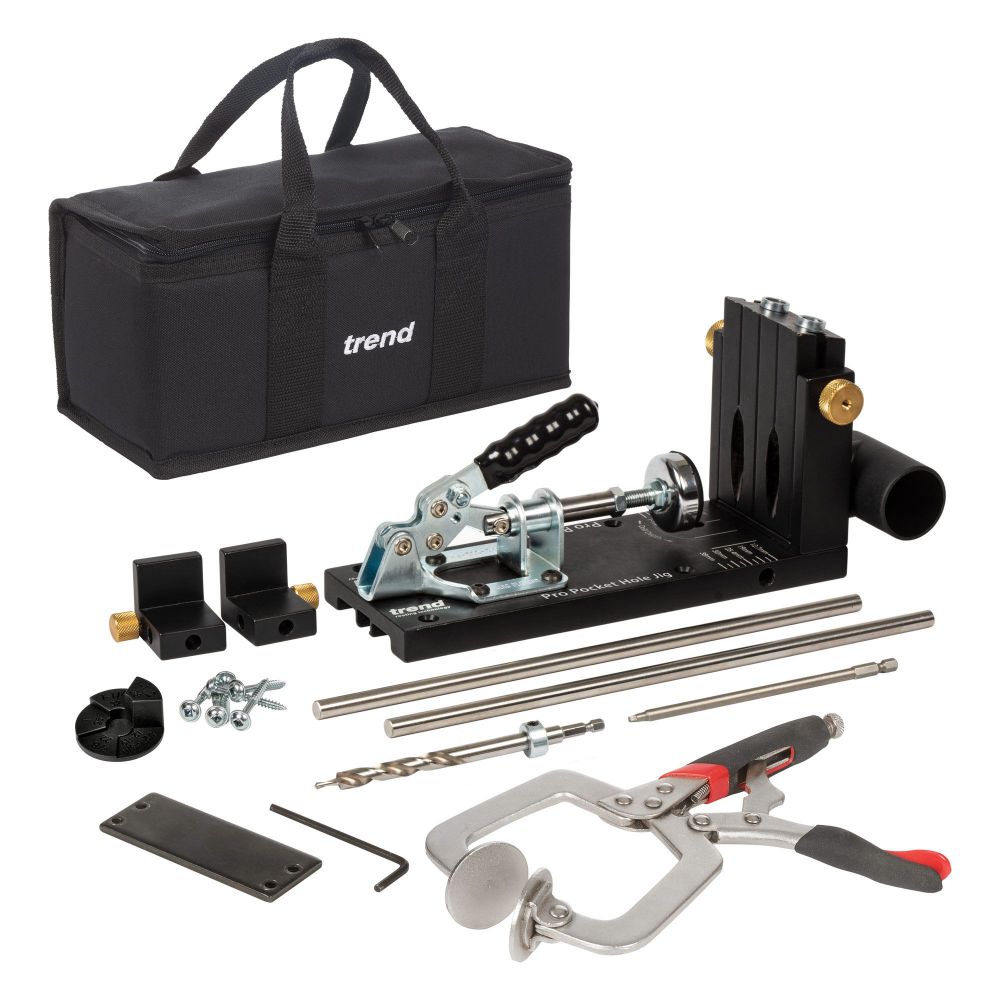

Items included
- 10 x No.7 x 25mm (1 inch) coarse
- 30 x No.7 x 30mm (1-1/4 inch) fine
- 30 x No.7/8 x 30mm (1-1/4 inch) coarse
- 10 x No.8 x 38mm (1-1/2 inch) coarse
- 10 x No.8 x 50mm (2 inch) coarse
- 10 x No.8 x 63mm (2-1/2 inch) coarse
- 1 x Face clamp
- 1 x HSS drill bit with collar
- 1 x 150mm Square drive bit
- 1 x Hex key 3mm A/F
- 2 x Workpiece support
- 1 x Carry case
Strengths and benefits
- Adjustable height to allow material from 12.7mm to 38mm to be jointed.
- Workpiece support and end stops for larger workpieces.
- Quick and easy drill bit depth setting turret and dust extraction spout.
- Workpiece can be handled immediately after gluing & screwing creating time saving benefits.
- Allows a variety of joints to be created individually in timber, MDF, plywood and blockboard.
- Fast, strong and quick construction for impressive projects with no additional clamps required.
Specification
- Material thickness min: 12.7 mm
- Material thickness max: 38 mm
- Material width min: 38 mm
- Hole pitch: 30 mm
- Drill diameter: 9.5 mm
- Square drive bit size: No.2
- Dust spout: ID 30 mm
- Underside T slot: 12.2/8.4mm x 6mm
Trend PH/JIG/AK Manual
Trend Pocket Hole Jig Size Guide
Take a look at our Knowledge Centre for handy guides to pocket-hole joinery and help with choosing the correct screws.
