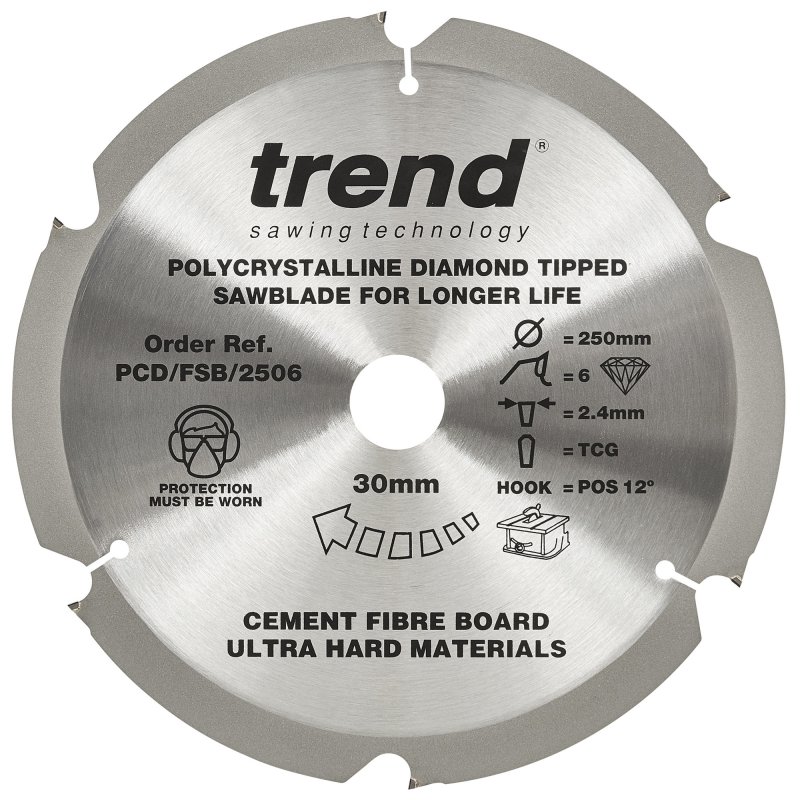

Trend PCD Fibreboard Saw Blade - 250mm dia x 2.4 kerf x 30 bore 6T

Trend PCD Fibreboard Saw Blade - 250mm dia x 2.4 kerf x 30 bore 6T

ref: PCD/FSB/2506

PCD sawblade for use on cement fibre board and tool-wearing material eg laminate, solid wood and ultra hard materials.

• Precision EDM ground high-quality industrial polycrystalline diamond cutting tips.
• Flat tooth with chamfer (Triple Chip Grind) tips for cleaner cut.
• Laser cut hardened body.
• Longer life, faster cleaner cuts with less dust.
• Up to 60 times longe life when compared to TCT blades.
• Ideal for Hardie-Board cladding, Aqua board, Minerit, Eternit and MDF.
• Portable, bench and mitre saw use.

• Designed to cut composite decking, fibre cement board/cladding, carbon fibre-reinforced polymer, glass-reinforced plastic, compact laminate and MDF.

• Diameter D1: 250mm (10 inches)
• Bore: 30 mm
• Kerf: 2.4 mm
• Plate thickness: 1.6 mm
• No. of Teeth: 6
• Tooth form: TCG
• Hook: 12 degrees
• Quick Selector No: 25.1
• Cut Finish: Coarse
• Max rpm: 5000

It is recommended that the blade should not project more than 1mm out of bottom of substrate.


Additional Information:

• Power Tool Blade and Bore Compatibility Chart
• Cross Cut Mitre Saw blades with part number are prefixed CSB/CCxxxxx
• General Saw blades with part number are prefixed CSB/xxxxx
• CSB = Craft Saw Blade
• CC = Cross Cut
• XXXXX = blade diameter & no. of teeth ie 25048 = 250mm dia 48 teeth
• Trend Saw Blade Safety Instructions
