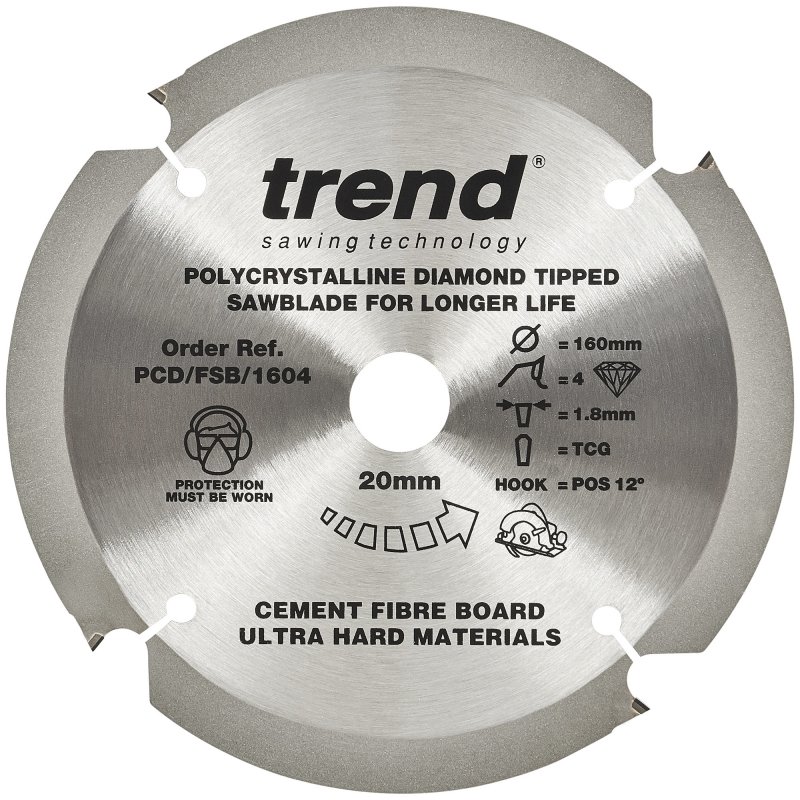

Trend PCD Fibreboard Saw Blade - 160mm dia x 1.8 kerf x 20 bore 4T

Trend PCD Fibreboard Saw Blade - 160mm dia x 1.8 kerf x 20 bore 4T

ref: PCD/FSB/1604

PCD sawblade for use on cement fibre board and tool-wearing material eg laminate, solid wood and ultra hard materials.

• Precision EDM ground high-quality industrial polycrystalline diamond cutting tips.
• Flat tooth with chamfer (Triple Chip Grind) tips for cleaner cut.
• Laser cut hardened body.
• Longer life, faster cleaner cuts with less dust.
• Up to 60 times longer life when compared to TCT blades.
• Ideal for Hardie-Board cladding, Aqua board, Minerit, Eternit and MDF.
• Portable, bench and mitre saw use.
• Suitable for: Festool HK 55 EQ, Festool HKC 55, Festool HKC 55 EB, Festool TS 55, Festool TSC 55

• Designed to cut composite decking, fibre cement board/cladding, carbon fibre-reinforced polymer, glass-reinforced plastic, compact laminate and MDF.

• D: 6-1/4 inches (imperial diameter)
• D: 160 mm (metric diameter)
• Bore: 20 mm
• Kerf: 1.8 mm
• Plate thickness: 1.4 mm
• No. of Teeth: 4
• Tooth form:  TCG
• Hook: 12 degrees
• Quick Selector No: 7.2
• Cut Finish: Coarse
• Max rpm: 8000
• It is recommended that the blade should not project more than 1mm out of bottom of substrate

Additional Information:

• Power Tool Blade and Bore Compatibility Chart
• Cross Cut Mitre Saw blades with part number are prefixed CSB/CCxxxxx
• General Saw blades with part number are prefixed CSB/xxxxx
• CSB = Craft Saw Blade
• CC = Cross Cut
• XXXXX = blade diameter & no. of teeth ie 25048 = 250mm dia 48 teeth
• Trend Saw Blade Safety Instructions
