Trend LOCK/JIG/B adjustable trade lock jig for router

X
Product Code: TRELOCK/JIG/B
Brand: Trend
In Stock
£98.69 Inc. VAT
£82.24 Exc. VAT
✓ COLLECTION
✓ DELIVERY
Qty
Trend

Trend Routing On-Site Jigs

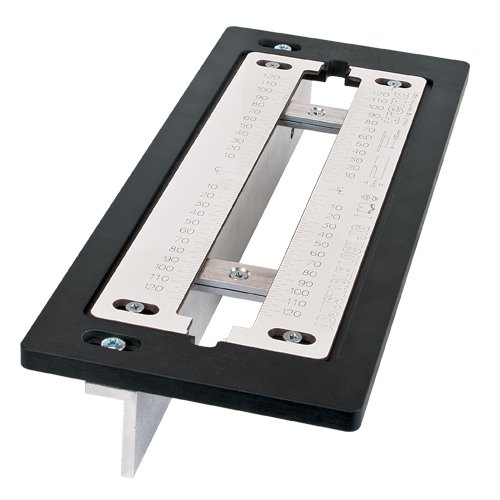

LOCK/JIG/B - Adjustable Trade Lock Jig



Key Features

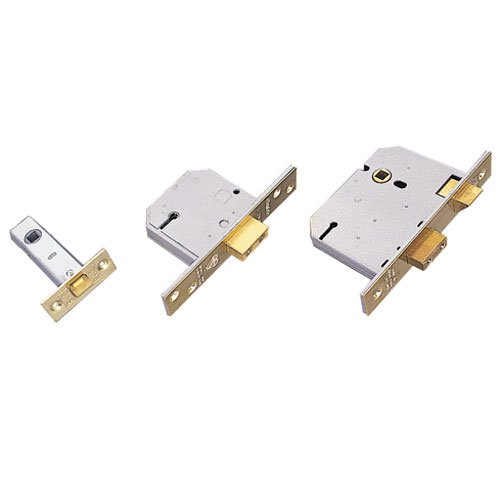

  • Trend Lock Jig for mortice locks and latches - for faceplates up to 250 long
  • Infinitely adjustable sliding plates and stops for mortice and faceplates from 30mm up to 250mm long, ideal for use with obscure sized locks as well as all standard locks and latches
  • For use in a 1/2in capacity router with 80mm plunge capacity fitted with a 30mm guidebush and 12mm cutter.
  • Suitable trend cutters: 3/75X1/2TC, TR37X1/2TC, C172X1/2TC"

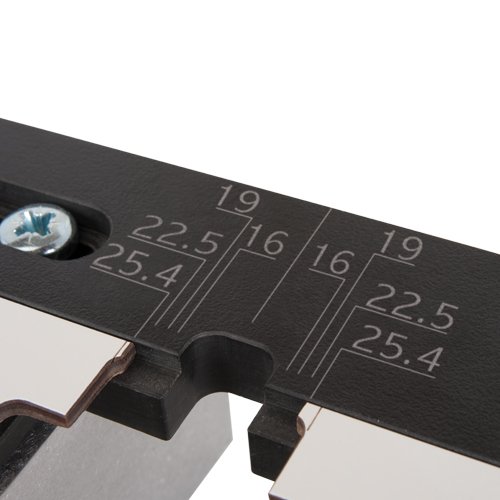

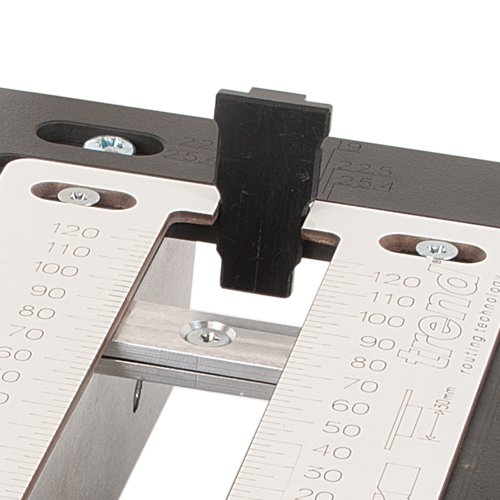

  • Engraved on underside to allow fast, accurate set up for common door widths of 35mm, 40mm, 44mm and 54mm.
  • The infinite adjustment range makes it the ideal jig for fitting the mortice positions for multi point lock strips into wooden doors
  • With its adaptable sliding plate and stop adjustments it can be used with different guidebush diameters and straight cutters for general mortice work in construction projects



Items included

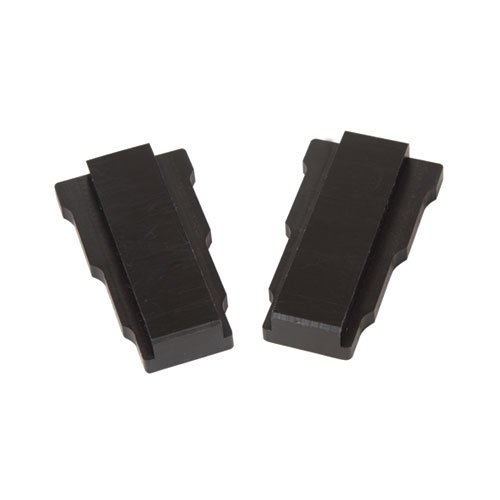

  • 2 x setting block



Specification

  • Door thickness min: 30 mm
  • Door thickness max: 80 mm
  • Faceplate length min: (OL) 30 mm
  • Faceplate length max: (OL) 250 mm
  • Width: 22.5 mm
  • Width: 25.4 mm (1 inch)

Mortise width engraved size (D)

  • Width: 16 mm (5/8 inch)
  • Width: 19 mm (3/4 inch)



Faceplate Dimensions:

Tempate
For faceplate or mortise
Professional 12mm diameter router cutter 3/75X1/2TC
Trade Range 12mm diameter router cutter TR37X1/2TC
CraftPro 12mm diameter router cutter C172X1/2TC

115mm overall length. For up to 70mm deep mortise dependant on plunge of router and use of Unibase etc.



Faceplate Dimensions:

Tempate
For faceplate
Professional 12mm diameter router cutter 3/8LX1/4TC
Trade 12mm diameter router cutter TR12X1/4TC
CraftPro 12mm diameter router cutter C019AX1/4TC

70mm overall length. For mortise, deepening of mortise with auger bit required.



Optional Accessories: (not included)

Description

Product Reference
1. Guide bush 30mm diameter with 10mm spigot  GB30/A
2. Universal sub-base UNIBASE
3. Clamp (200mm jaw) FC/200



Find a fully in depth step-by-step guide to using an adjustable lock jig here in our Knowledge Centre.
