Trend HINGE/JIG Trend Hinge Jig Package Deal free Corner Chisel + Router Cutter

Trend Hinge Jig Package HINGE/JIG/DEAL

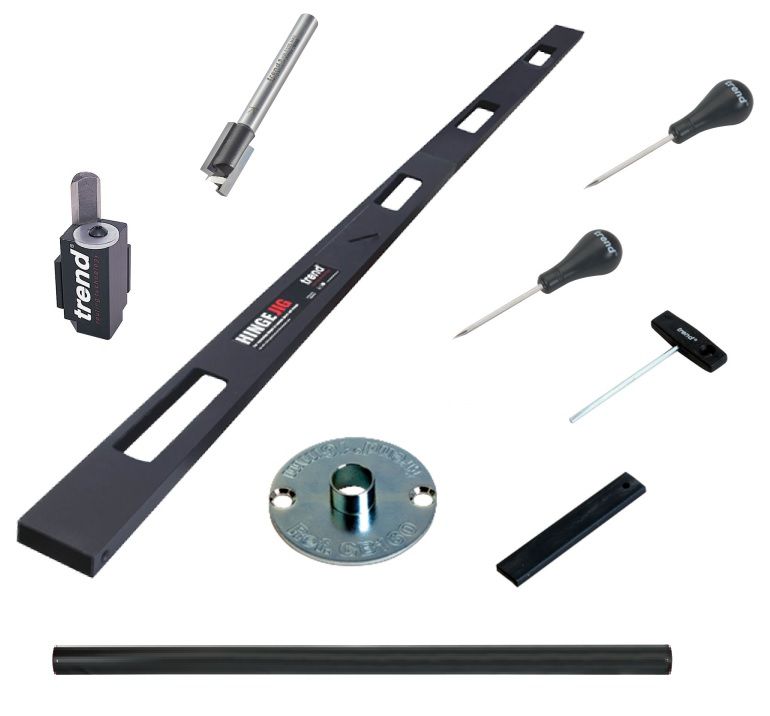

c/w 1 piece hinge jig, corner chisel and router cutter

The single piece Contractor Hinge Jig is designed for recessing hinges in wooden doors & frames with plunge router.

• It is easy to use with minimal setting-up time, completing the job both accurately & quickly.
• Used on-site & in joinery shops to increase productivity with excellent results.
• Four apertures for fire door requirements.
• No need for marking out in the conventional way.
• Quick & simple to set-up as the hinge is used as the pattern.
• Clean & accurate recesses are achieved every time. Suitable for timber based doors & square butt hinges.
• Use with a light duty plunge router with 1/4 inch collet.
• Long reach router cutter required, 12mm diameter with 70mm overall length.
• Angled position slots to prevent creep.
• Unibase may be needed.
• Patent No. GB2285410.
• T4EK router requires a ref. UNIBASE or special guide bush ref. GB/T4/160.

• Hinge sizes possible
• Length min. 2-5/8" (67mm)
• Length max. 5" (127 mm)
• Width min. 3/8" (9.5 mm)
• Width max. 1-3/8" (35 mm)
• Width max. in 35mm rebate 20mm
• Width max. in 44mm rebate 30mm
• Door sizes possible
• Height min. 6' 5" (1956 mm)
• Height max. 6' 10" (2100 mm)*
• Thickness min. 5/8" (16 mm)
• Thickness max. 2" (51 mm)

* Please note for doors over 2040mm the botton hinge will be higher than 9" up.

• 4 x Apertures
• 2 X Bradawls with spacer
• 1 X 16mm guide bush
• 1 X T-handle hex key
• 1 X 4mm spacing gauge
• 1 X Plastic storage tube with HINGE/JIG
• 1 X Fabric storage case with H/JIG/A

Replacement Parts

1. Special guide bush (dia. 16mm x 10mm) GB160
2. Bradawl (requires spacer) WP-HJ/09
3. Nylon spacer for bradawl (1 off) WP-HJ/08
4. 4mm feeler gauge (1 off) WP/HJ/10
5. Aperture block (1 off) WP-HJ/02
6. T-handle hex key (1 off) WP-AKT/01
7. Plastic storage tube (for HINGE/JIG) CASE/HJ
8. Fabric carry case (for J/JIG/A) CASE/HJ/A
