Trend H/JIG/D6 AnyDoor Skeleton Hinge Jig Package with Chisel and Bit

Trend H/JIG/D6 - AnyDoor 6’8” Modular Hinge Jig

The AnyDoor Jig is New and improved version of the popular Trend Skeleton Hinge Jig.

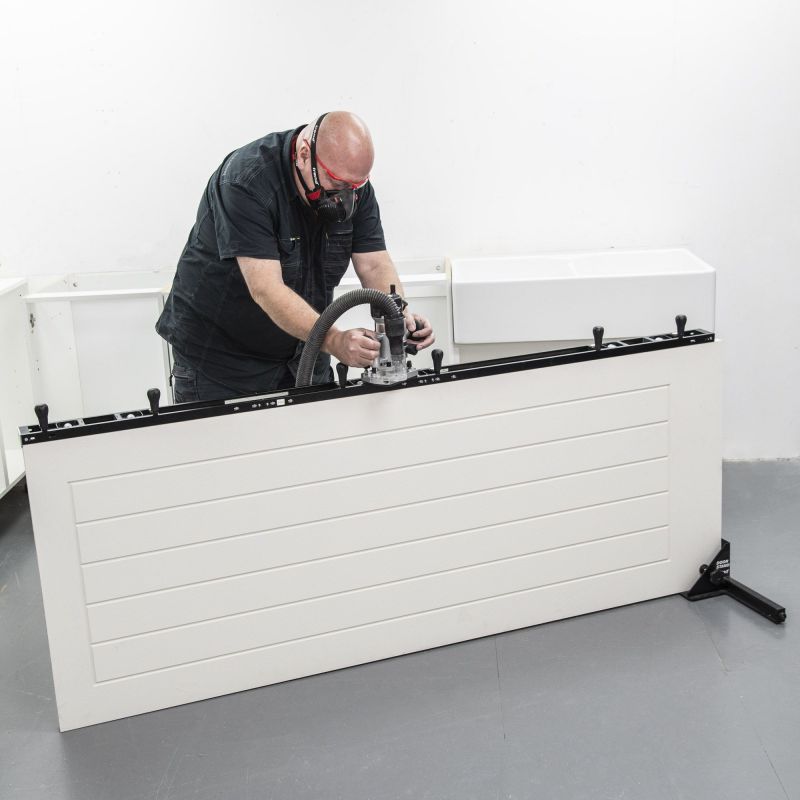

Fully-adjustable, modular routing jig designed to quickly and accurately recess square and 10mm radius hinges in timber doors & frames. Accommodates both full-height (1981mm/2040mm) and custom smaller doors.

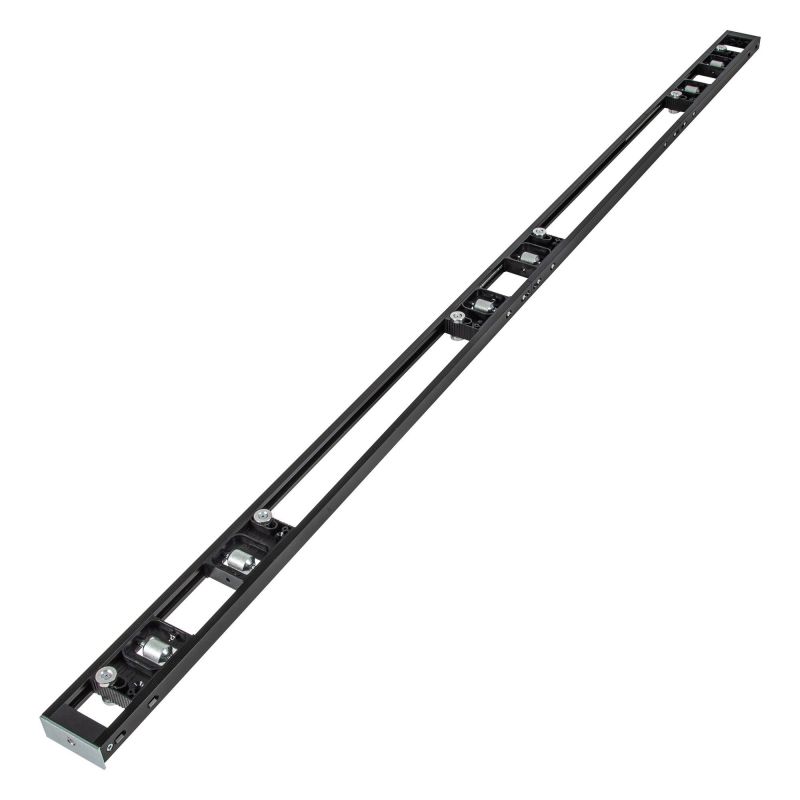

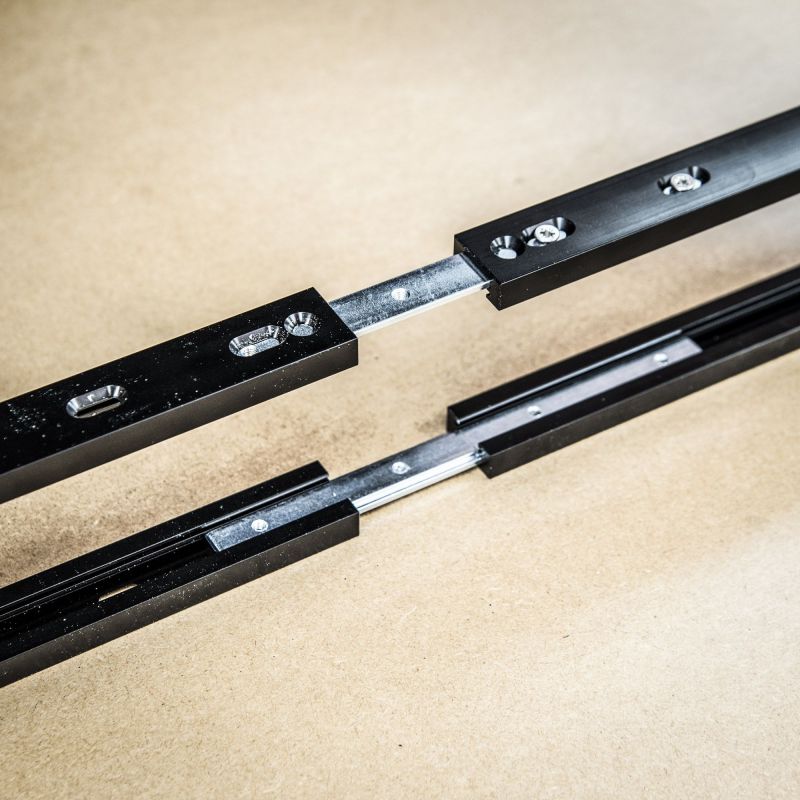

• Modular Rail Construction allows the jig to be shortened or extended to suit smaller or oversize doors. Ideal for Dutch/stable doors, loft conversions, access panels, loft hatches and understairs storage. Expansion rails available for doors larger than 2040mm (6’8”).
• Patented* Twin-Rail System provides unlimited hinge positions within the rail, making the jig perfect for both new and replacement installations.
• Radius Hinge Compatibility allows fast and accurate installation of square or 10mm radius hinge profiles.
• Bradawl or Screw Attachment Options enables the jig to be secured with either bradawls for speed (included) or 3.5mm (no.6) woodscrews for maximum stability.

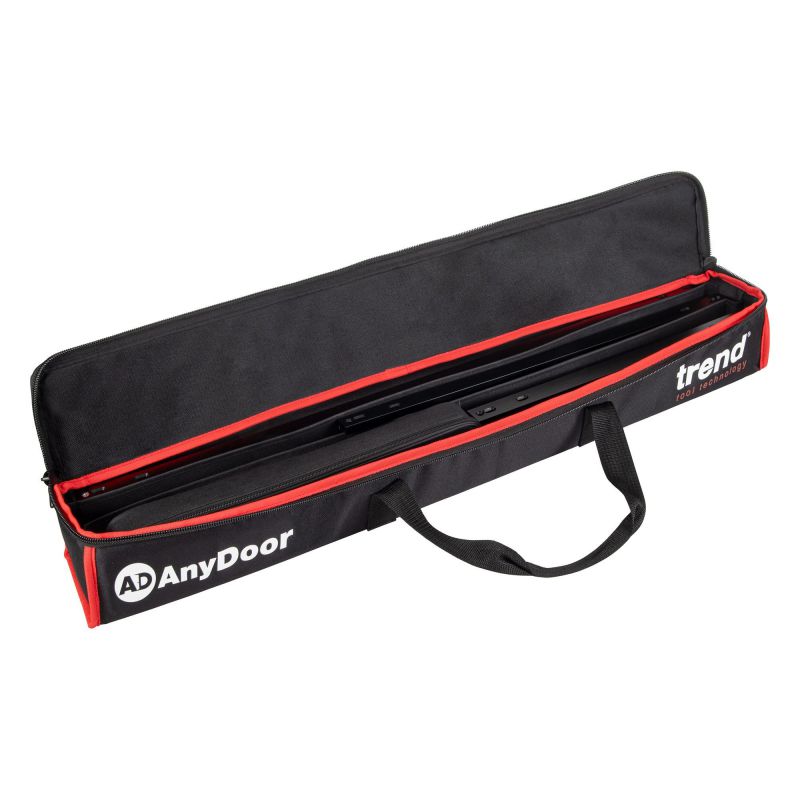

• Tough Carry Bag stores pre-built jig sections to minimise assembly time.
• Lightweight Anodized Aluminium Rails for optimum strength, durability, accuracy and a smooth router running surface.

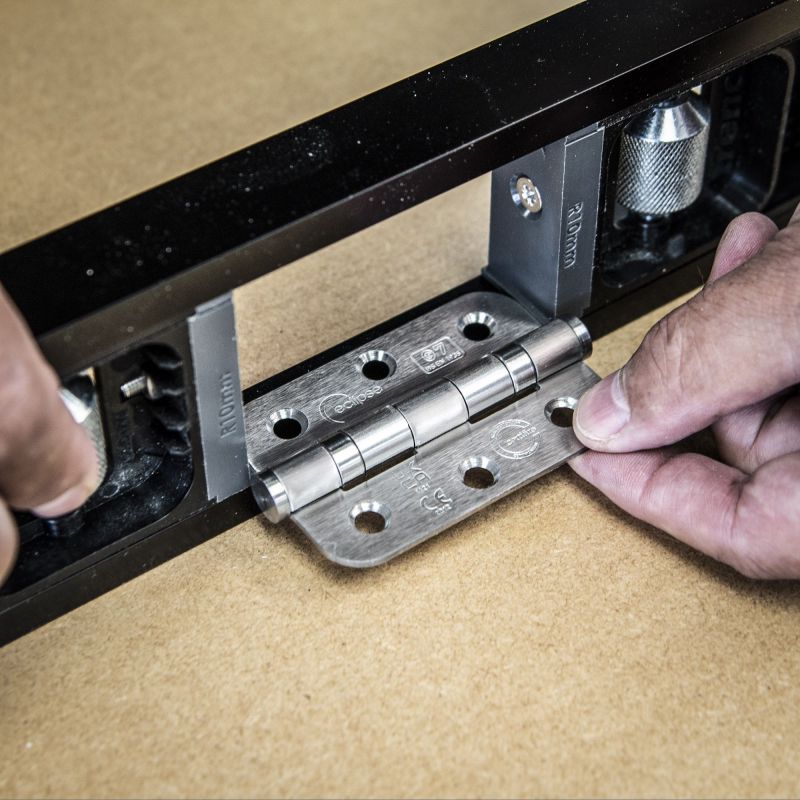

• Adjustable Edge Guides accommodate 19mm, 26mm and 30mm hinge leaf widths (preset) or any leaf width between 12.7mm and 35mm (custom).

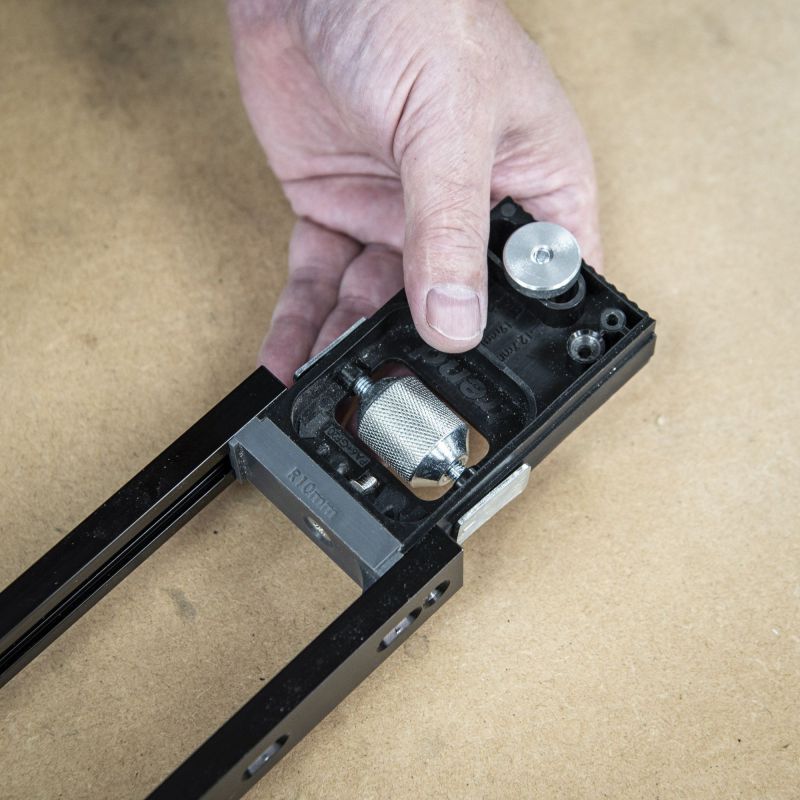

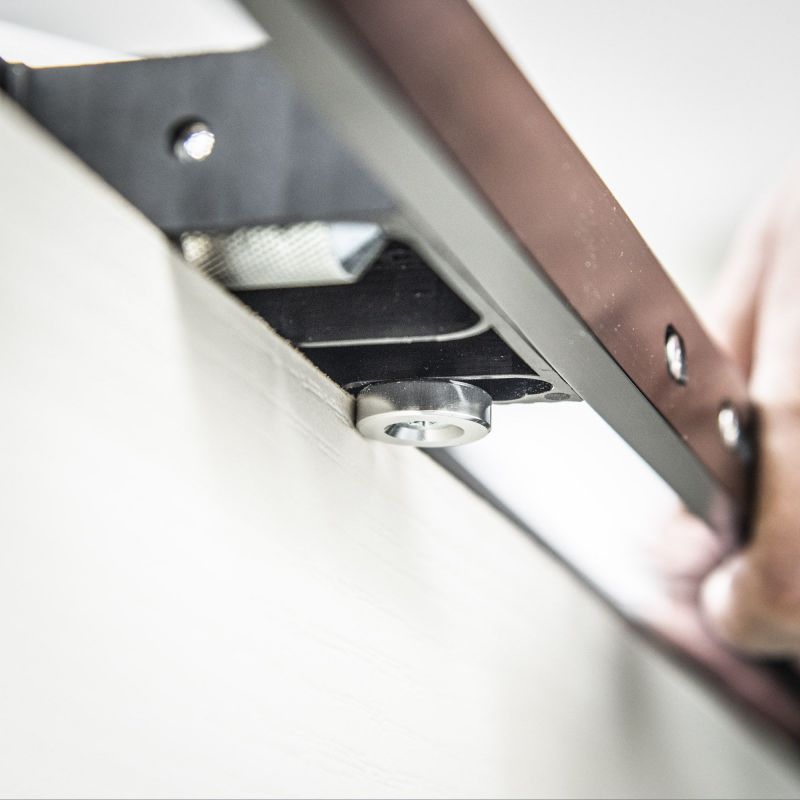

• Adjustable Quick-Release Aperture Blocks feature Trend’s tool-free, patented* thumb-turn locking mechanism for fast, accurate hinge positioning.

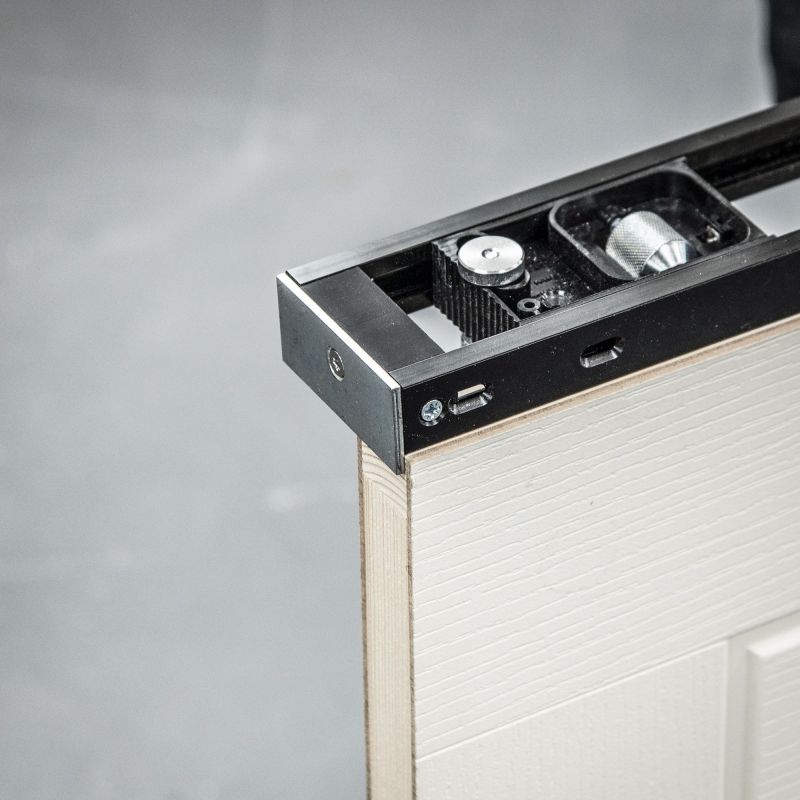

• 3.0mm (1/8”) Steel End Plate ensures consistent head clearance and provides rapid door-to-frame transition.
• 25mm (1”) Rail Depth allows jig to be used against fixed door stops.
• Includes: 16.0mm Guide Bush.

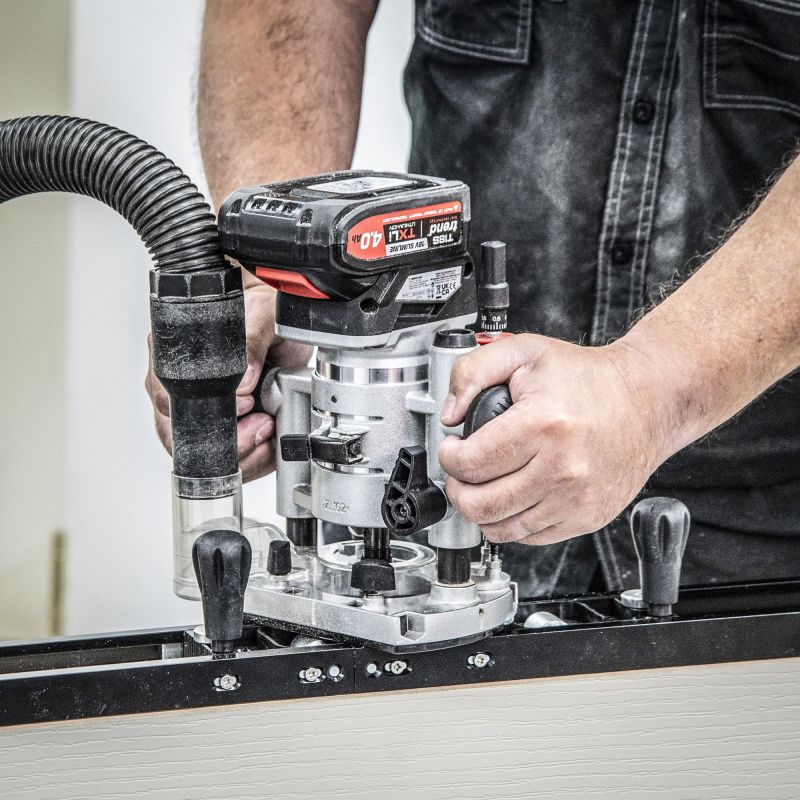

• Requires: 12.0mm long-reach Router Cutter and ¼”/8mm Plunge Router.

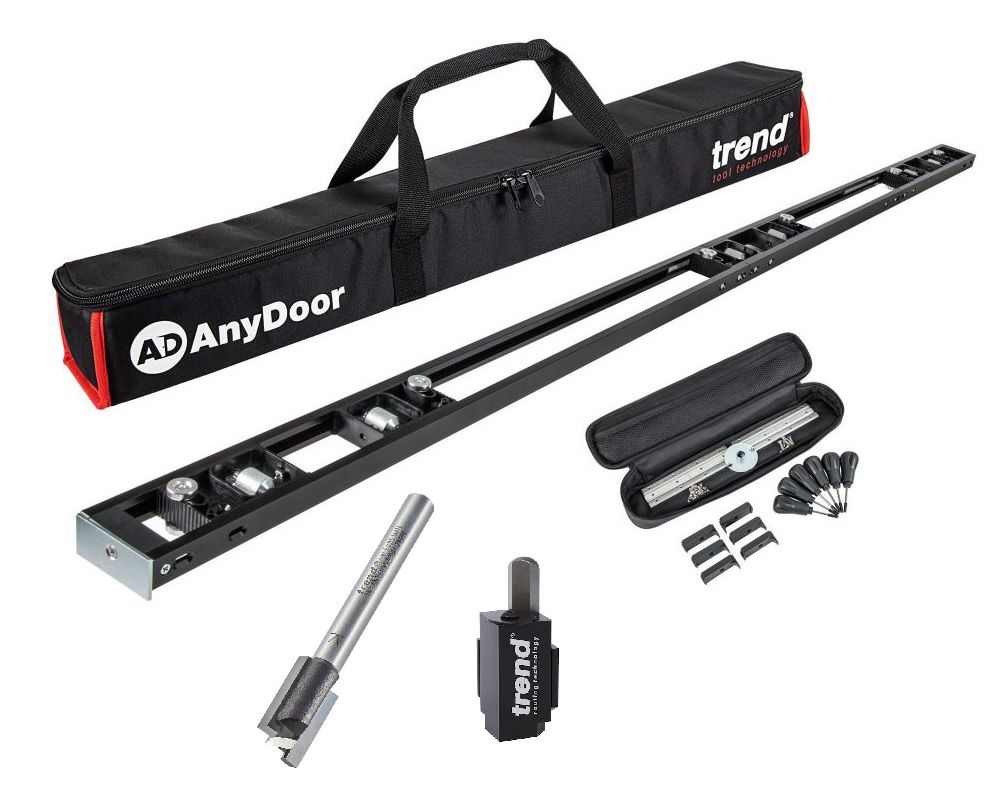

• 1'6" Rails (x2)
• 2' Rails (x2)
• 3' Rails (x2)
• End Blocks
• Hinge Blocks (x6)
• Connectors (x6)
• Screws (x24)
• Bradawls (x6)
• GB160 Guide Bush
• Carry Bag with Accessory Pouch

Trend Routing On-Site Jigs - Trend Corner Chisel - To quickly square up rounded corners when using lock and hinge jigs - (Ref: C/CHISEL)

• Allows a rounded recess in wood to be cut to a square recess with the use of a hammer
• Ideal for squaring hinge recesses in door frames and door edges, as well as lock faceplates
• Spring loaded high speed steel (HSS) anvil for a sharp cut and long life
• Light weight aluminium body design
• Can be used with the Trend Hinge Jig
• Can be resharpened

• Length: 70 mm
• Width: 29 mm
• Weight: 100 g

Trend Trade Router Cutters - Straight Router Cutters
TR12X1/4TC - Two Flute Straight Cutter
12mm Dia x 19mm Cut x 1/4" Shank

For use with the Trend Hinge Jig and Lock Jig

• Gives a clean finish to abrasive materials such as chipboard, MDF, plywood and certain hardwoods
• For housing, grooving and mortising
• Features 2mm micrograin Tungsten Carbide tips, for cutting the most abrasive materials to give extra long life
• PTFE coated, indicated by distinctive black colouring
• Can be used on hardwood & softwood, fibreboard, plywood and particle board
• Etched dimensions on extra long 40mm shanks

• D: 15/32 inch (imperial diameter)
• D: 12 mm (metric diameter)
• C: 3/4 inch (imperial cut length)
• C: 19 mm (metric cut length)
• OL: 70 mm (overall length)
• Shank Diameter: 1/4 inch
