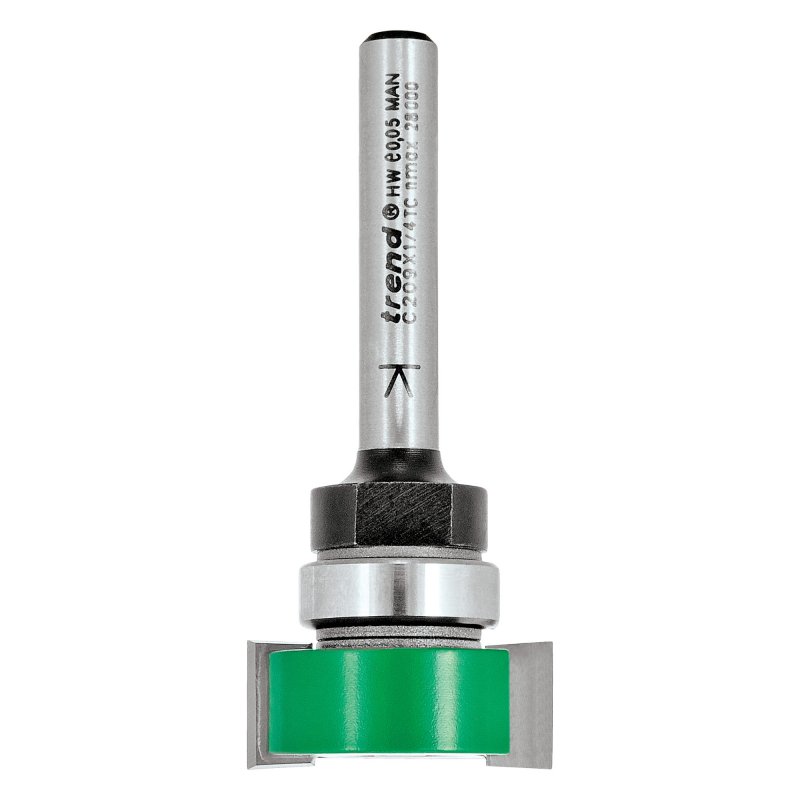

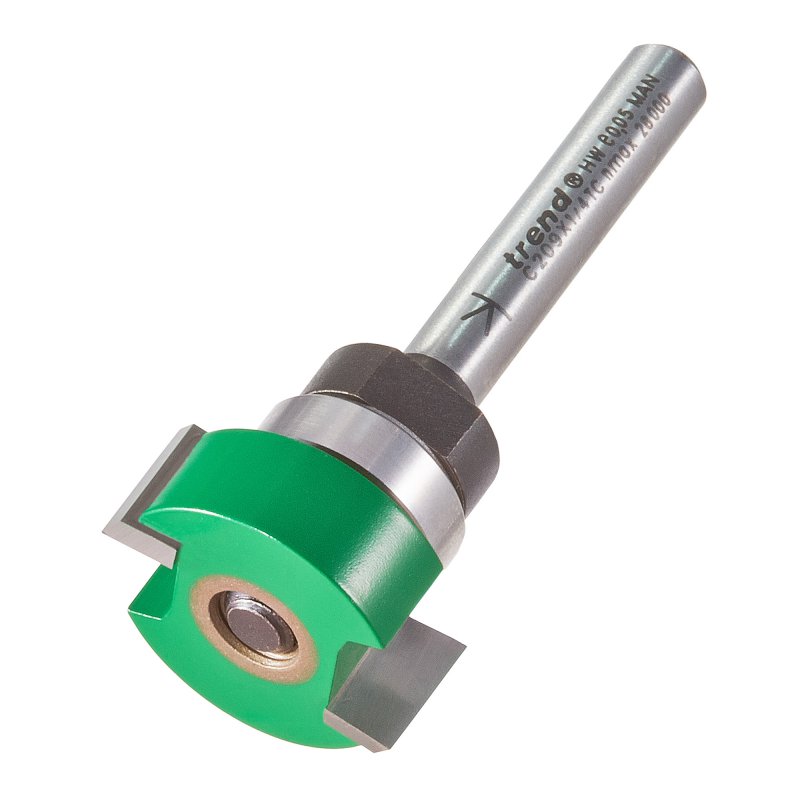

Trend C209X1/4TC CraftPro Guided Intumescent Router Cutter 10mm Cut x 4mm Depth x 1/4 Shank

TREND C209X1/4TC

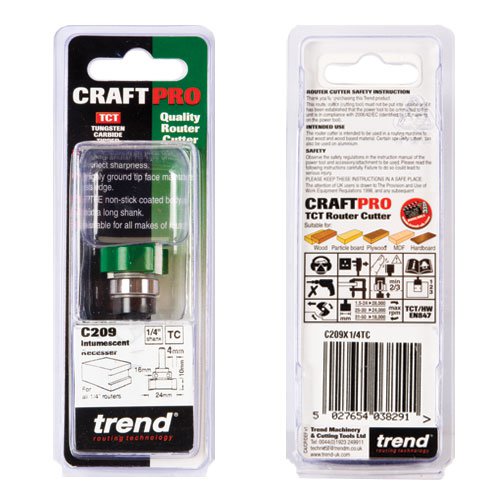

CRAFT PRO ROUTER CUTTER
GUIDED INTUMESCENT RECESSER 10.0MM X 4.0MM CUT

• Bearing guided intumescent strip cutter for routing the groove for intumescent strip in a frame or door.
• Three sizes available to suit 4mm thick strip of widths 10mm, 15mm or 20mm.
• Intumescent strip is used to create an effective barrier to both fire and smoke.
• Choose alternative bearings to suit other thicknesses of intumescent strip.

• Shank Diameter: 1/4 inch
• Cutter Diameter Metric (D): 24 mm
• Cut Length Metric (C):10 mm
• Bearing Diameter Metric (B): 16 mm
• Metric (E): 4 mm
• Overall Length Metric: 58 mm
• Fire check: 30 minutes
• Grade: TCT - Tungsten Carbide Tipped
