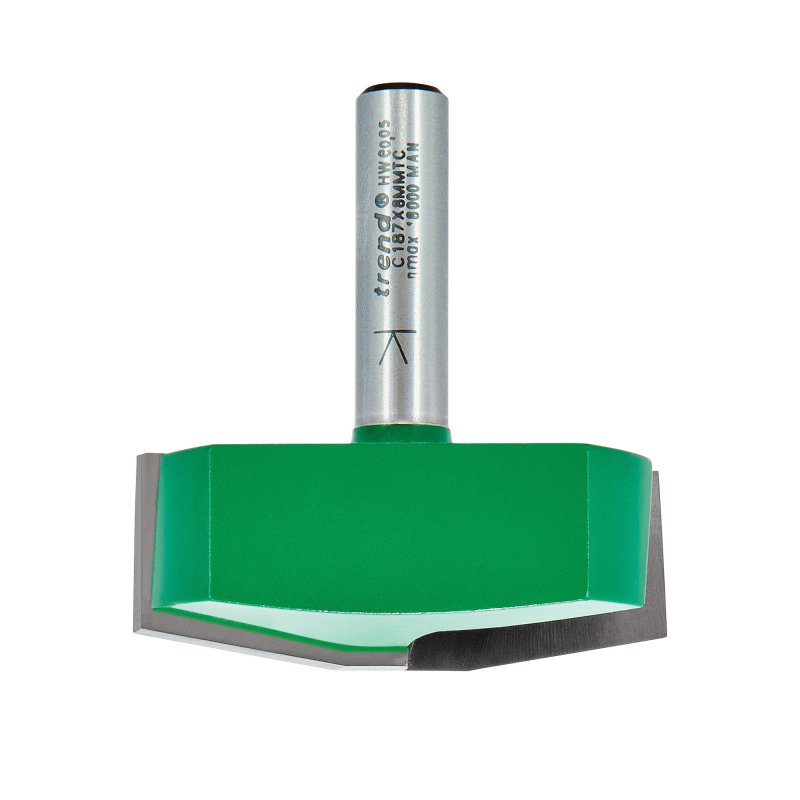

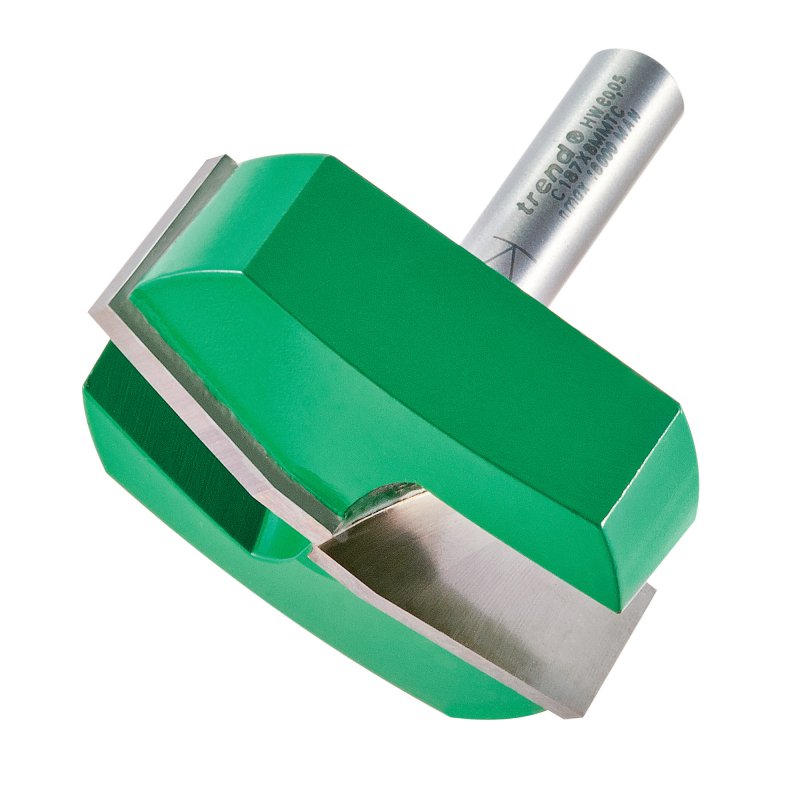

Trend C187X8MMTC CraftPro Bevel Panel Raiser Router Cutter 10 Deg x 45mm Dia x 8mm Shank

TREND C187X8MMTC
CRAFT PRO ROUTER CUTTER
BEVEL PANEL RAISER 10 DEG X 41.0MM DIA

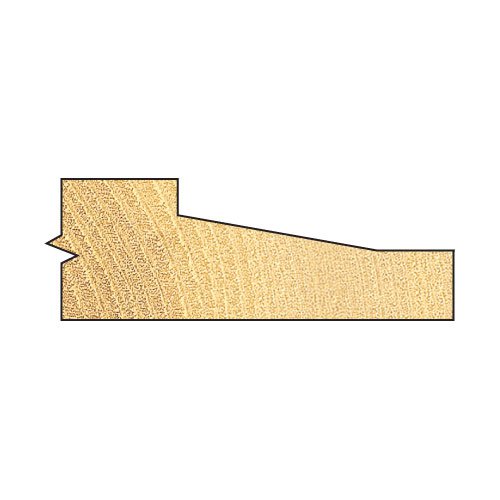

• Panel raiser cutters for producing the panel for cabinet panelled doors.
• The tool is fitted with a back cutter to ensure a maximum panel tongue thickness of 6.3mm.
• Must be used in a stationary variable speed router either mounted overhead or inverted in a router table at a reduced speed.
• For use on natural timber and MDF.
• Take several passes by adjusting back fence position with each pass.
• Stationary use only.
• Back cutter must be fitted at 90 degrees to main tool to reduce the cutting impact.

• Shank Diameter: 8 mm
• Cutter Diameter Metric (D): 45 mm
• Metric (D2): 11 mm
• Cut Length Metric (C): 17 mm
• Angle (A): 10 degrees
• Overall Length Metric: 49.5 mm
• Grade: TCT - Tungsten Carbide Tipped
