Trend C157X8MMTC CraftPro Guided Combination Bevel Profile Scriber 10 Deg x 8mm Shank

X
Product Code: TREC157X8MMTC
Brand: Trend
Low Stock - Contact Us For Availability
£55.54 Inc. VAT
£46.29 Exc. VAT
COLLECTION
DELIVERY
Qty
Trend

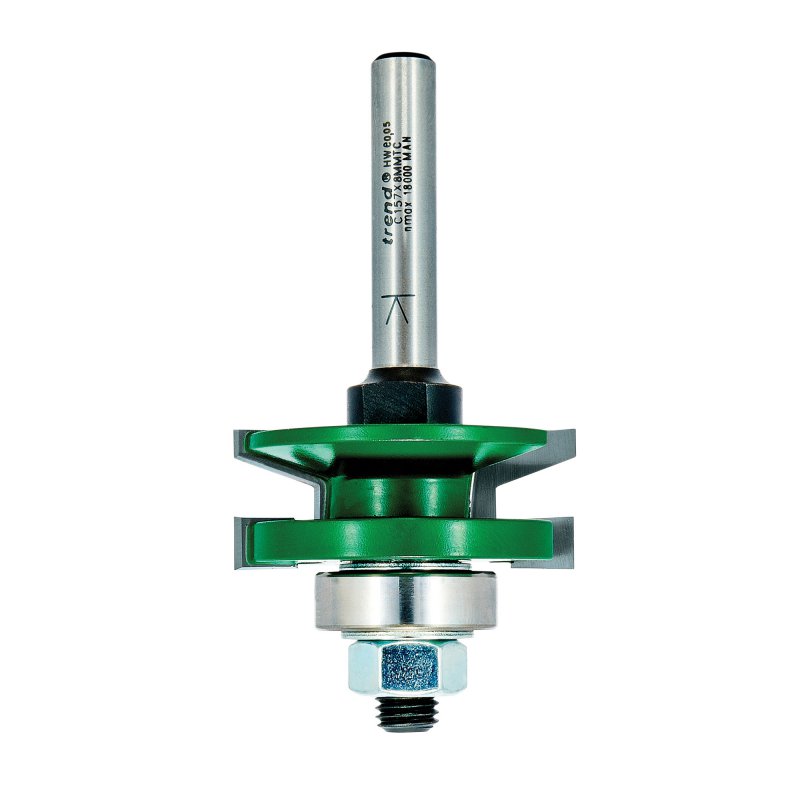

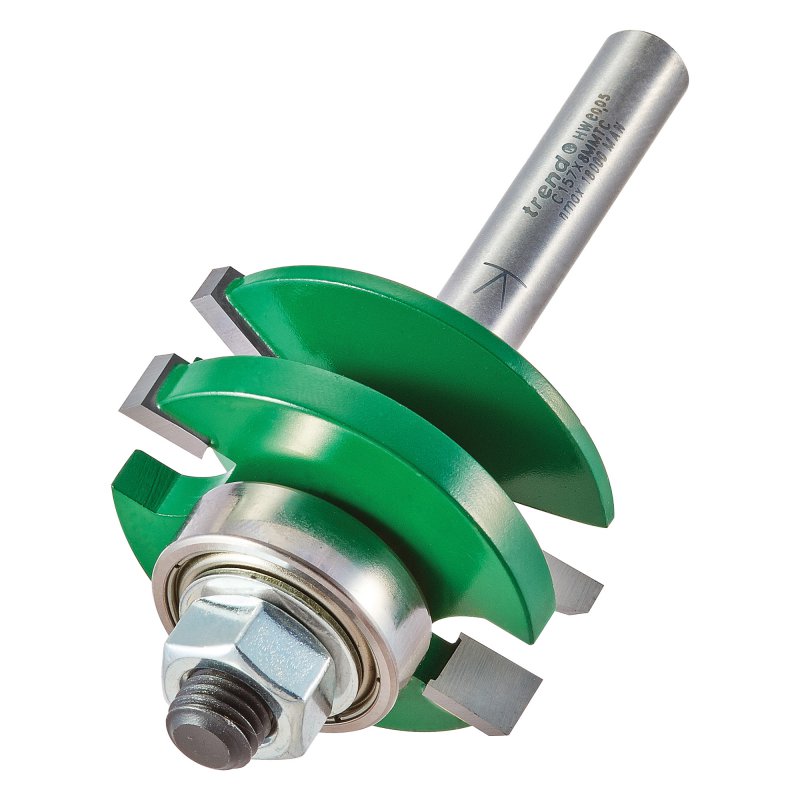

TREND C157X8MMTC
GUIDED COMBINATION BEVEL PROFILE SCRIBER 10 DEG



Key Features

  • The classic method of producing cabinet panelled door and drawer fronts is made easy with these Profile Scriber sets.
  • With the combination type, components are re-arranged on the arbor to cut the profile or the scribe.
    Cuts both parts of the joint by only changing the cutter height.
  • No reassembly of the tool is required so saving time.
    Router table use only. 1/4 inch and 8mm shanks should only be used with a medium or heavy duty router.
  • For certain routers the aperture in the base may need to be enlarged.
  • A workholding device should be used when cutting the scribe cut on the rail ends.
  • The cutting edges should be staggered to each other.
  • When using Easyset cutters take several passes.



Specification

  • Shank Diameter: 8 mm
  • Cutter Diameter Metric (D): 41 mm
  • Cut Length Metric (C): 17 mm
  • Metric (C2): 6.35 mm
  • Bearing Diameter Metric (B): 22 mm
  • Angle (A): 10 degrees
  • Overall Length Metric: 81 mm
  • Timber thickness min: 18 mm
  • Timber thickness max: 22 mm
  • Grade: TCT - Tungsten Carbide Tipped



Trend Craft Pro C149, C156, C157 Instructions
