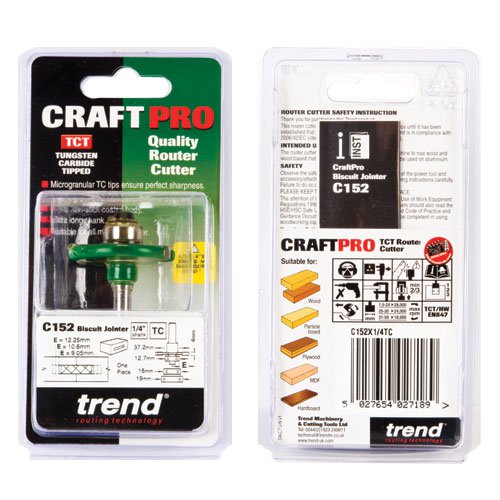

Trend C152X1/4TC CraftPro Guided Biscuit Jointer Router Cutter Set - 1/4 Shank

TREND C152X1/2TC
CRAFT PRO ROUTER CUTTER
GUIDED BISCUIT JOINTER SET 37.2MM DIA

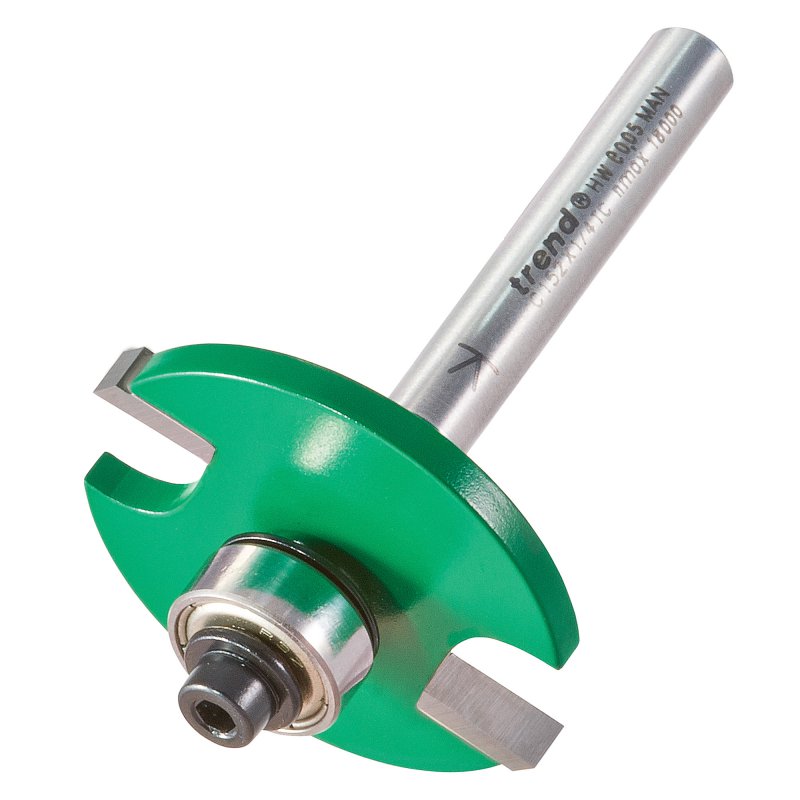

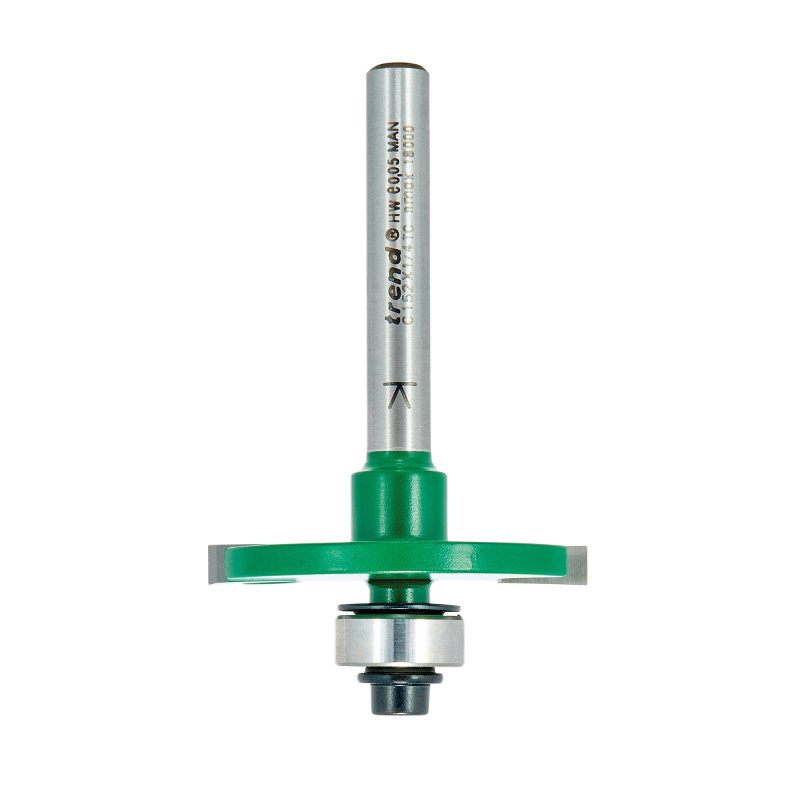

• This two wing self-guiding Tungsten Carbide Tipped slotting cutter is ideal for biscuit jointing.
• The set is supplied with three ball bearing guides to suit the three sizes of biscuits available.
• A slightly longer cut than the length of the biscuit is required for ease of alignment during assembly.


• Shank Diameter: 1/4 inch
• Cutter Diameter Metric (D): 37.2 mm
• Cut Length Metric (C): 4 mm
• Bearing Diameter Metric (B): 12.7 mm
• Metric (B2): 16 mm
• Metric (B3): 19 mm
• Overall Length Metric: 63.5 mm
• Groove Depths: 9.05 mm, 10.6 mm, 12.25 mm
• For Biscuit sizes: No. 0, 10 & 20
• Grade: TCT - Tungsten Carbide Tipped

Trend Craft Pro C152 Biscuit Jointer Cutter Instructions
