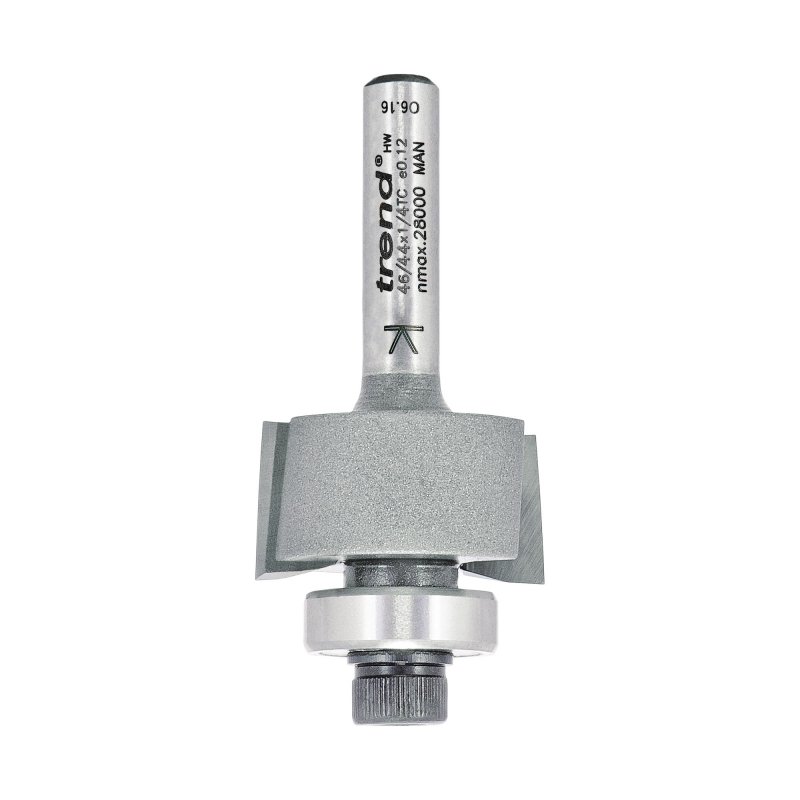

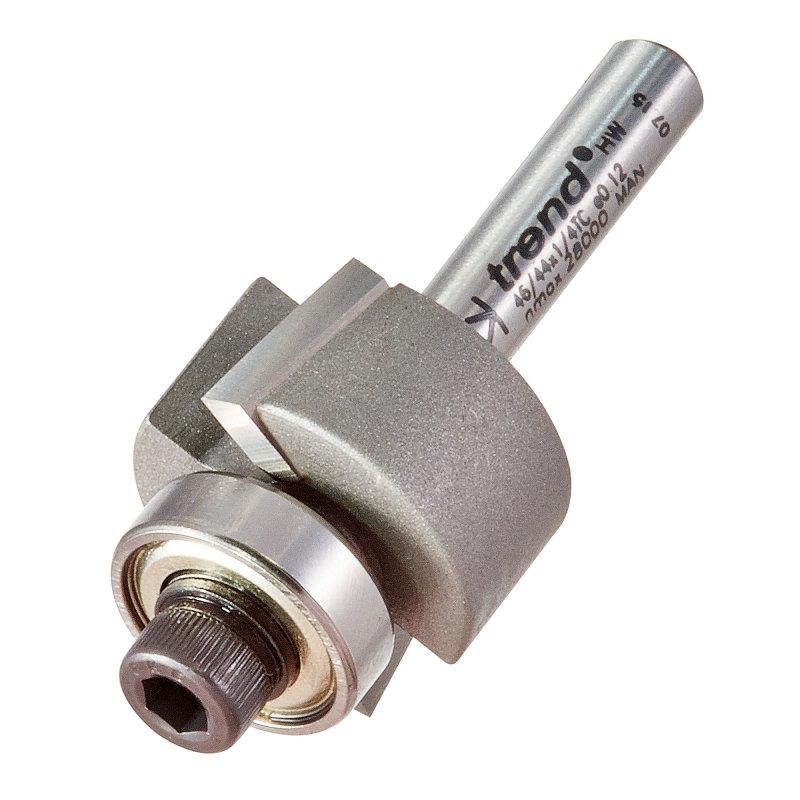

Trend 46/44x1/4TC Pro Guided Rebate Router Cutter 24mm dia x 12.7mm cut x 1/4 shank

Trend Professional Rebater Router Cutter
46/44x1/4TC - Bearing Guided Rebate Router Cutter
24mm Diameter x 12.7mm Cut

• Popular rebate sets which include different size bearings for a choice of rebates
• Ease of setting-up and accurate depth of cut
• Ideal for rebating straight and shaped work pieces
• Ref. 46/39L has a 60mm shank length to give access to deep rebates
• Ref. 46/44 is ideal with delicate applications such as musical instrument production, when a small rebate is required for insertion of purfling
• When using bearing Ref. B95A, make two passes when a full depth of cut is required by using a larger bearing first

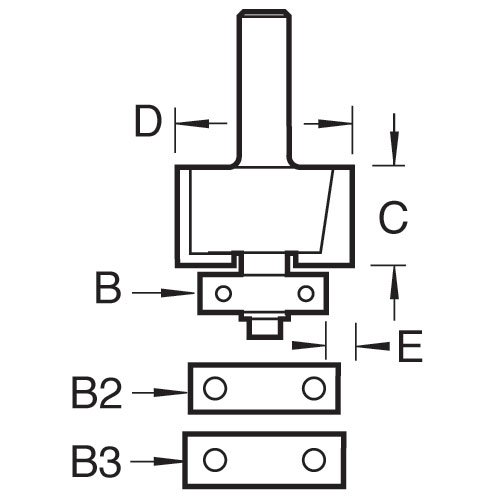

• D: 24 mm (metric diameter)
• C: 12.7 mm (cut length)
• B: 16 mm
• B2: 19 mm
• B3: 22 mm (metric bearing diameter)
• OL: 53 mm (overall length)
• Shank Diameter: 1/4 inch
• B22: 1.0 mm
• B19: 2.5 mm
• B16: 4 mm
