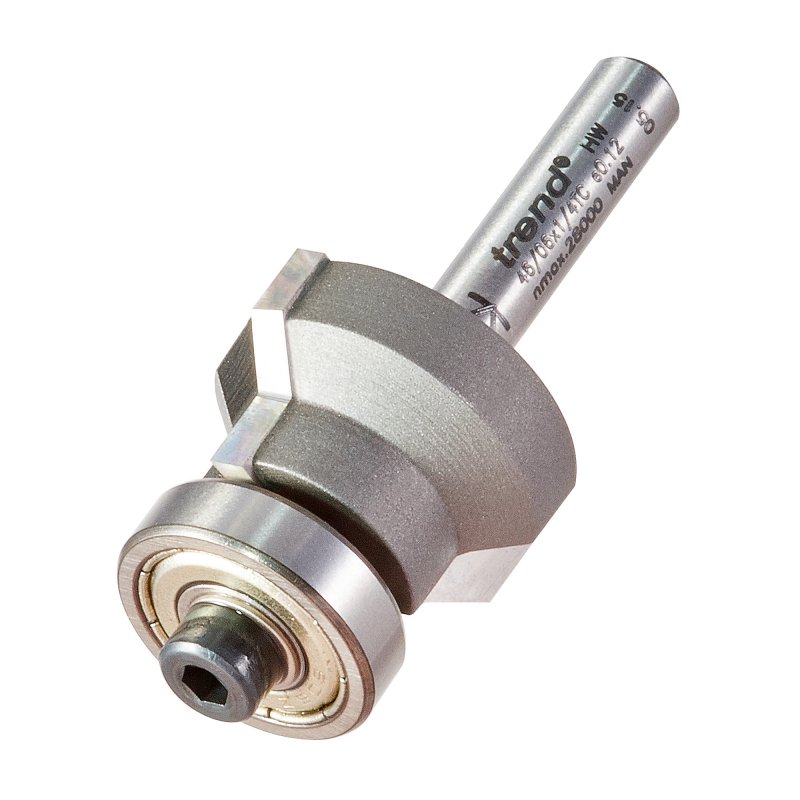

Trend 46/06x1/4TC Pro Guided Combi Trimmer Router Cutter 45/90 deg x 24mm dia x 1/4 shank

Trend Professional Bevel Laminate Trimmers
24mm Diameter x 6mm Cut x 1/4" Shank

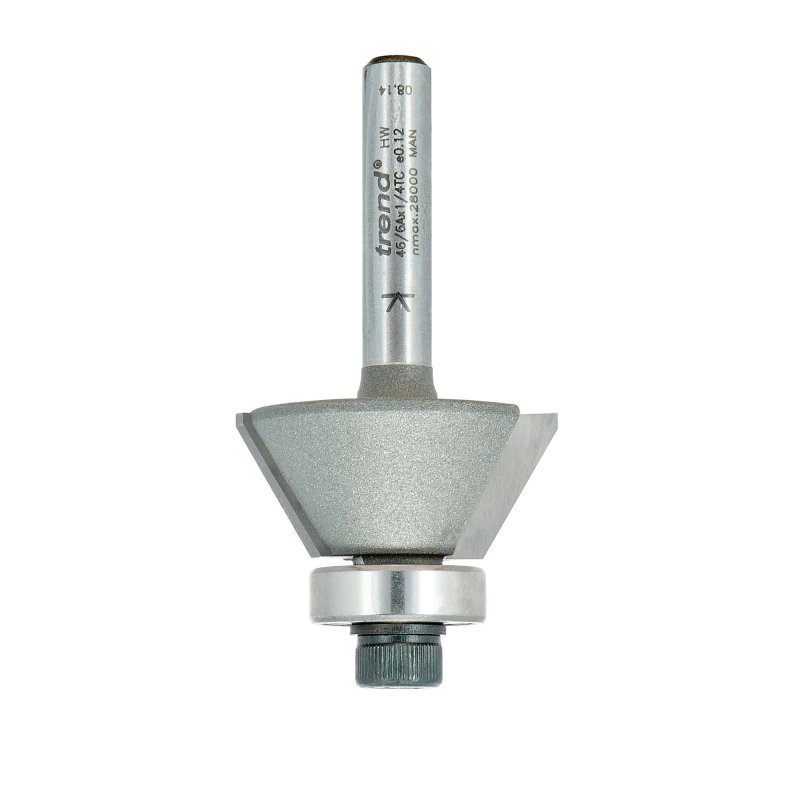

46/6AX1/4TC - Combi Trimmer

• A self-guided combination trimmer
• A 90 degree trim is obtained by engaging the bottom half
• A 45 degree trim is obtained by lowering the cutter
• A fine height adjuster is recommended when using this cutter
• A larger 20mm bearing will spread the wear of the cutting when 45 degree trimming

• D: 24 mm (metric diameter)
• C: 6 mm (metric cut length)
• C2: 5 mm (metric cut length)
• C3: 6 mm (metric cut length)
• B: Fradtionally larger than cutter diameter (bearing diameter)
• A: 90 degrees (angle)
• A2: 45 degrees (angle)
• OL: 55 mm (overall length)
• Shank Diameter: 1/4 inch
