TREND ZIP/25/158/3 - ZIPBOLT Slimline Worktop Connector Kit (16-25mm)

TREND ZIP/25/158/3 - ZIPBOLT Slimline Worktop Connector Kit (16-25mm)

• Engineered by kitchen installers, for kitchen installers. With a unique patented design for easy worktop joining and over four times faster than conventional bolts to fit. Available in sizes to suit all types and thicknesses of worktop.
• Zinc-Plated Steel Construction for long lasting strength and rust protection.
• Robust Geared Head Mechanism is driven by a 4mm Hex bit and tightens in seconds with one hand and a drill/driver.
• Standard and Slimline ZIPBOLT kits also include 3 x ZIPCLIPS to speed up and further simplify installation.
• ZIPCLIPS hold the bolt securely in the routed recess, preventing it from falling out before it is tightened.
• Flexible Wings grip to hold the ZIPBOLT firmly in place.
• Robust Geared Head Mechanism is driven by a 5mm or 6mm Hex bit or by a T25mm Torx bit (depending on which ZipBolt is being used) and tightens in seconds with one hand and a drill/driver.
• Zinc-Plated Steel Construction for long-lasting strength and rust. ZIP/35/164/3 has a Heat-Treated End plate to handle high torque levels.

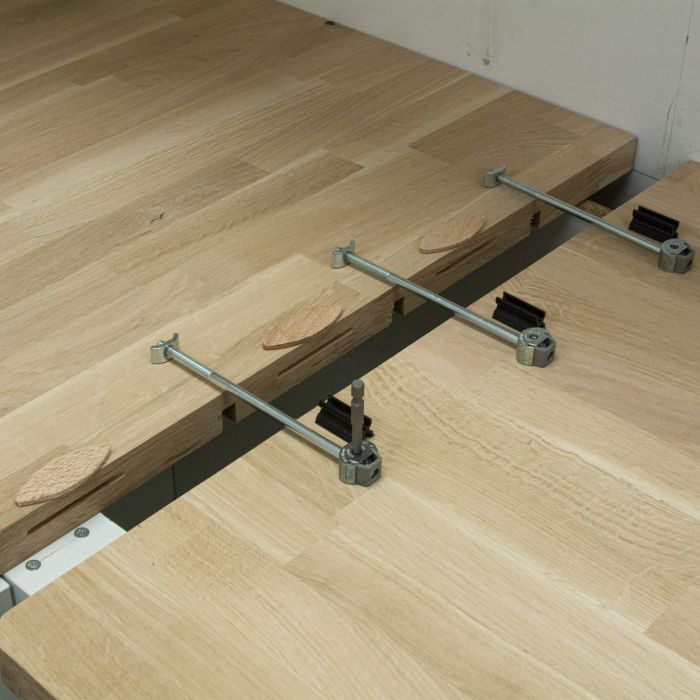

• 3 Beechwood Biscuits are included to enhance the alignment, strength and finish of the joint.

• Quick and easy installation method for all kitchen worktops, producing strong, stable and invisible joints.

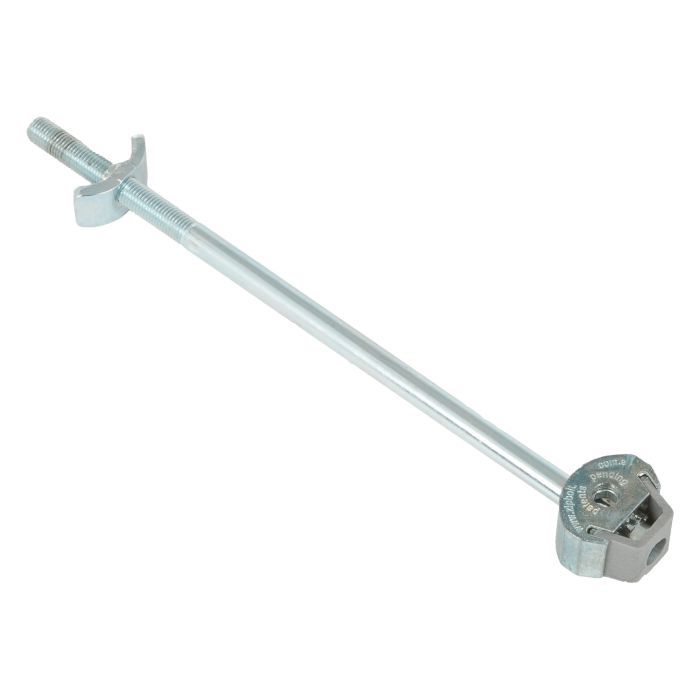

• Bolt Length=158 mm
• Shank Diameter=6 mm
• Geared Head Diameter=25 mm
• Guide Bush Required=30 mm
• Cutter Diameter Required=8 mm
• Min Cut Depth=12.5 mm
• Supplied Driver Bit=4 mm Hex
• Supplied Trend No.20 Biscuits=3
• Supplied ZIPCLIPS=3
• For Worktop Thicknesses=16-25 mm
• Suitable for Laminated Chipboard
• Suitable for Solid Wood

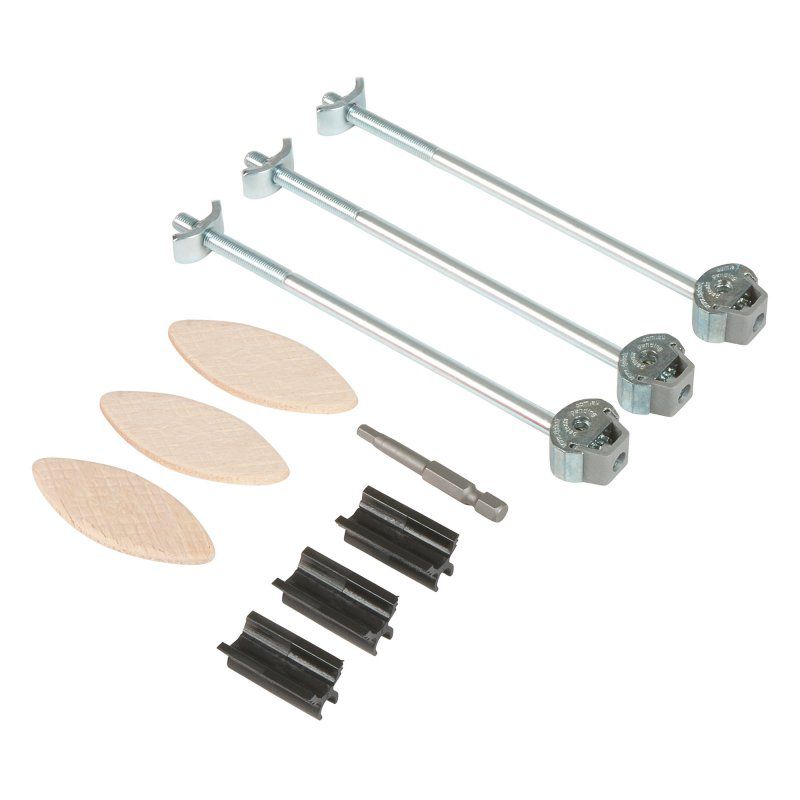

• 3 x Trend Standard ZipBolts
• 3 x ZipClips
• 3 x Trend No. 20 Biscuits
• 1 x 5mm Hex Bit

Additonal Parts Required: 1 x 12.7mm C153X1/2TC Router Cutter
