TREND VJS/TG/JIG VJS TRENCHING/GROOVING JIG
Product Code: TREVJS/TG/JIG
Brand: Trend
In Offsite Stock - Delivery in 4 to 5 Days
£168.48 Inc. VAT
£140.40 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Please call to check stock availability for larger quantities
Trend Routing Workshop Jigs
Varijig Tenon & Grooving Jig
Ref: VJS/TG/JIG
Key Features

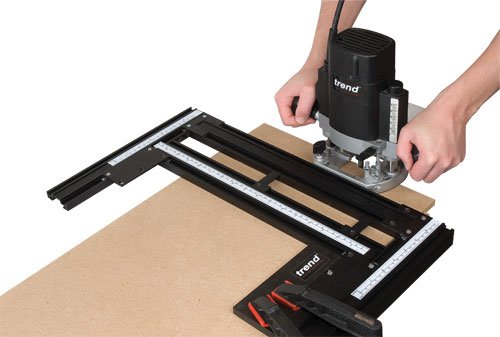

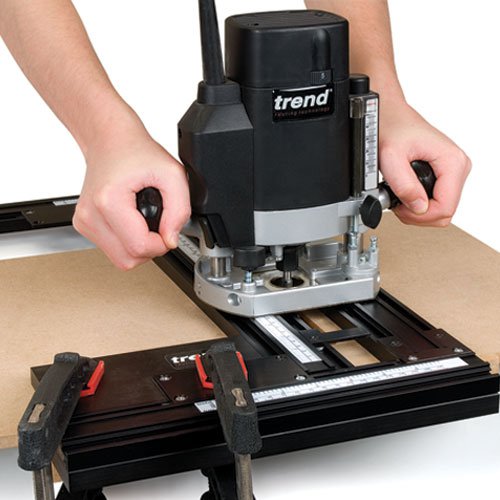

- Allows grooves and tenons to be cut using a router

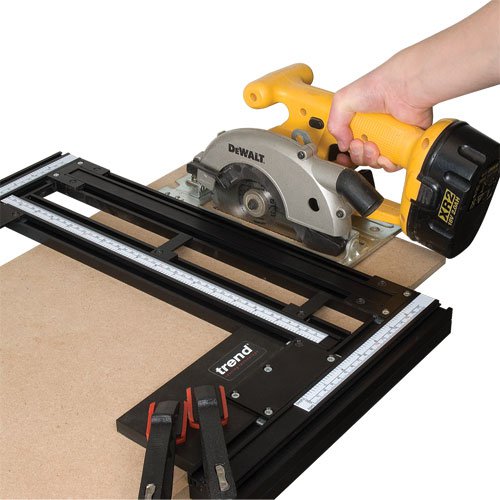

- Can be used to crosscut boards with a router or circular saw
- Frame is adjustable to allow narrower or wider grooves to be routed
- The max. adjustment is 70mm depending on the diameter of the router base

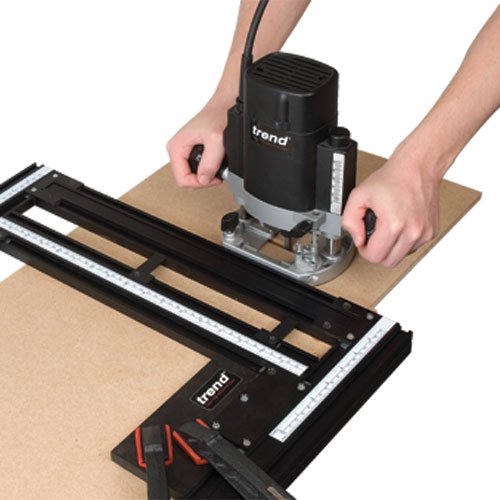

- The edge of the frame can be used as a guide to trim a panel square using a router
- Two sliding stops to set groove length
- Squaring butt has the facility to accept a spelch block to allow a full-length groove
- Fixing screws are included for this purpose. Working length is 400mm
- Can be used with any plunge router fitted with a guide bush of minimum 8mm projetction
- Router not included
Items included
- 4 x Alloy extrusions
- 4 x Corner brackets
- 3 x Scales
- 1 x Squaring butt
- 2 x Length stops

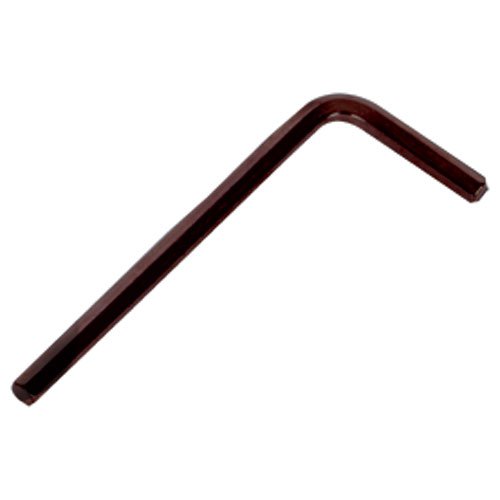

- 1 x Hex key
Specification
- Working length based on 30 mm guide bush and 12 mm diameter cutter being used:-
- Max. without end stops used: 412 mm
- Max. with one end stop used: 397 mm
- Max. with two end stops used: 382 mm
- Max. working width using end stops* (12mm dia. cutter): 18 mm
- Max. width adjustment depending on router base diameter: 70 mm
Optional Accessories & Replacement Parts:
Description
|
Product Reference |

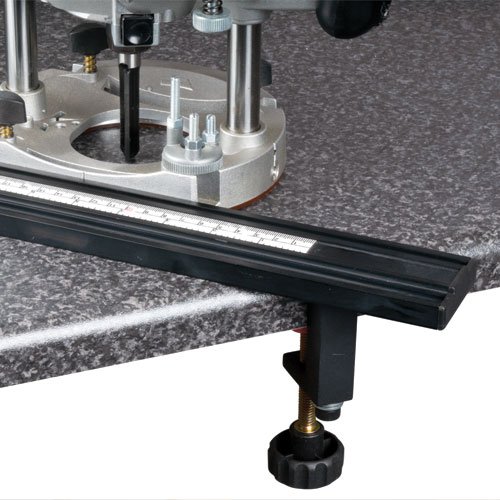

Sliding friction clamp kits (fit to extrusions) |
|
1. Max. 32.0mm thickness (pair) |
VJS/CK |
2. Max. 51.0mm thickness (pair) |
VJS/CK/L |
3. Long pivot clamp kit - Sliding friction clamp head pivots to allow guide to be set at an angle. Max. 51mm thickness (pair) |
VJS/PCK/L |

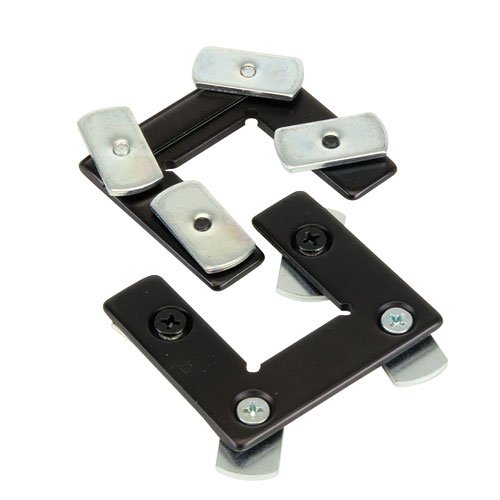

4. Frame joining kit - set of four corner jointing brackets. |
VJS/FJK |
5. Additional extrusions - Extrusions that can be used on the Varijig System |
|
310mm |
WP-VJS/07A |
430mm |
WP-VJS/07B |
700mm |
WP-VJS/07 |
1070mm |
WP-VJS/07C |
6. Connecting block kit - Jointing block for extrusions. Can be used to join Varijig extrusions together. |
VJS/G/CB |
