TREND VJS/CG/50 VARIJIG CLAMP GUIDE 50 INCH

Trend Clamping Systems

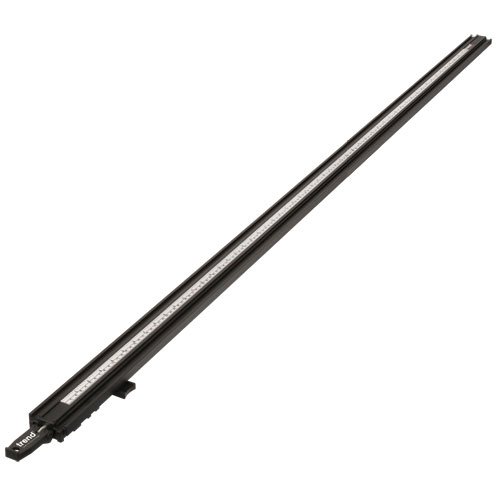

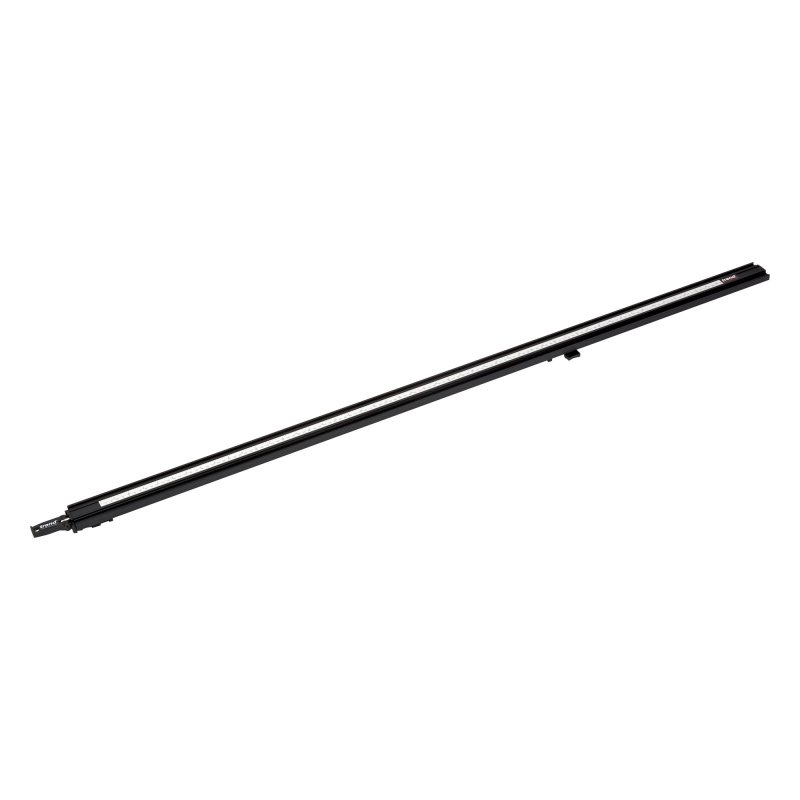

Varijig clamp guide 50 inch
Ref: VJS/CG/50

• For accurate guiding of router, saws and jigsaws.
• Integral clamping jaws and a locking lever provide a quick way of clamping the guide batten.
• Ideal for holding and clamping work pieces.
• Aluminium extrusion incorporating T-slots.
• The clamps are fitted with a metric/imperial scale for setting lengths and stop positions. Scale can be positioned by removing 20mm of the self adhesive backing.
• Three lengths of clamp available 24 inch, 36 inch and 50 inch.
• Router not included.
• Patent No. US7,007,731.

• Max clamp length: 50 inches (1270 mm)
• Min clamp length: 1/2 inch (12.7 mm)
• Extrusion width: 54 mm
• Extrusion height: 15.8 mm
• Overall length: 1495 mm
• Length fixed jaw to end of handle: 125 mm
• Length max position of sliding jaw to clamp end: 98 mm
• Sliding jaw finger wing width: 73 mm
