TREND TEMP/BH/A TEMPLATE BUTT HINGE 75/100MM

X
Product Code: TRETEMP/BH/A
Brand: Trend
In Stock
£75.10 Inc. VAT
£62.59 Exc. VAT
✓ COLLECTION
✓ DELIVERY
Qty
Trend



Trend Routing On-Site Jigs

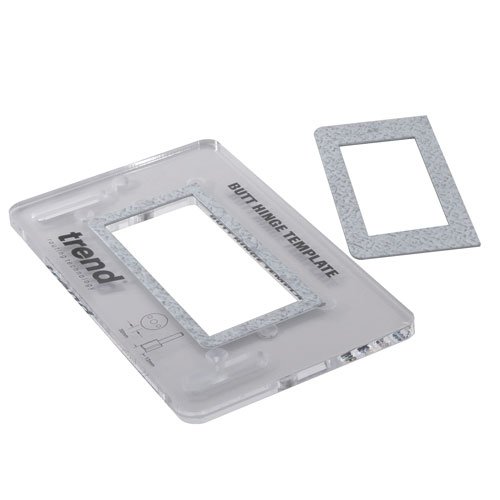

Template Butt Hinge
Ref: TEMP/BH/A



Key Features

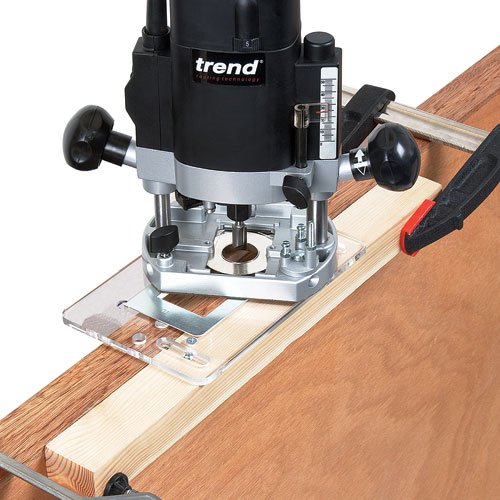

  • A routing template that allows a router to create a hinge recess on a door
  • Made from clear 8mm thick plastic
  • Includes metal templates for 75mm and 100mm butt hinges
  • Magnets in template frame to hold templates
  • Cuts rounded corners which can be removed with a corner chisel or chisel
  • Use on doors from 35mm to 44mm thick
  • Requires 12mm diameter cutter and 30mm guide bush
  • A user made batten 44mm x 34mm x 450mm is also needed
  • Design Reg. No. 00132246-001



Items included

  • 1 x 75mm hinge template
  • 1 x 100mm hinge template



Specification

  • Size: 214 mm x 135 mm x 8 mm
  • Door thickness min: 34 mm
  • Door thickness max: 44 mm
  • Hinge recess length: 75 mm
  • Hinge recess length: 100 mm
