TREND R/COMPASS/A ROUTER COMPASS 610MM

Trend Routing Workshop Jigs
Router Compass 610mm
Ref: R/COMPASS/A

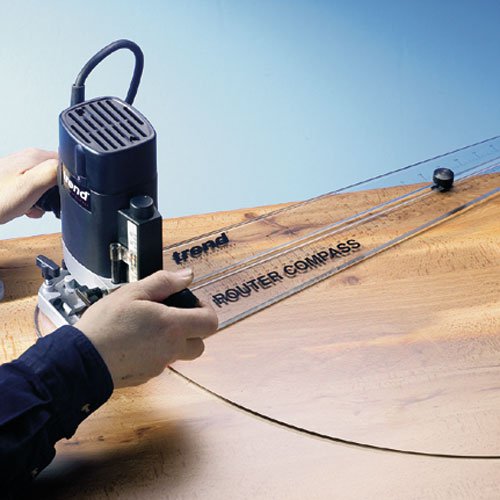

• This router compass is used for cutting circles & arcs from 100mm up to 610mm radius
• Made of clear plastic
• Printed graduated scale for precise radius setting
• Fits to the base of a router
• Router not included
• Plate has a 30mm hole to allow a 30mm guide bush to locate
• Suitable for the following routers directly when using fixing screws
• Trend T4, T5, T10, T11
• Dewalt DW613, 614, 615, 620, 621, 624, 625, 626
• Draper PT1200V
• Elu MOF 96, 131, 177E
• Makita RP0910, 1110C
• Performance Pro CLM1250R, 2050R, 127R

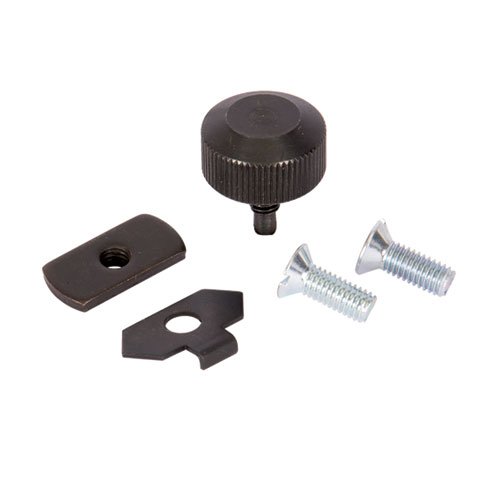

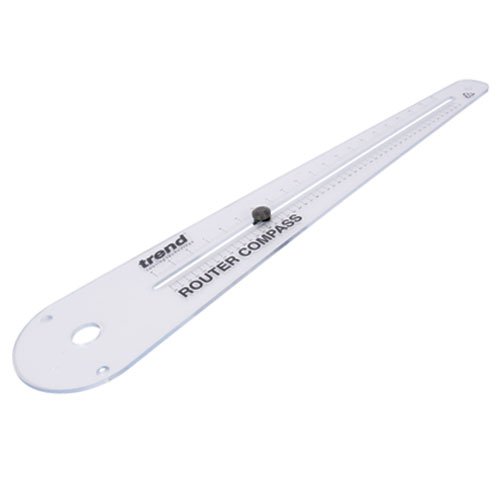

• 1 x Main Plate

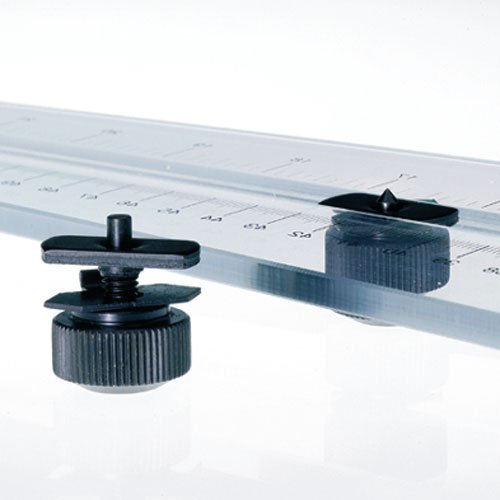

• 1 x 'V' Pivot Point
• 1 x 4mm Pivot Point
• 2 x Fixing screws

• Radius min: 100 mm
• Radius max: 610 mm
• Guide bush hole: 30.1 mm
