TREND MFT/JIG MULTI FUNCTIONAL TABLE TOP JIG

X
Product Code: TRE/MFT/JIG
Brand: Trend
In Stock
£119.51 Inc. VAT
£99.59 Exc. VAT
✓ COLLECTION
✓ DELIVERY
Qty
Trend

Trend Routing Workshop Jigs

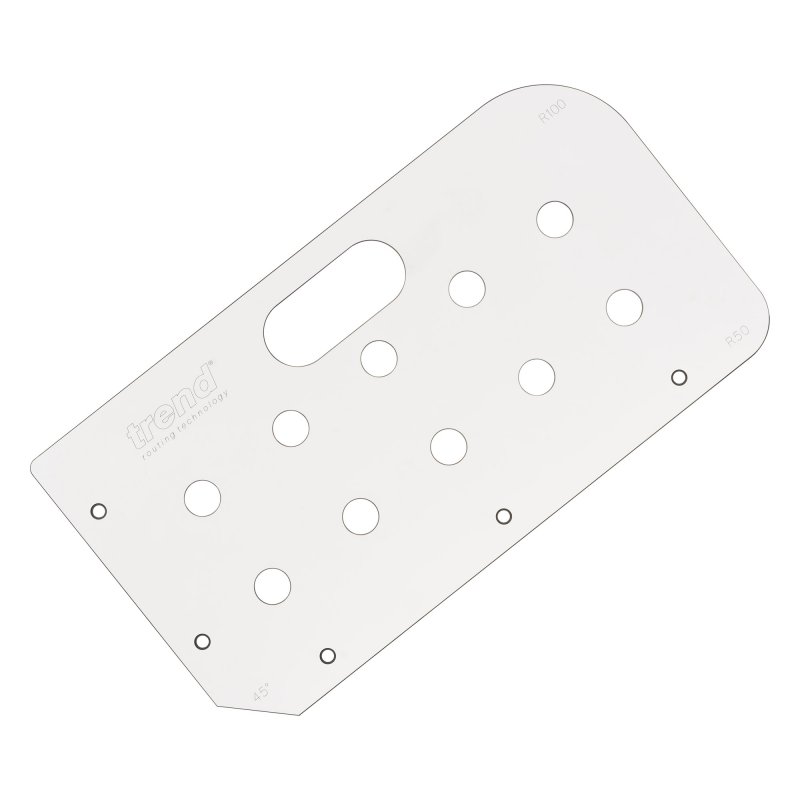

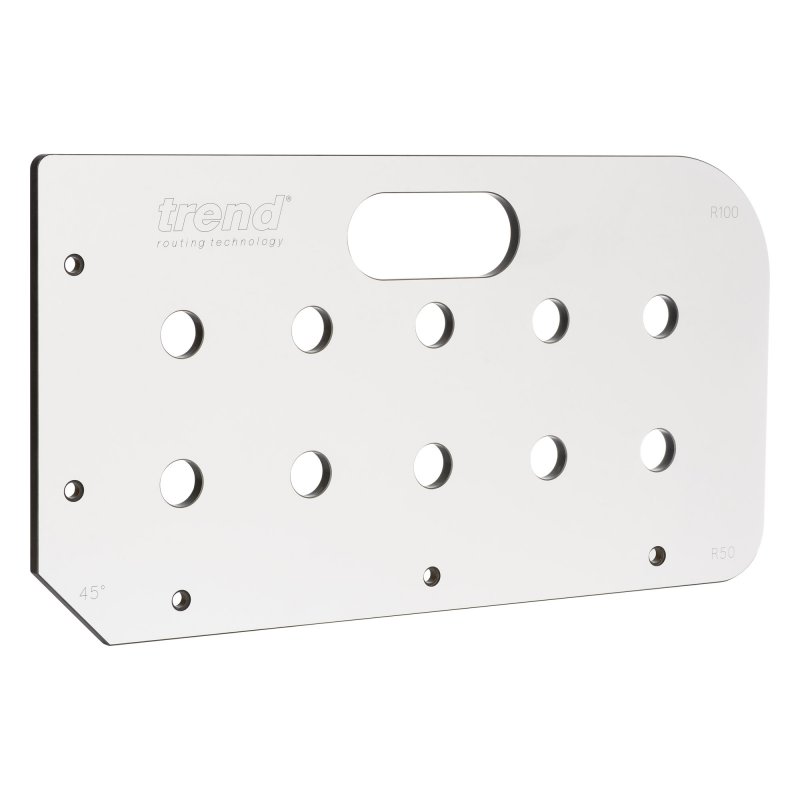

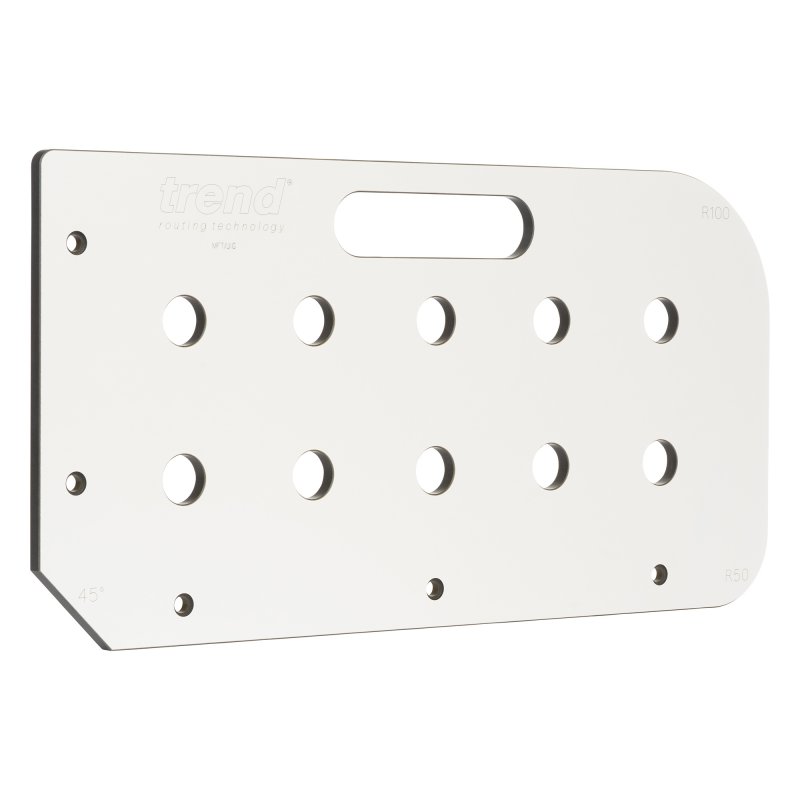

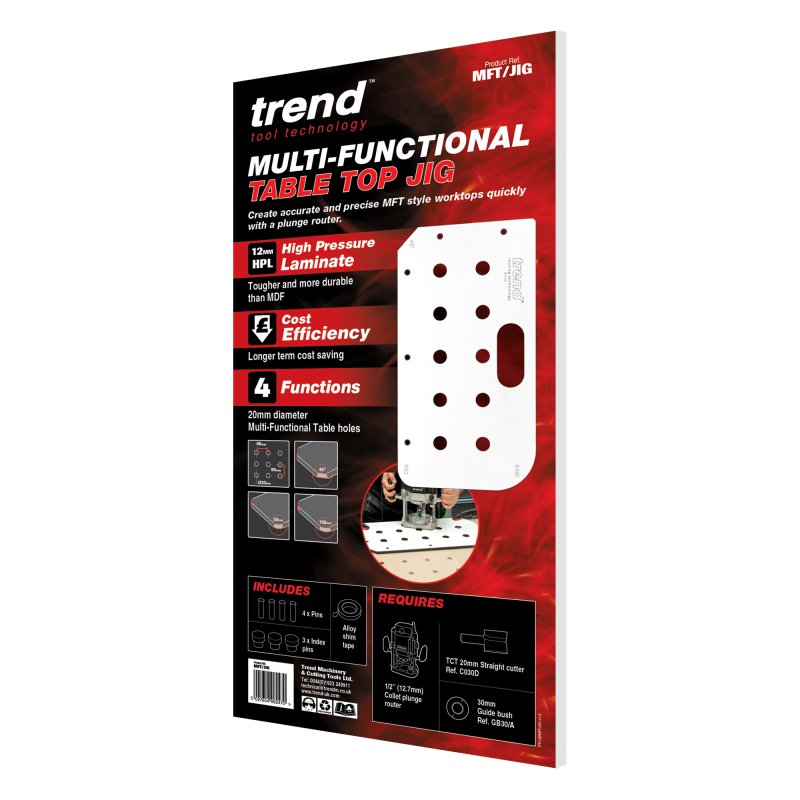

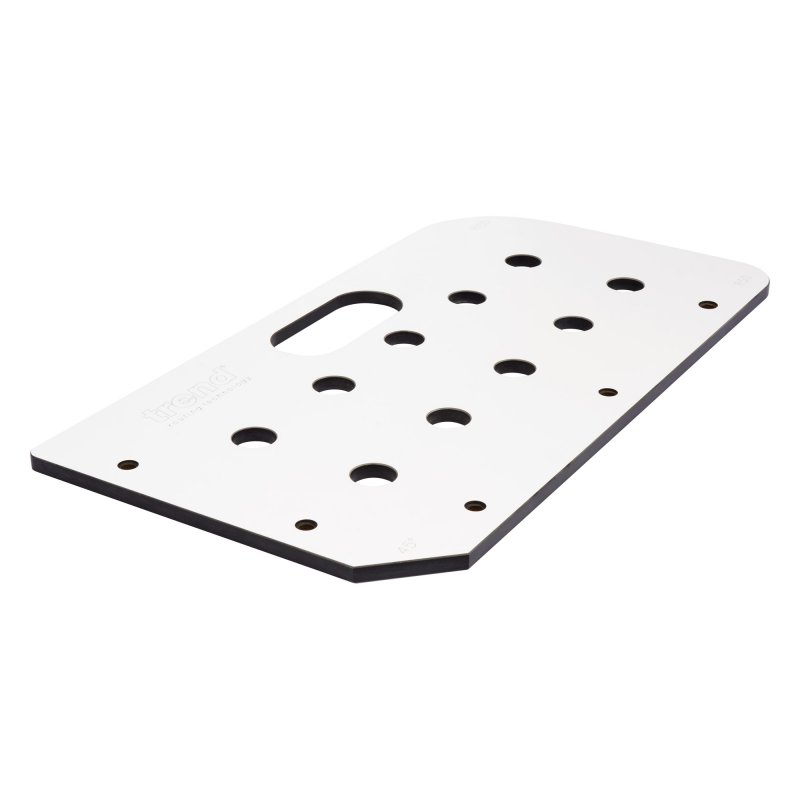

Multi Functional Table Routing Jig
Ref: MFT/JIG



Key Features

  • Multi-functional table top making jig.

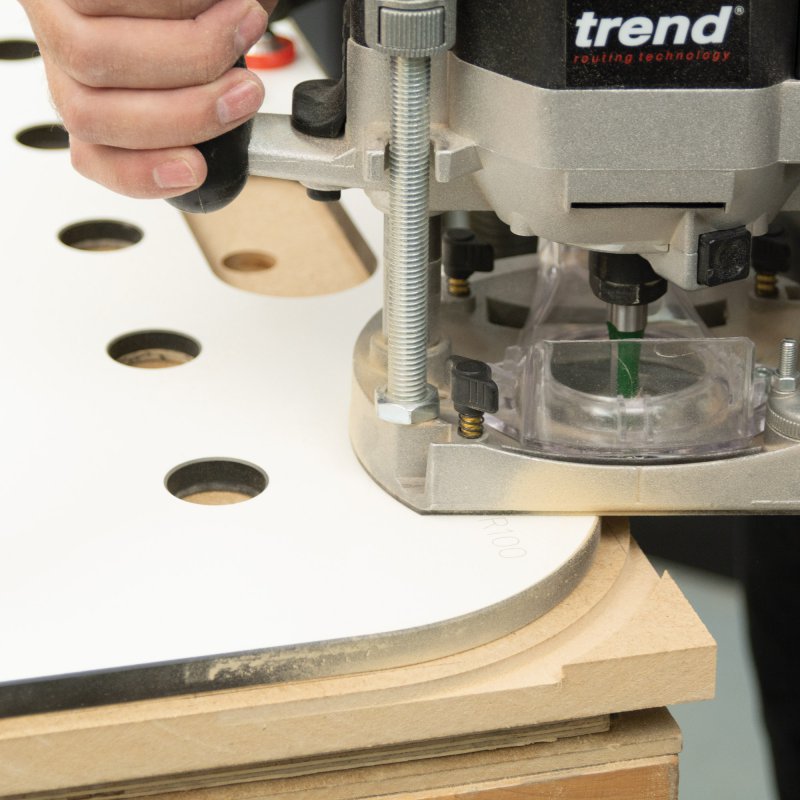

  • Create accurate precise MFT style worktops quickly with a plunge router.
  • For router drilling 20mm holes at 96mm centres.
  • Made from Compact Grade High Pressure Laminate 12mm thick.
  • Two corner radii and 45 degree end cut.

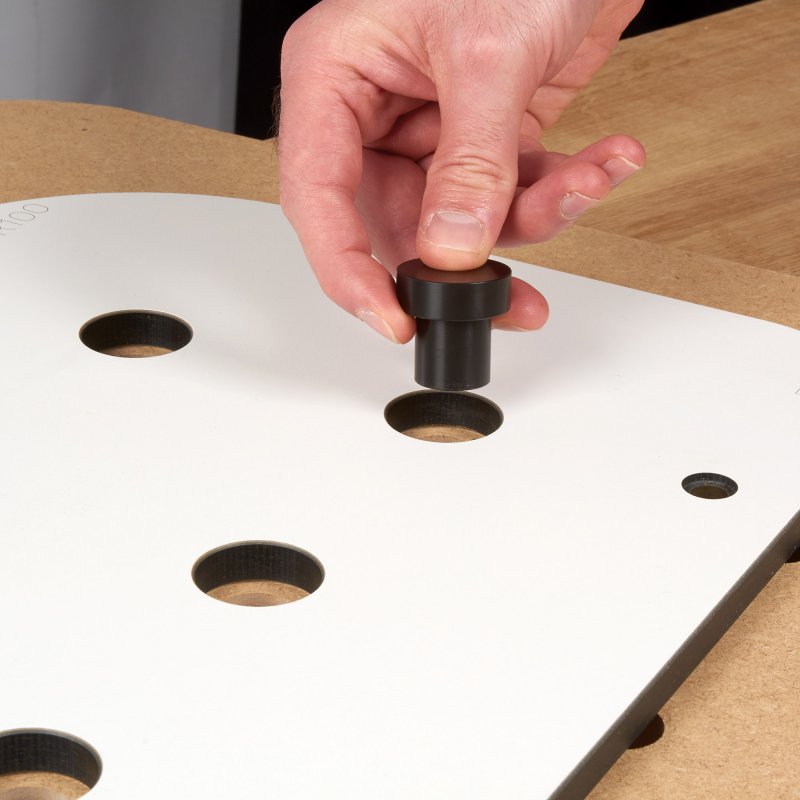

  • Edge guides for initial rows, index pins for indexing for subsequent holes.
  • Recess aperture facility for desk tidy.



  • Jig requires:
  • A portable plunge router with 12.7mm (1/2 inch) shank capacity and minimum 1300 watts.
  • A template guide bush with 30mm outside diameter ref. GB30/A.
  • A long series TCT plunge cut router cutter with 20mm diameter and 37mm cut length.
  • Two clamps.



Items included

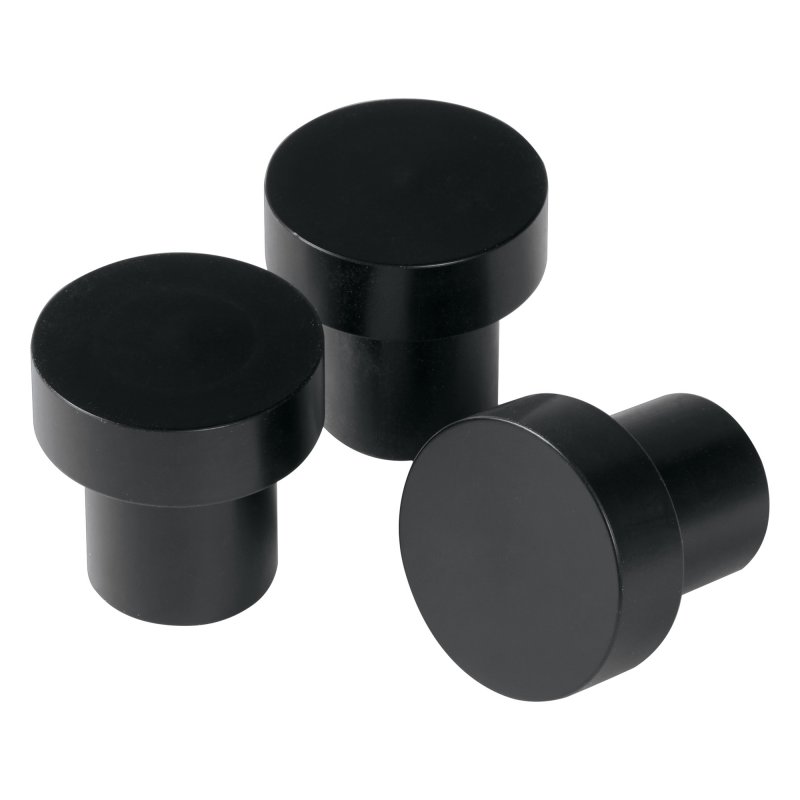

  • 3 x Index pins
  • 4 x Line up pins
  • 1 x Foil tape 200mm x 50mm



Specification

  • Hole centres: 96 mm
  • Radii: 50 mm & 100 mm
  • End cut: 45 degrees
  • Size: 298mm x 586mm
  • Weight: 3 Kg
  • Guide bush: 30 mm
  • Plunge router: 1/2-inch
  • Cutter: 20mm x 37mm cut with plunge cut
  • Clamps:Two

PLEASE NOTE​: When using a jig there will be a cumulative error that cannot be avoided when indexing the jig on existing holes
