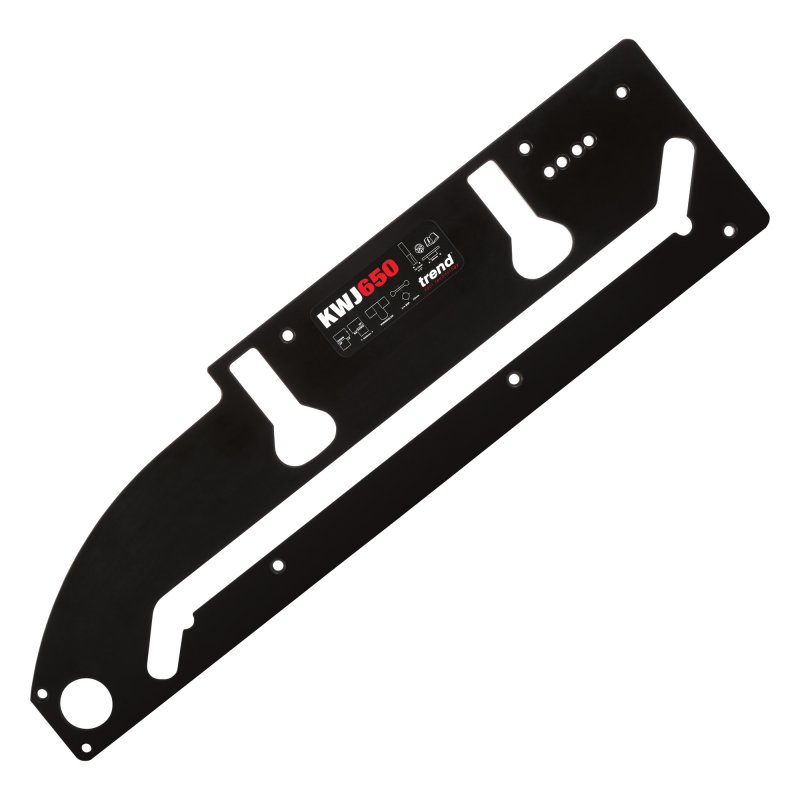

TREND KWJ650 KITCHEN WORKTOP JIG 650MM

X
Product Code: TRE/KWJ650
Brand: Trend
In Offsite Stock - Delivery in 4 to 5 Days
£104.61 Inc. VAT
£87.18 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Please call to check stock availability for larger quantities
Qty
Trend



Trend Routing On-Site Jigs
Kitchen Worktop Jig 650mm
Ref: KWJ650



Key Features

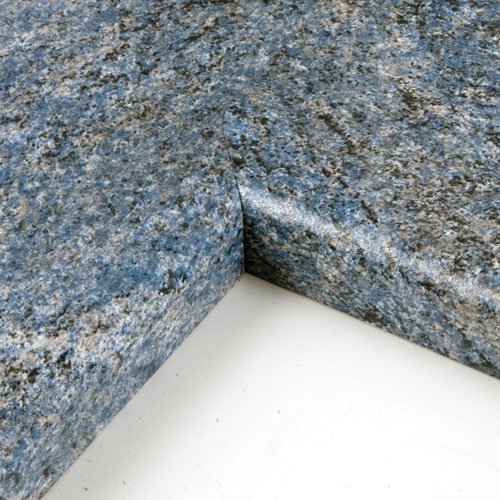

Tradesman work top jig for up to 650mm worktops

  • Hard wearing CNC machined Compact Grade High Pressure Laminate 12mm thick jig that cuts both parts of the joint in 15 minutes including setting up

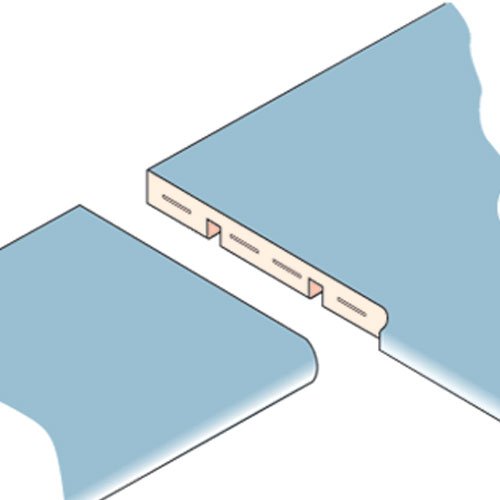

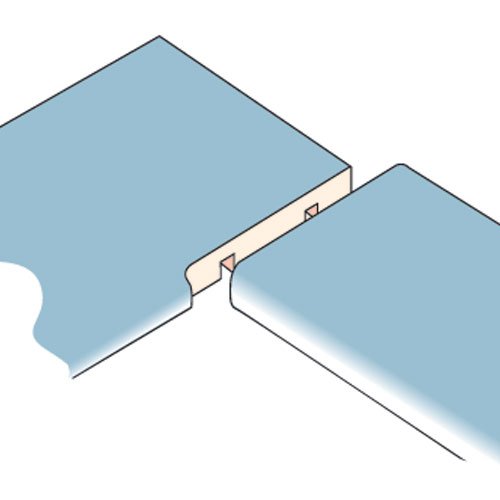

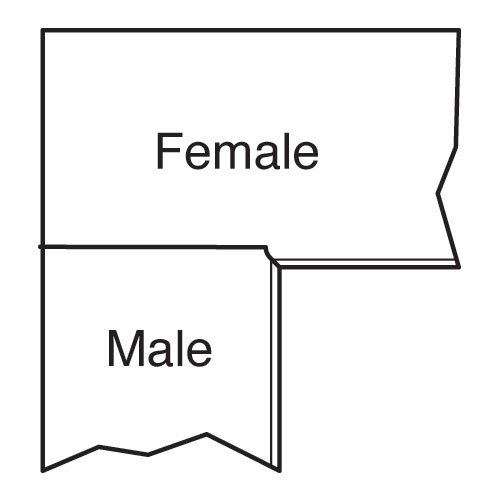

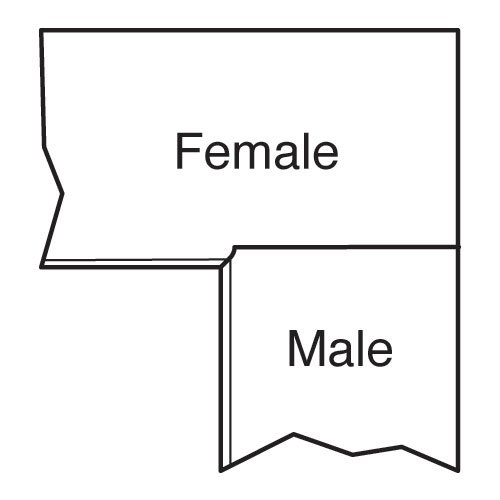

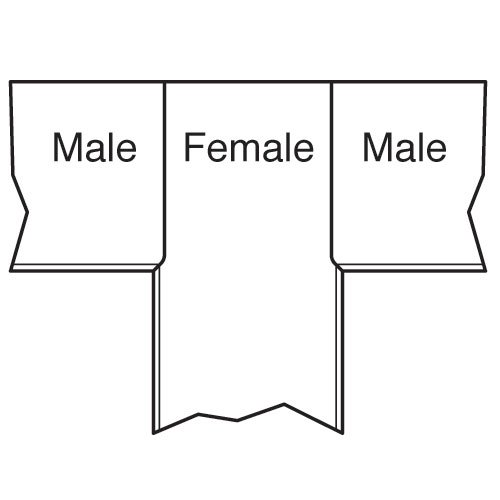

  • Left hand and right hand corners, 400mm radius peninsular joint, 35mm kitchen door hole
  • Fixed lengths for 600mm, 616mm, 635mm and 650mm wide worktops
  • Cuts up to 40mm thick worktops with or without anti-drip postformed edge

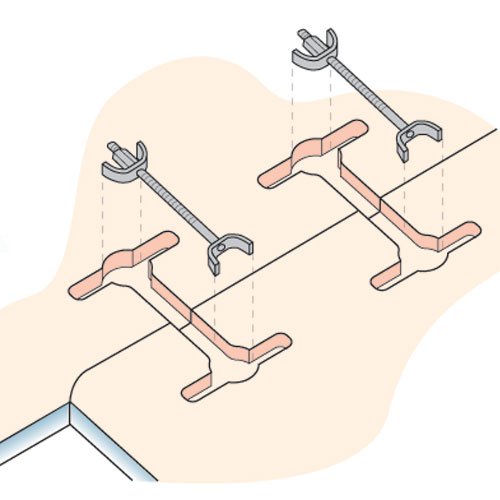

  • Two open ended bolt recesses (dog bone style) for 150mm bolts
  • 10mm diameter plastic pins with tapered shoulder for tight fit provides three point pin contact to ensure ease of setting up
  • Pins made from ABS plastic for strength
  • Jig requires:

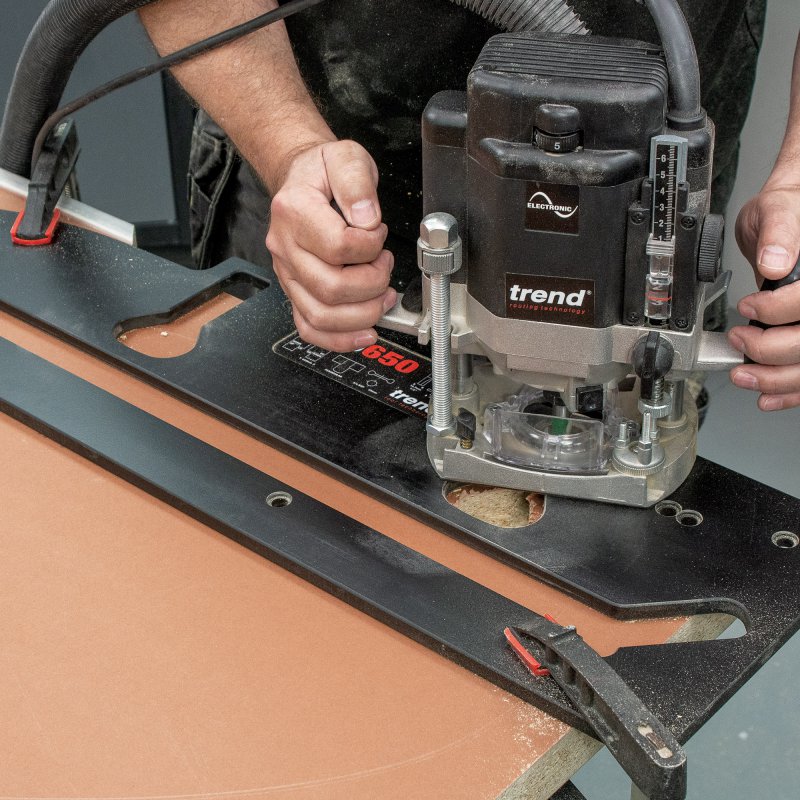

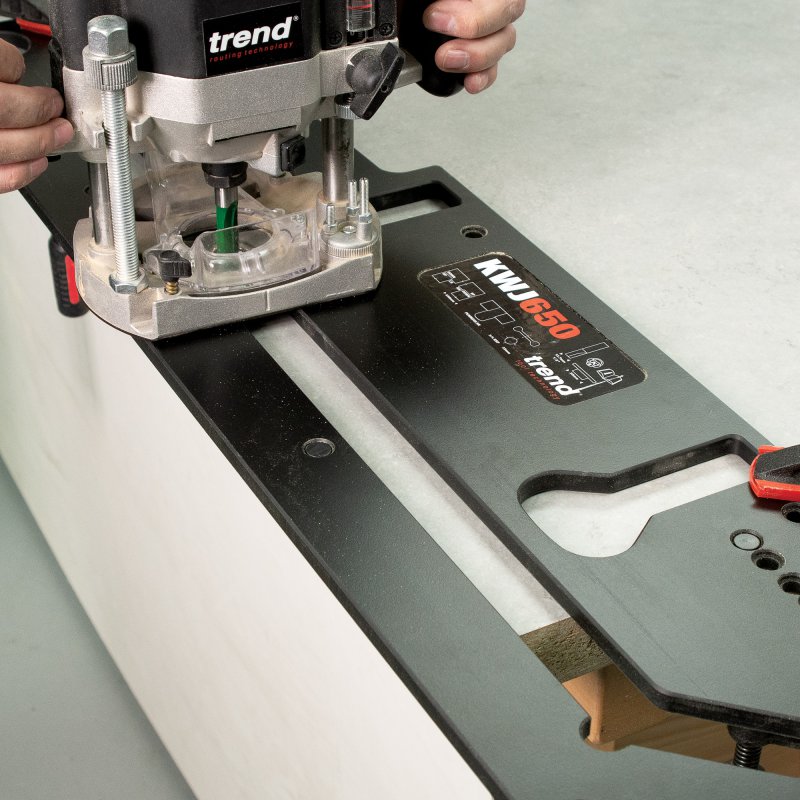

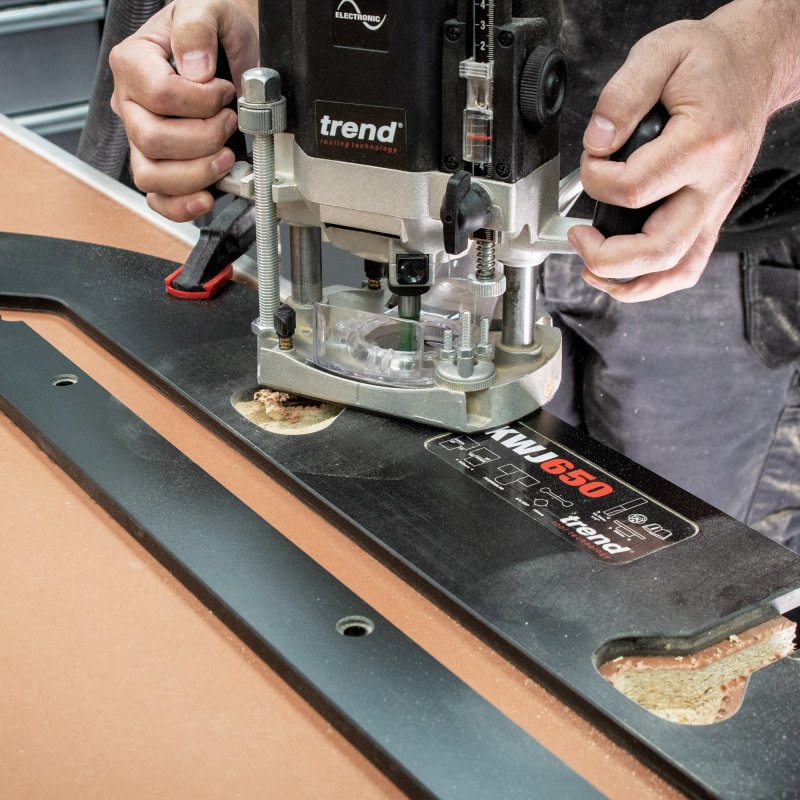

  • A portable plunge router with 12.7mm (1/2 inch) shank capacity and minimum 1300 watts
  • A template guide bush with 30mm outside diameter ref. GB30
  • A TCT router cutter with 12.7mm (1/2 inch) diameter and 50mm (2 inch) cut length
  • Two clamps



Items included

  • 4 x Pins



Specification

  • Length: 880 mm
  • Width: 233 mm
  • Thickness: 12 mm
  • Weight: 3.3kg
  • Female cut material width loss (inset): 33 mm
  • Curved Peninsular Radius: 400mm
  • Bolt recesses: 2
  • Guide bush: 30 mm
  • Plunge router: 1/2-inch (min. 1300 watts)
  • Cutter: 12.7 mm x 50 mm cut
  • Clamps: Two
