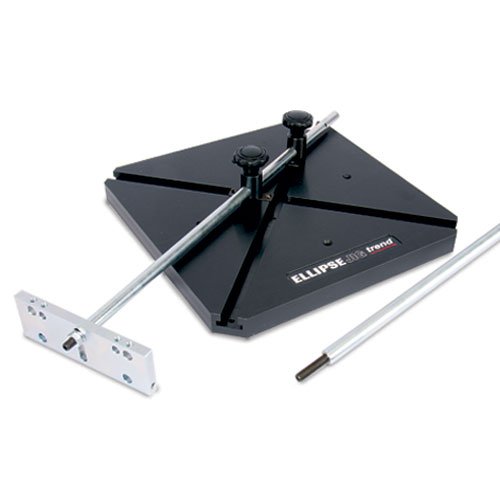

TREND ELLIPSEJ/A ELLIPSEJIG TYPE A

X
Product Code: TREELLIPSEJ/A
Brand: Trend
In Offsite Stock - Delivery in 4 to 5 Days
£318.14 Inc. VAT
£265.11 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Please call to check stock availability for larger quantities
Qty
Trend

Trend Routing Workshop Jigs
Ellipse Jig Type A
Ref: ELLIPSEJ/A



Key Features

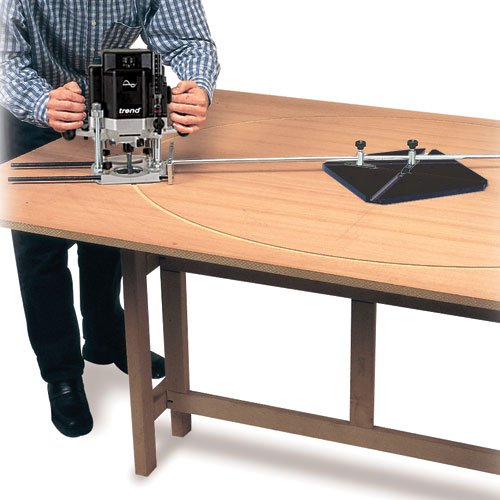

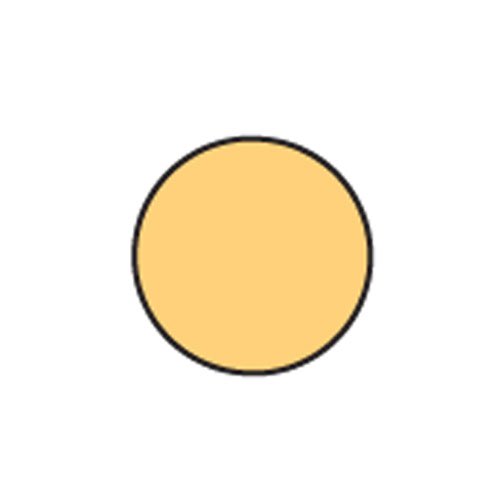

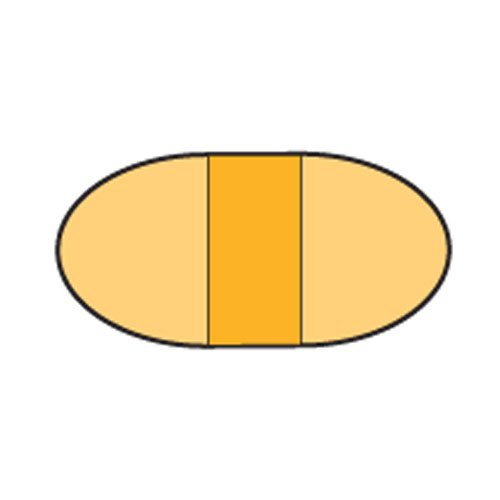

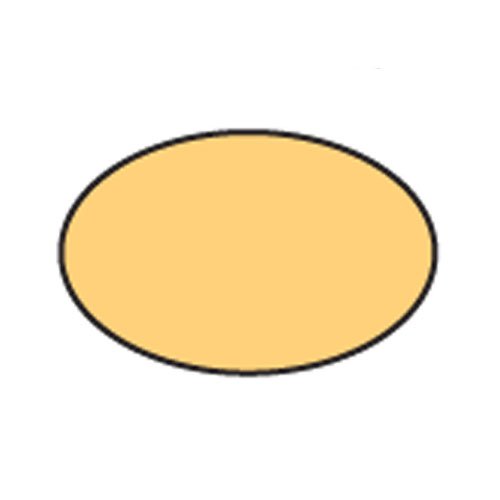

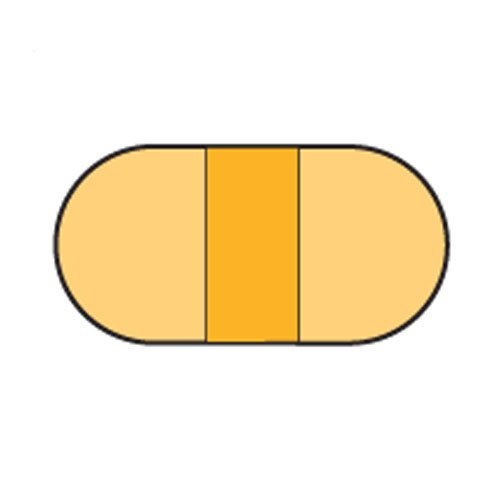

  • Designed to enable virtually any router to cut ellipses and circles.

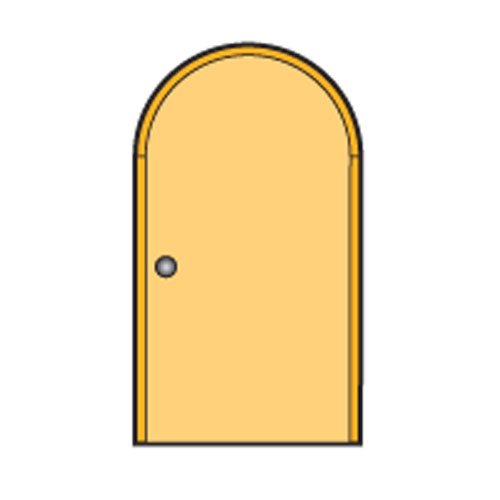

  • Useds for corner tables, arches, desks and mirrors.
  • Setting-up and operating is simple and effective, as proven by existing industrial users.
  • A connector plate on the end of the bar fits directly onto the fence rods of Trend routers. For the fixing of other makes of routers, an accessory adaptor base plate is required.
  • By using one slide, the jig can be adapted for cutting circles.
  • With additional extension bars, larger ellipses and circles can be cut.
  • Router not included.
  • To produce max 72" x 66" ellipse the extension rod EllipseJ/1 is required

It is recommended that you trial this jig on a scrap sample first with a smaller ellipse to understand the way in which the jig operates and handles. Tip - Allow the jig to move naturally, do not force it or rush it during cutting.



Items included

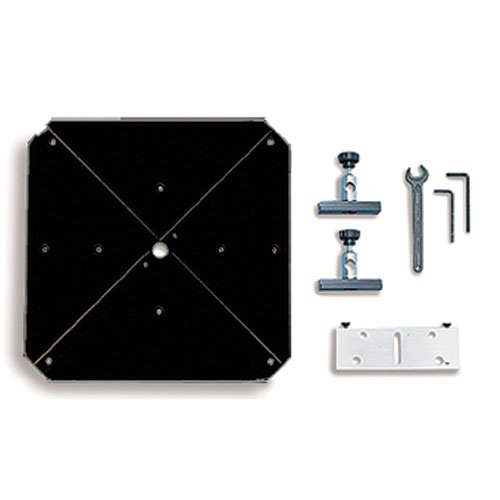

  • 1 x Cross Frame Nylon
  • 2 x Sliders

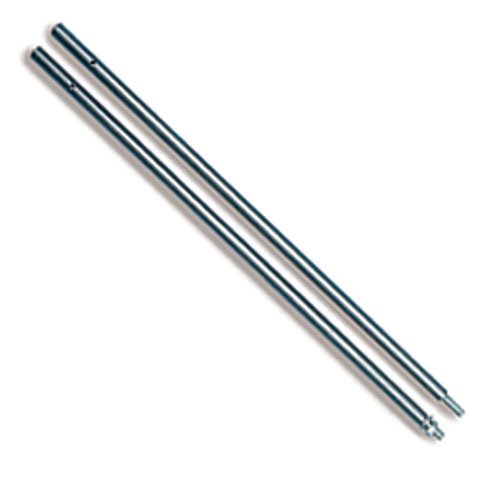

  • 2 x 500mm Bars
  • 1 x Connector Plate



Specification

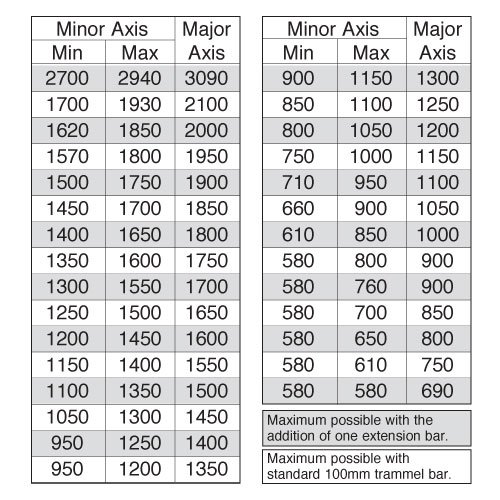

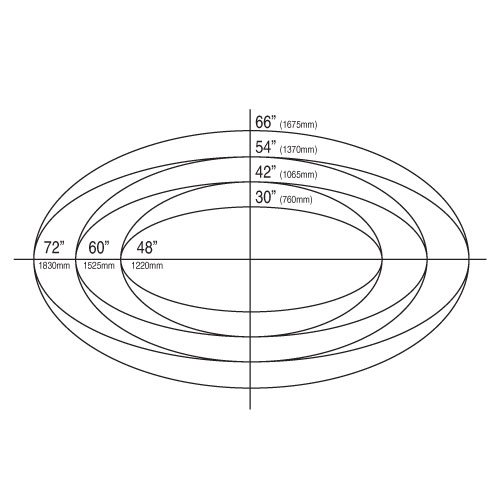

  • Ellipse major axis: 1800 mm
  • Ellipse minor axis max:1650 mm
  • Ellipse minor axis min: 1400 mm
  • Ellipse major axis: 1500 mm
  • Ellipse minor axis max: 1350 mm
  • Ellipse minor axis min: 1100 mm
  • Ellipse major axis: 1200 mm
  • Ellipse minor axis max: 1050 mm
  • Ellipse minor axis min: 800 mm



User Instructions







Optional Accessories:

Description

Product Reference
1. Extra extension bar - 500mm long for extra large ellipses and circles - 1 single bar supllied ELLIPSEJ/1
2. Adapter base plate
For non-Trend routers (user drilled) GB/PLATE
For non-Trend routers (drilled to suit, please state name and model) GB/PLATE/S
