TREND CNC/ROT/1 CNC ROTARY CARVER MACHINE 6.35MM 24

X
Product Code: TRE/CNC/ROT/1
Brand: Trend
Low Stock - Please Call For Availability
Was £5,883.36 Inc. VAT
Now £4,674.00!
£3,895.00 Exc. VAT
✗ COLLECTION
✗ DELIVERY
Please call to check stock availability for larger quantities
Qty
Trend



Trend CNC Mini Machine

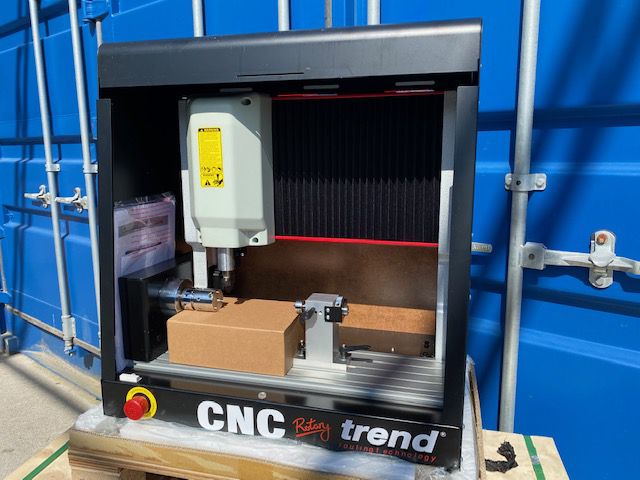

CNC Rotary Carver Machine 6.35mm 240V - UK sale only
Ref: CNC/ROT/1

NEW, BOXED and UNUSED
ONE ONLY AT THIS PRICE

Key Features:

  • Desktop cylinder CNC router is for small woodworking priojects, ornament and tiny furniture.
  • Maximum component diameter of 200mm with working length of 300mm.
  • Brushless 150 watt DS motor for low noise and longer life expectancy with belt-driven head.
  • Desktop model with micro switch fully guarded safety dust cover for safe operation making it ideal for education.
  • Use on hardwoods, softwoods, exotic woods and many synthetic materials such as acrylic, and ABS, foam, modelling wax, styrene and epoxy board.
  • Endless possibilities in what you can create: use images from digital photos, CAD drawings, computer generated art programs, scanned images and more.
  • Ideal for education, small workshop and home use.
  • Includes a simple, straight forward common platform software package.
  • Works with any PC computer running Windows XP up to Windows 10.
  • For UK sale only.



Items included

  • 1 x USB 2.0 cable
  • 1 x Bravo Edit software disk
  • 1 x USB controller
  • 1 x Collet extension kit with 4mm and 1/4" collet
  • 1 x Conical radius carving cutter R0.5mm STC
  • 1 x End mill cutter two flute 3.96mm STC
  • 1 x Spike chuck
  • 1 x Four jaw chuck
  • 1 x Hex key 2.5mm A/F
  • 1 x Instruction manual



Online Video




Specification

  • For UK sale only.
  • Voltage: 240 volt
  • Table load weight max.: 5 kg
  • Max. working length:300 mm
  • Max. component dia.: 200 mm
  • Fixed thimble clamp dia.: 200 mm
  • Jaw chuck inner clamp dia.: 2 mm to 16 mm
  • Jaw chuck inner clamp dia: 25 mm to 60 mm
  • Jaw chuck outer clamp dia.:22 mm to 55 mm
  • Max. engraving speed: 2500 mm/min
  • Min. engraving speed: 40 mm/min
  • Repositional accuracy: 0.1 mm
  • Resolution software: 0.02 mm (0.001 inch)
  • Power supply input: 220-240V
  • Power supply output; DC 24V 6.5A
  • Spindle motor: 150 watt DC
  • Power consumption: 2.0A
  • Collet capacity max.: 1/4-inch
  • Operating noise level: 39.6 dB(A) standby
  • No loading operation noise: <66 dB(A)
  • Spindle speed: 0-17000 rpm
  • Interface: USB 2.0
  • System requirements; PC running Windows XP up to Windows 10
  • Machine size depth: 366 mm
  • Machine size width ;635 mm
  • Machine size height ;610 mm
  • Weight: 42 kg
