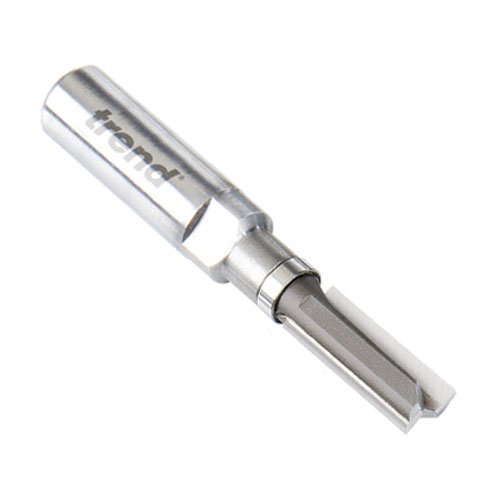

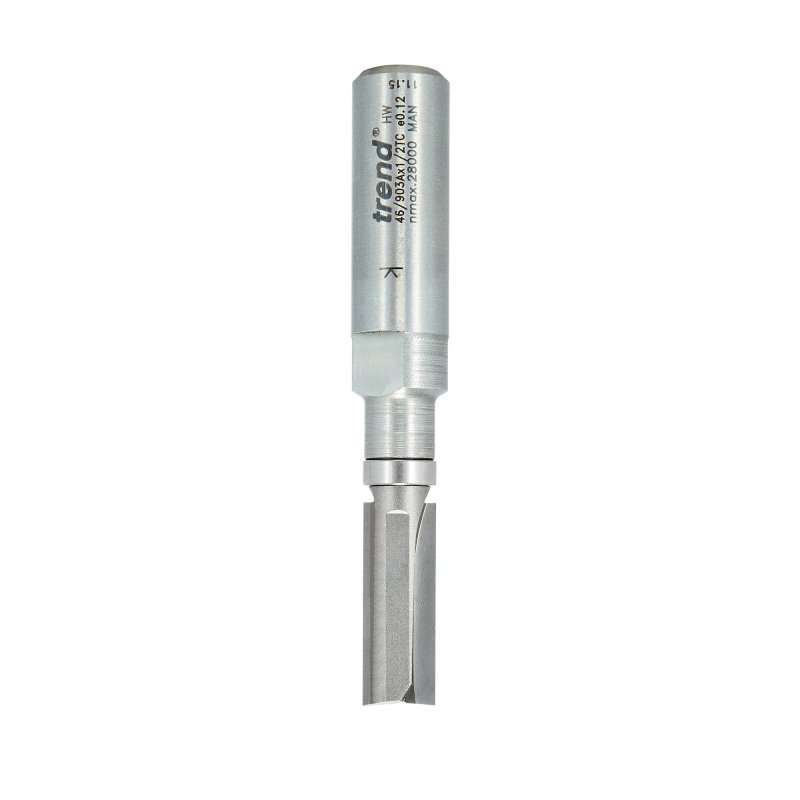

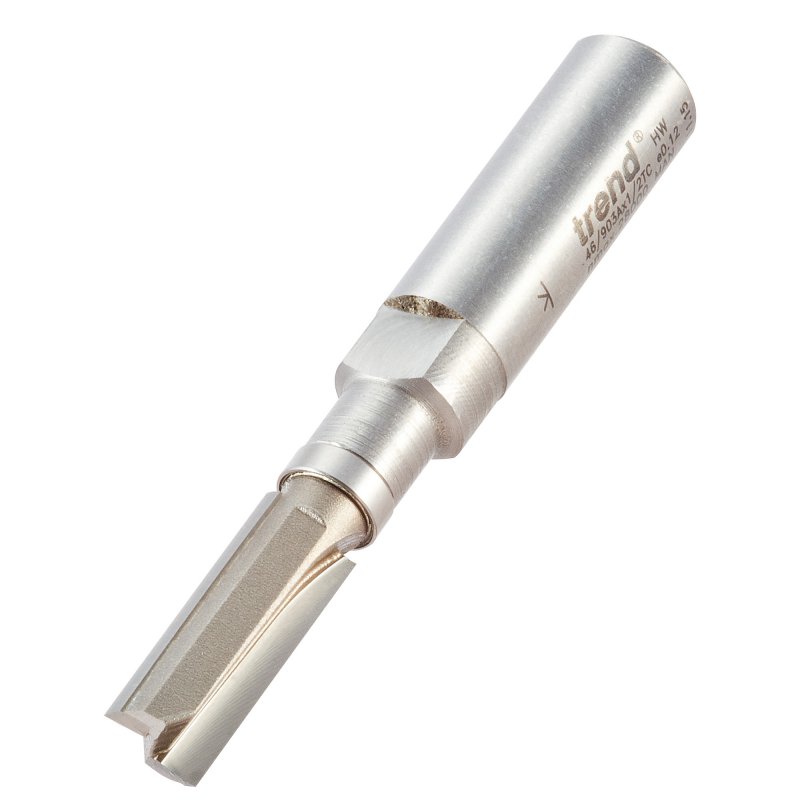

TREND 46/903AX1/2TC GUIDED PROFILER 9.5MM X 25MM CUT

Trend Professional Template Profilers
46/903AX1/2TC - Guided Profiler
9.5mm Diameter x 25mm Cut x 1/2" Shank

• Profiler with shank mounted bearing guides
• For use with router mounted above or below a table when following a template
• For profiling and rebating applications only
• Not for plunge cutting/grooving
• A 3mm maximum overlap should be left before trimming
• They are ideal for template making

• D: 3/8 inches (imperial diameter)
• D: 9.5 mm (metric diameter)
• C: 1 inch (imperial cut length)
• C: 25 mm (metric cut length)
• B; 9.5 mm (metric bearing diameter)
• A: 90 degrees (angle)
• Neck height relief: 7 mm to bearing
• Max. template thickness: 12 mm
• OL: 82 mm (overall length)
• Shank Diameter: 1/2 inch
