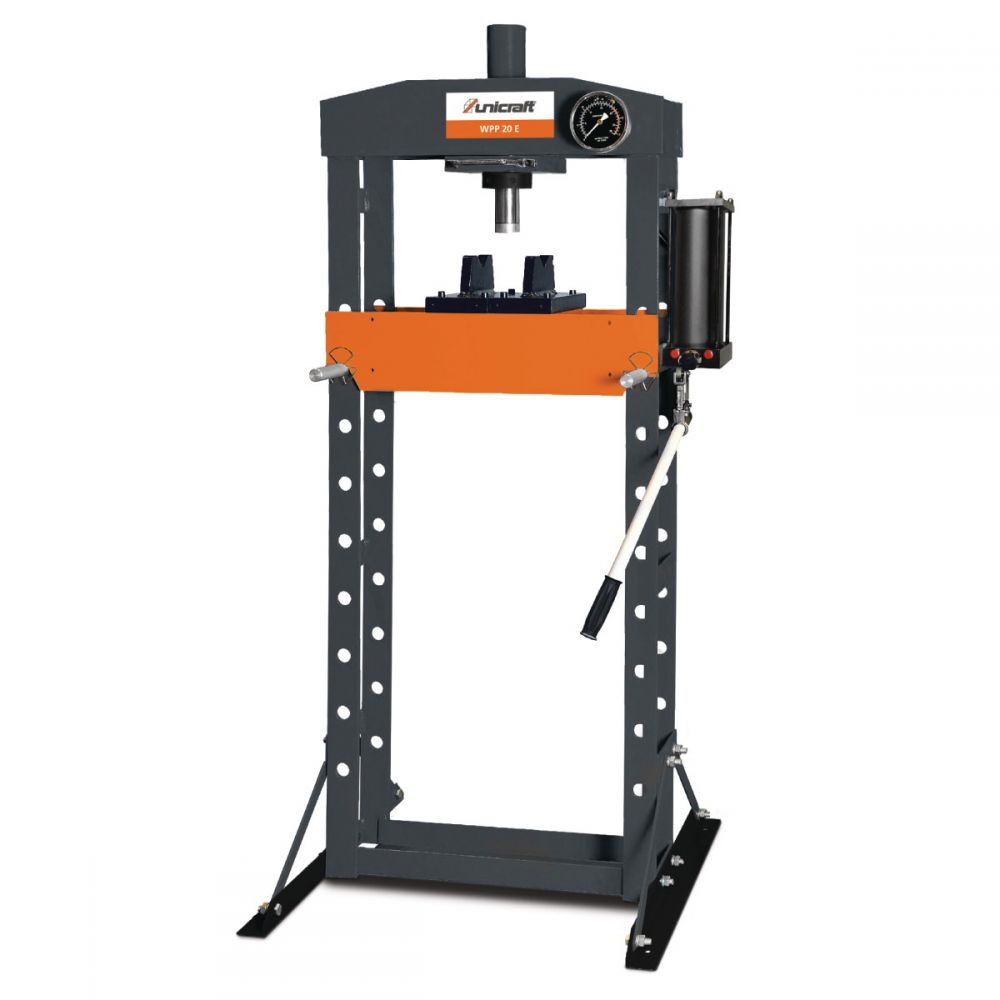

Sturmer Unicraft WPP 20 E Hydraulic Workshop Press

Sturmer Unicraft WPP 20 E Hydraulic Workshop Press

ref: 6300020

• WPP 20 E Hydraulic workshop press + 20T capacity + integrated return spring + 186mm piston stroke + pressure gauge
• Ideal for versatile use in crafts and repairs in schools, training workshops, garages, workshops, agriculture, forestry and horticulture
• Press cylinder with integrated return spring
• Display of the pressure via pressure gauge

• Pressure force: 20 t
• Piston stroke: 186.5 mm
• Piston travel: 176 mm
• VPE: 1

Dimensions and weights

• Diameter piston rod: 48 mm
• Clear width: 510 mm
• Clear height min.: 38.5 mm
• Clear height max.: 918.5 mm
• Hole spacing for table height adjustment: 110 mm
• Frame depth: 132 mm
• Width/depth of machine feet: 560 mm
• Length approx.: 730 mm
• Width/depth approx.: 560 mm
• Height approx.: 1625 mm
• Weight approx.: 105 kg
