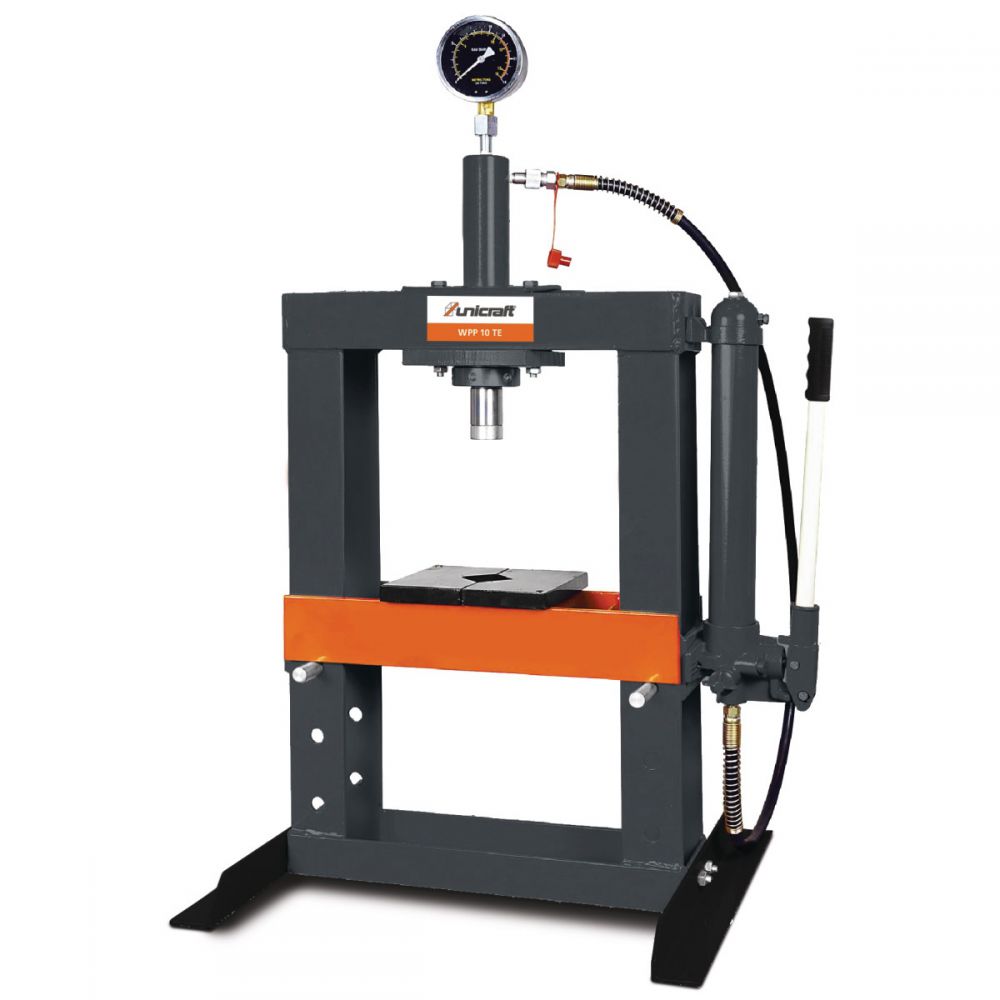

Sturmer Unicraft WPP 10 TE Hydraulic Workshop Press

Sturmer Unicraft WPP 10 TE Hydraulic Workshop Press

ref: 6300011

• WPP 10TE Hydraulic workshop press + 10T capacity + integrated return spring + 175mm piston stroke + pressure gauge
• Ideal for versatile use in crafts and repairs in schools, training workshops, garages, workshops, agriculture, forestry and horticulture
• Press cylinder with integrated return spring
• Display of the pressure via pressure gauge

• Pressure force: 10 t
• Piston stroke: 175 mm
• VPE: 1

Dimensions and weights

• Diameter piston rod: 40 mm
• Clear width: 340 mm
• Clear height min.: 194 mm
• Clear height max.: 364 mm
• Hole spacing for table height adjustment: 85 mm
• Frame depth: 110 mm
• Width/depth of machine feet: 495 mm
• Length approx.: 570 mm
• Width/depth approx.: 495 mm
• Height approx.: 1058 mm
• Weight approx.: 54.7 kg
