Sturmer Unicraft MES 250-2 Mini Electric Cable Hoist 125/250kg Lift Capacity 230v

X
Product Code: STU/6198225
Brand: Stuermer
Stock Available
Delivery typically 3-4 days
£143.99 Inc. VAT
£119.99 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Qty
Stuermer

Sturmer Unicraft

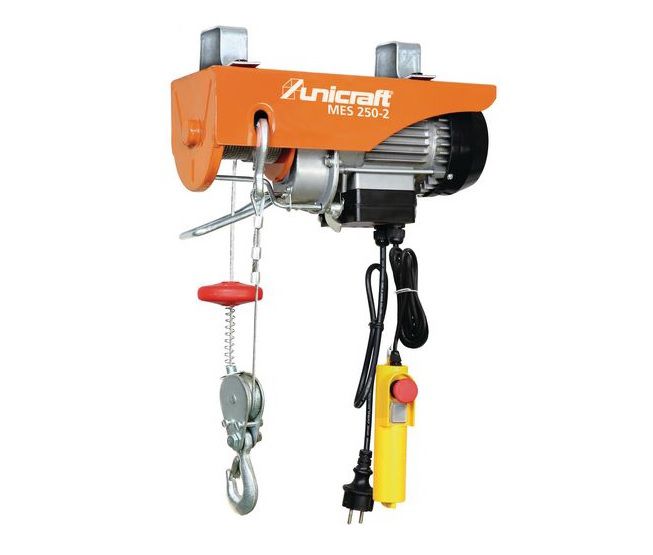

MES 250-2 Mini Electric Cable Hoist 125/250kg Lift Capacity 230v

ref: 6198225



Key Features

  • MES 250-2 Mini lifting cable + 125/250 kg lift capacity + emergency stop switch + twin sturdy clamps for fastening + 500W motor 230v
  • With deadman switch
  • Emergency stop switch for safe working
  • Lifting height without/with deflection pulley 12 m/6 m
  • Pulley with load hook
  • With two sturdy double clamps for fastening
  • Control switch insulated according to IP54
  • Limit switch for immediate shutdown in upper and lower end position
  • Note: The standard version of the electric wire rope hoist is equipped with a special clamp mounting system with a special profile for mounting on edge tubes. Accessories are required for mounting on round tubes.



Technical details

  • Control unit cable length: 1,5 m
  • Lifting force without deflection pulley: 125 kg
  • Lifting force with deflection pulley: 250 kg
  • Stroke without deflection pulley: 12 m
  • Stroke with deflection pulley: 6 m
  • Max. lifting speed without deflection pulley: 8 m/min
  • Max. lifting speed with deflection pulley: 4 m/min
  • VPE: 1

Dimensions and weights

  • Cable diameter: 3.0 mm
  • Inside dimensions of fastening clamps: 46 x 46 mm
  • Weight approx.: 11 kg

Drive output

  • Main motor: 500 W

Electrical Data

  • Degree of protection: IP 54
  • Supply voltage: 230 V
  • Mains frequency: 50 Hz
