Sturmer Unicraft ESW 500 Electric Winch Hoist - 500kg Max Lift 230v
Product Code: STU/6199500
Brand: Sturmer
Low Stock - Please Call For Availability
£419.99 Inc. VAT
£349.99 Exc. VAT
✗ COLLECTION
DELIVERY
Please call to check stock availability for larger quantities
Sturmer Unicraft

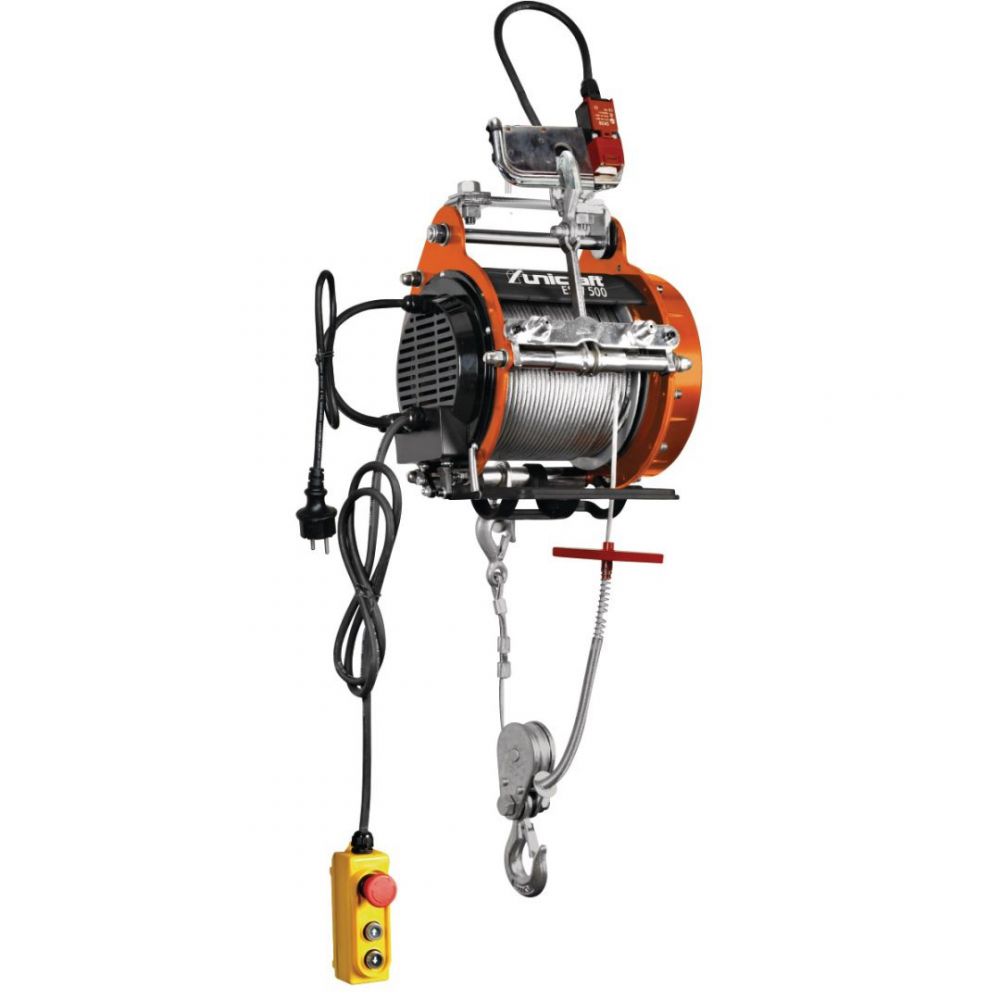

ESW 500 Electric Winch Hoist - 500kg Max Lift 230v
ref: 6199500
Key Features
- Unique, automatic cable guidance prevents dirt and crushing and thus increases the service life of the steel cable
- New storage increases the life of the engine
- With quick coupling for immediate use without complex assembly
- By a pulley doubled the lifting power
Technical details
- Control unit cable length: 5 m
- Lifting force without deflection pulley: 250 kg
- Lifting force with deflection pulley: 500 kg
- Stroke without deflection pulley: 30 m
- Stroke with deflection pulley: 15 m
- Max. lifting speed without deflection pulley: 8 m/min
- Max. lifting speed with deflection pulley: 4 m/min
- VPE: 1
Dimensions and weights
- Cable diameter: 4 mm
- Length approx.: 310 mm
- Width/depth approx.: 330 mm
- Height approx.: 440 mm
- Weight approx.: 30 kg
Electrical Data
- Main motor: 1 kW
- Supply voltage: 230 V
- Mains frequency: 50 Hz
